Case 430/440 Skid Steer & 440CT Compact Track Loader Repair Manual, 2005–2007 (P/N Bur 87634767)
976 Pages • 1 Printable PDF (English) • Download
Case Models Covered & Key Technical Specifications
Models: 430, 440, 440CT
Sub-models / Variants: Skid Steer Loader, Compact Track Loader, Mechanical Control Machines, Pilot Control Machines, Tier 3
Model Years: 2005–2007 (2005, 2006, 2007)
-
Fuel tank capacity (430/440): 83.3 litres (22 U.S. gallons)
-
Fuel tank capacity (Tier 3 models): 88.2 litres (23.3 U.S. gallons)
-
Cooling system capacity: 17 litres (standard); 11.4 litres (430/440/440CT Tier 3, North American and European machines)
-
Hydraulic system total capacity: 50.2 litres
-
Engine oil capacity (with filter): 8.5 to 12 litres depending on model and engine tier
-
Diesel fuel specification: API Gravity 34 minimum, No. 2 diesel
Case Manual Features & Selected Content Preview

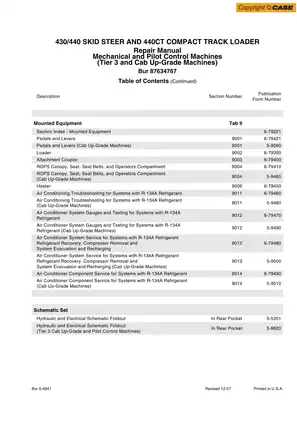

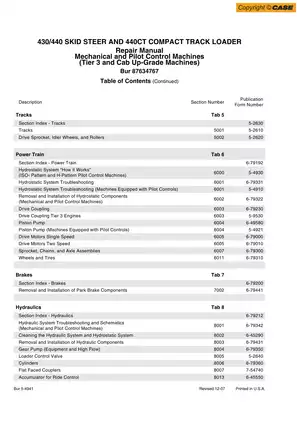

This factory repair manual covers Case 430 and 440 skid steer loaders and the 440CT compact track loader with mechanical or pilot controls, including Tier 3 and Cab Up-Grade configurations. P/N Bur 87634767 identifies the manual; its contents pages were issued in January 2007 and revised in December 2007.
Searchable Text and Full-Size Schematic Sheets
Search and diagram detail: PDF text search is available across the repair sections and schematic sheets. Embedded bookmarks lead to the schematic sets; the repair chapters are not bookmarked. Small wire, pin, and connector labels on the full-size sheets require zooming.

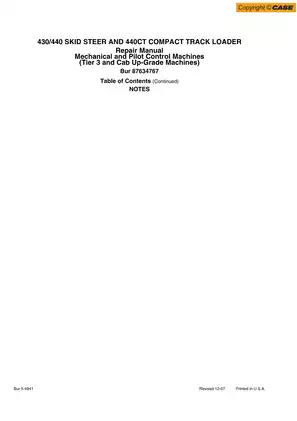

One printable English PDF contains 976 pages total: 968 standard-format pages, including contents and notes pages, plus eight full-size electrical and hydraulic schematic sheets. The schematic sheets are already included in the total.
Hydrostatic Drive, Loader Systems, and Chassis Repair
These selected contents highlight the manual’s repair coverage rather than reproduce its full table of contents. Further topics include battery charging and wheel-and-tire service.
-
Engine and cooling systems: Radiator and engine removal and installation, with separate procedures for the 430 Tier 3 and 440/440CT Tier 3 layouts.
-
Hydrostatic power train: ISO-pattern and H-pattern pilot travel operation, fault isolation, charge-pressure/flow and circuit-relief testing, plus pump and drive-motor service.
-
Driveline and tracks: Tier 3 drive couplings, single- and two-speed drive motors, drive chains, axle assemblies, spring-applied/hydraulically released park brakes, and 440CT undercarriage work.
-
Loader hydraulics: Equipment and optional high-flow pump service, loader-control-valve and cylinder repair, pressure and flowmeter testing, and hydraulic/hydrostatic contamination cleanup.
-
Controls and mounted equipment: Loader-function and neutral adjustment, pilot-control-valve replacement, loader-frame inspection, mechanical and hydraulic attachment couplers, and ROPS/cab service.
-
Electrical diagnosis: Model-specific fault charts, fuse and relay layouts, circuit readings, connector-cavity data, Electronic Instrument Cluster setup and troubleshooting, and battery/starter tests.
-
Climate control: R-134a diagnosis, gauge testing, refrigerant recovery, evacuation/recharge, compressor removal and installation, clutch repair, and evaporator/condenser service.
Its teardown, pressure-testing, electrical pin-check, and refrigerant-service content is suited to experienced technicians and properly equipped repair shops.
Engine Repair Scope
Separate engine manuals required: Internal engine and fuel-system repair is outside this volume. Those jobs are referred to Engine Service Manual 6-74500, Tier 3 Engine Repair Manual 87693888 for the 430, and 87630273 for the 440/440CT. These referenced manuals are not included.
Hydrostatic Diagnosis and Component Overhaul
Pilot-machine procedures add DA-pressure checks and pump adjustments for machine creep and servo centering. The diagnostic checks help distinguish control or pressure-supply problems from internal pump and drive-motor faults before component removal.
Step-by-step piston-pump procedures cover teardown, inspection, and reassembly, including rotary groups and control components. Separate instructions address tandem-pump and hydraulic-motor removal and installation.
The 440CT sections cover rubber-track removal and tensioning, drive sprockets, idlers, rollers, and final-drive motor removal. For axle reassembly, an unsupported axle can drop between press-fit stages and damage the outer seal.
Hydraulic Components and Control Adjustments
Gear-pump procedures include disassembly, inspection, and reassembly. Other component sections cover loader-control-valve seal replacement, lift and bucket cylinders, flat-face couplers, and ride-control accumulator inspection and nitrogen charging.
Contamination left in the closed hydrostatic loop can damage pumps and motors; the cleaning chapter addresses the components, hoses, tubes, and fittings involved.
Control-adjustment coverage includes pump-shim setup, dynamic straight tracking, throttle and seat-bar adjustments, and auxiliary-pedal settings. Mounted-equipment sections also address cutting-edge replacement and the differences in Cab Up-Grade operator-compartment components.
Configuration-Specific Schematics
The full-size sheets belong to schematic-set part numbers 5-5351 and 5-9620. References include the 430 Tier 3/Cab Up-Grade electrical schematic, the 440/440CT Tier 3/Cab Up-Grade electrical schematic, starter-relay and instrument-cluster connector tables, and the 3-Spool Loader Control Valve schematic.
Dedicated hydraulic frames distinguish mechanical, ISO-pattern pilot, and H-pattern pilot machines. Optional two-speed travel, high flow, hydraulic coupler, secondary auxiliary, self-level, ride-control, heater/HVAC, lighting, and interlock circuits are shown within their respective systems.
Electrical Tests and A/C Service
Starter coverage extends beyond circuit checks to disassembly, brush and armature inspection, field-coil testing, reassembly, and solenoid testing.
The climate-control chapters distinguish the original and Cab Up-Grade systems. Pressure-temperature charts support gauge diagnosis; component procedures address the compressor clutch, evaporator, expansion valve, condenser, receiver-drier, and heater components.
Workshop References and Equipment

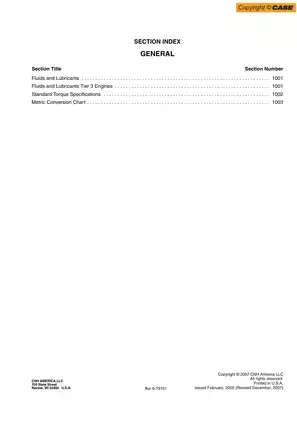

The general section provides separate standard and Tier 3 fluid/lubricant tables, standard fastener and hydraulic-fitting torques, and metric conversions. Component chapters add pressure/flow specifications, check sheets, pump and drive-motor inspection data, chain and track adjustment specifications, electrical test values, and refrigerant-charge information.
Factory tool callouts include the OEM-1239/CAS-10280 flowmeter, CAS-1804 pressure test kit, CAS-10899 accumulator charging kit, CAS-1456 gland wrench, and OEM-1418 refrigerant recovery/recharging station.
Before working beneath raised lift arms or opening hydraulic or A/C circuits, engage the specified loader support, relieve stored pressure, and use the required recovery and test equipment.
Selected Loader-Valve and Track-Adjustment Data
The Husco three-spool loader-control-valve specifications list a main relief pressure of 20,700 ± 345 kPa (3,000 ± 50 psi), alongside separate port-relief settings.
For the 440CT rubber-track adjustment, the specified clearance is 12–19 mm (0.47–0.75 inches), measured from the bottom of the center roller to the top surface of the track with the machine securely supported and the tracks clear of the ground.
