Yamaha V-Star 1100 Classic 2001–2005 Service & Owner’s Manual Set (P/N LIT-11616-12-63)

Yamaha directs technicians to use the supplement with the base service manual. The supplement supplies model-specific changes, and the separate owner’s manual covers operation and routine maintenance for the models listed on its cover.

Service coverage: Match the V-Star 1100 model label to the applicable publication before selecting a repair procedure. The full U.S./Canada wiring diagram applies to the base service models. The supplied supplement skips printed page 1 (General Specifications) and printed page 13 (cable routing).

PDF Text Search, Bookmarks, and Wiring Detail

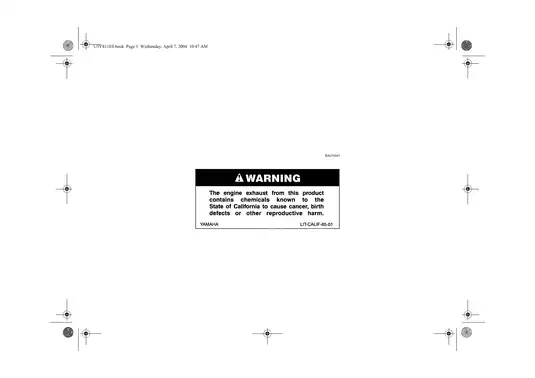

Search and diagram detail: Both PDFs have chapter bookmarks and searchable main text. Some safety labels and the warranty text in the owner’s PDF are image-based. Small wire-color codes and connector markings in the service diagrams are readable at higher zoom.

The ZIP contains two printable PDFs totaling 492 pages. The base manual and supplement share one PDF, and the owner’s manual is a separate PDF. The total includes six cover pages, three repeated pages and one blank page in the supplement, and two supplementary pages in the owner’s manual.

V-Twin Repair, Shaft Drive, and Electrical Diagnosis

The highlights below show a selection of the procedures. Other examples include exhaust-system inspection and control-cable lubrication.

• Engine repair: Step-by-step procedures cover engine removal, cylinder heads and valve train, pistons and cylinders, timing gears, crankshaft and connecting rods, and oil pump service.

• Clutch and drivetrain: Clutch, transmission, and middle-gear disassembly and inspection, plus shaft-drive troubleshooting, final-drive disassembly, and ring-gear backlash adjustment.

• Carburetion and emissions: Carburetor removal, inspection, and assembly, along with fuel-level setting, synchronization, throttle-position sensor adjustment, and air-induction system checks.

• Brakes and chassis: Wheel and brake-disc inspection, hydraulic brake bleeding, master-cylinder and caliper service, front-fork overhaul, steering-head service, and rear shock and swingarm work.

• Electrical diagnosis: Ignition, starting, charging, lighting, and signal tests, plus fuel-pump and carburetor-heater diagnosis, California evaporative-emission solenoid checks, and self-diagnosis.

• Owner operation and maintenance: Riding controls, pre-ride inspections, scheduled maintenance and minor repair, motorcycle care and storage, and a no-start troubleshooting chart.

Yamaha wrote the service publications primarily for its dealers and qualified mechanics. Brake, steering, shaft-drive, engine, and electrical repairs call for suitable support equipment, measuring tools, and service experience.

Workshop References and Repair Cautions

Exploded views and job charts identify the parts involved in removal and disassembly. Component torque tables, wear and clearance limits, lubrication diagrams, and cable-routing views give technicians references for inspection and reassembly.

The special-tool references identify the carburetor synchronization vacuum gauge (YU-08030-A / 90890-03094), clutch holding tool (YM-91042 / 90890-04086), and fork-seal driver weight and adapter (YM-33963 / 90890-01367 and YM-33968 / 90890-01381).

Hammering the universal-joint drive yoke can distort the middle gear’s collapsible collar and change spinning torque. Overtightening the driven-pinion nut calls for collar replacement and backlash readjustment. The fork troubleshooting section identifies inner-tube damage and an incorrectly installed oil seal as possible causes of leakage.

Supplement Changes and Electrical Fault Tracing

The supplement adds service details for fuel-tank and seat removal, rear brake and shift-pedal adjustment, tire checks, and headlight aim. It also covers front brake pads and calipers, the rear master cylinder, the front fork, and the steering head.

The base manual’s wiring diagram pairs a component index with a wire-color key. The starting and fuel-pump circuit diagrams help trace a no-start fault through the relevant switches, relay, and wiring. The self-diagnosis chart links warning-light patterns to throttle-position and speed-sensor faults.

Riding Controls and Routine Owner Care

The owner’s manual explains the speedometer, fuel controls, rear shock preload, and ignition cut-off checks. It also covers cold and warm starting, shifting, break-in, and parking.

Maintenance charts cover emissions and lubrication. Owner checks include engine and final-gear oil, brakes, tires, battery, fuses, and lamp replacement. The troubleshooting chart helps narrow a no-start complaint through fuel, compression, ignition, and battery checks.

Sample Valve, Fork, and Final-Drive Specifications

The XVS1100L/XVS1100LC base manual gives cold valve clearances of 0.07–0.12 mm at the intake and 0.12–0.17 mm at the exhaust. Its final-drive inspection specifies 0.1–0.2 mm (0.004–0.008 in) of ring-gear backlash for the dial-gauge check.

The XVS1100AM/XVS1100AMC supplement specifies a fork-oil level of 108 mm (4.25 in) below the top of the inner tube, with the fork upright, the inner tube fully compressed, and the spring removed.
