1999–2005 Yamaha XVS1100 V-Star Service Manual with Supplements (P/N LIT-11616-19-82)

This PDF brings together Yamaha's 1999–2005 XVS1100 V-Star service documentation: the XVS1100L/XVS1100LC base manual (P/N LIT-11616-12-63) and supplementary manuals LIT-11616-19-82, LIT-11616-16-46, and LIT-11616-13-36. Coverage includes XVS1100AM/AMC, XVS1100AWR(C)/ATR(C), and later XVS11AWV/XVS11ATV variants, including California models such as XVS1100ASC.

Text search and diagram navigation: Most supplement text is searchable; the base manual and two supplement covers are not. Embedded bookmarks navigate all four publications. Small wiring labels require zooming.

• Engine repair: Cylinder heads, camshafts, valve clearance adjustment, piston and ring inspection, and crankshaft bearing selection.

• Clutch and transmission: Clutch disassembly, shift-fork inspection, transmission assembly, and starter-clutch service.

• Shaft drive: Middle-drive gear backlash adjustment, final-drive inspection, and shim selection.

• Fuel and emissions: Carburetor synchronization, throttle position sensor testing, fuel-cut solenoid diagnosis, and air-induction checks.

• Chassis service: Front fork teardowns, steering head bearing repacks, wheel bearing checks, brake bleeding, and complete caliper overhauls.

• Electrical diagnosis: Ignition coils, speed sensor, charging system, starting interlocks, and carburetor heater circuits.

Written primarily for Yamaha dealers and qualified mechanics, these manuals assume working knowledge of motorcycle repair and the specified service tools.

Engine, Clutch and Transmission Repair

The base manual covers engine removal and installation through cylinder-head work, crankcase separation, and crankshaft inspection. Valve-seat service and connecting-rod bearing selection are supported by wear limits, fitting clearances, and component-specific torque tables.

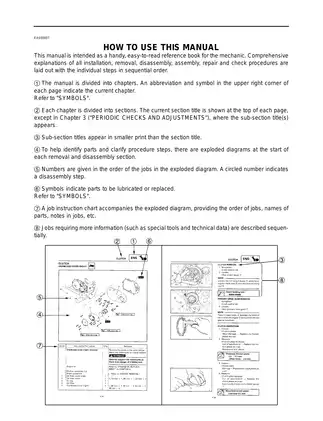

Clutch and transmission procedures extend to the shift drum and gear shafts. Lubrication diagrams trace oil delivery, while exploded views show the arrangement of components during disassembly and reassembly.

Middle Gear and Final Shaft Drive

Separate middle-gear and final-drive sections cover backlash measurement and shim selection. The shaft-drive troubleshooting chart connects noise, leakage, and bearing symptoms with the components that need inspection.

The middle-drive section explains how impact on the universal-joint yoke can deform the collapsible collar and change pinion spinning torque. Tool references include the middle-gear backlash band (YM-01231/90890-01231).

Carburetion, Emissions and Model Differences

Mikuni BSR37 carburetor procedures cover jets, diaphragms, fuel-level checks, and synchronization. The vacuum gauge is identified as YU-08030-A/90890-03094.

Model-code tables distinguish 5EL, 5KS, and 5YS configurations, including 5YS1, with variant-specific pilot and main jet settings. Periodic maintenance and lubrication charts include emission-control service; air-induction valve checks and California evaporative-emission components are covered alongside fuel-system repair.

Ignition, Starting and Electrical Diagnosis

Ignition-system circuit diagrams, the starting-circuit operation diagram, and fuel-pump circuit checks show how component tests relate to the wiring. Coil and fuel-pump relay resistance tables support electrical fault isolation.

The base manual's TPS and speed-sensor fault-code charts differ from the later supplement's expanded checks for ignition coils and fuel-cut solenoids. Keeping these charts with their model-specific diagrams helps avoid applying an early code interpretation to a later system.

Carburetor heater diagnostics include thermoswitch and circuit tests. Separate wiring information covers U.S. and California equipment, with TCI unit model numbers, battery voltage and capacity, and fuse ratings for the main, signaling, ignition, and backup circuits.

Forks, Steering and Brake Service

Chassis sections distinguish spoked, tube-type wheels from cast, tubeless configurations. Front fork procedures include bushing and seal inspection, with fork oil specifications assigned to the relevant model group.

Cable-routing diagrams show harness and hose placement around the steering head, helping identify pinch points during reassembly. Brake chapters cover master cylinders, calipers, disc inspection, and seal replacement; their reassembly cautions explain how solvents can swell or distort brake piston seals.

Before maintenance, follow the manual's safety precautions for supporting the motorcycle and servicing its brakes.

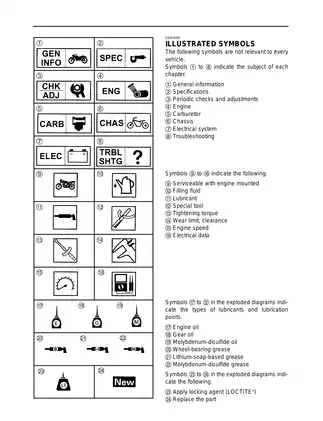

PDF Contents and Page Breakdown
