1999-2009 Yamaha V-Star 1100 Classic Service Manual

The 1999-2009 Yamaha V-Star 1100 Classic Service Manual covers engine, chassis, and electrical systems for comprehensive diagnostics and repair.

4.6starstarstarstarstar_half(5)
visibility Preview Available

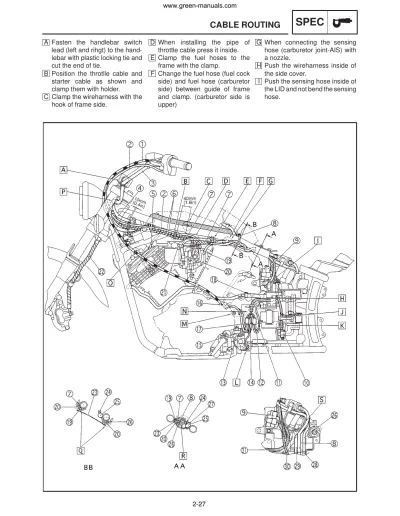

Yamaha 1999-2009 Yamaha V-Star 1100 Classic Service Manual manual page preview - page 1 of 508

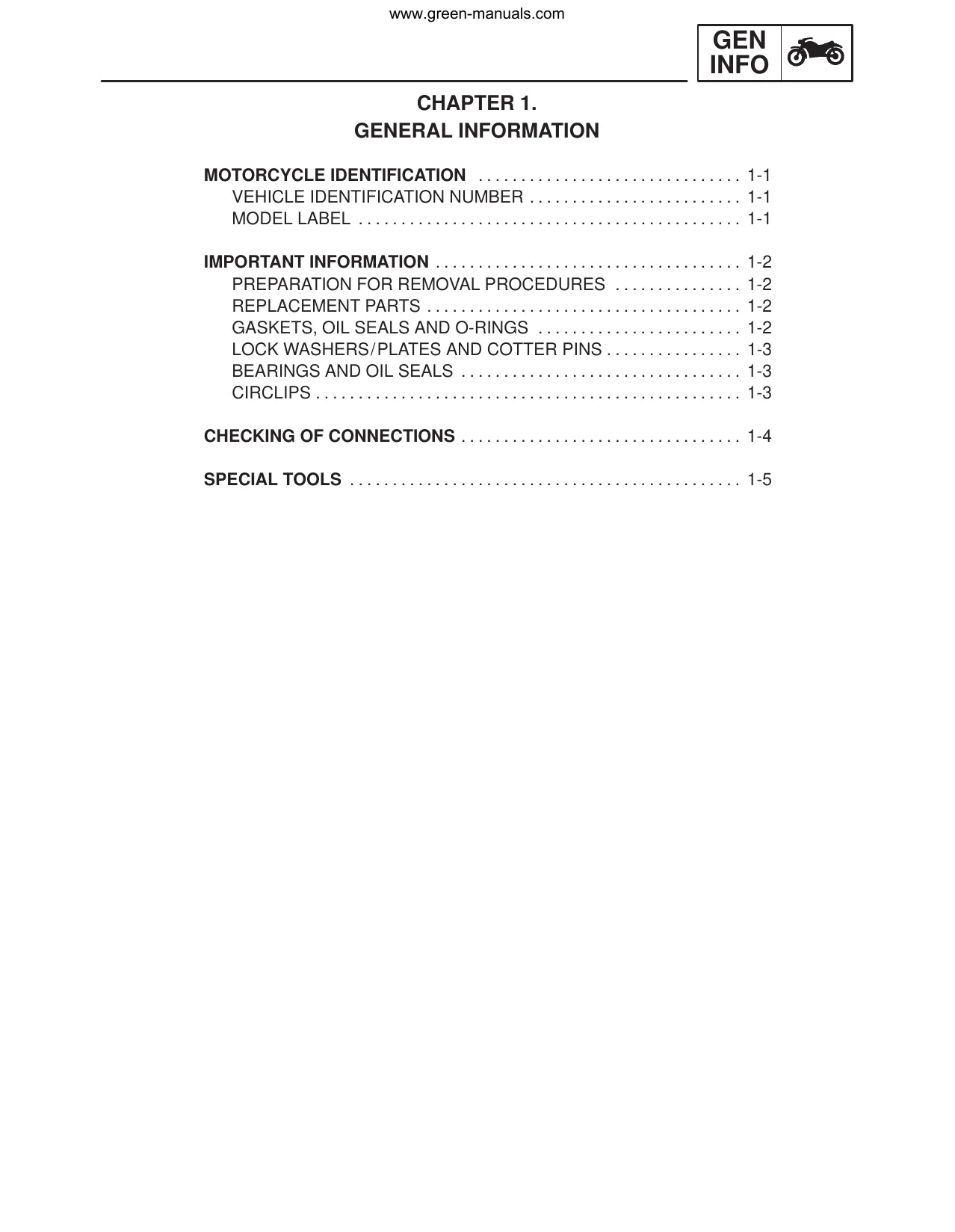

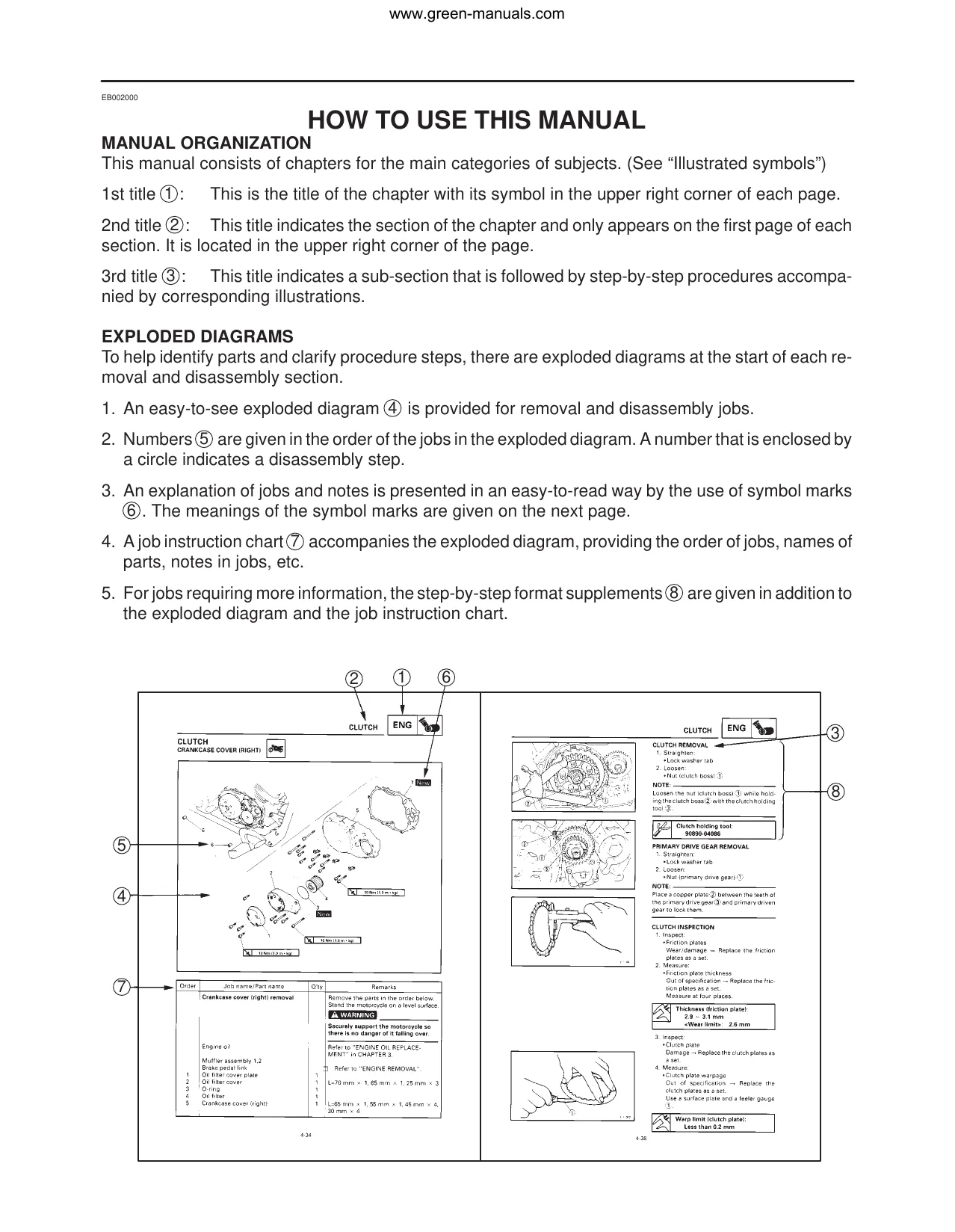

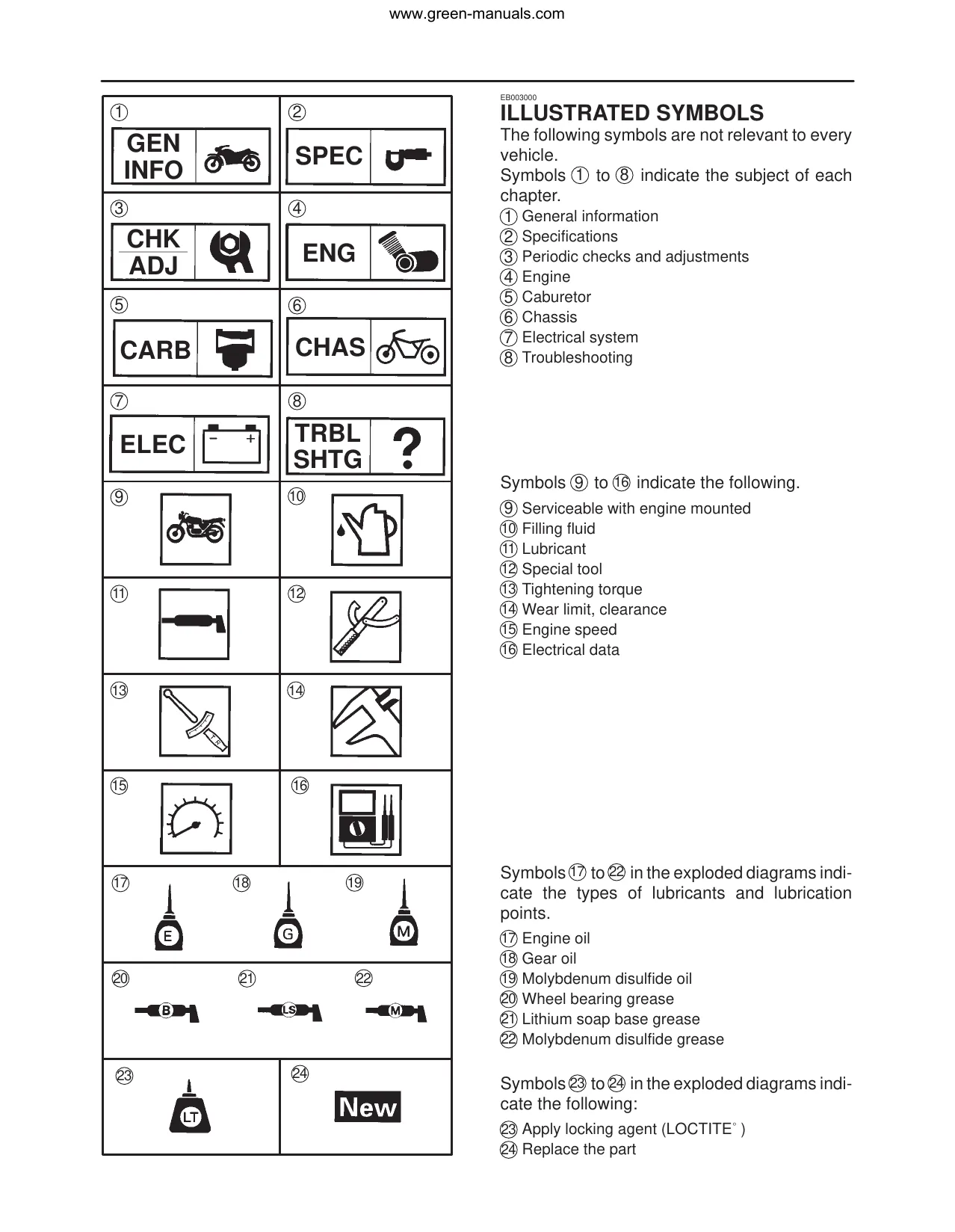

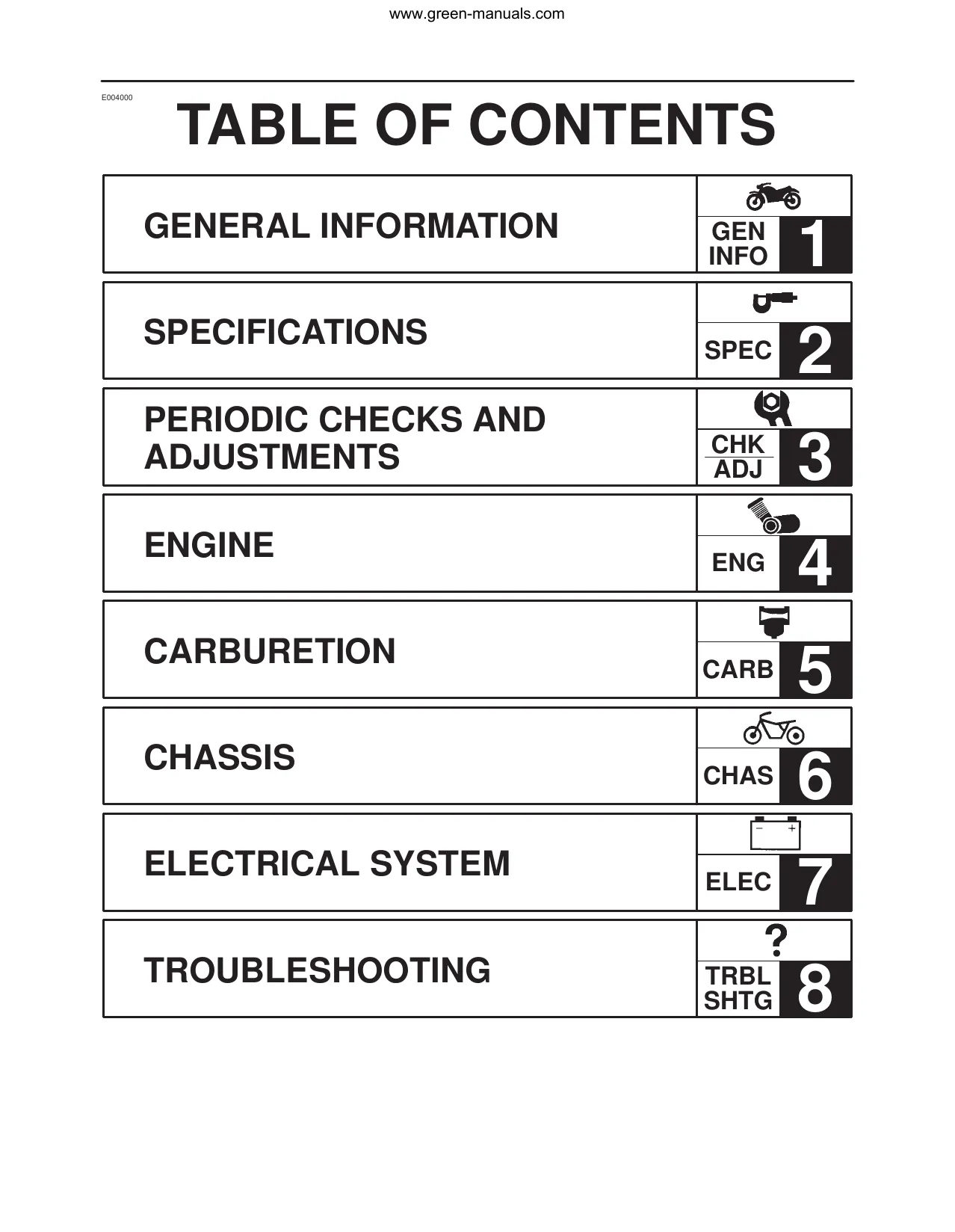

Sample pages from the 1999-2009 Yamaha V-Star 1100 Classic Service Manual manual

Yamaha 1999-2009 Yamaha V-Star 1100 Classic Service Manual manual preview page 4 - thumbnail
Yamaha 1999-2009 Yamaha V-Star 1100 Classic Service Manual manual preview page 5 - thumbnail
info_outline Click thumbnails to preview different pages
$18.49 (incl. VAT) Instant Download / No Shipping Fees
OR BUY NOW
verified_user
Lifetime Access
Re-download anytime
flash_on
Instant Download
Get it immediately
lock
Secure Payment
PayPal

Yamaha Models Covered & Key Technical Specifications

Models: Yamaha V-Star 1100 Classic (XVS1100)
Sub-models / Variants: 5EL5 (U.S.A.), 5EL6 (California), 5EL7 (Canada)
Build Years: 1999–2009
Technical Data:

  • Engine: Air-cooled 4-stroke, SOHC, V-type 2-cylinder
  • Engine displacement: 1.063 L
  • Compression ratio: 8.3:1
  • Compression pressure (STD): 1,000 kPa (142 psi) at 400 r/min
  • Transmission: Constant mesh 5-speed, shaft drive
  • Carburetor: BSR37/2 MIKUNI
  • Fuel type: Unleaded gasoline
  • Front brake: Dual disc brake, right-hand operation
  • Rear brake: Single disc brake, right-foot operation
Technical Specifications
keyboard_arrow_down
Document Number / Seller:
28994 / Peter Jackson
File Size:
23.14 MB
File Type:
PDF
Language:
English
Pages:
508
Printable:
Yes
Category:
Motorcycle
Last updated / verified
Jun 8, 2025

Yamaha Manual Features & Content Preview

Yamaha V-Star 1100 Classic 1999–2009 Service Manual

  • Covers 1999–2009 Yamaha V-Star 1100 Classic (XVS1100) models including 5EL5, 5EL6, and 5EL7 market variants
  • Third-party publication by Green Manuals, consistent with official OEM maintenance standards
  • Contains 508 pages of technical documentation, including exploded-view diagrams, electrical routing schematics, and torque specification tables
  • File link appears in your order confirmation straight away
  • OCR text layer lets you jump to a torque spec by keyword
  • Laid out for standard letter and A4 printing
  • This 508-page document provides the foundational maintenance framework for the entire V-Star 1100 Classic production run

Manual Organization and Content Scope

The 1999–2009 Yamaha V-Star 1100 Classic service manual documents foundational maintenance and disassembly procedures for the motorcycle. Chapters are organized by system, detailing the general information, specifications, periodic checks, and adjustments required for the air-cooled V-type 2-cylinder engine and the constant-mesh 5-speed shaft-drive transmission. The manual includes specific sections for fuel systems, chassis components, electrical subsystems, and troubleshooting strategies, providing the data necessary for engine overhauls and tune-ups.

Specification Highlights and Technical Data

This publication provides detailed engine, chassis, and electrical reference values. Cylinder head warp limits are specified at 0.03 mm (0.0012 in), while the standard cylinder bore size is listed as 95.00–95.01 mm. The 1999–2009 Yamaha V-Star 1100 Classic ignition system timing is set at 10° at 1,000 r/min. Intake valve clearance is documented at 0.07–0.12 mm in the maintenance table. The manual specifies 1,000 kPa (142 psi) for standard engine compression at 400 r/min. Final gear oil capacity is specified at 0.2 L (0.21 US qt) for the 1999–2009 Yamaha V-Star 1100 Classic shaft drive assembly. This service manual is intended for owners and technicians servicing the 1999–2009 Yamaha V-Star 1100 Classic, providing full technical documentation for the XVS1100 platform across all sub-model variants.

Document Reference: Third-party: Green Manuals — original OEM identity not confirmed

Manual FAQ, Purchase & Download Details

Are specific publication references or chapter indices included to help identify the scope of this Yamaha V-Star 1100 manual? keyboard_arrow_down

Document includes a detailed table of contents and a section on manual organization that outlines the chapter structure for major vehicle categories. It also provides an illustrated symbols guide to assist with navigation through the 508-page PDF.

Does the manual provide technical reference data for the electrical system including the ignition and generator? keyboard_arrow_down

Specifications chapter contains electrical system data such as battery type, ignition system specifications, and A.C. magneto information.

Can I find technical reference values and tightening specifications within the provided maintenance specification tables? keyboard_arrow_down

Maintenance specifications sections list standard and limit values for engine components including camshaft dimensions, valve clearances, and piston measurements. These tables serve as a reference for the technical parameters of the 1999-2009 V-Star 1100 series.

Is there coverage for the engine and chassis systems in this service manual? keyboard_arrow_down

Document contains dedicated chapters for engine, chassis, and carburetion systems, featuring exploded diagrams and specification tables relevant to these areas.
