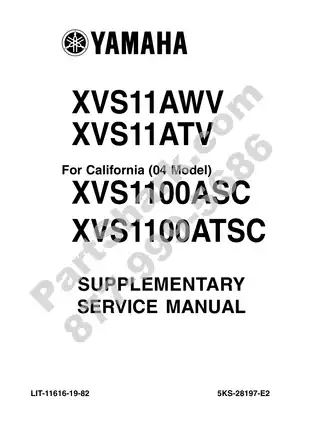

2000–2009 Yamaha V-Star 1100 / XVS11ATV, XVS11AWV Service Manual & Supplements (P/N LIT-11616-19-82)

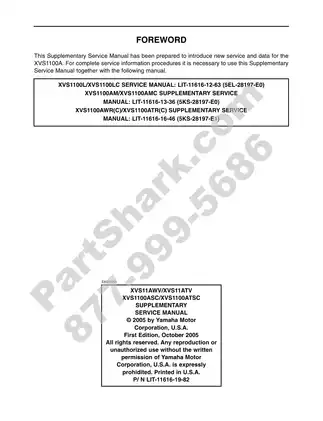

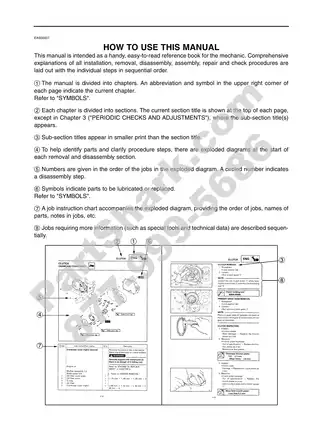

This Yamaha service manual collection for the listed 2000–2009 V-Star 1100/XVS1100 models combines base manual P/N LIT-11616-12-63 with supplements P/N LIT-11616-13-36, LIT-11616-16-46, and LIT-11616-19-82. The latest supplement is the first edition dated October 2005; US, California, and Canadian coverage varies by publication and model.

• Engine overhaul: Engine removal, cylinder head disassembly, valve and guide inspection, piston measurements, connecting rod bearing selection, and reassembly procedures.

• Clutch and shaft drive: Clutch servicing, transmission inspection, middle gear adjustment, and final drive disassembly with backlash checks and shim selection.

• Carburetion and emissions: Carburetor synchronization, fuel-level adjustment, throttle position sensor checks, fuel cut solenoid testing, and evaporative emission control inspections.

• Brakes and suspension: Front brake caliper rebuilds, rear brake master cylinder servicing, complete front fork leg overhauls, and steering head bearing work.

• Electrical diagnosis: TCI ignition tests, speed sensor checks, starting circuit cut-off relay diagnosis, starter motor servicing, and fuel pump troubleshooting.

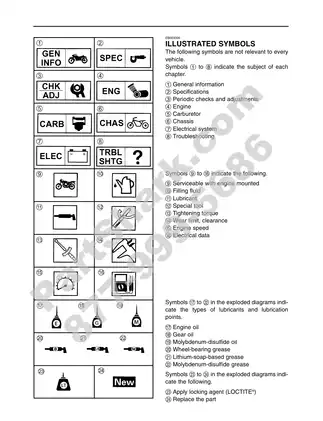

• Maintenance and reference drawings: Mileage- and time-based service charts, valve clearance checks, lubrication diagrams, cable routing, exploded views, and US/California and US/Canada wiring diagrams.

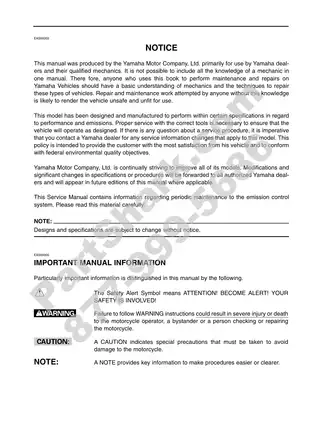

Yamaha prepared these publications primarily for its dealers and qualified mechanics; the procedures assume working knowledge of mechanical repair, suitable tools, and familiarity with service precautions.

Engine, Transmission and Shaft Drive

Internal engine work: Cylinder head and engine cover torque settings accompany the assembly drawings. Valve servicing extends to guide replacement and seat work, while the crankshaft section covers bearing clearance measurement and selection.

The connecting rod instructions warn that mixing bearing positions changes oil clearance and can damage the engine.

Drive unit diagnosis: The Shaft Drive Troubleshooting chart links noise and other symptoms to inspection points. Middle gear and final drive procedures cover backlash measurement, bearing inspection and replacement, and shim selection.

Carburetor and Electrical Fault Diagnosis

Carburetor assembly drawings support the disassembly and inspection procedures. Separate checks address synchronization, throttle position sensor adjustment, and the supplement's fuel cut solenoid valves.

Heater and ignition circuits: The Carburetor Heater System circuit diagram accompanies heater and thermoswitch tests. Starting Circuit Operation diagrams explain the interlocks, while wiring diagrams support fault tracing through the fuel pump, ignition coils, and TCI units.

The later supplement adds self-diagnosis sequences for ignition coils and fuel cut solenoids alongside throttle position and speed sensor faults. Matching the lamp pattern to the applicable chart helps identify the correct component tests before troubleshooting.

Brake, Fork and Chassis Service

Fork and wheel work: Fork overhaul instructions specify the seal-driver weight YM-33963 and adapter YM-33968. Supplementary wheel procedures cover rear wheel drive hubs and cast-wheel configurations; earlier specifications identify spoke-wheel versions.

Front brake caliper and rear brake master cylinder sections cover disassembly, inspection, and assembly. The brake instructions warn that solvent exposure can swell or distort piston seals.

Chassis upkeep: Maintenance charts address shift pedals, swingarm pivot bearings, steering bearing repacking, and fuel-system inspection intervals. Cable Routing and Lubrication Diagrams show hose, lead, and lubrication locations for the applicable configurations.

Rear shock coverage includes removal, inspection, and replacement; the pressurized unit is not opened for internal repair.

Before service, support the motorcycle securely and use a ventilated workspace with appropriate protective equipment.

Selected Fill Quantities and Diagnostic Specifications

Selected service values include a final gear oil quantity of 0.19 L and 488 cm³ of 10WT oil per fork leg in the XVS11AWV/XVS11ATV supplement.

The XVS1100AWR(C)/ATR(C) electrical table specifies pickup coil resistance of 189–231 ohms at 20°C. In the base manual, fuel level is measured 4–5 mm above the float chamber reference line. These examples represent a small selection of the maintenance and diagnostic specifications.

PDF Navigation and Included Publications

Search, bookmarks, and wiring detail: Text search works through much of the supplementary material; the base manual's technical text is not searchable. Embedded bookmarks span all four publications and their sections. Small wiring-diagram labels require enlargement for comfortable reading.

The download is one printable, English-language, 464-page PDF: the XVS11AWV/XVS11ATV supplement contains 29 pages, the XVS1100AWR(C)/ATR(C) supplement 39, the XVS1100AM/AMC supplement 49, and the XVS1100L/LC base manual 347. Covers, preliminary pages, contents pages, and back covers are already included in these totals.
