International Harvester 454, 464, 484, 574, 584 & 674 Shop Manual

59-page PDF covering International Harvester 454, 464, 484, 574, 584, and 674 tractors in the gasoline and diesel configurations listed below. The manual follows the machine from the front axle through the transmission, differential, final drives, brakes, PTO, and three-point hydraulic lift, with separate engine, fuel, cooling, steering, and electrical sections.

The procedures assume prior mechanical experience and access to tractor-splitting stands, precision measuring tools, a hydraulic flow tester, and diesel and electrical test equipment. This makes the repair reference best suited to experienced owners, restoration shops, and working agricultural-equipment mechanics.

• Engine repair: Cylinder head removal, valves, seats, guides, rotators, camshaft and timing gears, pistons, rings, sleeves, connecting rods, crankshaft, bearings, seals, flywheel, balancer units, and oil pump service.
• Gasoline and diesel fuel systems: Marvel-Schebler and Zenith carburetors, mechanical governors, diesel filters and bleeding, Bosch distributor-type injection-pump timing, injector testing, and nozzle service.
• Hydrostatic steering: Ross and Danfoss control units, Cessna and Plessey hydraulic pumps, flow-divider and relief-valve checks, pressure and flow diagnosis, bleeding, and steering-cylinder repair.
• Clutch and transmission: Clutch removal and adjustment, tractor splitting points, synchronized speed-transmission components, range transmission, lubrication-pump diagnosis, shafts, gears, bearings, and linkage adjustment.
• Rear systems: Main drive bevel gears, differential lock, two- and four-pinion differentials, planetary final drives, hydraulic wet brakes, independent PTO assemblies, and hydraulic-lift troubleshooting and overhaul.
• Electrical diagnosis: Delco-Remy and Lucas alternators and starters, standard ignition systems, and the Delcotronic magnetic-pulse ignition used on certain gasoline tractors, including component tests and test-point diagrams.

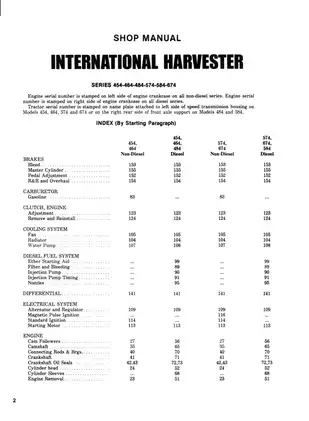

Model and Production Differences

Coverage is configuration-specific rather than generic across all six tractors. Gasoline engines include the C-157 in the 454, C-175 in the 464, and C-200 in the 574 and 674. Diesel coverage includes the three-cylinder D-179 in the 454, 464, and 484; the four-cylinder D-206 in the 584; and the four-cylinder D-239 in the 574 and 674. Steering coverage separates Ross units used on the 454, 464, 574, and 674 from Danfoss units used on the 484 and 584. It also distinguishes Delco-Remy alternator applications from Lucas 15ACR installations and identifies the two-pinion versus four-pinion differential arrangements.

Production changes are called out by unit or serial break. Units below speed-transmission serial 101631 use the lubrication pump for the speed transmission, while later units receive lubrication from the oil-cooler return. PTO construction changes at tractor serial U100001; an early Model 454 hydraulic-lift setting is identified below serial 7101; and gasoline-engine intake-guide revisions are separated at C-157 serial 909, C-175 serial 1801, and C-200 serial 19520.

Drawings, Specifications, and Tooling

The manual combines exploded views, sectional drawings, photographs, and data tables. Especially useful illustrations include the Ross and Danfoss steering-control-valve assemblies, engine timing and valve-adjustment layouts, the Delcotronic ignition circuit and amplifier test points, speed and range transmission shaft layouts, two- and four-pinion differential and planetary-final-drive assemblies, and hydraulic-lift linkage and auxiliary-valve sections.

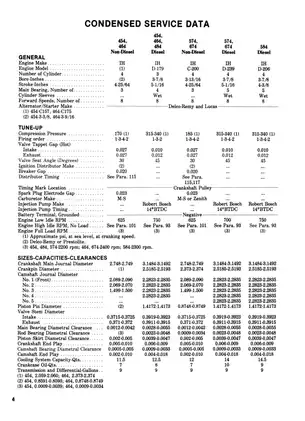

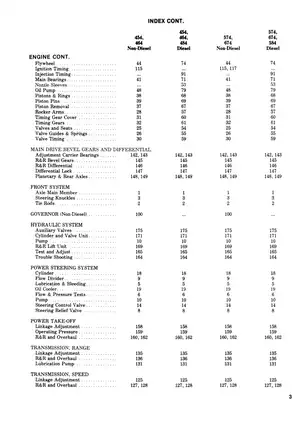

Condensed service data and in-section tables cover clearances, wear limits, pressure settings, fluid capacities, torque values, firing orders, and timing information. Representative entries include a 0.027-inch warm gasoline-engine valve-tappet gap, a 12.5-quart cooling-system capacity for the 484 diesel, 12.5-gpm hydraulic-pump output for the 584, and connecting-rod fastener figures ranging from 43–49 ft-lb on the applicable 454 engine to 61 ft-lb in the diesel-engine section. Named service equipment includes a Flo-Rater or equivalent, alignment dowels, seal installers, an injection-timing window, nozzle-sleeve tools, and a pinion-gage bar.

Workshop Scope and Cautions

Two manual-specific cautions matter during cylinder-head repair: diesel injector tips project through the combustion face and can be damaged if the head is set face-down, while forcing valve-seat inserts out with a chisel can ruin the counterbores. The manual also treats each injector nozzle valve and tip as a matched pair, helping prevent mixed components from compromising fit and spray performance.

The Bosch distributor-pump section supports removal, installation, timing, linkage, and speed adjustment, but explicitly leaves internal injection-pump repair to a properly equipped diesel shop. Before separating the engine, clutch housing, or rear frame—or lifting a final drive, differential, or lift housing—support the tractor with rated splitting stands and approved lifting gear. High-pressure diesel fuel can penetrate skin; depressurize the system and keep hands away from suspected leaks.
