Kia Cerato / Forte / Forte Koup 2011–2013 Repair Manual Set

Choose the file matching the vehicle’s year and engine. Keeping these references separate helps prevent specifications and procedures from being mixed between configurations.

A6MF1 overhaul scope: The automatic-transaxle chapters cover removal, installation, valve-body service and control-system diagnosis. They do not supply a complete internal rebuild sequence for the planetary gears, clutch packs, differential and selective-fit components; that work requires a separate overhaul publication.

PDF Search, Bookmarks and Diagram Detail

Search and drawing labels: All six files provide searchable service text and embedded system bookmarks. Labels within drawings are not consistently searchable, and the 2013 files include pages without searchable text. Small ABS wiring labels require zooming and remain pixelated in places.

The ZIP contains six printable, English-language PDFs totaling 7,657 pages, with individual publication lengths listed above.

Engine, Drivetrain and Vehicle-System Service

These selected coverage highlights summarize part of the service information. Other topics include towing and lifting guidance and evaporative-emission system checks.

• Engine repair: Step-by-step procedures cover compression testing, valve-clearance adjustment, timing-chain replacement, cylinder-head work, cylinder-block repair and engine/transaxle assembly removal.

• Fuel and engine controls: Fuel-pressure testing, electronic throttle diagnosis, ECM terminal references, ignition checks, charging-system tests and starting-system repair support fault tracing.

• Transmission and clutch service: Automatic and manual transaxle removal, fluid service, valve-body replacement, shift controls and hydraulic clutch procedures are organized by configuration.

• A6MF1 diagnosis: Power-flow charts, connector references and sensor, solenoid and inhibitor-switch checks accompany GDS reset procedures and TCM learning instructions.

• Brakes and chassis: Base-brake service, ABS/EBD/ESC troubleshooting, HCU bleeding, steering-angle calibration, suspension repair, wheel alignment and TPMS registration are covered.

• Body and electrical equipment: Coupe and sedan body procedures accompany BCM, fuse, relay, lighting, smart-key, immobilizer, push-button-start, power-accessory and audio/AVN diagnosis.

• HVAC and restraints: Refrigerant-system service, climate-control actuator checks, airbag and pretensioner replacement, SRSCM variant coding and occupant-detection reset procedures are included.

This material suits technicians and experienced mechanics who can use electrical test equipment, service tools and GDS functions for diagnosis and calibration.

Engine Mechanical and Fuel-System Detail

The mechanical chapters distinguish single- and dual-CVVT timing arrangements. Internal repair information extends to valve and camshaft inspection, piston and connecting-rod checks, crankshaft inspection, oil-pump and balance-shaft-chain service, cooling-system testing, and intake and exhaust work.

The timing procedures warn about chain movement and foreign material entering the timing cover during camshaft removal. Losing the indexed relationship can compromise valve timing.

Engine-control diagnosis: ECM input/output references and component test data address MAP, crankshaft-position, camshaft-position, oxygen, knock, accelerator-position, fuel-tank-pressure and coolant-temperature circuits. Fuel-pressure checks connect measured results with fuel-delivery troubleshooting.

Transaxle Variants and Adaptation

The 2.0L files contain the M6CF3-1 manual-transaxle section; the 2.4L files contain M6GF2 information and separate old- and new-type hydraulic clutch chapters. Driveshaft, hub, knuckle and axle procedures accompany the transmission material.

Each A6MF1 section spans 85 pages. Beyond fluid-level checks and valve-body removal, it explains oil-pump operation, clutch/brake hydraulic operation and TCM functions.

Control-system references: Line-pressure, torque-converter, 26/B, 35R/C, underdrive, overdrive and SS-A/SS-B solenoid information supports component diagnosis. The post-repair material links GDS resets and TCM learning to transmission and valve-body replacement, addressing slow response and harsh takeoff or acceleration after service.

Brake, Steering and TPMS Work

ABS and ESC troubleshooting includes HECU checks and GDS-assisted HCU bleeding. Steering-angle zero calibration is addressed alongside electric and hydraulic steering component service.

Front and rear suspension procedures include struts, control arms, stabilizer components, rear springs and the torsion-beam axle. TPMS information extends beyond sensor replacement to registration and receiver/VIN writing.

Body, Cabin Systems and Restraints

Body procedures distinguish coupe hardware from four- and five-door components. Coverage includes doors, glass, trim, seats, bumpers, sunroofs, trunk lids and tailgates, with five-door body-dimension reference points.

Climate and restraint systems: HVAC procedures address R-134a recovery, evacuation and charging, compressor service and climate actuators. Restraint sections include airbags, pretensioners, SRSCM coding and occupant-detection reset/accuracy checks.

The SRS precautions prohibit resistance testing across airbag inflator circuits because improper testing can cause deployment or damage. Brake/ABS, refrigerant, drivetrain and airbag work requires the support, pressure control, electrical isolation and protective equipment specified for the procedure.

Diagnostic Drawings and Service Tools

Drawing examples include the Clutch & Brake Power Flow Chart, TCM CHG-A/CHG-K connector views, ABS/ESC hydraulic and electrical circuits, ECM terminal schematics, SRSCM schematics and TPMS diagrams. These are system-specific references; the set does not include a separate full-vehicle wiring-diagram volume.

Tool tables identify engine support fixture 09200-38001, transaxle oil-seal installer 09453-3L241, fuel-pressure gauge 09353-24100 with adapter 09353-38000, clutch-disc guide 09411-1P000 and windshield sealant cut-out tool 09861-31100.

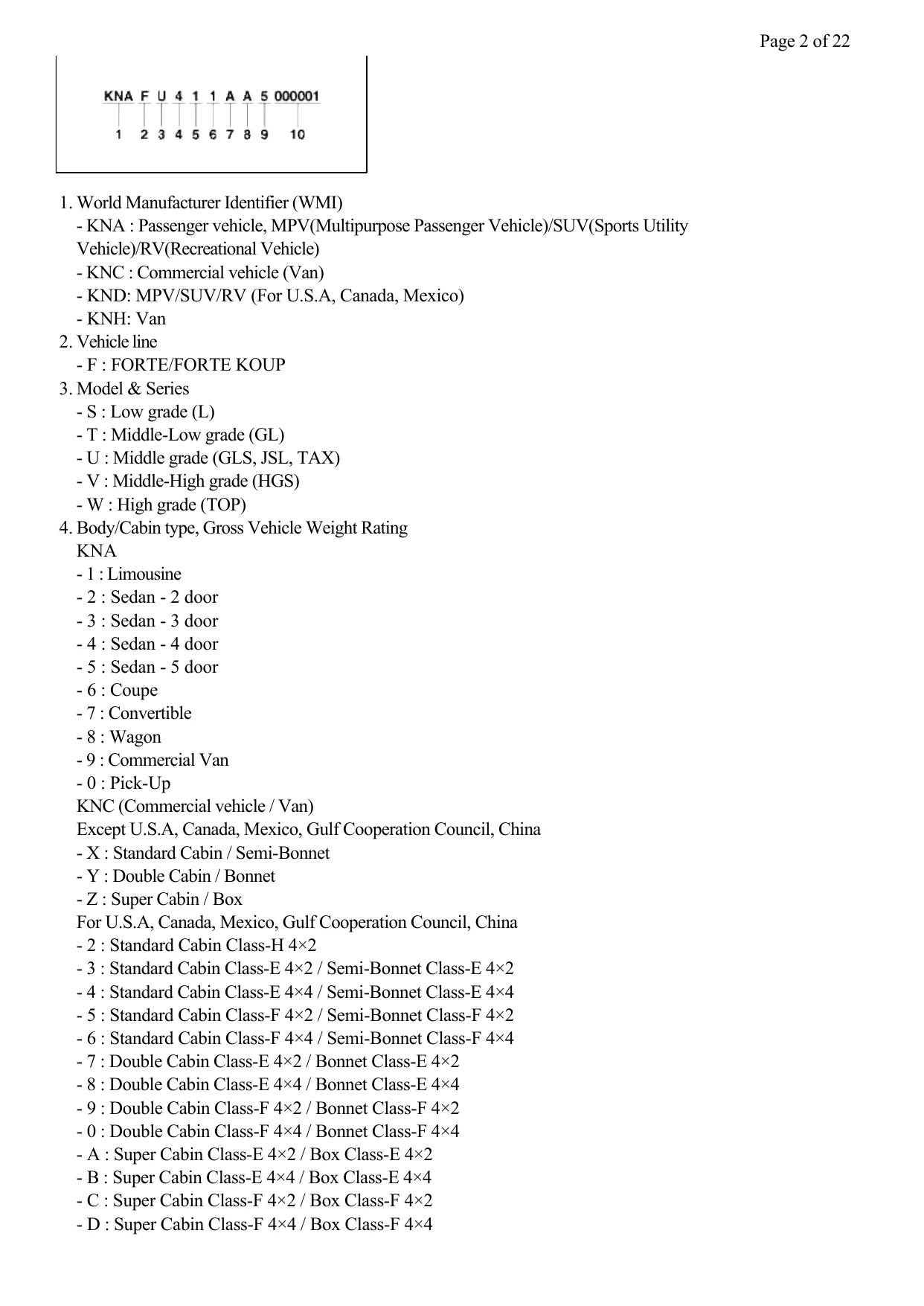

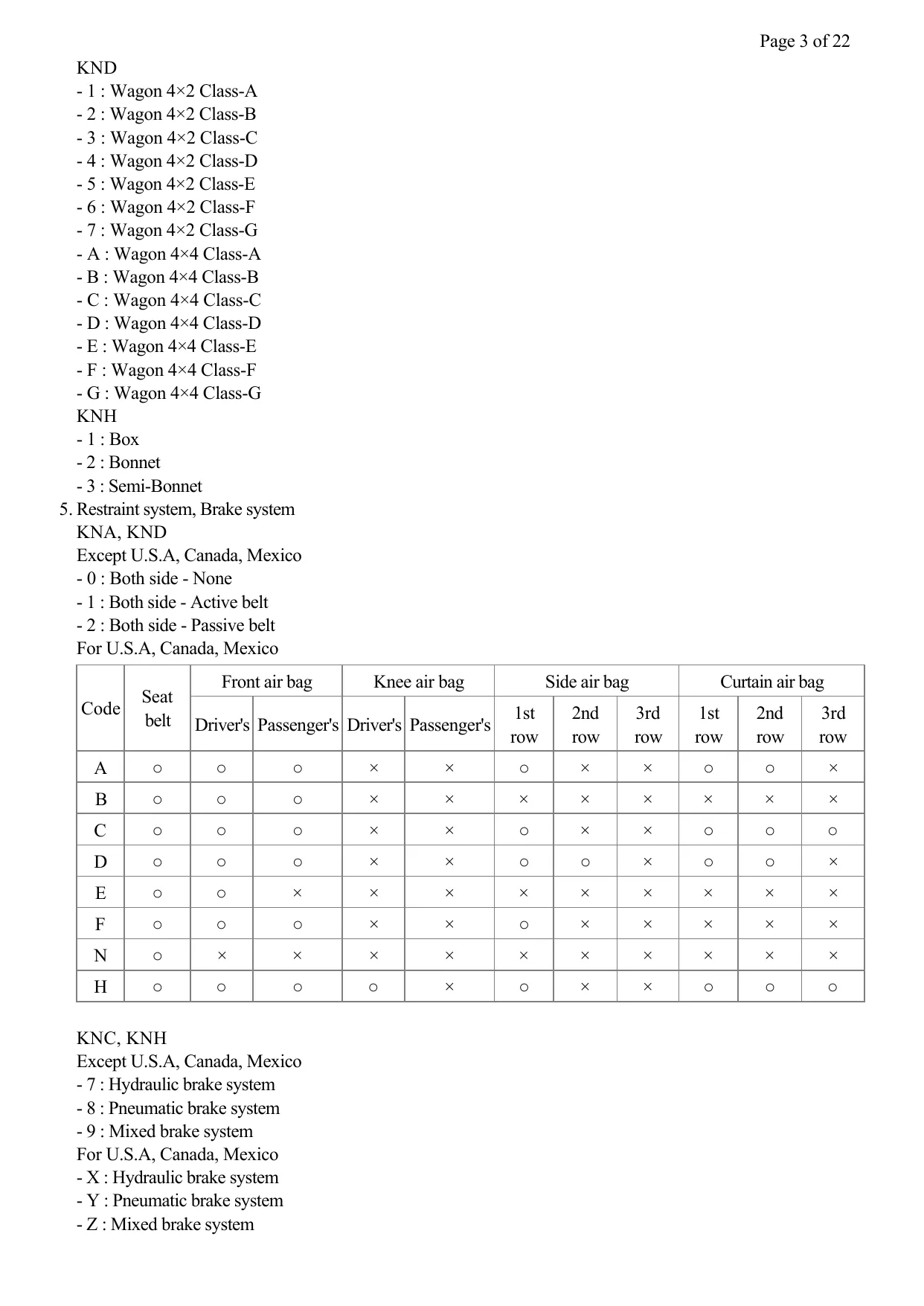

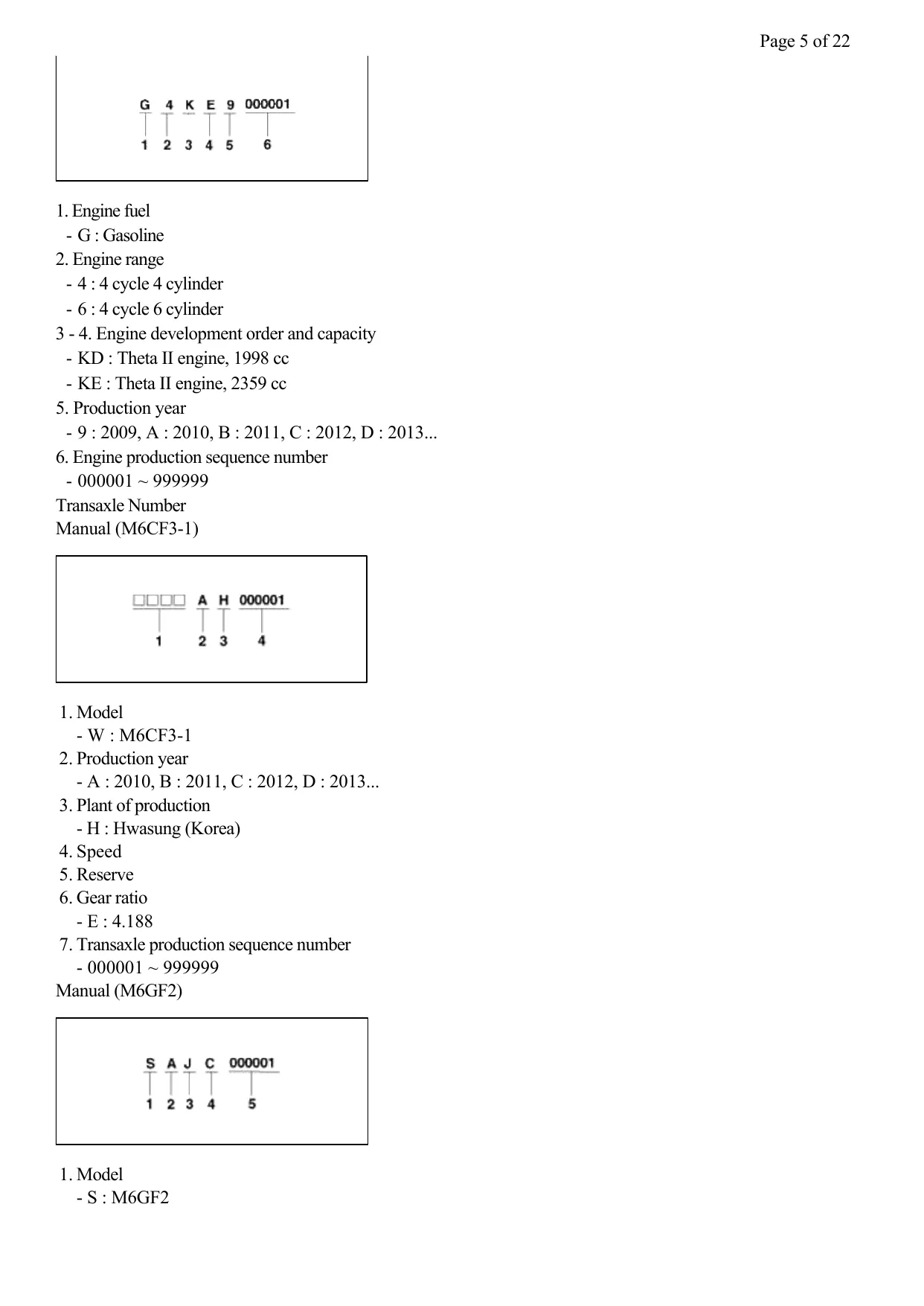

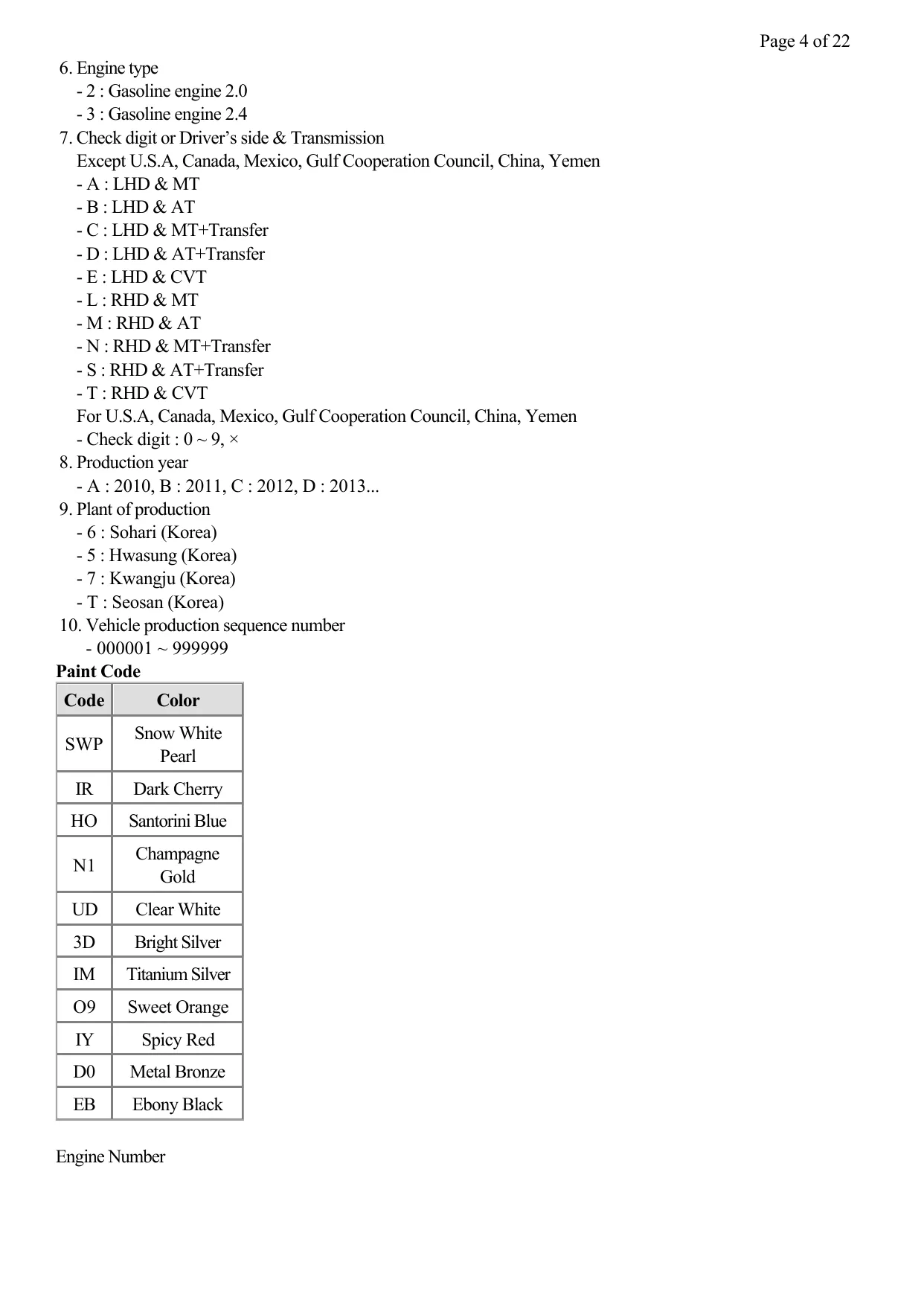

Component torque tables, lubricant data, pressure-test specifications, electrical test values, wear limits, alignment data and calibration information appear with the relevant systems. Identification guides, warning-label locations, general fastener data and electrical-handling notes accompany the repair information.

Valve-Clearance Specification Preview

For the covered Theta II engines, the valve-adjustment procedure specifies a final intake clearance of 0.17–0.23 mm and exhaust clearance of 0.27–0.33 mm with engine coolant at 20°C. The accompanying instructions explain replacement-tappet selection and the final clearance check.
