2013 KIA Rio Service Manual
Detailed service and repair documentation for the 2013 KIA Rio, covering all trims including LX, EX, SX. Access part numbers, diagrams, and troubleshooting guides.

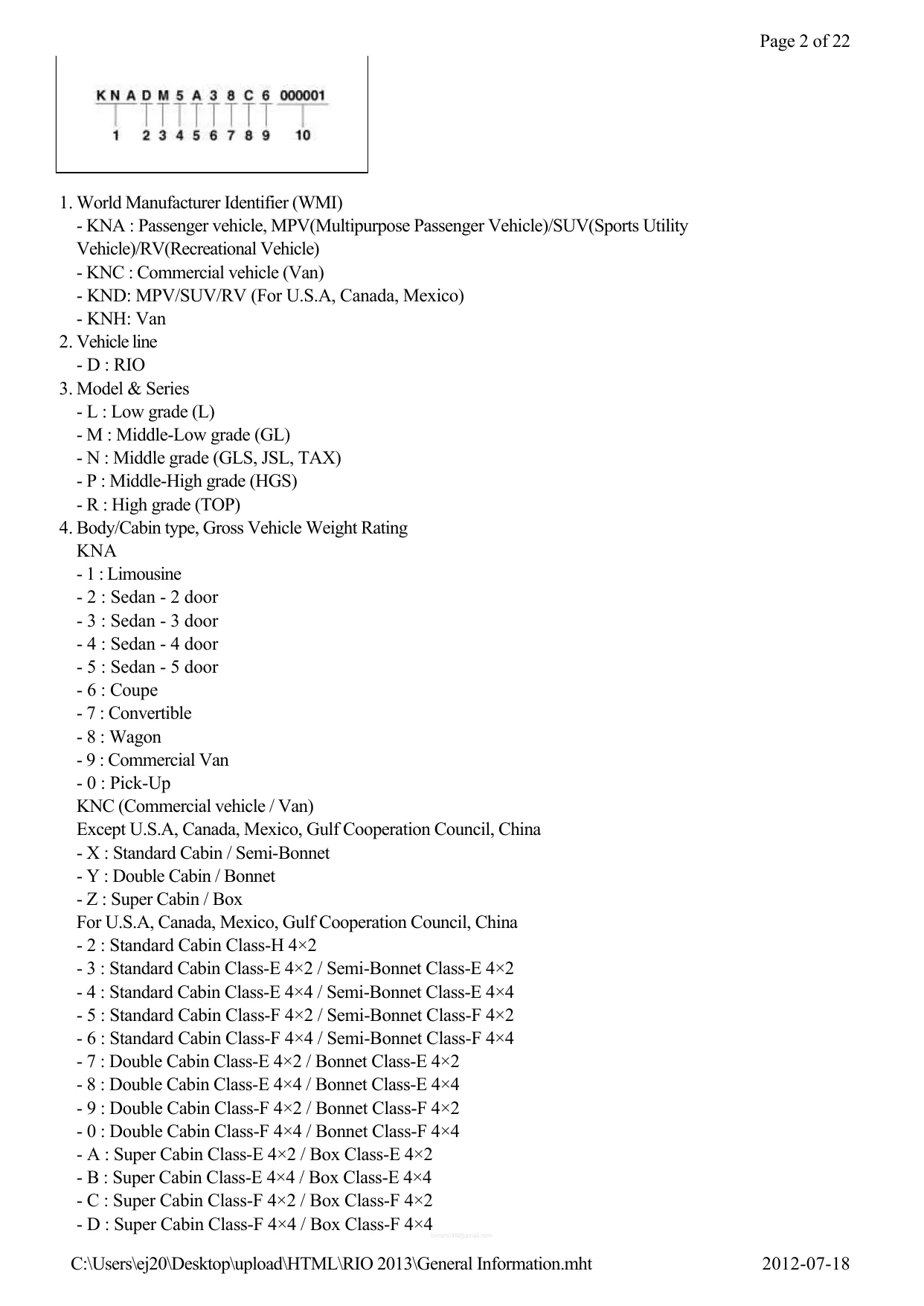

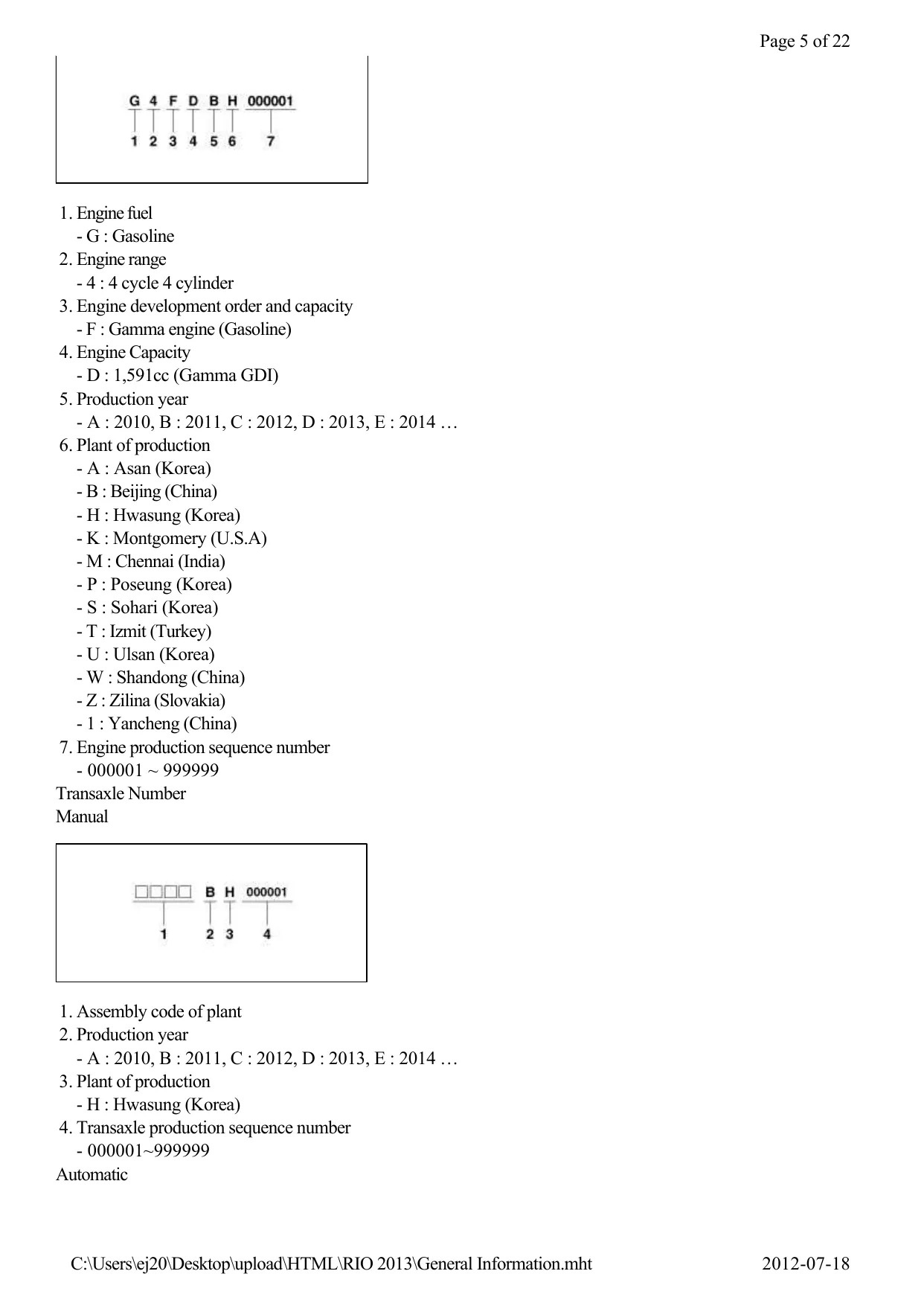

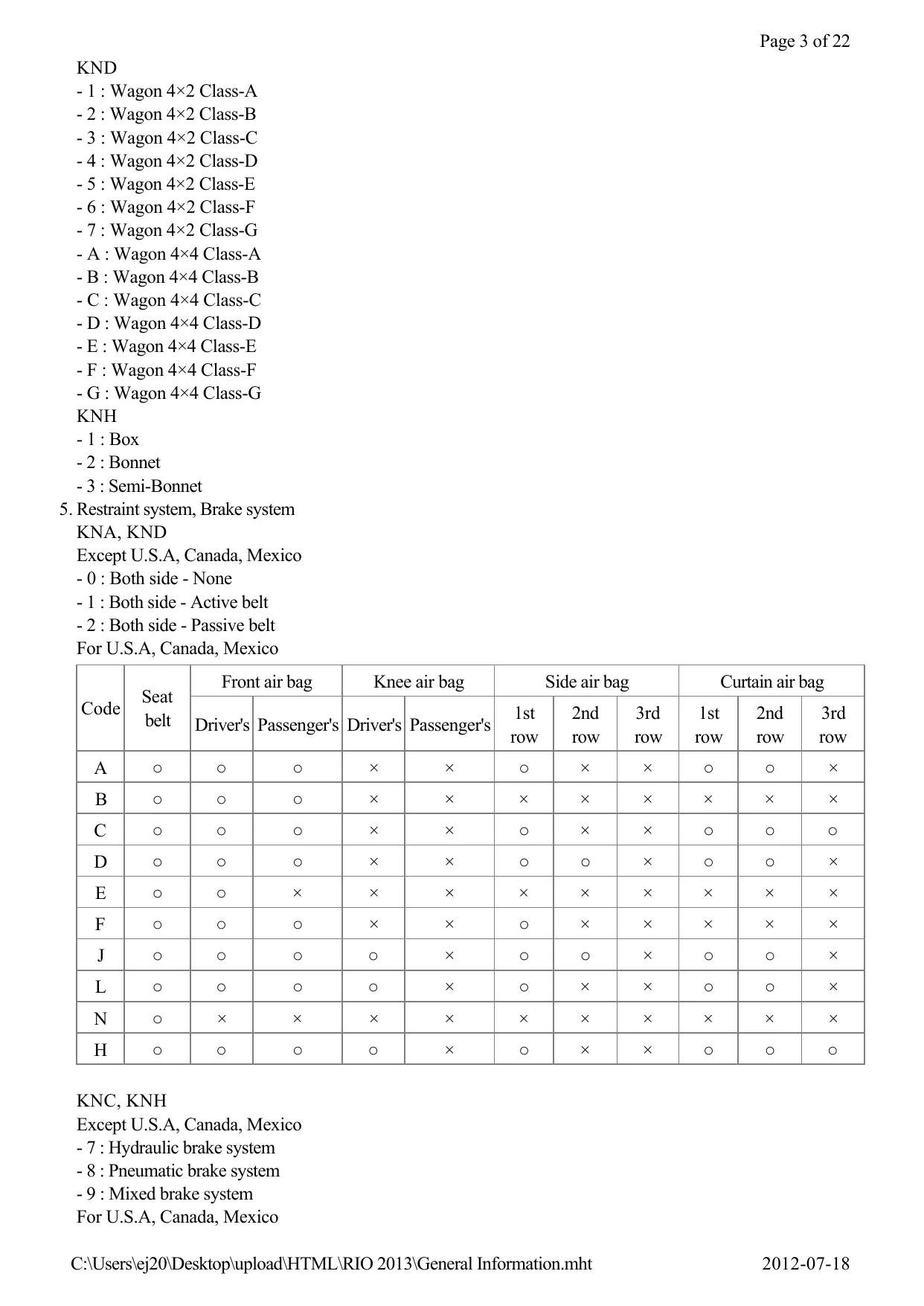

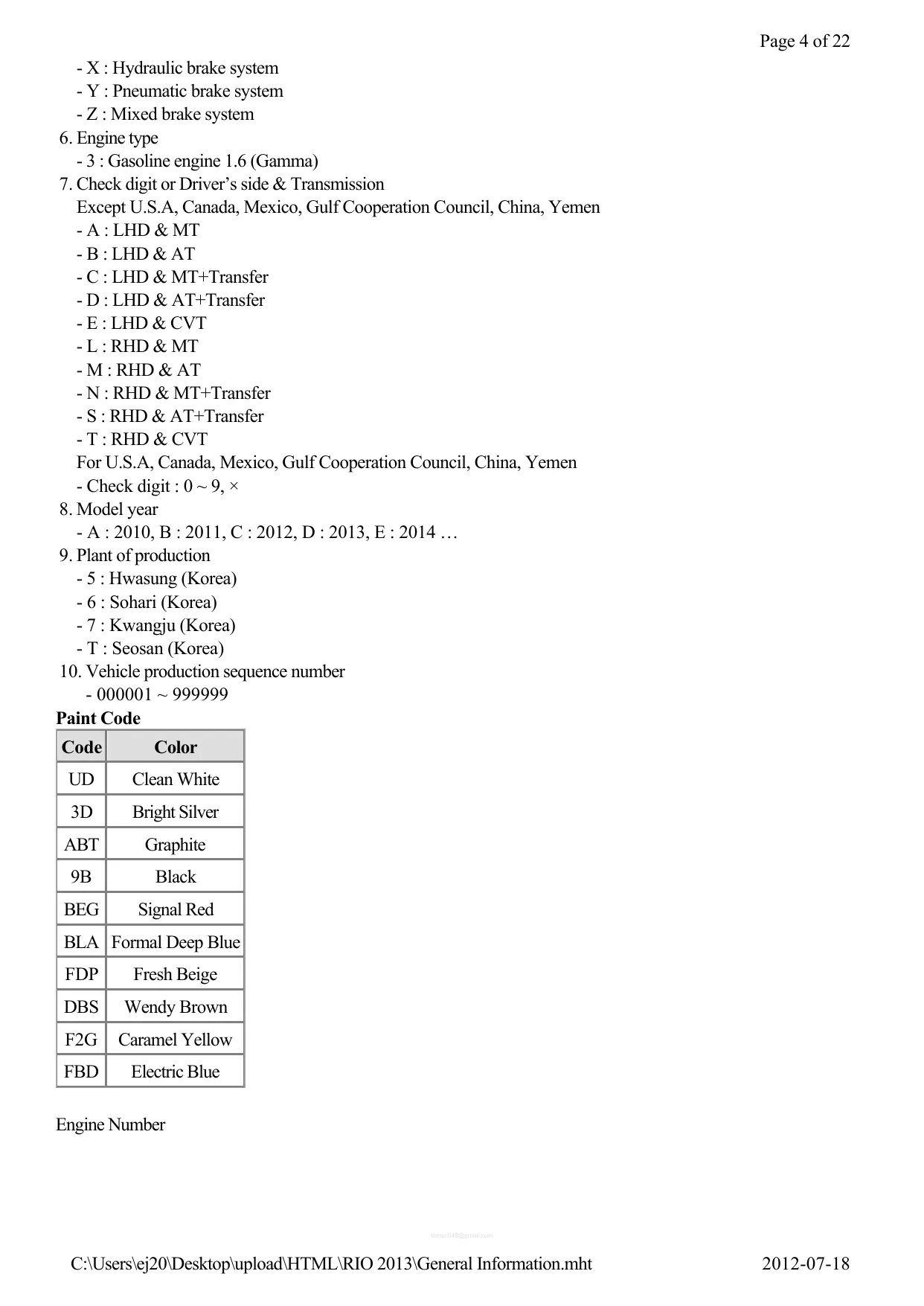

Manual Preview
Sample pages from the 2013 KIA Rio Service Manual manual
Purchase & Download
Kia Models Covered & Key Technical Specifications
Models: 2013 KIA Rio 1.6L GDI
Sub-models / Variants: L, GL, GLS, JSL, HGS, TOP, Limousine, Sedan 2-door, Sedan 3-door, Sedan 4-door, Sedan 5-door, Coupe, Convertible, Wagon, Commercial Van, Pick-Up, 4x2, 4x4
Trade Names: Rio
Build Years: 2013
Technical Data:
- Engine: Gamma 1.6L GDI Gasoline
- Transmission Type: A6GF1 6-speed automatic
- Final Gear Ratio: 3.270
- Gear Ratios: 1st: 4.400, 2nd: 2.726, 3rd: 1.834, 4th: 1.392, 5th: 1.000, 6th: 0.774, Reverse: 3.440
- Torque Converter Type: 3-element, 1-stage, 2-phase
- Fluid Capacity: 7.3 Liters (1.93 U.S. gal / 7.71 U.S. qt)
- Input Speed Sensor: Hall effect, 1.18–1.68V (High), 0.59–0.84V (Low)
- Oil Temperature Sensor Resistance: 48.1 kΩ at -40°C, 0.32 kΩ at 80°C, 0.05 kΩ at 150°C
Kia Manual Features & Content Preview
2013 KIA Rio 1.6L GDI Automatic Transaxle Service Documentation
- Covers 2013 KIA Rio models equipped with the Gamma 1.6L GDI gasoline engine and A6GF1 6-speed automatic transaxle
- Official KIA Motors factory service information, document ref date 2012-07-18
- Contains 25 detailed component-location and assembly diagrams, including transaxle internals, valve body layout, and oil pump schematics
- Features 38 specific torque-value tables for all major fasteners and mounting bolts
- Includes 12 wiring and circuit-system diagrams for solenoid valve and sensor controls
- Delivered as a direct download the moment payment clears
- Stored against your account so you can retrieve it after a hard-drive loss
- Full-text search finds any part number in seconds
- This specific document serves as the primary technical reference for the A6GF1 transmission, documenting hydraulic pressure, solenoid control, and adaptive TCM learning values for the 2013 model year
Component and System Documentation
The 2013 KIA Rio service manual provides extensive details on the A6GF1 automatic transaxle, covering everything from hydraulic operation to internal electrical management. This publication outlines the function of the oil pump, valve body assembly, and the various clutches and brakes that facilitate gear shifts. Technicians will find detailed instructions for what an OEM service publication covers regarding transaxle removal and reinstallation, including specific guidance on the engine support fixture setup and weight distribution requirements to prevent tipping.
Technical Data and Specifications
Detailed specifications within the 2013 KIA Rio documentation include gear ratios, solenoid resistance values, and cooling system data. The manual lists the input and output speed sensor output voltage as 1.18–1.68V for high signals and 0.59–0.84V for low signals. The transaxle oil temperature sensor resistance is documented at 0.32 kΩ for an 80°C operating temperature. All electrical terminals and sensor circuit logic are mapped to the TCM connector pinouts, providing a clear reference for diagnostic troubleshooting. This official 89-page OEM manual is a complete guide to the 2013 KIA Rio A6GF1 transmission, providing all torque, electrical, and hydraulic specifications required for professional-grade service work.
