2012 Kia Rio LX, EX, and SX 1.6L GDI Factory Service Manual (P/N 00500-1A000)

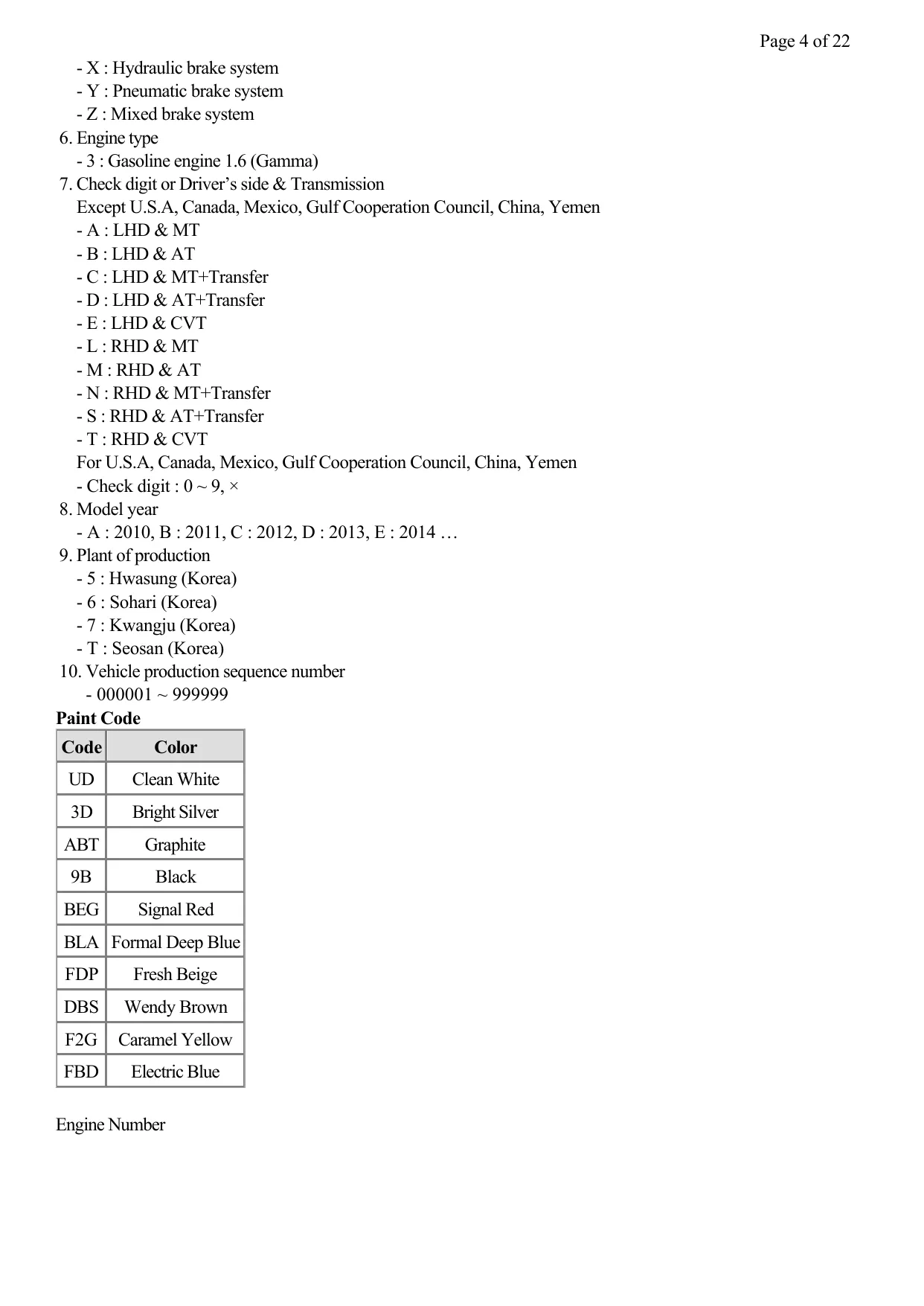

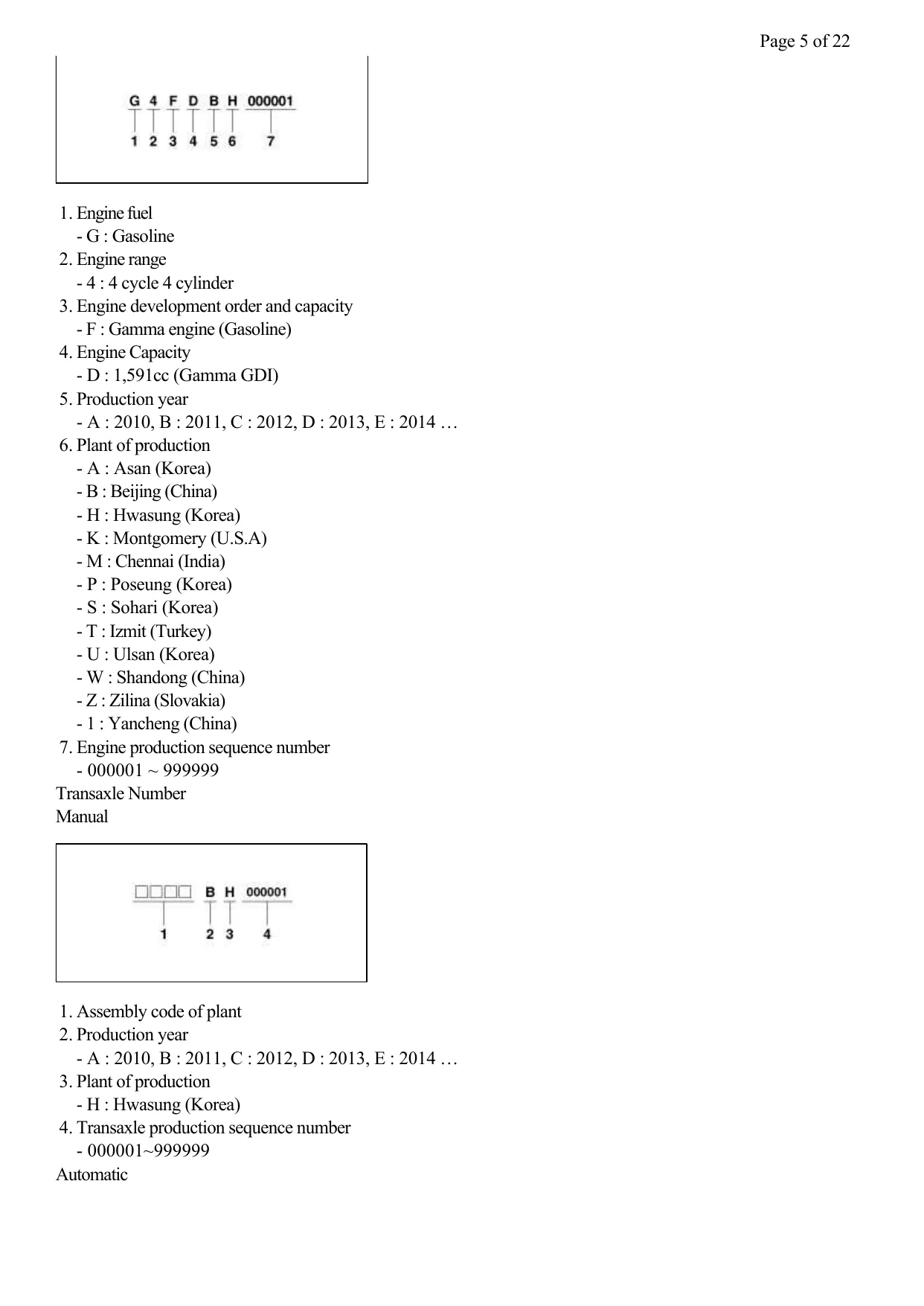

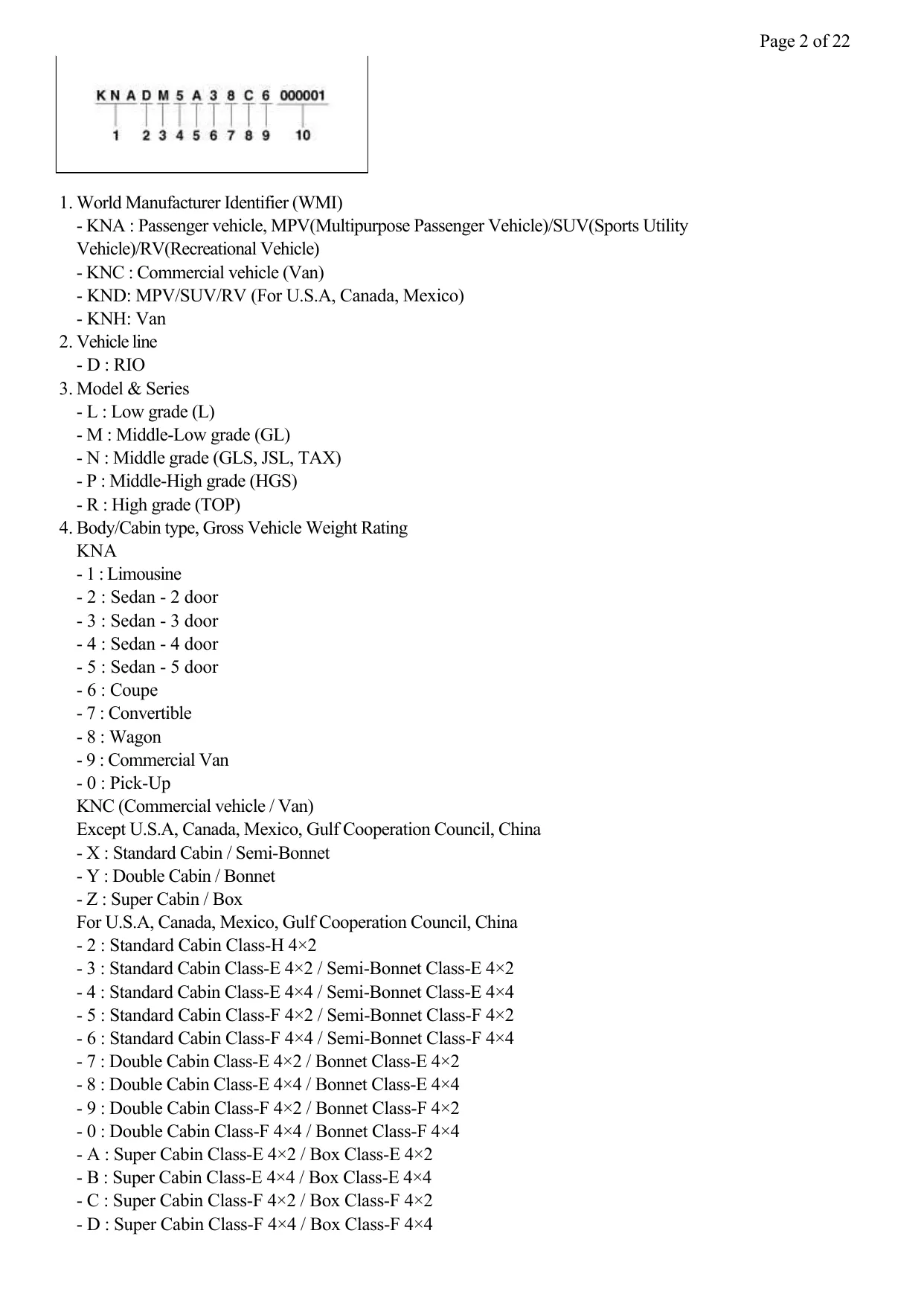

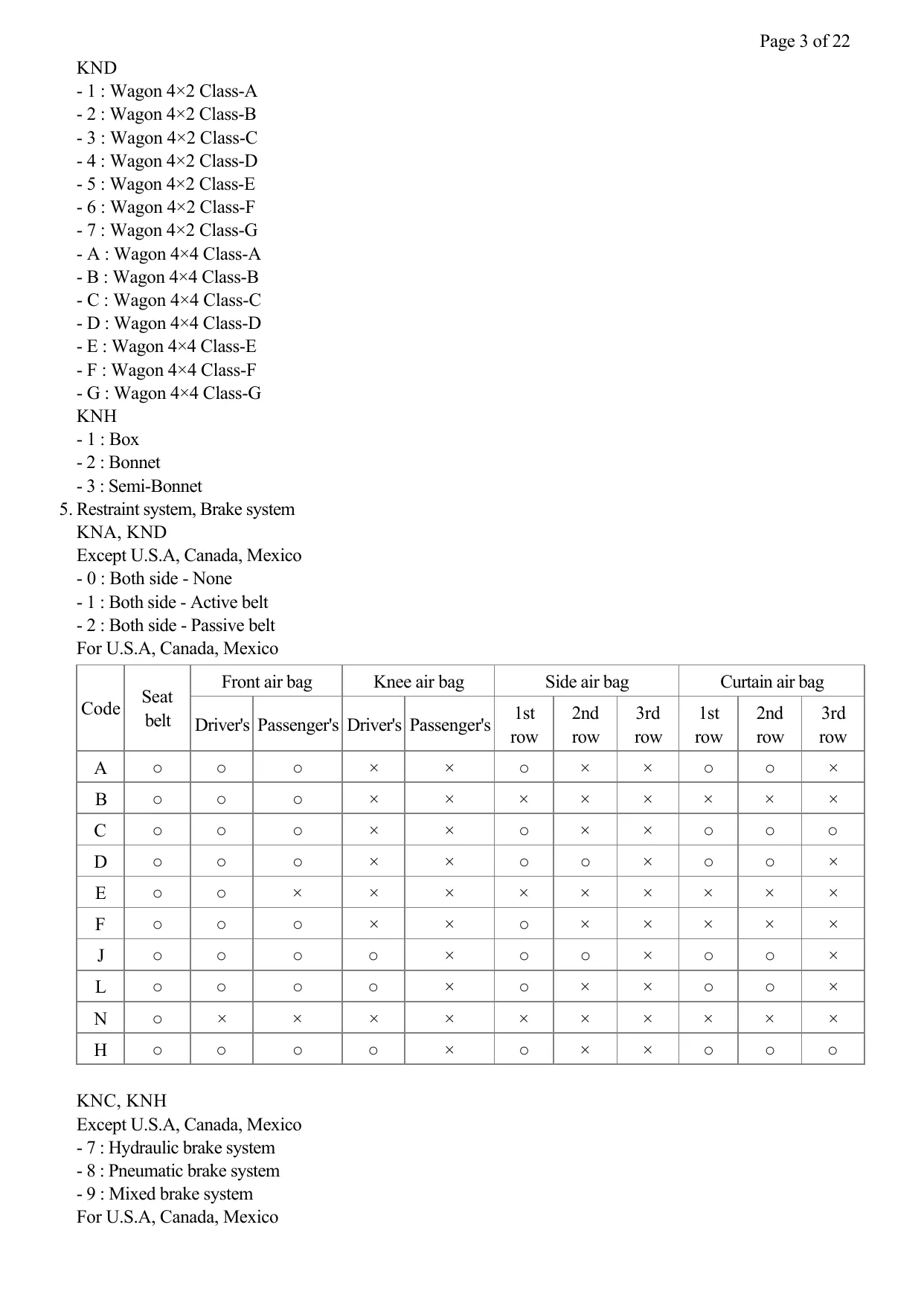

• Coverage is identified throughout as 2012 Kia Rio (UB) with the Gamma 1.6L GDI engine. Separate sections cover the A6GF1 six-speed automatic and M6CF1 six-speed manual transaxles, while A6GF1 identification data distinguishes ISG and non-ISG builds.
• Engine and GDI repair content includes engine/transaxle assembly removal, valve-clearance inspection and adjustment, timing-chain and CVVT service, cylinder-head disassembly and inspection, cylinder-block disassembly and measurement, cooling-system testing, lubrication work, fuel-pressure testing, and high-pressure pump and injector service.
• Transmission and driveline procedures cover A6GF1 removal and installation, fluid-level service, valve-body replacement, TCM learning, sensor and solenoid testing, and shift-control adjustment. The M6CF1 section adds oil service and unit removal; separate chapters handle the clutch, front driveshaft, TJ joint, BJ boot, dynamic damper, and hubs.
• Brake, steering, and suspension sections address front and rear disc brakes, rear drum brakes, the master cylinder and booster, parking brake, ESC/EBD, GDS-assisted HECU bleeding, wheel-speed and yaw sensors, EPS calibration/type recognition, wheel alignment, and TPMS setup.
• Configuration-dependent body, electrical, HVAC, and restraint coverage ranges from doors, glass, bumpers, trim, seats, and sunroof service to BCM, smart key, immobilizer, button-start, lighting, power accessories, audio/AVN, rear camera, manual/FATC climate control, and Continental advanced SRS procedures.
• A 1,289-page PDF organized into 16 bookmarked sections, including an 89-page A6GF1 chapter, provides component-specific torque tables, fluid data, pressure-test specifications, wear limits, clearances, electrical values, troubleshooting charts, connector views, and circuit schematics.
• Scope note: the transaxle chapters provide unit-level removal, installation, controls, and service procedures, but not a complete internal A6GF1 or M6CF1 teardown and rebuild. Electrical drawings are system-specific; this is not a stand-alone, bumper-to-bumper wiring-diagram book.

This is workshop-level material best suited to professional technicians or experienced DIY mechanics with access to GDS diagnostic equipment, lifting and support equipment, and the specified service tools. It is repair information, not an owner's maintenance handbook or a beginner tutorial.

Gamma GDI and Transaxle Repair Depth

The engine section goes well beyond basic replacement instructions. It includes compression testing, tappet selection for valve-clearance correction, timing-chain service with the engine installed, cylinder-head bolt sequencing, valve and camshaft inspection, crankshaft and connecting-rod bearing selection, piston and bore checks, cooling-system bleeding, radiator tests, and oil-pump and oil-pressure-switch work.

Fuel-system diagnosis covers OBD-II operating logic, intermittent-fault recreation, open- and short-circuit checks, ECM connector data for manual and automatic configurations, sensor signal waveforms, electronic-throttle learning, and GDI pressure testing. The ISG material adds battery-sensor state-of-charge relearning, AGM battery requirements, DC/DC converter diagnosis, and electric oil pump/OPU testing. Within the A6GF1 section, the TCM, oil-temperature sensor, input/output speed sensors, inhibitor switch, and each VFS or on/off solenoid receive component-level inspection and replacement coverage.

Scan-Tool, Chassis, and Vehicle-System Procedures

Scan-tool and initialization work is identified where it matters: TCM and ETC learning, smart-key and immobilizer teaching/neutralization, ESC diagnosis and GDS-assisted hydraulic bleeding, steering-angle calibration, EPS type recognition, SRS variant coding, weight-classification reset and accuracy checks, plus TPMS sensor-mode and receiver/VIN setup. The HVAC chapters cover R-134a recovery, evacuation, charging, leak testing, compressor-clutch service, heater/evaporator unit work, actuator testing, and FATC self-diagnosis.

Schematics, SSTs, and Repair Cautions

Named visual references include the A6GF1 clutch-and-brake flow and power-delivery diagrams, input/output speed-sensor waveforms, TCM connector and solenoid circuits, ECM terminal/input-output charts for M/T and A/T, ESC schematics, and smart-key/button-start circuits. Exploded component views support the major mechanical and body procedures.

The SST tables identify the engine/transaxle support set built around beams 09200-38001 or 09200-3N000, the 09411-1P000 clutch-disc guide, and the 09353-24100 fuel-pressure gauge with 09353-02100 adapter. GDI injector work calls out the 09353-2B000 combustion-seal guide and sizing tool.

The fuel-system notes warn that unloading the spring-loaded high-pressure fuel-pump bolts unevenly can break the cylinder-head housing. Steering repair procedures require the wheel to remain centered while the gear is disconnected, or the clock-spring cable can be damaged. Before fuel-line or SRS work, follow the manual's residual-pressure and electrical-isolation precautions.
