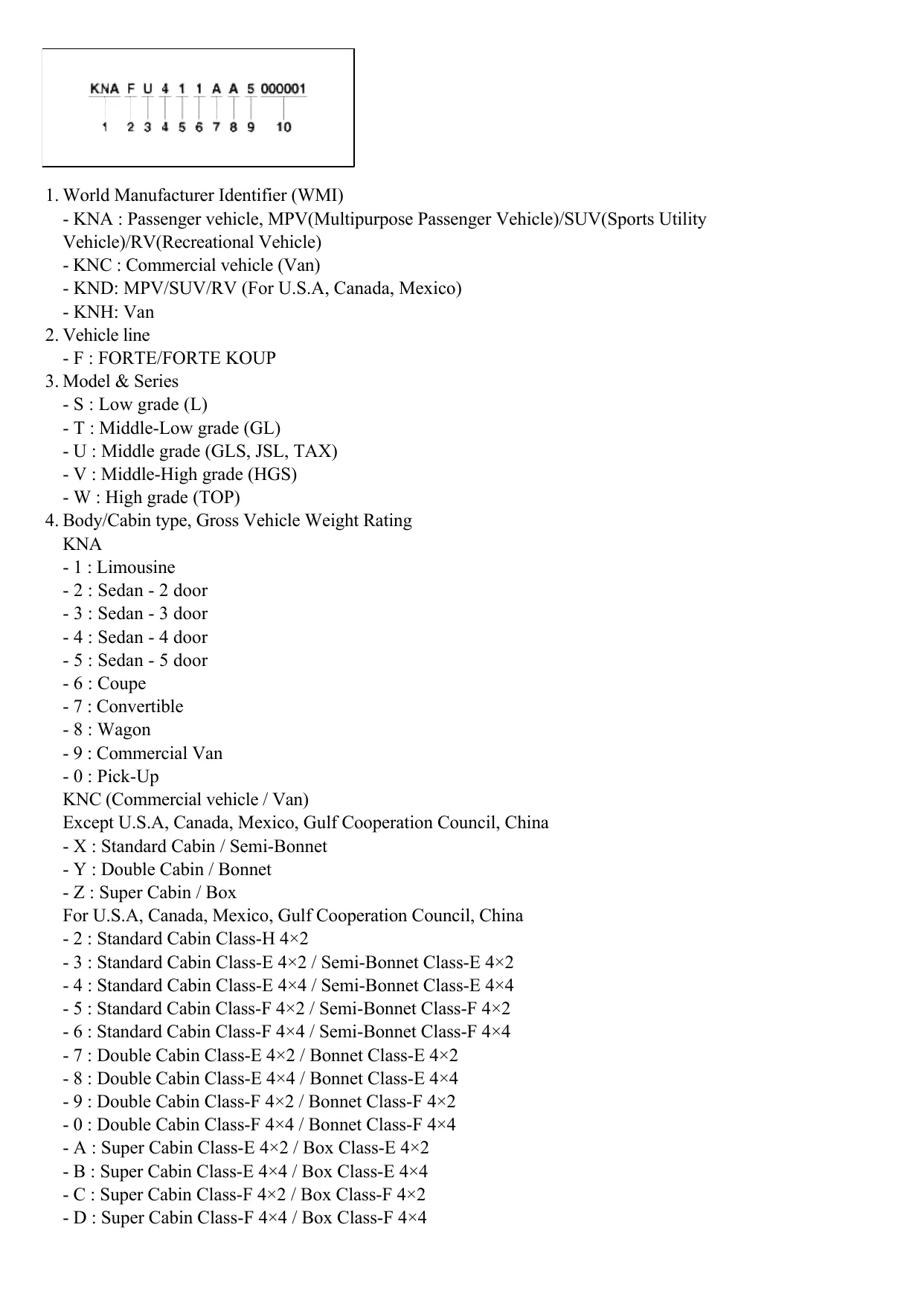

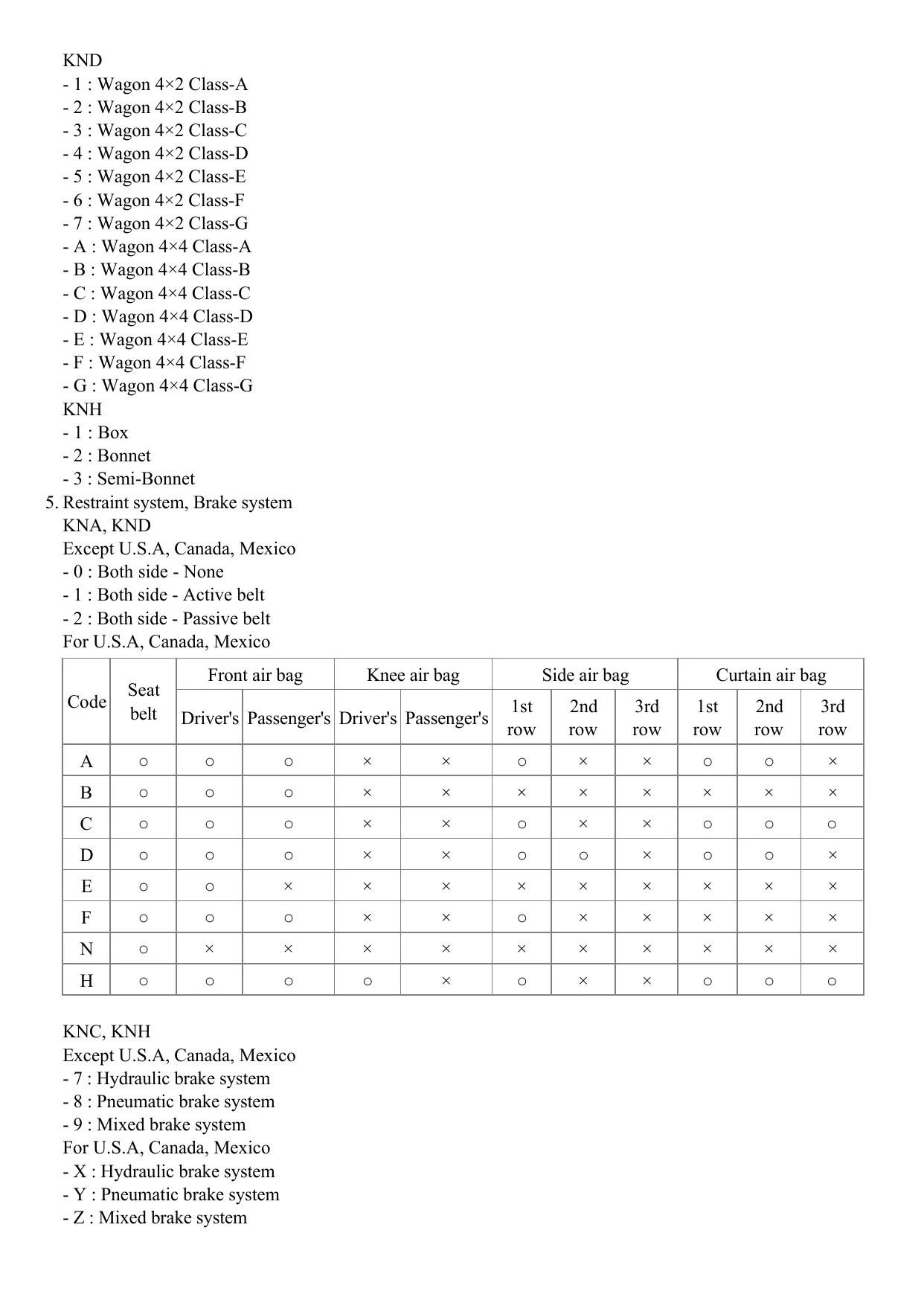

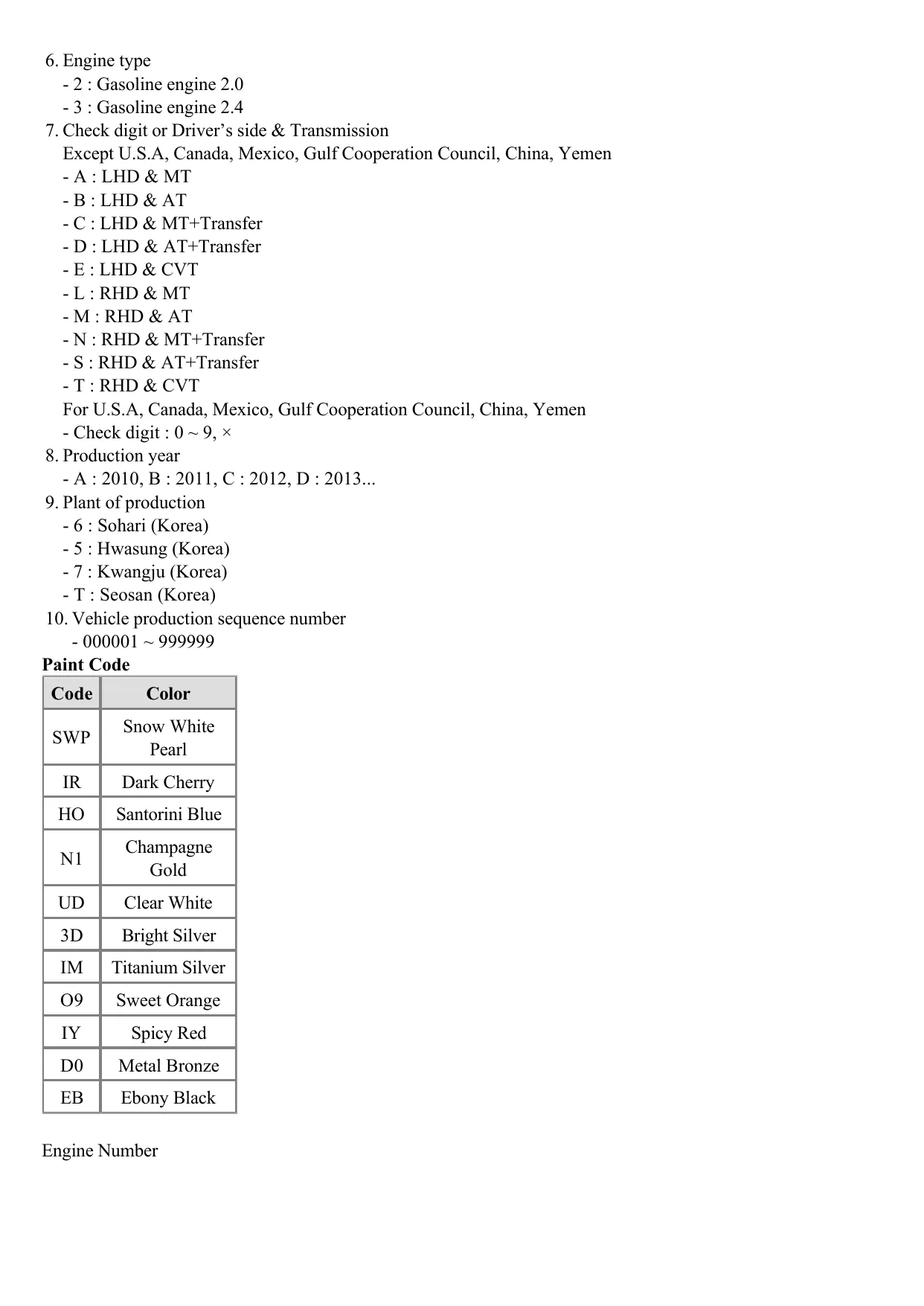

Kia Forte & Forte Koup 2013 Service Manual Set

Choose the volume for the installed engine; both include shared chassis, body, and electrical service information.

The transmission chapters cover diagnosis, external service, valve-body work, and complete-unit removal and installation. They are not full internal gearbox overhaul guides.

Text Search, Chapter Bookmarks, and Wiring Detail

Search and diagram detail: Both PDFs have searchable service text and embedded chapter bookmarks. Many diagram labels are embedded in images and cannot be searched. Dense ABS/SRS diagrams require zooming, and some fine labels remain soft or pixelated.

The ZIP contains two printable English PDFs totaling 2,607 pages.

Engine Overhaul, Transaxle Service, and Vehicle Systems

The following selected topics show the main service areas. Additional material includes headlamp aiming and windshield-deicer testing.

• Engine repair: Step-by-step compression and valve-clearance checks, engine/transaxle removal, timing-chain service, and cylinder-head and cylinder-block disassembly, inspection, and reassembly.

• Transmission and clutch: A6MF1 fluid service, valve-body work, sensor diagnosis, and TCM learning, plus manual-transaxle removal and hydraulic-clutch service.

• Fuel and engine electrical: Fuel-pressure and leakage tests, ECM sensor and actuator checks, ignition diagnosis, charging-system tests, and starter-circuit troubleshooting.

• Brakes and chassis: Brake bleeding, ABS/ESC diagnosis, hydraulic and electric power steering, suspension service, wheel alignment, and TPMS diagnosis.

• Body electrical and restraints: BCM checks, smart-key and immobilizer registration, SRS diagnosis, SRSCM variant coding, and occupant-detection reset and accuracy checks.

• HVAC and body repair: Refrigerant service, compressor repair, climate-control diagnosis, and coupe and sedan body, glass, trim, and seat procedures.

Suited to technicians familiar with automotive electrical testing and scan-tool diagnosis; several procedures call for GDS and special service tools.

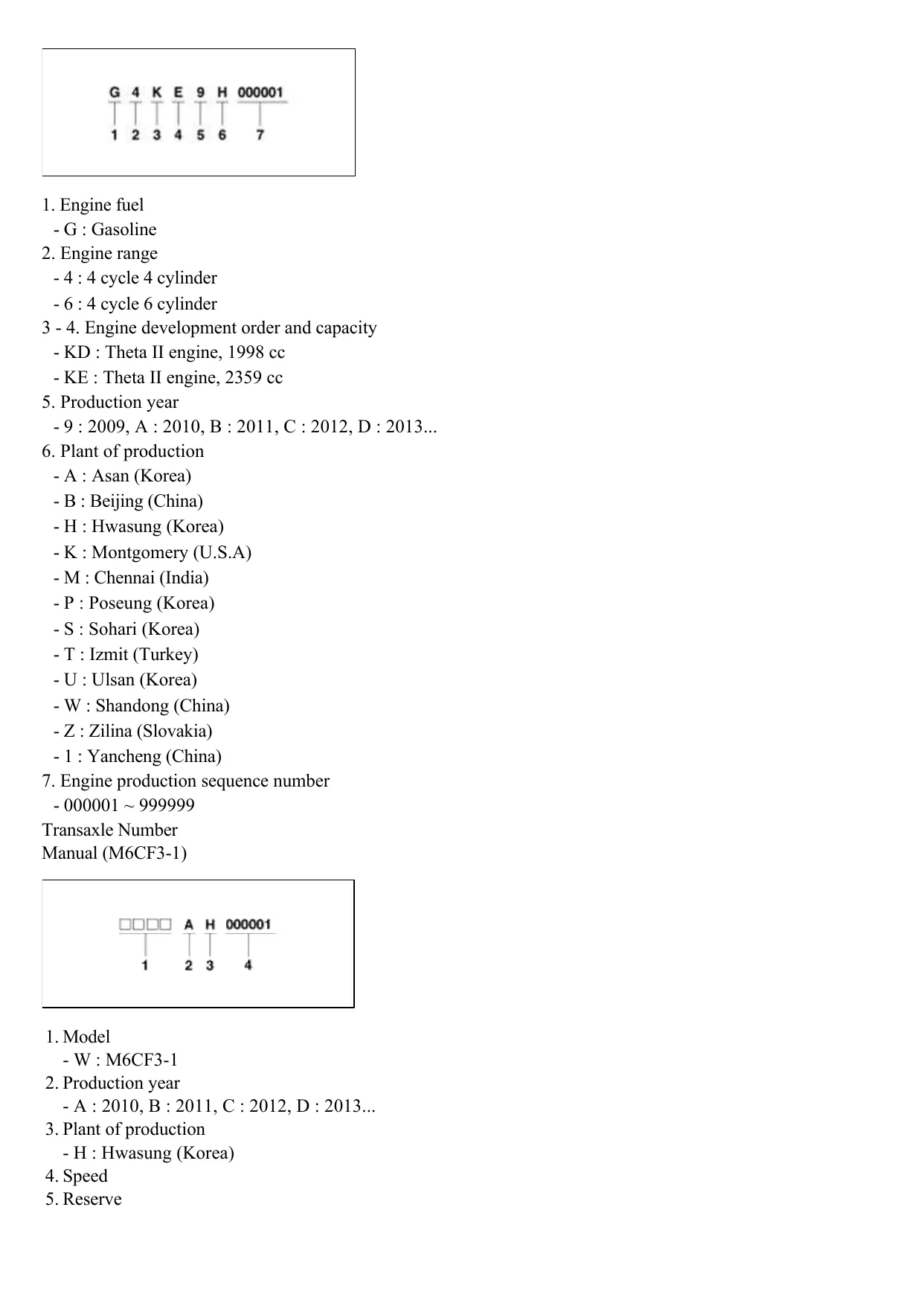

Theta II Engine, Cooling, and Lubrication

Cylinder-head and block chapters provide inspection and reassembly detail, with component-specific wear limits and torque tables. Timing-chain procedures include CVVT components and the 09240-2G000 tensioner holder; engine removal references the 09200-38001 support fixture.

Cooling and oil systems: Coverage includes coolant replacement and air bleeding, water-pump and thermostat service, radiator checks, and fan diagnosis. Lubrication procedures distinguish the 2.0 non-BSM oil-pump layout from the 2.4 balance-shaft module. The oil-pump/balance-shaft module is serviced as an assembly, not disassembled.

A6MF1 Controls and Manual-Transaxle Variants

The hydraulic and power-flow material follows the oil pump, valve body, torque-converter clutch, overdrive clutch, underdrive brake, 2-6 brake, and 3-5-reverse clutch. Service sections include inhibitor-switch adjustment and shift-lever work.

Electrical fault tracing: CHG-A/CHG-K terminal tables relate oil-temperature and Hall-effect input/output speed-sensor signals to TCM circuit checks, alongside pressure, clutch, brake, converter, and shift-solenoid controls. Together with the test specifications, these references support tracing sensor and wiring faults before complete-unit removal. TCM learning is covered for transaxle or control-module work.

Six-speed manual applications: M6CF3-1 coverage applies to the 2.0L engine; M6GF2 coverage applies to the 2.4L. Procedures address lubricant service, shift controls, external switches, and unit removal and installation. The 2.4L volume separates new- and old-type hydraulic clutch systems.

The clutch instructions reference the 09411-1P000 clutch-disc guide. Installing the disc with its marked transmission side reversed can damage the concentric slave cylinder.

Fuel Delivery, ECM, and Starting Diagnosis

Fuel-pressure diagnosis covers the pump, tank, filter, injectors, electronic throttle control, and evaporative-emissions hardware. Tool references include the 09353-series fuel-pressure gauge, adapter, and connector.

ECM coverage includes crankshaft, camshaft, temperature, pressure, knock, and oxygen-sensor circuits, plus CVVT and purge-control actuators. Separate engine-electrical chapters provide ignition checks, alternator and battery testing, starter-circuit fault tracing, and starter inspection.

Body Electronics and SRS Setup

Body-electrical coverage includes the BCM, smart key, keyless entry, immobilizer, push-button start, instrument cluster, audio and AVN, windows, locks, mirrors, lighting, wiper/washer, sunroof initialization, and rear defogger.

Setup procedures distinguish transmitter teaching and immobilizer registration from GDS fault retrieval, SRSCM variant coding, and occupant-detection reset and accuracy checks after restraint-system work.

Brake Hydraulics, Steering, and Axles

Brake chapters cover the booster, master cylinder, disc brakes, parking brake, ABS/ESC sensors, and HECU. Scan-tool-assisted HCU bleeding includes pump operating limits and a required pause; ignoring those limits can damage the pump motor.

Steering sections distinguish EPS from hydraulic power steering, including pressure testing and bleeding. Front and rear suspension, wheel alignment, and TPMS material is supplemented by driveshaft, CV-joint boot, and front and rear hub procedures.

HVAC, Body Repair, and System Diagrams

HVAC chapters address R-134a recovery, evacuation, charging, leak testing, compressor-oil balancing, component repair, actuators, sensors, and manual or fully automatic climate-control diagnosis.

Coupe and sedan body sections cover doors, hood, trunk lid or tailgate, glass, sunroof, bumpers, seats, and trim. Body-dimension charts are labeled for the 5-door body.

Illustrations include the A6MF1 Power Flow Chart, TCM connector views, AVN System Block Diagram, ABS/ESC circuit diagrams, SRSCM circuit and connector-terminal information, and TPMS Schematic Diagram. Exploded component views support assembly identification.

Work involving supported powertrains, pressurized fuel or refrigerant, brake hydraulics, and deployable SRS components requires proper shop equipment and qualified assistance where appropriate.

Preview of Cold Valve Clearances and Fuel-Pressure Data

For the Theta II engines, the valve specifications list standard cold clearances at 20°C (68°F) of 0.17–0.23 mm intake and 0.27–0.33 mm exhaust. These are distinct from the broader inspection limits.

The fuel-delivery specifications give regulated fuel pressure as 338–348 kPa (49.0–50.5 psi), alongside pressure-testing and leak-check procedures.
