Kia Forte (YD) 2014 Service Manual Set – 1.8 MPI & 2.0 GDI
3,096 Pages • 1 Printable PDF (English) • Download
Kia Models Covered & Key Technical Specifications
Model & Model Code: Forte (YD)
Sub-models / Variants: Sedan 4-door, Nu 1.8 MPI engine (engine-number prefix G4NB), Nu 2.0 GDI engine (engine-number prefix G4NC), Automatic A6GF1 transaxle (1.8 MPI, ID prefix NA, classification N for MPI or P for MPI with ISG), Automatic A6MF1 transaxle (2.0 GDI, ID prefix EA, classification P), Manual M6CF3-1 transaxle (both engines, ID prefix W)
Model Year: 2014

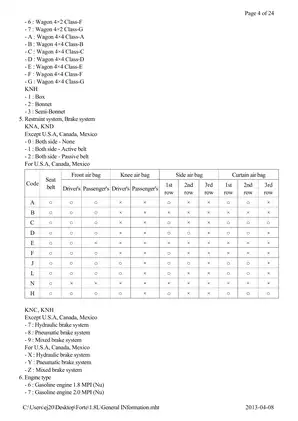

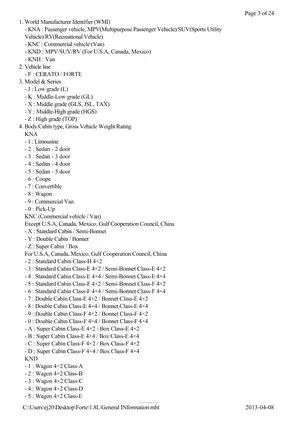

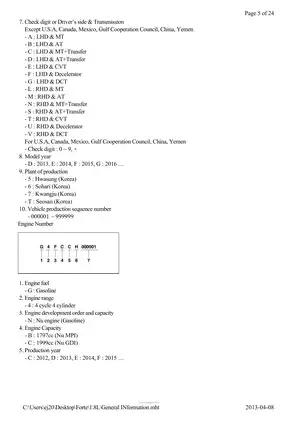

VIN identifiers: On KNA vehicles, position 6 = 4 for the 4-door sedan. Position 8 = 6 for the Nu 1.8 MPI engine.
-
Engine: 1.8 L Nu MPI
-
Transaxle type: A6GF1
-
Torque converter size: 225 mm (8.8583 in.)
-
Transaxle fluid capacity: 7.3 L (7.71 U.S. qt)
-
Input/Output speed sensor type: Hall effect sensor
-
Input speed sensor output voltage (High/Low): 1.18–1.68 V / 0.59–0.84 V
-
Oil temperature sensor resistance at 20°C (68°F): 2.51 kΩ
-
Solenoid valve internal resistance (VFS): 5.1 Ω
-
Solenoid valve internal resistance (ON/OFF): 10–11 Ω
Kia Manual Features & Selected Content Preview
| Publication | Pages |
|---|---|
| 2014 Kia Forte (YD) 1.8L Nu MPI Service Manual | 1,566 |
| 2014 Kia Forte (YD) 2.0L Nu GDI Service Manual | 1,530 |
Start with the section for your engine. Each section has its own engine, fuel-system, and transaxle procedures, along with chassis, body, and electrical chapters.
Body repair coverage centers on the four-door sedan. Some transaxle tables list separate ratios for two-door and four-/five-door applications. Match the table to the vehicle configuration. The transaxle chapters cover assembly removal and component service. Full internal geartrain rebuilds are outside their scope.
PDF Search, Bookmarks, and Diagram Detail
Text search and diagram detail: Search the service text and use the embedded bookmarks to jump to system chapters in either engine section. Labels embedded in diagram images aren’t searchable. Small pin and wire labels often need zooming. Some ESC diagram labels are cut off at the right edge, and some steering-wheel switch circuit labels remain faint when enlarged.
The download is one printable English-language PDF with 3,096 pages.
Engine, Drivetrain, and Vehicle Systems
This selection of workshop procedures is complemented by coverage of front wiper motor testing and removal, and rearview camera inspection.
- Engine mechanical: Engine and transaxle removal, timing chain and CVVT service, cylinder head and valve inspection, piston and crankshaft work, and lubrication and cooling system checks.
- Automatic transaxles: A6GF1 service for the MPI engine and A6MF1 service for the GDI engine, including fluid-level checks, oil cooler and valve body work, and speed-sensor diagnosis.
- Manual transaxle and clutch: M6CF3-1 removal and installation, gear oil, shift cable and control shaft service, clutch disc inspection, release hydraulics, and driveshaft and hub work.
- Fuel and emissions: Fuel-pressure testing, GDI high-pressure pump and injector service, and EVAP leak checks, with equipment distinctions for LEV2, ULEV, and SULEV applications.
- Brakes, steering, and restraints: Disc and rear drum brake service, hydraulic bleeding, ABS/ESC troubleshooting, motor-driven power steering (MDPS), suspension and alignment, and airbag diagnosis.
- Body, electrical, and HVAC: Door, glass, trunk, bumper, sunroof, and trim work, plus body control module, push-button start, lighting, power accessories, audio/navigation, and R-134a service.
The procedures suit professional technicians and experienced owners with access to Kia GDS diagnostics and the specified lifting, refrigerant-service, and special service equipment.
Engine Inspection and Fuel-System Differences
The engine chapters pair disassembly procedures with inspection limits and clearances for parts such as cylinder bores, valves, and crankshaft bearings. Troubleshooting references include cooling-system pressure checks, charging and starting tests, and HVAC fault charts.
The MPI section includes Idle Stop & Go diagnosis where equipped. The GDI section adds rail-pressure sensor and control-valve checks, high-pressure fuel handling, and injector combustion-seal replacement. The special service tool listings identify the engine support fixture components and the GDI seal guide and sizing tool (09353-2B000).
Transaxle Diagnosis and Relearning
TCM connector views, pin-function tables, hydraulic clutch and brake flow diagrams, and speed-sensor waveforms help trace a shift complaint to a circuit or component. The manual specifies valve body replacement and hydraulic pressure adjustment when replacing a variable-force solenoid. The on/off shift solenoid procedure calls for no additional pressure adjustment.
The GDS procedures explain when to clear codes and reset learned values after transaxle replacement. The manual also specifies TCM relearning after valve body replacement to address slow shift response.
Control Module Setup After Repairs
GDS procedures cover smart-key and transmitter registration, ESC G-sensor calibration, MDPS type recognition, TPMS receiver setup and sensor learning, and airbag control module coding. The passenger-seat Weight Classification System section identifies when a reset and accuracy check are required. ESC, MDPS, TPMS, and airbag circuit views support fault tracing.
Sample Alignment and TCM Learning Specifications
Both suspension sections list front total toe-in at 0.10° ± 0.20° and front camber at −0.50° ± 0.50° for checking alignment. For TCM learning, both automatic transaxle chapters specify an automatic transaxle fluid temperature of 40–100°C (104–212°F).
