Definitive Repair & Service Guide for KTM 450 SX-F EU, 450 SX-F EU Factory Edition, 450 SX-F USA, 450 SX-F USA Factory Edition and 450 XC-F USA Sports Motorcycles – Owner's Manual 2013
Manual Preview

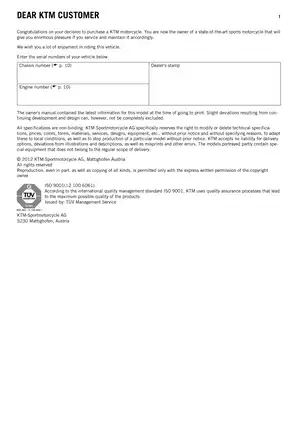

Sample pages from the Definitive Repair & Service Guide for KTM 450 SX-F EU, 450 SX-F EU Factory Edition, 450 SX-F USA, 450 SX-F USA Factory Edition and 450 XC-F USA Sports Motorcycles – Owner's Manual 2013 manual
Purchase & Download
Models Covered & Key Technical Specifications
- KTM 450 SX-F EU (2013)
- KTM 450 SX-F EU FACTORY EDITION (2013)
- KTM 450 SX-F USA (2013)
- KTM 450 SX-F USA FACTORY EDITION (2013)
- KTM 450 XC-F USA (2013)
- KTM 450 SX-F (2013)
- KTM 450 XC-F (2013)
- KTM SX-F Series (2013)
- KTM XC-F Series (2013)
- KTM SX-F Factory Edition (2013)
Professional Workshop Service Manual & Technical Specifications
KTM 450 Series Sports Motorcycles Owner's Manual - 2013 Edition
This professional technical guide provides the operational framework and maintenance protocols for high-performance KTM 450 four-stroke engines. It integrates precise factory settings for chassis tuning, fuel system management, and engine calibration to ensure competitive reliability. Utilizing the specific idle speed adjustment—maintained between 2,250 and 2,350 rpm—is critical for ensuring stable starting behavior and immediate throttle response during high-stress operation.
Technical Applicability & Model Configurations
European Specification (EU) Models
- KTM 450 SX-F EU (2013): 4-gear claw-shifted transmission, 14:50 secondary ratio.
- KTM 450 SX-F EU Factory Edition (2013): 5-gear claw-shifted transmission, 14:52 secondary ratio.
United States Specification (USA) Models
- KTM 450 SX-F USA (2013): 5-gear claw-shifted transmission, 14:50 secondary ratio.
- KTM 450 SX-F USA Factory Edition (2013): 5-gear claw-shifted transmission, 14:52 secondary ratio.
- KTM 450 XC-F USA (2013): 5-gear claw-shifted transmission, 14:50 secondary ratio, 9.0L fuel capacity.
Operational Parameters & Service ROI
- Engine Longevity: Adhering to the 7,000 rpm limit during the first operating hour facilitates proper component seating.
- Race Readiness: Service intervals are indexed by fuel consumption and operating hours, specifically recommending minor fork services every 10 hours.
- Chassis Precision: Detailed sag measurements (30mm static sag) allow for personalized suspension geometry based on rider weight.
Document Metadata
- Print Number: Art. no. 3211931en
- Page Count: 104 Pages
- Technical Category: Owner's Manual (Operating Instructions)
Technical Depth & Factory Benchmarks
The 449.3 cm³ OHC engine requires exact valve clearances of 0.10 to 0.15 mm for intake and 0.12 to 0.17 mm for exhaust at a stabilized temperature of 20°C (68°F). Lubrication systems utilize two Eaton pumps for pressure circulation, requiring 1.5 liters of SAE 10W/50 synthetic oil meeting JASO T903 MA standards.
Visual Navigation Aids
- Service Blink Codes: Integrated OBD system provides 11 distinct flash patterns via the FI warning lamp to diagnose sensor circuit faults.
- Mapping Switches: Location diagrams for the Map-Select switch (under the seat) enable rapid toggling between Soft, Advanced, and Standard engine characteristics.
- Component Views: Front-left and rear-right vehicle overlays identify critical controls, including the cold start button and idle adjustment screw.

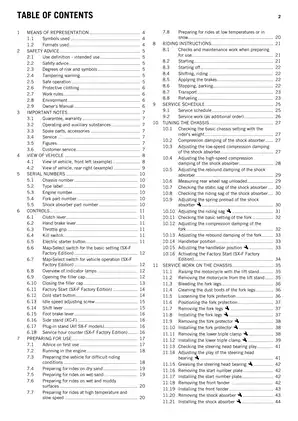

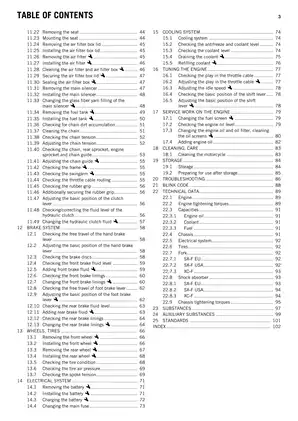

Table of Contents
- Safety Advice: Intended use, protective clothing, and work rules.
- Serial Numbers: Locations for chassis, engine, fork, and shock absorber IDs.
- Controls: Map-Select switches, Factory Start activation, and indicator lamps.
- Preparing for Use: Running-in guidelines and difficult riding conditions (sand/mud/snow).
- Service Schedule: Operating hour-based maintenance matrices.
- Chassis Tuning: High/low-speed compression and rebound damping adjustments.
- Technical Data: Engine tolerances, tightening torques, and fluid capacities.
Operational Limits & Torque Sequences
| Component | Specification / Torque |
|---|---|
| Engine Sprocket Screw | 60 Nm (44.3 lbf ft) + Loctite 2701 |
| Cylinder Head (M10x1.25) | Step 1: 10 Nm / Step 2: 30 Nm / Step 3: 50 Nm |
| Rear Wheel Spindle Nut | 80 Nm (59 lbf ft) |
| Shock Absorber Nitrogen | 10 bar (145 psi) |
| Tire Pressure (Off-Road) | 1.0 bar (15 psi) Front and Rear |
| Coolant Type | Ethylene Glycol / Distilled Water (50:50 mix) |
