2014 KTM 450 SX-F / XC-F Service Manual
Technical reference spanning multiple KTM 450 SX-F EU, USA, and XC-F models from 2014. This guide provides essential maintenance procedures and specifications for optimal performance. PN 3213090en
Manual Preview

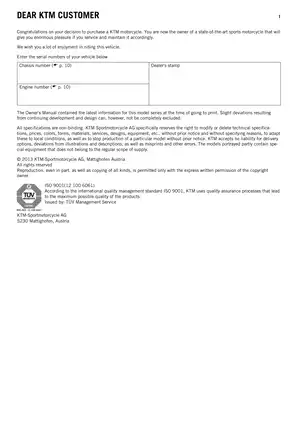

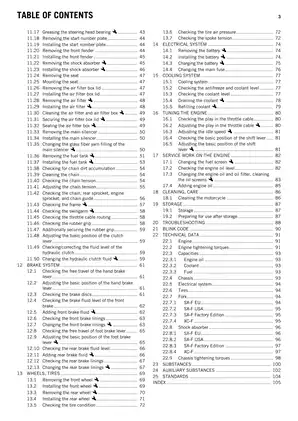

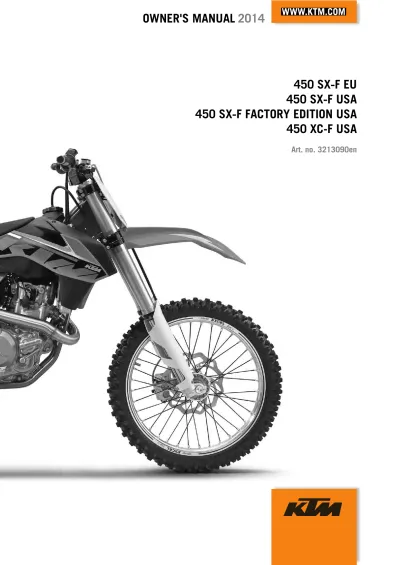

Sample pages from the 2014 KTM 450 SX-F / XC-F Service Manual manual
Purchase & Download
Models Covered & Key Technical Specifications
KTM 450 SX-F / XC-F (2014) Service Manual
Technical Reference | Owner's Manual Edition
- General Specifications: 449.3 cm³ displacement provides ample power for off-road riding.
- Suspension Travel: Front suspension offers 300 mm of travel for optimal terrain absorption.
- Brake System: Features disc brakes with brake calipers on floating bearings for reliable stopping power.
- Engine Oil: Requires SAE 10W/50 engine oil for proper lubrication and cooling.
- Fuel Capacity: Total fuel tank capacity is 7.5 liters for extended range.
- Weight: The overall permissible weight is 335 kg, ensuring stability and maneuverability.
Professional Workshop Service Manual & Technical Specifications
In-Depth Maintenance Repair Manual: KTM 450 SX‑F EU, 450 SX‑F USA, 450 SX‑F FACTORY EDITION USA, 450 XC‑F USA motorcycle Owner's Manual - Factory Service Reference (2014) Technical-Briefing
| Product-Line: Motorbike // Asset-ID: 3213090en / 2014 // Model-Specs: KTM 450 SX-F EU, SX-F USA, SX-F Factory Edition USA, XC-F USA | Specification | Operational-Logic | Context |
|---|---|---|---|
| Frame | Central tube frame | Chrome molybdenum steel tubing | |
| Fork | WP Suspension | Up Side Down 4860 MXMA CC | |
| Shock Absorber | WP Suspension | 5018 BAVP DCC | |
| Brake System | Disc brakes | Brake calipers on floating bearings |
Following OEM groupings, the manual includes sections on
Engine Overview and Specifications
This section covers fundamental engine data, including displacement, bore, stroke, compression ratio, and valve specifications. It details the engine's design, lubrication system, and transmission ratios for various models.
Chassis Tuning and Adjustments
This part of the manual guides users through adjusting the motorcycle's chassis, focusing on the shock absorber and fork. Procedures for setting compression and rebound damping, along with spring preload, are thoroughly documented.
Wheels, Tires, and Brakes
Detailed instructions are provided for the maintenance of wheels and tires, including checking tire condition, air pressure, and spoke tension. Brake system maintenance, such as checking brake fluid levels and changing brake linings, is also covered.
Electrical System and Cooling
Guidance on the motorcycle's electrical components, including battery maintenance and fuse replacement, is presented. The cooling system, covering coolant checks and draining procedures, is also detailed.
Troubleshooting and Technical Data
This section offers a comprehensive troubleshooting guide for common issues, alongside extensive technical data and specifications. It includes engine tightening torques and substance recommendations. Fundamentally requiring precise adjustments for optimal performance, this manual documents torque specifications for various engine and chassis components to ensure proper flange face sealing and system integrity.
