Official 350 EXC-F EU, 350 EXC-F SIX DAYS EU, 350 EXC-F AUS, 350 XCF-W USA & 350 XCF-W SIX DAYS USA Motorcycle Repair & Service Guide - Owner's Manual 2014

KTM 350 EXC-F & XCF-W Series Owner's Manual - 2014 Edition

This technical publication provides the authoritative framework for the operation and maintenance of the 2014 KTM 350cc four-stroke enduro series. It establishes standardized protocols for system longevity and structural integrity through factory-validated procedures. Adhering to the precise valve clearance specifications—Intake at 0.10…0.15 mm and Exhaust at 0.13…0.18 mm—is vital for ensuring optimal volumetric efficiency and preventing terminal valvetrain failure during high-thermal load cycles.

Technical Applicability & Regional Variant Mapping

• KTM 350 EXC-F Dual-Sport Platforms (Global)
  • 350 EXC-F EU (2014)
  • 350 EXC-F SIX DAYS EU (2014)
  • 350 EXC-F AUS (2014)
• KTM 350 XCF-W Off-Road Competition Platforms (North America)
  • 350 XCF-W USA (2014)
  • 350 XCF-W SIX DAYS USA (2014)

Operational Integrity & Asset Preservation

• Systematic maintenance schedules ensure high-load components remain within factory tolerances, significantly reducing the risk of mid-operation mechanical downtime.
• Precise torque sequences for critical chassis fasteners prevent fatigue-induced failure in extreme terrain environments.
• Defined lubricant standards (JASO T 903 MA) ensure clutch friction stability and transmission protection under competitive stress.

Document Metadata

• Print Number: 3213036en
• Page Count: 133
• Document Type: Owner's Manual

Technical Depth & Factory Benchmarks

• Engine Architecture: Single-cylinder 4-stroke engine, liquid-cooled, 349.7 cm³ displacement with 88 mm bore.
• Ignition Timing: Contactless fully electronic ignition system with digital adjustment via Keihin EMS.
• Fuel Injection Parameters: Throttle body type Keihin EFI 42 mm with integrated cold start and idle regulation.
• Lubrication System: Pressure lubrication with two oil pumps ensuring constant flow to the overhead camshafts.

Visual Navigation Aids & Interface Protocols

• Chassis Ergonomics: Detailed mapping of handlebar-mounted controls, including the mapping switch and emergency stop logic.
• Instrumentation Logic: Digital speedometer interface guide for adjusting wheel circumference (WS) and interpreting service hour (H) data.
• Fluid Circuit Schematics: Visual identification of coolant flow paths and bleed screw locations for effective thermal management.

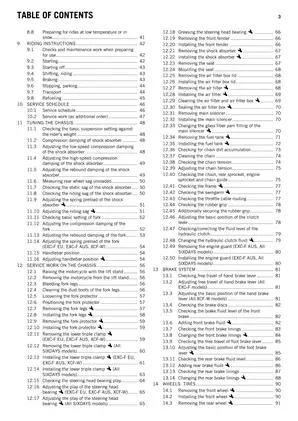

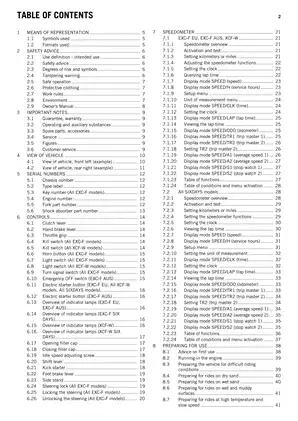

Table of Contents

• Safety Advice: Use definition, protective clothing, and work rules.
• Serial Numbers: Locations for chassis (head tube) and engine (left side) identification.
• Controls: Lever adjustments, multifunctional digital instrument, and fuel tap operation.
• Preparing for Use: Running-in protocols and chassis setup for heavy payloads.
• Service Work: Fork leg maintenance, brake pad replacement, and air filter cleaning.
• Technical Data: Engine specs, tightening torques, and chassis geometry.

Operational Limits & Specifications

• Engine Torque Benchmarks: Spark plug (10–12 Nm), Oil screen screw (15 Nm), and Clutch cover (10 Nm).
• Chassis Torque Benchmarks: Front wheel spindle (45 Nm), Rear wheel spindle (80 Nm), and Engine bracket bolts (60 Nm).
• Fluid Capacities: Engine oil 1.2 l (1.27 qt.), Coolant 1.2 l (1.27 qt.), and Fuel tank 8.5–9.0 l.
• Suspension Benchmarks: WP Suspension 4860 MXMA/4CS with specific compression and rebound clicker settings for "Sport" or "Comfort" profiles.
