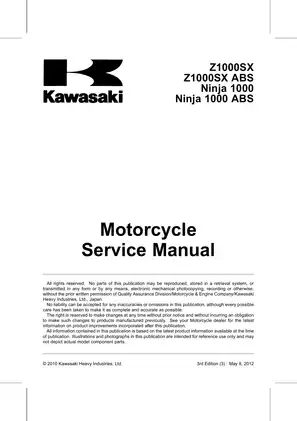

2011–2013 Kawasaki Z1000SX, Z1000SX ABS, Ninja 1000, and Ninja 1000 ABS Service Manual (P/N 99924-1442-03)

This Kawasaki service manual covers the 2011–2013 Z1000SX, Z1000SX ABS, Ninja 1000, and Ninja 1000 ABS, including ZX1000GB/GC/GD and ZX1000HB/HC/HD variants. P/N 99924-1442-03, third edition, May 8, 2012.

• DFI fuel system: Self-diagnosis, sensor and actuator circuit tests, fuel-pressure checks, injector service, throttle-body removal, and engine vacuum synchronization.

• Engine and transmission: Cylinder-head and piston repair, engine removal, crankcase separation, bearing selection, clutch service, and transmission disassembly and inspection.

• Cooling and lubrication: Coolant replacement, radiator and thermostat testing, water-pump seal service, oil-pump inspection, and oil-pressure measurement.

• Brakes and ABS: Caliper and master-cylinder overhaul, fluid replacement and bleeding, wheel-sensor testing, and ABS hydraulic-unit inspection and replacement.

• Chassis and final drive: Wheel and tire service, chain and sprocket replacement, front-fork repair, swingarm and steering-bearing service, and frame and fairing removal.

• Electrical and immobilizer systems: Charging, ignition, starter, and lighting tests, plus key registration and component-replacement charts for immobilizer-equipped models.

• Workshop reference: Periodic inspection and replacement charts, torque and locking-agent tables, wear limits, exploded assembly views, and cable, wire, and hose routing.

Written primarily for trained mechanics in a properly equipped shop, the manual also supports basic owner maintenance and repair where the user understands mechanics, tools, and workshop procedures.

DFI Diagnosis and Throttle-Body Service

The DFI Diagnosis Flow Chart connects service-code reading with power-supply, wiring, sensor, and actuator checks. These circuit-level tests help distinguish a wiring fault from a failed component before replacement parts are selected.

Throttle-body coverage separates vacuum synchronization and injector work from factory-set throttle sensors, actuators, and linkage components that are not intended for adjustment. Evaporative-emission procedures apply to CAL and SEA-B1 versions.

The exhaust butterfly valve actuator section warns that forcing the pulley into position with a tool can damage the actuator. Fuel-line procedures also address residual fuel pressure and fire precautions.

Cylinder-Head Repair and Internal Engine Work

Valve service includes shim-selection charts, valve-guide inspection, valve-seat repair, and cylinder and piston measurements. Camshaft installation illustrates different timing-mark layouts for GB/GC and HB/HC models versus GD/HD models.

The crankshaft and transmission sections cover bearing-insert selection, connecting-rod installation, shaft assembly, and shift-drum and fork wear checks. The connecting-rod section explains plastic-region fastening and the risk of bolt failure if stretched rod bolts are reused.

Cooling, Lubrication, and Chassis Service

The Coolant Flow Chart and Engine Oil Flow Chart accompany component-level service information. Water-pump housing disassembly includes mechanical-seal replacement; lubrication coverage extends to the oil screen, relief valve, pump, cooler, and pressure switch.

Suspension procedures cover fork oil and seals, damping and preload adjustment, rear-shock removal, and linkage-bearing replacement. Wheel balancing, final-drive alignment, steering-stem inspection, and bodywork access are also documented.

ABS Fault Finding and Electrical Variants

ABS coverage combines service-code tables, the ABS System Wiring Diagram, and hydraulic-unit replacement procedures. The hydraulic unit is a factory-set assembly covered for inspection and replacement, rather than internal rebuilding.

Main wiring diagrams distinguish regional specifications and ABS configurations. Charging, starting, ignition, and lighting circuits support fault tracing alongside connector and ECU-terminal information.

For equipped models, immobilizer coverage distinguishes spare-key registration, ignition-switch replacement, and lost-key cases. Applicable registration procedures identify Key Registration Unit 57001-1582 and Key Registration Adapter 57001-1746. Country-specific ECU identification separates immobilizer and non-immobilizer versions.

Examples of Cylinder-Head, Valve, and Oil-Service Data

Cylinder-head assembly data include a two-stage M10 bolt specification: 20 N·m (15 ft·lb) initially and 54 N·m (40 ft·lb) finally, with the associated lubrication requirements and illustrated tightening pattern.

Intake-valve clearance is 0.15–0.24 mm with the engine cold at room temperature. Separate intake and exhaust shim-selection charts support the adjustment procedures.

Oil-fill data distinguish 3.2 L when the filter is not removed, 3.8 L when it is removed, and 4.0 L for a completely dry engine.

Searchable Text, Bookmarks, and Wiring Detail

Text lookup and diagram detail: The body text is searchable, with embedded bookmarks for chapters and individual service sections. Labels within the main wiring diagrams are graphical, so text search does not locate every wire code. Small wiring labels require zooming for comfortable reading.

Supplied as one printable English-language PDF with 755 pages total, including 10 preliminary pages, 12 blank pages within the chapter sequence, and the final Model Application and Part No. page.
