2005–2011 Honda TRX250TE / TRX250TM Service Manual (P/N 61KZZ00)

• Coverage and format: Covers the 2005-2011 Honda TRX250TM foot-shift Recon and TRX250TE Recon with Electric Shift Program (ESP) in a 410-page PDF of the Honda factory service manual.
• Engine and fuel-system repair: Documents engine removal and installation, cylinder-head and valve service, valve-guide replacement and seat refacing, cylinder/piston/camshaft work, oil-pump inspection, and carburetor disassembly, assembly, and adjustment.
• Clutch, transmission, and rear drive: Details centrifugal- and change-clutch service, gearshift and reverse-linkage work, alternator and starter-clutch removal, crankcase separation, constant-mesh transmission and crankshaft repair, plus rear-axle and final-drive overhaul.
• Steering, suspension, and brakes: Covers front and rear wheel/hub service, tie rods, knuckles, control arms, steering shaft, shocks, swingarm, front hydraulic brake bleeding and overhaul, and rear drum-brake repair.
• TE-specific ESP diagnosis: Includes self-diagnostic problem-code retrieval and erasure, symptom flowcharts, ECU circuit checks, and tests for the angle sensor, shift motor and reduction gears, gear-position switch, vehicle-speed sensor, and handlebar shift switches.
• Factory diagrams and reference data: Provides TM- and TE-specific wiring diagrams, system schematics, cable and harness routing, exploded views, torque tables, fluid and lubrication data, wear limits, clearances, electrical test specifications, and part-numbered special tools.

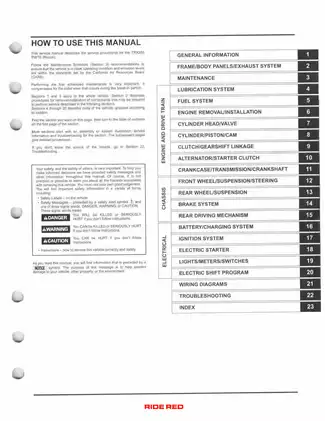

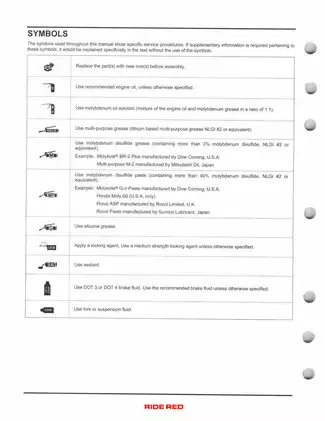

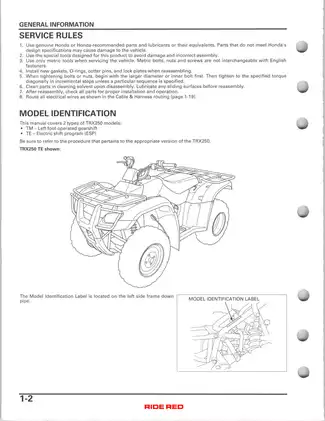

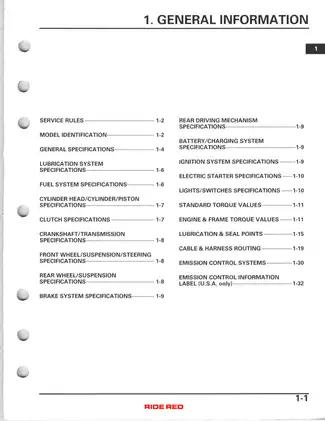

This manual is organized into 22 service, wiring, and troubleshooting sections plus an index. Honda states that its service and repair information is intended for qualified professional technicians; the procedures assume proper training, shop safety knowledge, tools, and test equipment. Because the book covers fuel handling, hydraulic brake service, spring-loaded components, and a raised chassis, follow its safety precautions and use the specified supports and protective equipment before starting those jobs.

Engine, Transmission, and Chassis Repair

The mechanical chapters go well beyond routine maintenance. Along with the scheduled service chart, they cover valve-clearance inspection, engine-oil and rear-final-drive service, clutch adjustment, brake inspection, steering checks, and spark-arrester cleaning. The fuel-system section follows the carburetor through removal, disassembly, inspection, reassembly, pilot-screw adjustment, high-altitude setup, and fuel-tank service.

Internal repair coverage reaches from compression testing, rocker arms, valves and guides, and valve-seat refacing through piston and ring inspection and camshaft/tensioner work. Deeper repair chapters cover both automatic clutch assemblies, the reverse stopper mechanism, transmission shafts and gears, and the crankshaft. The manual also makes the scope boundary clear: crankshaft, transmission, and most gearshift-linkage work require engine removal, while the top end, clutch, alternator/starter clutch, carburetor, and oil pump can be serviced with the engine in the frame.

Chassis procedures address front-wheel and hub service, tie-rod and knuckle inspection, upper and lower arm work, steering-shaft bearings, shocks, rear hub and swingarm service, and toe adjustment. The brake chapter separates the front hydraulic drum system from the rear mechanical drum system, with fluid replacement and bleeding, master- and wheel-cylinder repair, shoe and adjuster service, cables, and the brake pedal. Rear driveline work reaches into axle inspection, drive-shaft service, final-drive disassembly, bearing and seal replacement, ring-gear tooth-contact checks, backlash measurement, and shim selection.

ESP and Electrical Fault Finding

The TRX250TE material is a dedicated diagnostic section rather than a brief wiring add-on. Its ESP system diagram identifies the ECU, angle sensor, shift-control motor, gear-position and reverse switches, vehicle-speed sensor, and up/down controls. The built-in self-diagnostic coverage links indicator blink codes to targeted circuit tests and includes code retrieval, code erasure, harness continuity checks, and component inspection.

Separate chapters cover the maintenance-free battery, current-leakage and charging-voltage diagnosis, alternator charging coil, and regulator/rectifier. The ignition and electric-start sections address the control module, pulse generator, timing, starter motor, starter relay, and diode; lighting, indicators, and switches have their own coverage. Diagram examples include the TRX250TM wiring diagram, TRX250TE wiring diagram, lubrication-system diagram, battery/charging-system diagram, ignition-system diagram, and ESP system diagram. The final troubleshooting charts isolate hard starting, power loss, poor low- or high-speed performance, and handling faults.

Factory Tools, Specifications, and Repair Cautions

Tool callouts include the valve spring compressor 07757-0010000, valve guide driver 07742-0010100, and rotor puller 07733-0010000, along with bearing drivers, pullers, holders, and final-drive service tools. Each assembly is supported by component-specific torque values, service limits, inspection dimensions, approved fluids, lubrication and seal points, and electrical test criteria.

The centrifugal-clutch locknut uses left-hand threads; treating it like a conventional right-hand fastener can damage the nut or crankshaft threads. The TE section also warns that disconnecting ESP connectors with current flowing can damage the ECU.
