2013 Deutz TCD 2013 4V Industry Diesel Engine Workshop Manual (P/N 0312 3132)

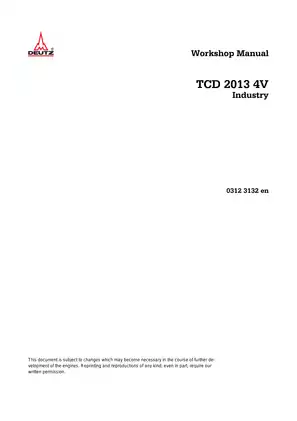

This DEUTZ TCD 2013 4V Industry workshop manual covers the L4 4V and L6 4V four-stroke, direct-injection diesel engines. The title-page document code is 0312 3132 en. Indexed job cards connect engine repair procedures with testing and setting data, tightening specifications, and the required tools.

• Cylinder head and valve train: Compression testing, valve-clearance adjustment, cylinder-head removal, valve and guide inspection, and valve-control disassembly and assembly.

• Crankshaft, pistons, and liners: Bearing and journal checks, piston and connecting-rod service, crankshaft seal replacement, cylinder-liner removal, and liner-protrusion measurement.

• DEUTZ Common Rail: High-pressure pump removal in installation positions A and B, injector replacement, rail service, and pressure-limiting valve and pressure-sensor replacement.

• Turbocharger and EGR: Removal and installation of the turbocharger, charge-air piping, heating flange, EGR flutter valve, cooler, actuator, and shutoff valve.

• Lubrication and cooling: Crankcase-breather disassembly, heavy-duty oil-pan sealing, oil-cooler and housing removal, coolant-pump replacement, and thermostat service.

• Electrical and ancillary components: Alternator and starter replacement, impulse-transmitter and charge-air sensor service, plus flywheel, torsional vibration damper, and A/C compressor removal and installation.

Written for appropriately qualified technicians, the manual assumes knowledge of the separate operating manual and access to the specified workshop equipment.

Job Cards, Reference Tables, and Tools

The W job cards are indexed both alphabetically and numerically, with references to prerequisite jobs. Technical-data tables distinguish the two engine layouts by dimensions, weight, displacement, and firing order. The P00–P09 tables also cover bore, stroke, compression ratio, thermostat opening, component fits, and clearances.

The DEUTZ and Wilbaer tool references include rotation-angle disc 8190 and O-ring assembly case 110900, identified alongside the relevant jobs. These links help a shop check tooling requirements and related work before disassembly begins.

Cylinder Head and Internal Engine Repair

Valve-overlap charts and cylinder-head tightening diagrams distinguish the four- and six-cylinder layouts. Piston-projection measurement supports head-gasket selection, while valve-control assembly distinguishes engines with and without a brake module.

Journal measuring-point diagrams, piston-ring clearance tables, and liner-extraction illustrations support internal inspection. Crankshaft-seal procedures distinguish the front and flywheel-side locations; flywheel and torsional-damper job cards show their mounting arrangements.

The connecting-rod instructions warn that reversing a fracture-split rod cap or damaging its mating surfaces can make the rod unusable. Camshaft inspection specifies replacement at the wear limit; camshaft repair is not permitted.

Common Rail, Turbocharger, and EGR Work

Separate pump job cards address installation positions A and B. Fuel-system coverage extends to the supply pump, control block, rail, and fuel-pressure and rail-pressure sensors, with component-specific sealing and mounting details.

The injector procedure includes extraction of a sealing ring stuck in the cylinder head. It also warns against nozzle-tip damage during cleaning or sealing-ring removal.

Exhaust and charge-air procedures show gasket and pipe-joint details. EGR illustrations identify the flutter valve, cooler, actuator, and shutoff-valve connections.

High-pressure common rail work carries inherent risks. Follow the safety protocols in the documentation before diagnostics, repair, or disassembly.

Cooling, Sealing, and Electrical Scope

Gearcase and heavy-duty oil-pan illustrations show sealant placement and tightening patterns. Cooling procedures address the coolant pump, paired thermostats, thermostat housing, and temperature transmitter. Referenced fluid-filling work relies on the operating manual or equipment manufacturer's documentation.

Electrical pages provide alternator terminal-identification views, starter replacement instructions, and component views for the crankshaft and camshaft impulse transmitters and charge-air pressure/temperature sensor. They do not include wiring diagrams or circuit-level troubleshooting. The A/C compressor job refers refrigerant-system emptying and filling to the vehicle manufacturer's instructions.

A Sample of Rail and Crankshaft Specifications

The fuel-system and crankshaft entries below are a small selection from the manual's testing and setting tables.

For the TCD 2013 4V, the DEUTZ Common Rail high-pressure range is listed as 300–1600 bar, with a 7-hole injector nozzle specification.

The crankshaft table lists a permissible axial clearance of 0.1–0.32 mm. A separate job card covers checking that clearance and selecting the associated thrust-ring halves.

Searchable PDF and Job-Card Bookmarks

Text search and navigation: Searchable text extends through the technical data, repair job cards, and tool lists. Embedded PDF bookmarks provide access to chapters and individual jobs.

One printable English PDF contains 355 pages: 353 pages from the title page through the special-tool section, plus one cover-layout page and one blank preliminary page. All cover, divider, and blank pages are included in that total.
