2010–2014 Suzuki DF8A & DF9.9A Outboard Motor Service & Repair Manual

This Suzuki service manual covers 2010–2014 DF8A and DF9.9A outboard motors, including manual-start, electric-start, tiller-handle, and remote-control versions.

• Powerhead repair: Power unit removal, cylinder-head overhaul, valve-guide servicing, and inspection of the camshaft, pistons, connecting rods, and crankshaft.

• Fuel system: Carburetor disassembly, float inspection, diaphragm fuel-pump overhaul, fuel-system diagnosis, and throttle cable and linkage adjustment.

• Ignition and charging: Coil resistance and peak-voltage tests, temperature-sensor checks, rectifier/regulator inspection, and descriptions of the engine caution systems.

• Starting systems: Electric starter troubleshooting and overhaul, recoil starter service, and neutral start interlock checks and adjustment.

• Cooling and lubrication: Water pump and impeller service, thermostat testing, oil pump inspection, and lubrication-system diagnostic charts.

• Mid-unit and lower unit: Steering friction adjuster repair, bracket and mount service, gearcase overhaul, shaft seal replacement, and gear shimming.

This manual suits mechanics experienced in outboard diagnosis and overhaul, with access to electrical test equipment and precision measuring tools.

Powerhead Repair and Scheduled Maintenance

The Periodic Maintenance Schedule Chart sets out inspection and replacement intervals for engine oil, filters, the timing belt, and other service items. Maintenance instructions include spark-plug gap checks, valve-clearance adjustment, and ignition timing inspection.

Internal repair coverage extends to valve-seat refacing, valve-guide replacement, bearing-clearance measurements with Plastigauge, and crankshaft thrust-play checks. Tightening specifications cover cylinder-head and crankcase fasteners, alongside component wear limits and inspection dimensions.

The Engine Oil Lubrication Chart traces the oil supply through the powerhead. The Cooling Water Circulation Chart shows the relationship between the water pump, thermostat, powerhead passages, and exhaust cooling.

The timing-belt and camshaft-pulley sections warn that incorrect timing alignment or pulley movement during disassembly can bend valves.

Carburetor Variants and Fuel Diagnosis

The fuel-system chapter separates manual enrichment from the PTC-heated auto-enrichener used on electric-start versions and explains the DF9.9A accelerator pump. Fuel Hose Routing views supplement diagnosis of difficult starting, unstable trolling, and poor midrange or high-speed performance.

Carburetor service includes jet and nozzle inspection, float-height checking, and auto-enrichener testing. Covered pilot screws are identified as preset settings that are not to be adjusted.

Separate carburetor jet charts distinguish standard and high-altitude configurations. The manual warns that high-altitude jetting used at lower elevations can produce a lean mixture and cause engine overheating and damage.

Electrical Fault Isolation and Wiring

Separate wiring diagrams distinguish the base, E, and R models. The CDI Unit Input / Output Circuit Diagram, terminal assignments, and Wiring Harness Routing Diagram connect the electrical test data to the relevant circuits. These references help a mechanic distinguish wiring, coil, switch, and control-unit faults when investigating a no-spark or no-crank complaint.

Pulser-coil resistance and peak-voltage checks are documented alongside power-source coil tests. Peak-voltage procedures specify a Stevens CD-77 meter, with Suzuki test cord 09930-89920 used for ignition-coil output testing.

Charging data distinguish manual- and electric-start coils. Starter overhaul instructions extend to the armature, brushes, magnetic switch, pinion, and over-running clutch.

Gearcase, Steering, and Bracket Work

Right-hand-rotation lower-unit coverage includes gear-tooth contact assessment, forward/pinion and reverse gear shim adjustment, propeller-shaft thrust-play measurement, and gearcase leakage testing.

Mid-unit procedures cover the engine holder, driveshaft housing, upper and lower mounts, and clamp, swivel, and steering brackets. Tiller-handle and remote-control differences are identified where they affect assembly and adjustment.

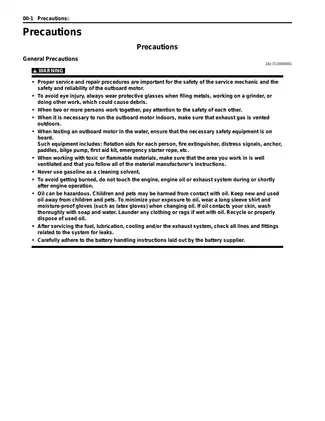

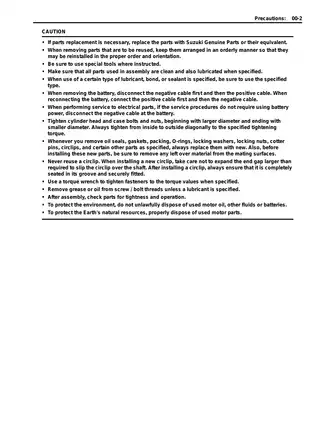

Outboard servicing involves fuel, rotating machinery, and stored recoil-spring energy. Use the full manual and appropriate professional diagnostic practices for hands-on repairs.

Compression and Valve-Clearance Data Preview

For the warm-engine, full-throttle compression test with recoil cranking, DF8A and DF9.9A models with decompression are listed at 300–900 kPa. Electric-start E/R versions without decompression are listed at 1,000–1,600 kPa. These compression figures are guidelines, not absolute service limits.

Cold-engine intake and exhaust valve clearance is listed as 0.16–0.20 mm for the covered models.

Searchable PDF and Chapter Bookmarks

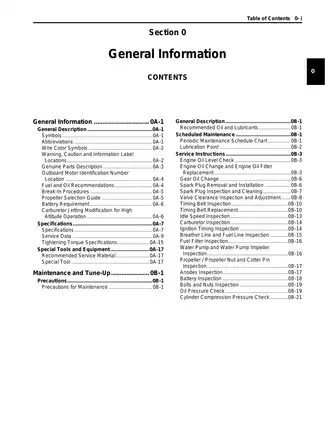

Search and diagram detail: Embedded text supports searching across the service sections, and PDF bookmarks link to the main chapters. Small wire-color codes and connector labels in the wiring diagrams require zooming.

Supplied as one printable, English-language, 256-page PDF, including nine contents pages. There are no separate supplement files.
