Yamaha FZ-09 (FZ09E/FZ09EC) 2014 Service & Repair Manual (P/N LIT-11616-27-39)

Yamaha’s service manual for the 2014 FZ-09 covers FZ09E (1RC4) and FZ09EC (1RC5). This is the first edition, August 2013, P/N LIT-11616-27-39.

PDF Bookmarks and Wiring Diagram Detail

Search and navigation: PDF text search is unavailable. Fifteen embedded bookmarks open major sections and selected assemblies. Small labels on the final wiring diagrams require zooming; some pin and wire-code details remain indistinct, and diagonal watermarks cross the drawings.

One printable, English-language 468-page PDF contains the 466-page main document, including covers, front matter and blank pages, followed by two landscape wiring-diagram pages: one black-and-white and one color.

Engine, Chassis and Electronic Control Service

The following selected coverage highlights outline the main workshop areas. Additional topics include fuel-sender testing and headlight-beam adjustment.

• Periodic maintenance: Emission-control and general maintenance charts, valve-clearance adjustment, throttle-body synchronization, drive-chain adjustment, and lubrication checks.

• Engine and drivetrain repair: Step-by-step procedures for engine removal, cylinder-head and crankcase disassembly, piston and crankshaft inspection, wet-clutch service, and transmission reassembly.

• Fork and chassis service: Front-fork disassembly and seal installation, steering-head bearing replacement, wheel-bearing service, swingarm lubrication, and rear-suspension linkage inspection.

• Hydraulic brakes: Front and rear disc inspection, pad replacement, caliper and master-cylinder service, and hydraulic brake-system bleeding.

• Fuel injection and throttle control: Fuel-pressure checks, injector testing, throttle-body cleaning, sensor adjustment, and Yamaha Chip Controlled Throttle (YCC-T) fault diagnosis.

• Cooling system: Radiator, oil-cooler and thermostat inspection, water-pump disassembly and reassembly, coolant replacement, and leak checks.

• Electrical troubleshooting: System-specific circuit diagrams and diagnostic flowcharts for ignition, starting, charging, lighting, signaling, cooling-fan and fuel-pump circuits.

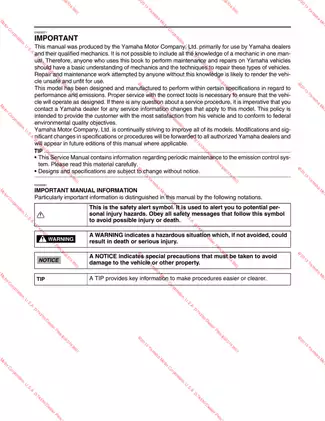

Written primarily for Yamaha dealers and their qualified mechanics, the manual assumes basic mechanical knowledge and familiarity with motorcycle repair techniques.

Internal Engine Inspection and Assembly

Crankshaft and connecting-rod sections include Plastigauge clearance checks and bearing-selection information. Transmission inspection extends to shaft runout, gear-dog wear, shift-fork movement and gear engagement.

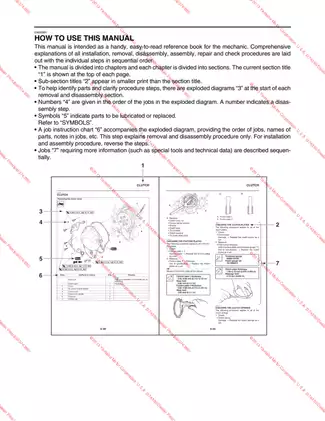

Exploded assembly diagrams and job instruction charts identify parts, job order, replacement items and lubrication points for bench work.

The camshaft section warns that uneven cap-bolt tightening can damage the cylinder head, camshaft caps and camshafts.

FI Diagnosis, YCC-T and Idle Control

The fuel-injection explanation connects sensor inputs with ECU-controlled injection duration and timing. Fault-code tables pair probable causes with checks and confirmation after service, helping distinguish connector or wiring faults from component failures before replacement.

Throttle-body service includes ISC learning-value resets after cleaning or replacement. The synchronization section identifies the white-marked reference bypass screw and warns that disturbing it can cause rough idle and improper throttle-body operation.

The FI section specifies Yamaha diagnostic tool 90890-03215 and refers detailed tool operation to its separate operating manual. California-only canister and rollover-valve procedures are identified separately.

Fork Differences and Rear-Shock Limits

Front-fork procedures distinguish the left and right damper assemblies and specify separate oil quantities. Rear-shock coverage addresses removal, inspection, linkage service and assembly replacement; the manual expressly warns against opening the nitrogen-charged shock.

Follow the manual’s precautions for brake service, pressurized fuel and securely supporting the vehicle.

Cooling, Lubrication and Workshop References

Water-pump repair includes mechanical-seal, bearing and oil-seal replacement. Radiator checks include cap-opening pressure and cooling-system pressure testing.

The Engine Oil Lubrication Chart and Cooling System Diagrams show fluid paths. Engine and chassis torque tables, fluid capacities, wear limits and electrical test specifications support the associated procedures.

Circuit Diagrams and Harness Routing

Electric Starting System, Charging System and Fuel Injection System circuit diagrams accompany the electrical checks. Diagnostic-code and event-code tables cover sensor readings, actuator tests and recorded faults.

Detailed Cable Routing illustrations show wiring-harness, fuel-line and control-cable placement for reassembly.

A Preview of Valve and Coolant Specifications

The cold valve-clearance specifications are 0.11–0.20 mm for the intake valves and 0.26–0.30 mm for the exhaust valves, with shim-selection information in the adjustment section.

Cooling data distinguishes the radiator capacity, including all routes, at 1.93 L from the coolant reservoir capacity at 0.25 L up to the maximum-level mark.
