2013 Van Quest E52 Series Service Manual
Complete service and repair information for the 2013 Van Quest E52 series, featuring detailed diagrams, diagnostics, and procedures. Part #: E52 series
Manual Preview

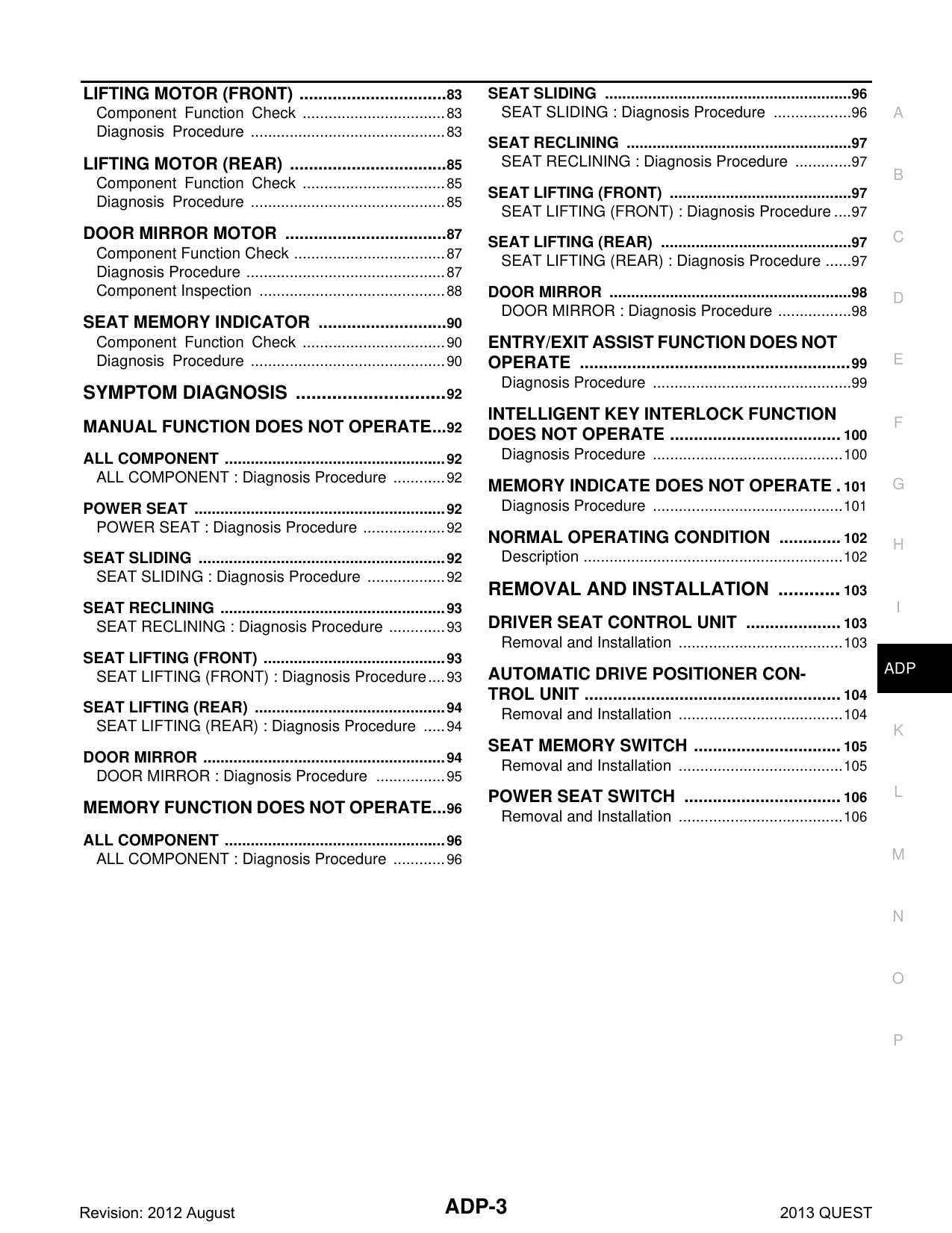

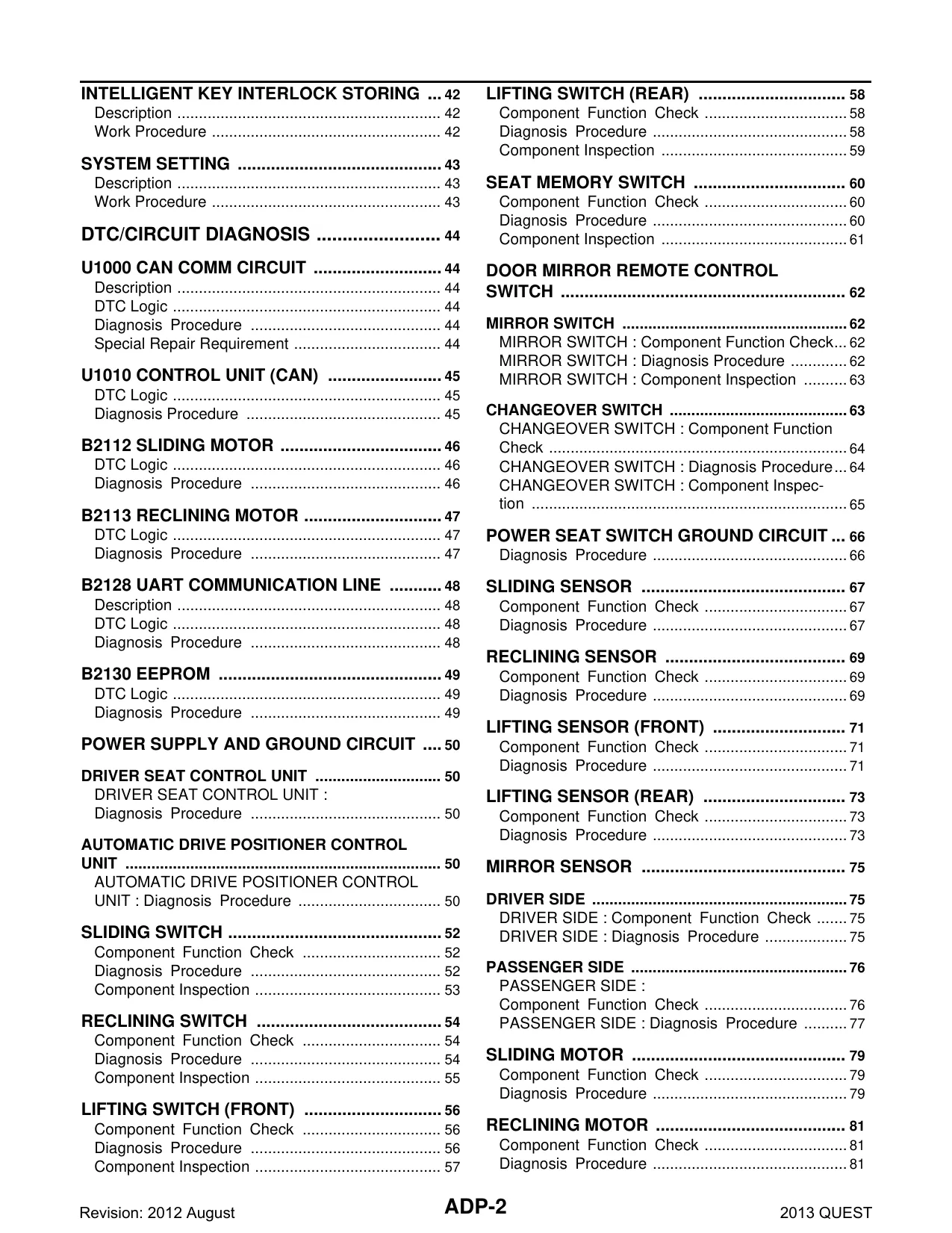

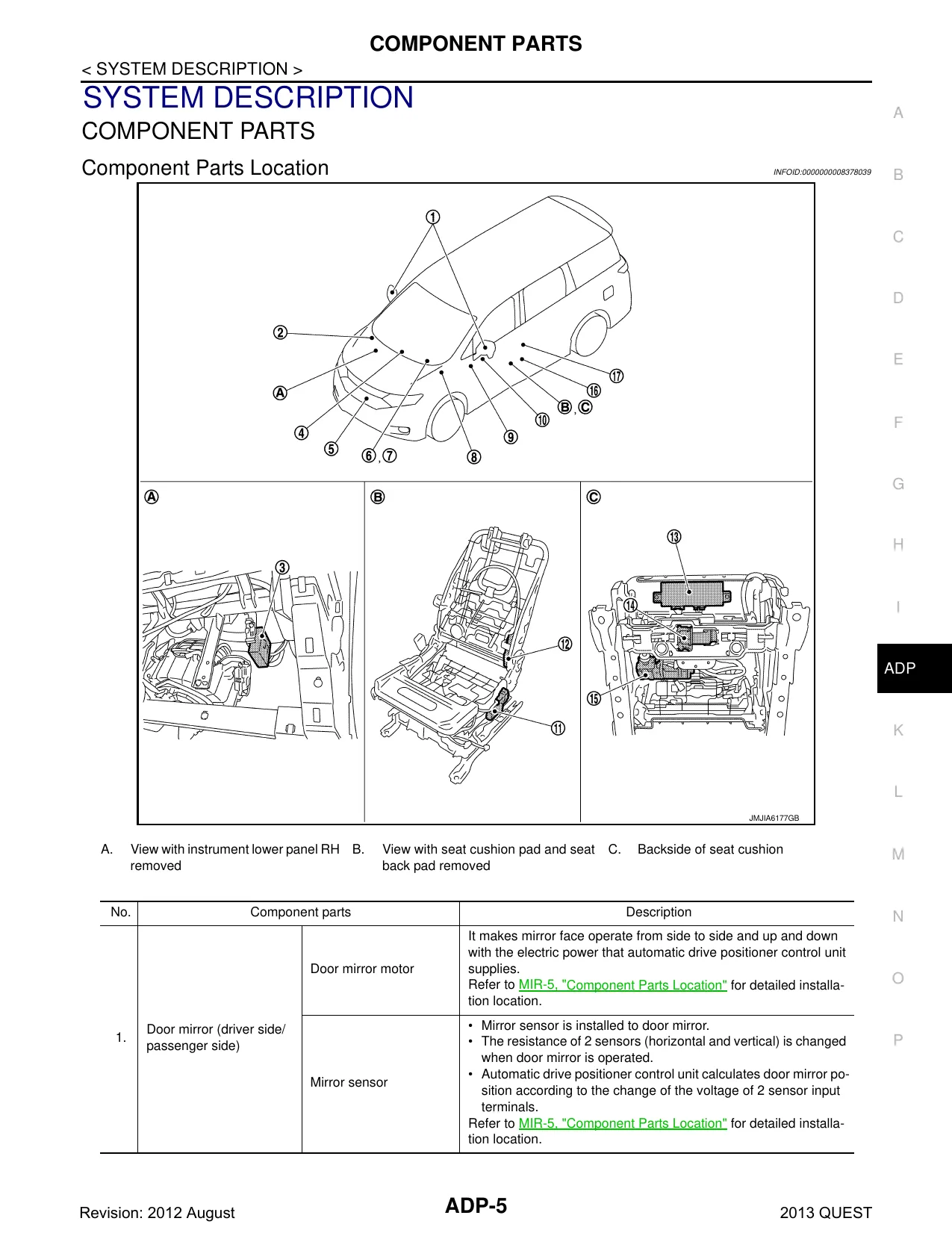

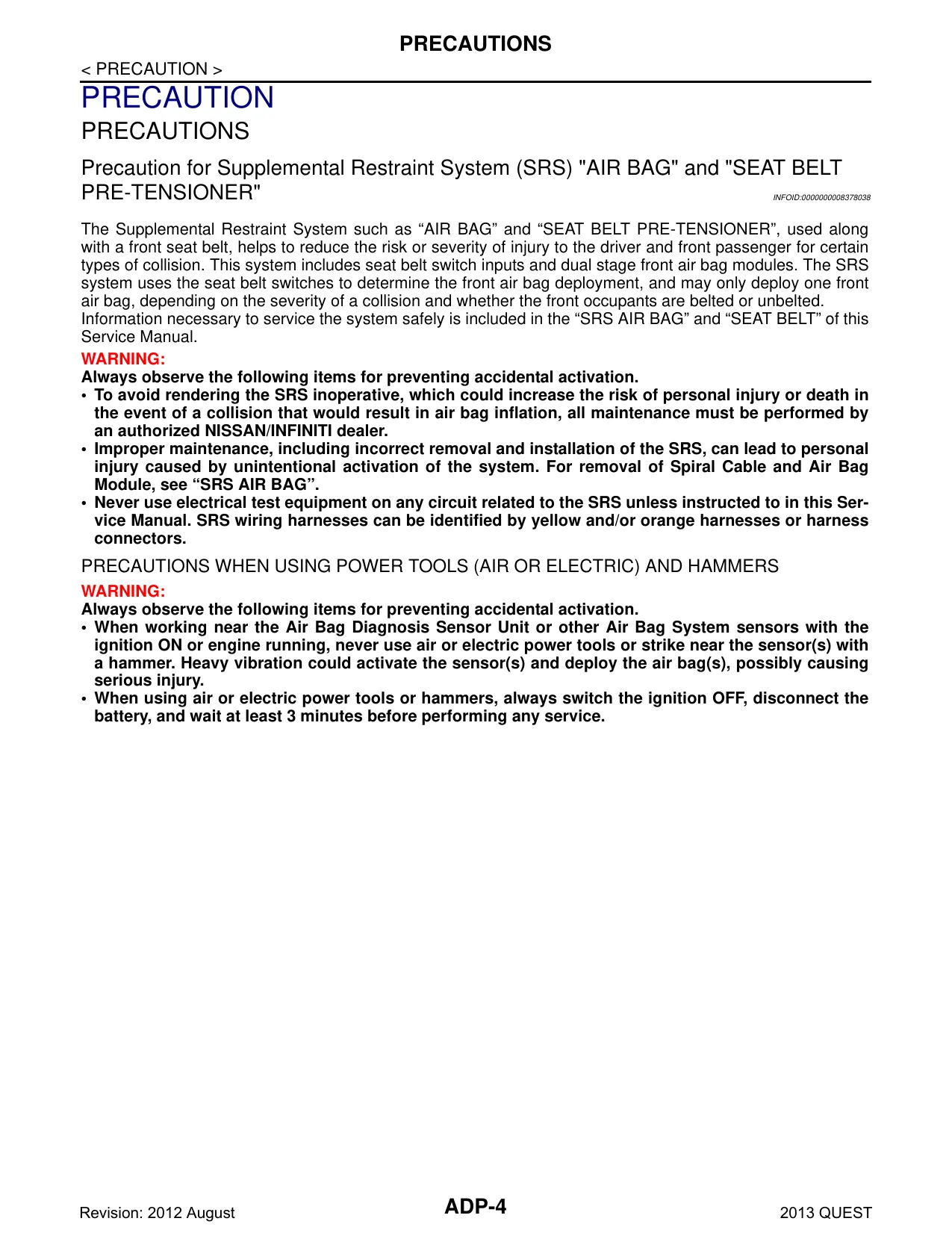

Sample pages from the 2013 Van Quest E52 Series Service Manual manual
Purchase & Download
Models Covered & Key Technical Specifications
Nissan Van Quest (Part Number N/A) - 2013 Consolidated Mechanical Documentation | Van Unit.
- Established Speed Rating: 0-1.5V System Consumption Norms.
- Operational Travel Rate: 36 Component Measurement Metrics.
- Essential Net Mass: 10 ms Data Processing Interval.
- Baseline Assembly Torques: 9-16 V Voltage Specifications.
- Integral Adjustment Range: 40C Temperature Operating Bounds.
- Specific Cold Start Limits: Year(s) not specified Architecture.
Professional Workshop Service Manual & Technical Specifications
BCM Service Manual: Van 2013 Nissan Quest ADP
Year-Coverage: 2013 // Engineering-Metrics: 2013 // Year-Coverage: 2013
Component Parts
BCM (Body Control Module) : Component Parts Location
- BCM controls the various electrical components. It inputs the information required to the control from CAN communication and the signal received from each switch and sensor.
- BCM has combination switch reading function for reading the operation status of combination switches (light, turn signal, wiper and washer) in addition to a function for controlling the operation of various electrical components. It also has the signal transmission function as the passed point of signal and the power saving control function that reduces the power consumption with the ignition switch OFF.
- BCM is equipped with the diagnosis function that performs the diagnosis with CONSULT and various settings.
BCM CONTROL FUNCTION LIST
| System | |
|---|---|
| Combination switch reading system | BCS-8, "COMBINATION SWITCH READING SYSTEM : System Description" |
| Signal buffer system | BCS-12, "SIGNAL BUFFER SYSTEM : System Description" |
| Power consumption control system | BCS-13, "POWER CONSUMPTION CONTROL SYSTEM : System Description" |
| Headlamp system | EXL-11, "HEADLAMP SYSTEM : System Description" (Xenon type headlamp) EXL-111, "HEADLAMP SYSTEM : System Description" (Halogen type headlamp) |
| Auto light system | Xenon type headlamp models - EXL-13, "AUTO LIGHT SYSTEM (EXCEPT FOR CANADA) : System Description" (Except for Canada) - EXL-16, "AUTO LIGHT SYSTEM (FOR CANADA) : System Description" (For Canada) Halogen type headlamp models - EXL-13, "AUTO LIGHT SYSTEM (EXCEPT FOR CANADA) : System Description" (Except for Canada) - EXL-116, "AUTO LIGHT SYSTEM (FOR CANADA) : System Description" (For Canada) |
| Daytime running light system | EXL-19, "DAYTIME RUNNING LIGHT SYSTEM : System Description" (Xenon type headlamp) EXL-119, "DAYTIME RUNNING LIGHT SYSTEM : System Description" (Halogen type headlamp) |
| Turn signal and hazard warning lamp system | EXL-21, "TURN SIGNAL AND HAZARD WARNING LAMP SYSTEM : System Description" (Xenon type headlamp) EXL-121, "TURN SIGNAL AND HAZARD WARNING LAMP SYSTEM : System Description" (Halogen type headlamp) |
| Parking, license plate, side maker and tail lamps system | EXL-22, "PARKING, LICENSE PLATE, SIDE MARKER AND TAIL LAMP SYSTEM : System Description" (Xenon type headlamp) EXL-122, "PARKING, LICENSE PLATE, SIDE MARKER AND TAIL LAMP SYSTEM : System Description" (Halogen type headlamp) |
| Front fog lamp system | EXL-25, "FRONT FOG LAMP SYSTEM : System Description" (Xenon type headlamp) EXL-125, "FRONT FOG LAMP SYSTEM : System Description" (Halogen type headlamp) |
| Exterior lamp battery saver system | EXL-27, "EXTERIOR LAMP BATTERY SAVER SYSTEM : System Description" (Xenon type headlamp) EXL-127, "EXTERIOR LAMP BATTERY SAVER SYSTEM : System Description" (Halogen type headlamp) |
FAIL-SAFE CONTROL BY DTC BCM performs fail-safe control when any DTC are detected.
| Display contents of CONSULT | Fail-safe | Cancellation |
|---|---|---|
| B2192: ID DISCORD BCM-ECM | Inhibit engine cranking | Erase DTC |
| B2193: CHAIN OF BCM-ECM | Inhibit engine cranking | Erase DTC |
| B2195: ANTI-SCANNING | Inhibit engine cranking | Ignition switch ON → OFF |
| B2196: DONGLE NG | Inhibit engine cranking | Erase DTC |
| B2198: NATS ANTENNA AMP | Inhibit engine cranking | Erase DTC |
| B2608: STARTER RELAY | Inhibit engine cranking | 500 ms after the following signal communication status becomes con sistent Starter motor relay control signal Starter relay status signal (CAN) |
| B260F: ENG STATE SIG LOST | Inhibit engine cranking | When any of the following conditions are fulfilled Ignition switch changes to ACC Receives engine status signal (CAN) |
| B26F1: IGN RELAY OFF | Inhibit engine cranking | When the following conditions are fulfilled Ignition switch ON signal (CAN: Transmitted from BCM): ON Ignition switch ON signal (CAN: Transmitted from IPDM E/R): ON |
| B26F2: IGN RELAY ON | Inhibit engine cranking | When the following conditions are fulfilled Ignition switch ON signal (CAN: Transmitted from BCM): OFF Ignition switch ON signal (CAN: Transmitted from IPDM E/R): OFF |
| B26F3: START CONT RLY ON | Inhibit engine cranking | When the following conditions are fulfilled Starter control relay signal (CAN: Transmitted from BCM): OFF Starter control relay signal (CAN: Transmitted from IPDM E/R): OFF |
| B26F4: START CONT RLY OFF | Inhibit engine cranking | When the following conditions are fulfilled Starter control relay signal (CAN: Transmitted from BCM): ON Starter control relay signal (CAN: Transmitted from IPDM E/R): ON |
| B26F7: BCM | Inhibit engine cranking by Intelligent Key system | When room antenna and luggage room antenna functions normally |
Providing a structural breakdown of the BCM system, this manual covers its component parts, system descriptions, and diagnostic procedures. It details the functions of various systems controlled by the BCM, including lighting, wipers, and door locks, offering comprehensive coverage for maintenance and repair. This manual documents torque specifications for component alignment retention to ensure proper assembly.
SYSTEM
BODY CONTROL SYSTEM
BCM (Body Control Module) : System Description
BODY CONTROL SYSTEM : Fail-safe
BCM performs fail-safe control when any DTC are detected.
| Display contents of CONSULT | Fail-safe | Cancellation |
|---|---|---|
| B2192: ID DISCORD BCM-ECM | Inhibit engine cranking | Erase DTC |
| B2193: CHAIN OF BCM-ECM | Inhibit engine cranking | Erase DTC |
| B2195: ANTI-SCANNING | Inhibit engine cranking | Ignition switch ON → OFF |
| B2196: DONGLE NG | Inhibit engine cranking | Erase DTC |
| B2198: NATS ANTENNA AMP | Inhibit engine cranking | Erase DTC |
| B2608: STARTER RELAY | Inhibit engine cranking | 500 ms after the following signal communication status becomes con sistent Starter motor relay control signal Starter relay status signal (CAN) |
| B260F: ENG STATE SIG LOST | Inhibit engine cranking | When any of the following conditions are fulfilled Ignition switch changes to ACC Receives engine status signal (CAN) |
| B26F1: IGN RELAY OFF | Inhibit engine cranking | When the following conditions are fulfilled Ignition switch ON signal (CAN: Transmitted from BCM): ON Ignition switch ON signal (CAN: Transmitted from IPDM E/R): ON |
| B26F2: IGN RELAY ON | Inhibit engine cranking | When the following conditions are fulfilled Ignition switch ON signal (CAN: Transmitted from BCM): OFF Ignition switch ON signal (CAN: Transmitted from IPDM E/R): OFF |
| B26F3: START CONT RLY ON | Inhibit engine cranking | When the following conditions are fulfilled Starter control relay signal (CAN: Transmitted from BCM): OFF Starter control relay signal (CAN: Transmitted from IPDM E/R): OFF |
| B26F4: START CONT RLY OFF | Inhibit engine cranking | When the following conditions are fulfilled Starter control relay signal (CAN: Transmitted from BCM): ON Starter control relay signal (CAN: Transmitted from IPDM E/R): ON |
| B26F7: BCM | Inhibit engine cranking by Intelligent Key system | When room antenna and luggage room antenna functions normally |
Wiring Diagram
BCM
Wiring Diagram
Basic Inspection
Inspection and Adjustment
Additional Service When Replacing Control Unit (BCM)
Additional Service When Replacing Control Unit (BCM) : Description
Before Replacement
When replacing BCM, save or print current vehicle specification with CONSULT configuration before replace ment.
NOTE: If “READ CONFIGURATION” can not be used, use the “WRITE CONFIGURATION - Manual selection” after replacing BCM.
After Replacement
CAUTION: When replacing BCM, always perform “WRITE CONFIGURATION” with CONSULT. Or not doing so, BCM control function does not operate normally.
- Complete the procedure of “WRITE CONFIGURATION” in order.
- Configuration is different for each vehicle model. Confirm configuration of each vehicle model.
- Never perform “WRITE CONFIGURATION” except for new BCM.
- If you set incorrect “WRITE CONFIGURATION”, incidents might occur.
NOTE: When replacing BCM, perform the system initialization (NATS) (if equipped).
Additional Service When Replacing Control Unit (BCM) : Work Procedure
1. Saving Vehicle Specification
CONSULT Configuration
Perform “READ CONFIGURATION” to save or print current vehicle specification. Refer to BCS-72, "CONFIGURATION (BCM) : Description".
NOTE: If “READ CONFIGURATION” can not be used, use the “WRITE CONFIGURATION - Manual selection” after replacing BCM.
GO TO 2.
2. Replace BCM
Replace BCM. Refer to BCS-86, "Removal and Installation".
GO TO 3.
3. Writing Vehicle Specification
CONSULT Configuration
Perform “WRITE CONFIGURATION - Config file” or “WRITE CONFIGURATION - Manual selection” to write vehicle specification. Refer to BCS-72, "CONFIGURATION (BCM) : Work Procedure".
GO TO 4.
4. Initialize BCM (NATS) (If Equipped)
Perform BCM initialization. (NATS)
WORK END
Configuration (BCM)
