2004 Mercury Monterey Van Owner’s Manual (P/N 14B476)

Ford Motor Company’s US-English owner’s guide covers the 2004 Mercury Monterey, including onboard systems, driver controls, and routine maintenance. Equipment-specific sections identify optional features. For internal engine or transaxle repair, separate workshop literature is needed.

• Driver controls: Instrument cluster warnings, message-center system checks, oil-life resets, and front/rear climate and audio controls.

• Power doors and liftgate: Reset procedures, lockout controls, obstruction response, and care of the sliding-door electrical contacts.

• Locks and security: Remote-entry transmitter programming, SecuriLock spare-key programming, personal keyless-entry codes, HomeLink training, and perimeter alarm operation.

• Lighting and roadside repair: Exterior bulb replacement, fuse and relay identification charts, spare-tire changing, jump starting, and fuel pump shut-off information.

• Routine maintenance: Engine oil, coolant, brake fluid, power steering fluid, and automatic transaxle checks, plus Motorcraft part numbers and lubricant specifications.

• Driving and restraints: Low tire warning initialization, AdvanceTrac operation, forward/reverse sensing, trailer towing, Safety Canopy, and LATCH child-seat anchors.

Suited to owners handling routine checks and basic maintenance, with illustrated controls and service points that support those tasks.

Operational and Safety Documentation

Instrument cluster views and message-center warning descriptions explain what the driver sees when a system needs attention. The audio and climate sections cover the premium in-dash six-disc system, cassette/CD unit, and front/rear temperature controls for the equipment fitted.

Seating and restraint coverage explains seat adjustment, the Personal Safety System, and side-airbag operation. Airbag and Safety Canopy repair is referred to qualified technicians using separate service literature.

The Family Entertainment DVD System appears in the audio-control section, but detailed DVD operation is referred to a separate DVD System Supplement. That supplement is not included in this PDF.

Security Programming and Power-Door Resets

Security programming distinguishes remote-entry transmitters from keys for the SecuriLock passive anti-theft engine immobilizer. Spare coded-key programming requires two keys already programmed to the vehicle; lost-key replacement is referred to a dealer or locksmith.

Power sliding door and liftgate sections explain the effects of low battery voltage, battery disconnection, and prolonged opening, with separate reset procedures. The sliding-door section also identifies the fuel-filler-door interlock, helping distinguish an operating restriction from a suspected door fault.

Lighting, Fuses, and Routine Fluid Checks

Exterior-light repair coverage pairs bulb trade numbers with headlamp, tail/stop/turn, backup, license-plate, and fog-lamp replacement information. Map and dome lamp operation is also described. The manual warns that oil on halogen-bulb glass can cause the bulb to break in use.

The passenger-compartment fuse chart and power distribution box layout identify protected circuits, fuse ratings, and relay positions. The engine compartment identification view locates reservoirs and dipsticks, while refill-capacity and lubricant tables support routine fluid checks.

The maintenance section distinguishes MERCON power-steering fluid from MERCON V for the 4F50N automatic transaxle. Nonapproved transmission fluid can damage internal transaxle components.

After battery service, the guide explains transaxle adaptive relearning and the engine’s idle/fuel-trim relearn procedure. This provides context for temporarily altered shifting or idle quality before a mechanical fault is assumed.

For physical repair work, verify specifications against the vehicle’s condition and the appropriate service literature.

Tire Warnings, Parking Sensors, and Towing

The low tire warning system uses ABS wheel-speed information. Its reset requirements apply after pressure adjustments, tire rotation, replacement, balancing, or alignment; inflating a low tire alone does not clear the warning.

Forward/reverse sensing-zone diagrams show where parking sensors detect obstacles and where coverage is limited. Trailer towing guidance separates vehicles with and without the factory tow package and includes towing limits, hitch requirements, and trailer-lamp precautions.

Oil and Coolant Capacity Preview

For the 4.2L engine, the refill table lists 4.7 L (5.0 quarts) of engine oil, including a filter change. Cooling-system capacity depends on equipment: 14.0 L (14.8 quarts) without a rear heater and 15.0 L (15.9 quarts) with one.

Searchable PDF with Chapter Bookmarks

Text search and layout detail: Embedded PDF text supports searches across the guide, and 15 bookmarks open the main chapters and index. The smallest position numbers in the fuse-box layouts are easier to read when enlarged.

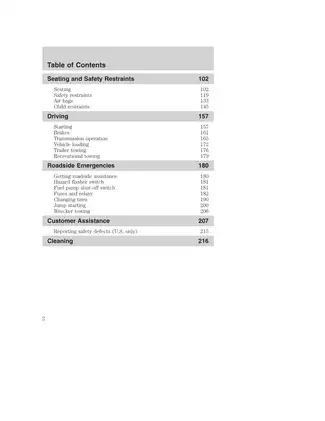

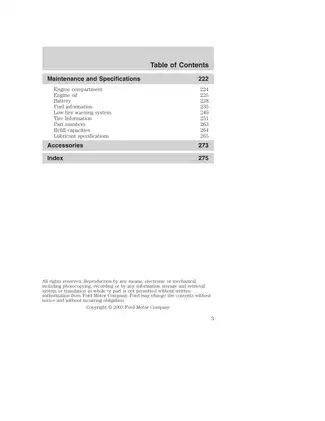

One printable, 280-page PDF in US English, including the three-page table of contents and six-page index.
