1994 Nissan Maxima J30 AT Automatic Transaxle Service Manual

Technical reference for the 1994 Maxima J30 AT automatic transaxle including GXE, SE, and GLE models. Features procedures for repair, overhaul, and diagnostics. Part number RE4F02A.

4.7starstarstarstarstar_half(3)
visibility Preview Available
Nissan 1994 Nissan Maxima J30 AT Automatic Transaxle Service Manual manual page preview - page 1 of

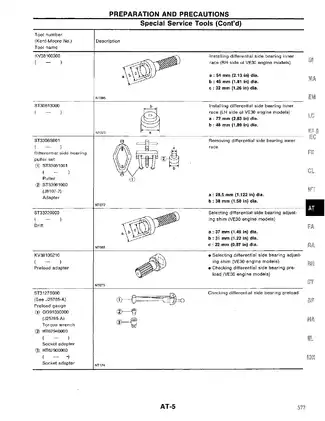

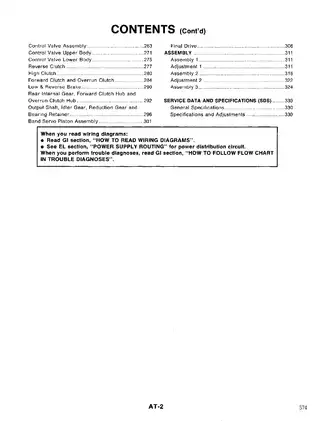

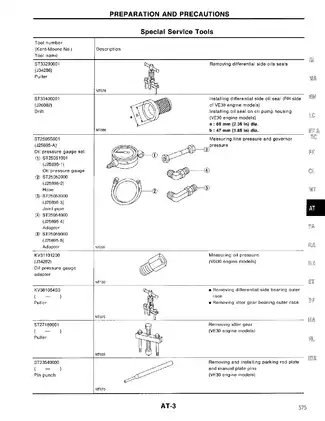

Sample pages from the 1994 Nissan Maxima J30 AT Automatic Transaxle Service Manual manual

Nissan 1994 Nissan Maxima J30 AT Automatic Transaxle Service Manual manual preview page 1 - thumbnail
Nissan 1994 Nissan Maxima J30 AT Automatic Transaxle Service Manual manual preview page 2 - thumbnail
info_outline Click thumbnails to preview different pages
$7.25 (incl. VAT) Original OEM Factory Manuals & Data Instant Download / No Shipping Fees
OR BUY NOW
verified_user
Lifetime Access
Re-download anytime
flash_on
Instant Download
Get it immediately
lock
Secure Payment
PayPal
Technical Safety Notice
keyboard_arrow_down

This official OEM document is intended for professional technicians and skilled operators. Performing service on mechanical equipment involves inherent risks. By purchasing, you acknowledge that RepairLoader provides original manufacturer data for informational purposes. Always prioritize safety: use correct tools, wear protective gear, and consult a certified professional if you are uncertain of any procedure.

Nissan Models Covered & Key Technical Specifications

Models: Nissan Maxima J30
Sub-models / Variants: RE4F02A, RE4F04V
Build Years: 1994
Technical Data:

  • Transmission type: Automatic transaxle, model series RE4F02A and RE4F04V
  • Fluid capacity: 8 liters total volume
  • Stall revolution: 2,050–2,350 rpm
  • Line pressure (Idle): 98 kPa (1.0 kg/cm², 14 psi)
  • Line pressure (Stall): 843 kPa (8.6 kg/cm², 122 psi)
  • Torque converter lock-up pressure (ON): 49 kPa (0.5 kg/cm², 7 psi) or less
  • Torque converter lock-up pressure (OFF): 196 kPa (2.0 kg/cm², 28 psi) or more
  • Fluid temperature sensor resistance (20°C / 68°F): Approximately 2.5 kΩ
  • Fluid temperature sensor resistance (80°C / 176°F): Approximately 0.3 kΩ
  • Differential side oil seal fitment: 47 mm
Technical Specifications
keyboard_arrow_down
Document Number / Seller:
31911 / George Taylor
File Size:
36.58 MB
File Type:
ZIP
Language:
English
Printable:
Yes
Category:
Automobile
Last updated / verified
Jul 26, 2025

Nissan Manual Features & Content Preview

1994 Nissan Maxima J30 Automatic Transaxle Technical Documentation

  • Built for the 1994 Nissan Maxima J30, this service publication provides technical specifications for both the RE4F02A and RE4F04V automatic transaxle units
  • Official Nissan OEM publication, printed as Section AT of the factory service manual
  • Contains 175 pages of technical content, including hydraulic circuit diagrams, shift mechanism schematics, and electrical component testing data
  • Re-download the file any time, no expiration
  • Full-text search finds any part number in seconds
  • This 1994 Nissan Maxima J30 factory documentation is the primary reference for troubleshooting transmission electronics and hydraulic control logic

Component and System Documentation

This 1994 Nissan Maxima J30 service manual details the functional operation and diagnostic testing of the automatic transaxle control system. The text documents the cross-sectional anatomy, hydraulic control circuits, and shift mechanism functionality, providing a technical baseline for system analysis. Chapters provide information on preparation and precautions, special service tool application, and internal component identification for both the RE4F02A and RE4F04V variants.

Diagnostic and Specification Data

Detailed specifications are provided for pressure testing and electrical diagnostics. The manual includes comprehensive tables for line pressure values at idle and stall speeds, as well as lock-up pressure reference standards. Electrical inspection data includes pin-connector layouts and terminal voltage values for sensors, switches, and solenoids. The revolution sensor resistance for the 1994 Nissan Maxima J30 is specified at 500–650 ohms. Line pressure at stall speed is documented at 843 kPa in the diagnostic data table. Fluid temperature sensor resistance for the 1994 Nissan Maxima J30 measures approximately 0.3 kΩ at 80°C. Note: This page is a contents overview for the manual. It does not provide repair or diagnostic instructions. This 1994 Nissan Maxima J30 OEM technical document covers the RE4F02A and RE4F04V automatic transaxle systems, including diagnostic flowcharts, electrical connector pinouts, and pressure specifications for professional-grade component analysis.

Manual FAQ, Purchase & Download Details

Can the manual be accessed on different devices after the download is completed? keyboard_arrow_down

Service manual is provided in a standard PDF format which is compatible with most modern digital devices. This allows for convenient access to the documentation on computers and tablets as needed.

Which chapters contain technical information regarding general specifications and adjustment data for the RE4F02A transaxle? keyboard_arrow_down

Document includes dedicated service data and specification sections that list relevant adjustments and general technical parameters for the transaxle unit.

What information regarding critical threaded fasteners and tolerance specifications is included in this service documentation? keyboard_arrow_down

Manual contains sections detailing standard technical norms and various fastener requirements for internal components. These tables reference the necessary assembly guidelines for secure installation.

Does the document provide detailed diagrams and internal cross-sectional views for the RE4F02A and RE4F04V transmission units? keyboard_arrow_down

Description chapters contain comprehensive cross-sectional illustrations and hydraulic control circuit diagrams for both transmission series.

Are specific electrical systems and component control unit functions included for the Nissan Maxima J30 series? keyboard_arrow_down

Manual features comprehensive coverage of the control system, including inputs and outputs for various sensors and solenoids. It also lists the functional descriptions for electrical components governing the transaxle operation. These sections provide a clear overview of the electrical architecture supported by the service documentation.
