2014 Arctic Cat Wildcat / Wildcat X / Wildcat 4 / Wildcat 4X / Wildcat X Limited ROV Service Manual (P/N 2259-865)

• Covers the 2014 Arctic Cat Wildcat, Wildcat X, Wildcat 4, and Wildcat 4X ROV platforms. X Limited body items are identified separately, while the suspension and wheel sections include dedicated Limited-model shock absorber and bead-lock procedures.

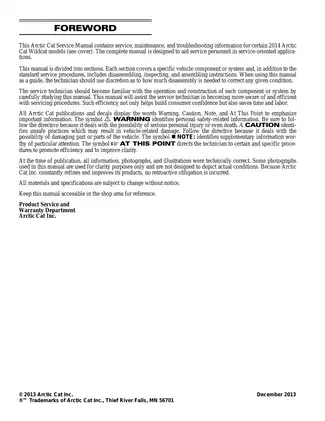

• Published by Arctic Cat Inc.'s Product Service and Warranty Department in December 2013, with 187 pages and publication p/n 2259-865.
• Includes separate engine/transmission removal and installation procedures for Wildcat/X and Wildcat 4/4X, plus Wildcat 4/4X-specific front, center, and rear driveshaft/carrier-bearing service.
• Supplied in PDF format for shop reference.

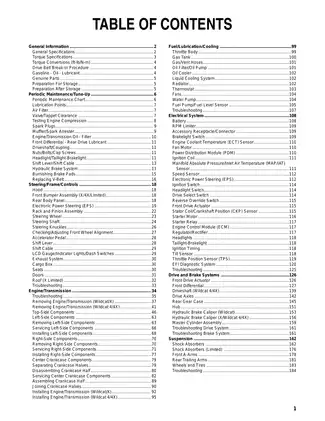

Component and System Documentation

The manual goes well beyond routine maintenance. Engine and transmission coverage reaches from valve covers, rocker arms, cylinder heads, camshafts, cylinders, and pistons through the magneto/stator side, water pump, shifter assembly, rotor/flywheel, starter clutch, CVT drive and driven clutches, oil pump, countershaft, and center crankcase components. Top-side, left-side, and right-side engine work can be performed with the powertrain in the frame; center crankcase repair requires engine/transmission removal.

Factory procedures include engine/transmission removal and installation for both chassis layouts, drive-clutch and driven-clutch service, CVT belt offset verification, crankcase separation and reassembly, secondary output bevel-gear tooth-contact and backlash setup, front differential and rear gear-case shimming, drive-axle boot service, hydraulic brake caliper repair and bleeding, EPS troubleshooting, and shock absorber service. Standard shock absorbers have internal rebuild coverage including reservoir, IFP, valving, oil filling/bleeding, and reservoir charging. Limited-model shock absorbers are treated differently: only external parts are serviceable, and a damaged shock is replaced as an assembly.

The drive and brake section also separates the Wildcat brake caliper procedure from the X/Wildcat 4/4X caliper design. For the Wildcat 4/4X drivetrain, the manual documents the multi-section driveshaft, bearing housings, couplers, set-screw retention, rear gear case, and rear drive input clutch-pack inspection and replacement criteria.

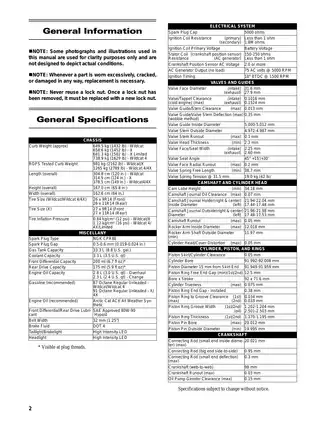

Model-Specific Specifications and Diagnostic Values

Several values change with the vehicle configuration, which matters when diagnosing a machine before parts are ordered or repair work begins:

• Engine compression at wide-open throttle is listed at 125-145 psi front / 165-185 psi rear for Wildcat and Wildcat 4, versus 190-220 psi on both cylinders for X and 4X.
• Recommended gasoline is 87-octane regular unleaded for Wildcat/Wildcat 4 and 91-octane for X/4X.
• Cold valve/tappet clearance is 0.1016 mm (0.004 in.) intake and 0.1524 mm (0.006 in.) exhaust. Crankshaft position sensor output is specified at 2.0 VAC or more while cranking.
• Key capacities include 3.3 L (3.5 U.S. qt) coolant, 2.8 L engine oil after overhaul or 2.3 L for an oil change, 200 ml front differential lubricant, and 175 ml rear drive lubricant.
• Diagnostic checks include 43 psi fuel pressure, 15-17 psi engine oil pressure at 3000 RPM, 0.011-0.015 in. front differential backlash, 0.004-0.008 in. ring-gear end-play, and 0.005-0.015 in. secondary output gear backlash.

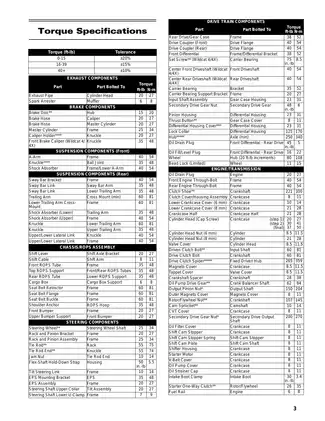

Torque data is equally specific. Examples include a staged 20/30/37 ft-lb cylinder-head cap-screw specification, 265 ft-lb for the drive-clutch spider, 250 ft-lb minimum hub-nut torque, and 80 ft-lb wheel-nut torque.

EFI, EPS, Special Tools, and Reference Charts

The EFI diagnostic system uses the LCD gauge to display coolant temperature, fuel-sensor resistance, engine RPM, vehicle speed, TPS percentage, MAP, inlet-air temperature, and system voltage. The manual provides EFI DTCs for sensor, injector, fuel-pump relay, charging, starter, CAN, and other faults, while a separate EPS fault table covers C1301-C1329 conditions including voltage, temperature, speed/RPM, encoder, EEPROM, and CAN-bus faults. CATT II is also referenced for EPS update checks.

Special tools are identified by name and part number, including the Crankcase Separator/Crankshaft Remover 0444-152, Drive Clutch Spider Removal Kit 0444-281, 24-spline and 27-spline Backlash Measuring Tools 0544-010 / 0544-011, Oil Pressure Test Kit 0644-495, Fluke Model 77 Multimeter 0644-559, and Piston Location (IFP) Tool 0644-575.

Useful named charts and tables include the Periodic Maintenance Chart, Torque Specifications, the Diagnostic Trouble Codes (DTC) Code List, the EPS fault-code table, the Front Drive Actuator 2WD/4WD/Differential Lock voltage chart, and the Case-Side Shims (Backlash) / Cover-Side Shims (Ring Gear End-Play) tables.

Repair Notes That Matter

Drive-clutch timing marks on the cover, spider, and movable sheave must remain aligned; incorrect indexing can put the clutch out of balance and damage the clutch or crankshaft. Countershaft gears and dogs must retain their original orientation, because reversing a major component can damage the transmission or require complete re-disassembly. During cam timing work, the sprocket tab washer must retain the alignment pin and loose cam chains must remain controlled; loss of either condition can cause severe engine damage.

For major engine, driveline, brake, or suspension work, follow the manual's support and isolation precautions: securely support the vehicle before working underneath or unloading suspension components, and disconnect the battery before opening fuel-system lines.
