Polaris Phoenix 200 & Sawtooth 200 ATV Service Manual – 2007 (P/N 9920849)
214 Pages • 1 Printable PDF (English) • Download
Polaris Models Covered & Key Technical Specifications

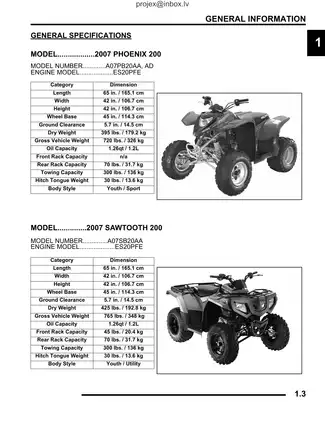

Models & Model Codes: Phoenix 200 (A07PB20AA, A07PB20AD), Sawtooth 200 (A07SB20AA)
Sub-models / Variants: Phoenix 200 — Youth / Sport; Sawtooth 200 — Youth / Utility
Model Years: 2007
-
Engine: Aeon ES20PFE (both models), 4-stroke, single cylinder, air-cooled SOHC, 196cc
-
Compression Ratio: 9.2:1
-
Compression Pressure: 160–190 psi
-
Idle Speed: 1500 ± 100 RPM
-
Fuel System: Keihin VM 22mm carburetor
-
Fuel Capacity: 2.5 gallons (9.5 L) Phoenix / 2.75 gallons (10.4 L) Sawtooth
-
Transmission: Inline F/N/R, CVT non-EBS; Phoenix with torque-limiting driven clutch, Sawtooth without torque limiter
-
Tire Pressure: 4 psi front, 3 psi rear
-
Brake System: Dual hydraulic discs with right-hand lever (front), single mechanical drum with left-hand lever and right foot pedal (rear)
Polaris Manual Features & Selected Content Preview
This Polaris service manual (P/N 9920849) covers the 2007 Phoenix 200 and Sawtooth 200 ATVs with the ES20PFE engine. It brings together shared repair procedures and model-specific information on bodywork, lighting, and the driven clutch.
Text Search, Bookmarks, and Wiring Detail
Navigation and diagram labels: Service text is searchable, and embedded bookmarks link to chapters, procedures, wiring diagrams, and the index. Some tables and the wiring diagram labels are outside the searchable text. Zoom in to read the small connector labels, wire codes, and table entries.

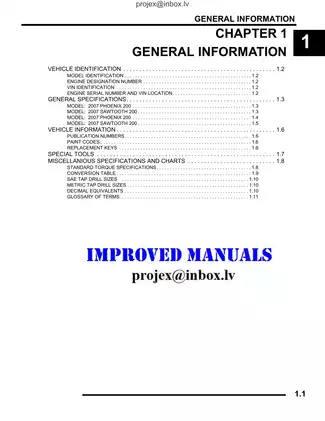

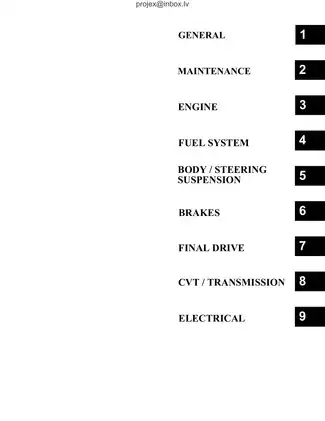

The download contains one printable, English-language PDF with 214 pages across nine service chapters and their supporting material. The total includes the opening chapter index, eight notes pages, two wiring-diagram sheets, and the four-page alphabetical index.
Engine, Drivetrain, and Electrical Service
This selection of workshop procedures shows the manual’s scope. It also covers spark-arrestor cleaning and battery load testing.
-
Engine repair: Engine removal, cylinder-head and crankcase disassembly, valve-seat reconditioning, piston inspection, camshaft timing, and engine reassembly.
-
Fuel system: Keihin carburetor cleaning, float adjustment, needle-and-seat leak testing, fuel-level checks where the drain fitting is accessible, and troubleshooting for lean mixtures, rich running, and poor idle.
-
CVT and transmission: Drive and driven clutch service, belt inspection, overheating diagnosis, shift-mechanism inspection, and transmission output-shaft shimming.
-
Final drive: Front hub bearing replacement, rear axle inspection, swingarm service, and rear gearcase disassembly, inspection, and bevel-gear shimming.
-
Brakes and chassis: Step-by-step instructions for front brake bleeding, plus caliper rebuilding, rear drum service, steering inspection, ball-joint replacement, and suspension adjustment.
-
Electrical diagnosis: Ignition, charging, and starter-system tests, Electronic Throttle Control (ETC) checks, component resistance specifications, and separate Phoenix and Sawtooth wiring diagrams.
The internal engine measurements and specialized tooling make this manual suited to experienced ATV technicians. Polaris specifies certified Master Service Dealer technicians for CVT maintenance and repair.
Engine Inspection, Timing, and Lubrication
The engine chapter distinguishes in-frame work, such as flywheel service, from jobs that require engine removal, such as cylinder-head work. It covers cylinder honing and treats the crankshaft and oil pump as replacement assemblies.
The Oil Flow Diagram traces the lubrication circuit. Two camshaft timing illustrations show the stator-housing-off method and the method that uses the flywheel’s top dead center mark.
The flywheel procedure specifies puller PA-47308. Damage to the crankshaft oil-passage plunge joint during flywheel service can cause loss of oil pressure and severe engine damage.
Carburetor Setup and Scheduled Maintenance
The carburetor exploded view identifies metering components, and jetting charts relate main-jet selection to temperature and elevation. The fuel chapter explains the pilot, needle, and main circuits and refers to the separate parts manual for optional jet listings.
Maintenance charts distinguish normal operation from severe use. Service coverage includes the air filter and pre-filter, engine oil and filter changes, and rear gearcase lubrication, with component-specific torque references.
Driven Clutch and Gear Setup
The Phoenix driven-clutch procedure shows the orientation of the torque limiter’s spring-washer stack and ball-bearing retainer. Those parts can come loose during removal. The manual also includes clutch setup charts and inspection procedures for the shift forks, dogs, bearings, and external detent.
Rear gearcase shimming sets bevel-gear backlash. The transmission output-shaft procedure sets pinion depth on an assembly with fixed backlash and identifies shaft collar tool PA-47309.
Bodywork, Steering, and Brake Service

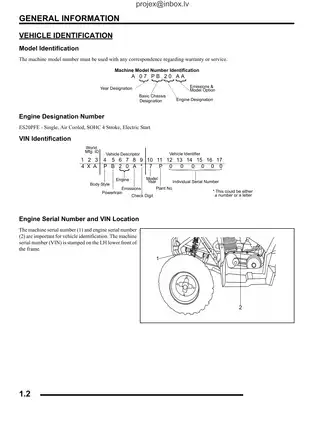

Separate body-removal sections distinguish Phoenix panels from Sawtooth racks and fascia. The general information chapter identifies the Vapor Silver and Matte Black frame paint codes.
The dual A-arm suspension section covers press work for ball joints, steering-post assembly, and shock replacement. Toe and spring preload are adjustable. Camber and caster are fixed.
Brake service includes front disc wear checks and rear brake linkage adjustment. The brake-noise table links drag and premature pad wear to faults such as restricted compensating ports and sticking pistons. Support the ATV securely during elevated chassis work and follow the manual’s electrical-isolation precautions for the procedure.
Ignition, Charging, and Starting Faults
The Ignition System Testing flowchart helps trace a no-spark fault to the ETC or transmission-switch circuit before replacing the CDI module. The manual specifies peak-reading adapter PV-39991 for CDI and pulse-coil output tests.
Charging checks include stator testing, key-off current draw, and the charging-system break-even test. The starter flowchart includes voltage-drop diagnosis and treats the starter motor as a complete replacement unit. Headlight adjustment and replacement are documented separately for each model.
A Preview of Valve, Fluid, and Belt Specifications
The ES20PFE intake and exhaust valve clearance is 0.003 in. (0.07 mm), checked with the cam lobes pointing down.
For both models, the manual lists an approximate engine oil capacity of 1.26 US qt. (1.2 L) and a transmission capacity of 18.6 oz. (550 mL). The transmission service procedure uses the normal operating range to verify the final fluid level.
The CVT belt inspection lists a width service limit of 0.708 in. (18 mm) and calls out uneven wear, glazing, and grease contamination.
