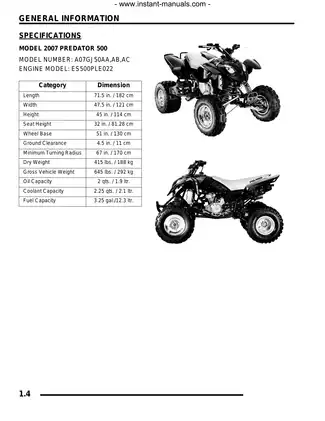

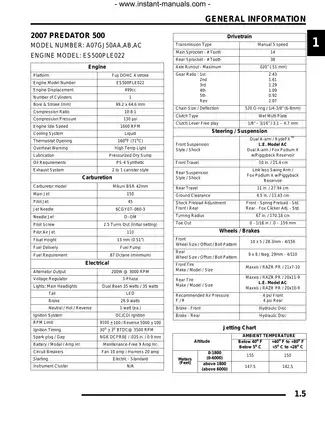

Polaris Models Covered & Key Technical Specifications

Model: Predator 500

Sub-models / Variants: Predator 500 White (A07GJ50AA), Predator 500 Black (A07GJ50AB), Predator 500 L.E. (Limited Edition) (A07GJ50AC)

Model Year: 2007


  • Engine: Fuji DOHC 4-stroke, 499cc, liquid-cooled, 1 cylinder (ES500PLE022)

  • Compression Ratio: 10.8:1

  • Compression Pressure: 130 psi

  • Transmission: 5-speed manual

  • Fuel System: Mikuni BSR 42mm carburetor

  • Drive System: Chain drive (520 O-ring)

  • Suspension (L.E. Model): Dual A-arm with Fox Podium X shocks/piggyback reservoir (front); Linkless swing arm with Fox Podium X shock/piggyback reservoir (rear)

  • Braking: Hydraulic disc (front and rear)

  • Dry Weight: 415 lbs (188 kg)

Polaris Manual Features & Selected Content Preview

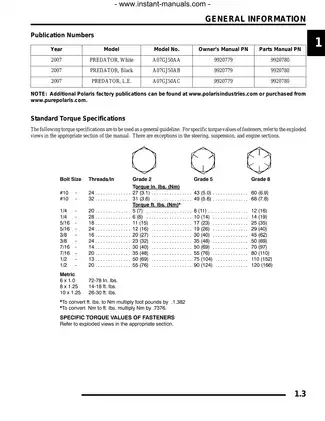

This Polaris factory service manual (P/N 9920782) covers the 2007 Predator 500 ATV in White, Black, and L.E. (Limited Edition) versions. All three use the ES500PLE022 engine.

PDF Search and Wiring Diagrams

Chapter bookmarks cover all eight chapters. Text search works throughout the main service sections. The wiring drawings and wire termination table are viewed directly on the page, and their small connector labels and wire codes are easiest to read when zoomed in.

The download is one printable, 184-page PDF in English. The page count includes four notes pages and the final, otherwise blank wiring chapter page.


From Scheduled Maintenance to Engine and Chassis Repair

These are selected workshop topics. The manual also covers spark arrestor cleaning and reverse lockout cable adjustment.

  • Scheduled maintenance includes service interval charts, lubrication points, oil and filter changes, and drive chain inspection and adjustment.
  • Engine and transmission repair includes step-by-step procedures for engine removal and installation, crankcase separation, crankshaft and transmission service, wet clutch repair, and camshaft timing.
  • Cooling and lubrication checks cover cooling system pressure testing, water pump seal replacement, oil pressure testing, and oil pump priming.
  • Carburetor and fuel pump service covers teardown, cleaning, float adjustment, needle-and-seat leak testing, fuel pump inspection, and jetting for altitude and temperature.
  • Steering and suspension service covers ball joints, front hubs, rear axle and bearing carrier work, and Fox Podium X shock rebuilding.
  • Hydraulic brake service includes bleeding, front and rear caliper overhaul, and master cylinder removal and installation.
  • Electrical troubleshooting covers DC/CDI ignition output, Electronic Throttle Control (ETC), cooling fan diagnosis, and charging and starting system flowcharts.

The manual is suited to experienced ATV technicians and owners equipped for precision measurements, electrical testing, and work that calls for special service tools. The maintenance chapter also covers routine inspections and adjustments.

Engine, Transmission, and Fuel Work

Internal engine service includes compression and cylinder leakdown testing, automatic compression release inspection, cam chain tensioner service, valve guide replacement and reaming, valve seat reconditioning, and cylinder honing. The ES50PL oil flow chart, cam timing exploded view, and adjusting pad selection matrix support diagnosis and reassembly.

Clutch and gearbox coverage includes the starter one-way clutch, shift mechanism, transmission shafts, bearings, and oil pump. The manual distinguishes components that can be serviced in the frame from crankcase and transmission work that requires engine removal.

Incorrect cam timing can cause valve-to-piston contact. Side-loading the water pump seal puller can bend the shaft, and replacing that shaft requires engine removal and crankcase separation.

Mikuni BSR carburetor service includes an exploded view, descriptions of the pilot, enrichment, float, and main circuits, and troubleshooting for lean or rich running and poor or erratic idle. The jetting chart lists Mikuni main jet part numbers. The fuel level test applies where the bowl drain fitting is accessible.

Suspension, Steering, and Brakes

The White and Black models use RydeFX front shocks. The spring and preload components can be serviced, while a failed damper requires replacement of the shock assembly. The Limited Edition uses compression-adjustable Fox Podium X front shocks. The Fox rear shock has compression and rebound adjustment.

Fox service includes front and rear exploded views, internal floating piston setup, rebuilding, and nitrogen charging. The manual calls for depressurizing the shocks before disassembly. Chassis procedures also cover toe adjustment, swingarm removal, and axle runout inspection.

The brake chapter includes fluid replacement, pad replacement and burnishing, disc inspection, and brake noise diagnosis. Exploded views, torque specifications, and wear limits accompany the service procedures.

Electrical Diagnosis and Wiring References

Switch tests cover neutral/reverse, clutch, brake lights, the optional tether, and ETC. The manual also covers coolant temperature and fan controls, alternator and battery testing, and starter motor teardown, brush inspection, and armature testing. The starter flowchart and voltage-drop checks help distinguish a poor circuit connection from a starter motor fault.

The full vehicle schematic and wire termination table are labeled A07GJ50AA and A07GJ50AB. The wiring chapter also includes separate ignition and charging circuit diagrams.

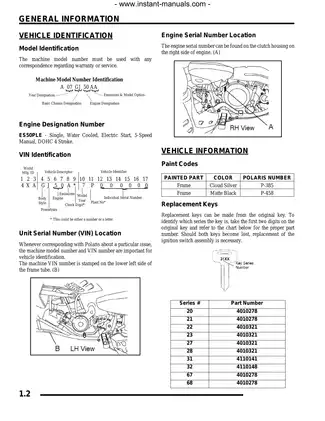

Special Tools and Identification

The tool list includes crankcase separator PA-46087, cam chain tensioner tool PA-45958, water pump seal puller 2872105, carburetor float tool 2872314, Mity Vac pressure tool 2870975, Fox IFP depth tool 2871351, and digital multimeter PV-43568. Reference pages identify the VIN and engine serial number locations, list Cloud Silver (P-385) and Matte Black (P-458) frame paint codes, and provide SAE and metric tap and drill sizes and conversion tables.

Sample Oil Pressure, Float Height, and Starter Test Specs

For the hot engine oil pressure test at 5,500 rpm, the manual specifies 20 psi as standard and 12 psi as the minimum.

The carburetor float height procedure specifies 13–14 mm. The starter circuit test gives a maximum voltage drop of 0.1 V DC per connection or component.
