Polaris Scrambler 500 4x4 ATV Service Manual, 2004–2005 (P/N 9919481)

303 Pages • ZIP Download: Printable PDF • 114.97 MB

4.5starstarstarstarstar_half(4)
$19.20 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Polaris Models Covered & Key Technical Specifications

Models & Model Codes: Scrambler 500 (A04BG50AA; engine EH500PLE123), Scrambler 500 (A05BG50AA, A05BG50FA; engine EH500PLE)

Sub-models / Variants: 4x4 (non-EBS PVT)

Model Years: 2004–2005


  • Engine displacement: 499 cc

  • Engine configuration: Single cylinder, liquid-cooled, SOHC 4-stroke

  • Bore and stroke: 92 mm x 75 mm

  • Carburetor: Mikuni BST 40mm

  • Starting system: Electric

  • Transmission type: H/N/Rev

  • Front suspension: A-arm / MacPherson Strut

  • Rear suspension: Progressive Rate Swing Arm with Twin Tube Gas Charged shock

  • Front tire model: Titan 23x7-10

  • Rear tire model: Titan 22x11-10

Polaris Manual Features & Selected Content Preview

Polaris Service Manual P/N 9919481 covers 2004–2005 Scrambler 500 4x4 ATVs: A04BG50AA and A05BG50AA/A05BG50FA, with the EH500PLE engine.

PDF Search, Bookmarks and Wiring Detail

Text navigation and diagram detail: Service text supports search, and embedded bookmarks link to chapters and individual procedures. Lettering within the full wiring diagrams and wire-identification tables is not searchable. Small wiring labels require enlargement; the 2004 sheets have lighter linework than the 2005 sheets.

The ZIP contains one printable 303-page PDF. This total includes two covers, three introductory pages, eight Notes pages, four wiring-diagram and wire-identification pages, and six index pages.


Engine Overhaul, PVT Service and AWD Diagnosis

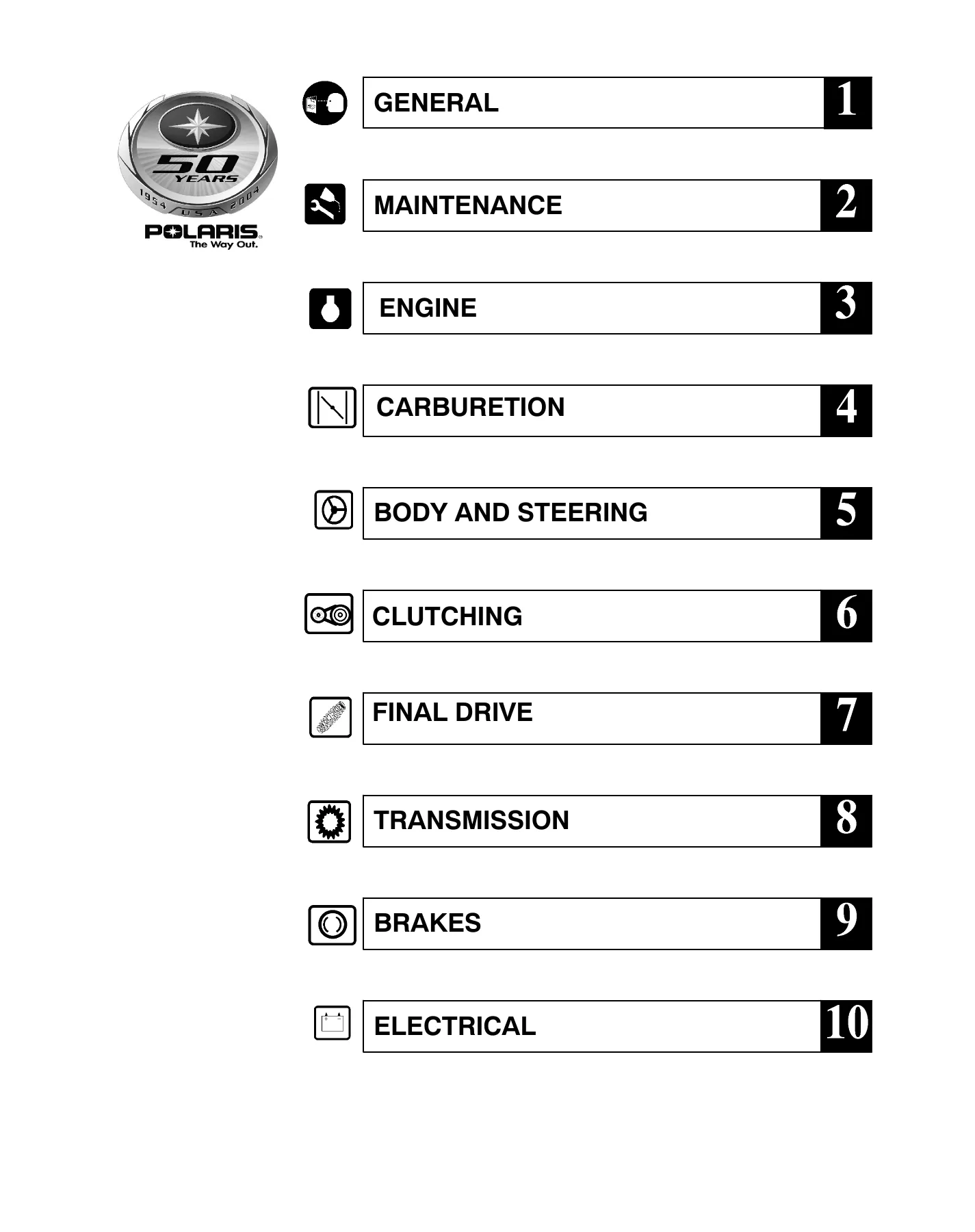

Selected content: The overview below highlights major service areas rather than the full table of contents. Other topics include cover/panel removal and exhaust spark-arrestor maintenance.

  • Engine repair: Engine removal and installation, top- and bottom-end disassembly, cylinder-head and valve-seat service, cam timing, lubrication-system testing, and cooling-system repair.

  • Fuel system: Mikuni BST 40 CV carburetor overhaul, jetting guidance, float and fuel-level checks, needle-and-seat leakage testing, and fuel-pump service.

  • PVT and transmission: Non-EBS drive and driven clutch repair, belt inspection, alignment and offset, bushing replacement, overheating diagnosis, and H/N/Rev transmission teardown and reassembly.

  • AWD and final drive: Front hub and Hilliard clutch service, magnetic-coil service, CV axle and boot repair, prop-shaft U-joints, front-housing overhaul, and year-specific rear-axle procedures.

  • Hydraulic brakes: Separate 2004 and 2005 sections covering bleeding, master-cylinder replacement, pads, discs, caliper overhaul, auxiliary brakes, and troubleshooting.

  • Electrical diagnosis: DC/CDI ignition testing, gear-position switch checks, reverse-limiter and no-AWD fault charts, with separate model-year wiring diagrams.

  • Factory reference data: Component torque tables, fluid and lubrication data, wear limits, end-play and clearance specifications, jetting and clutch charts, electrical test values, and exploded views.

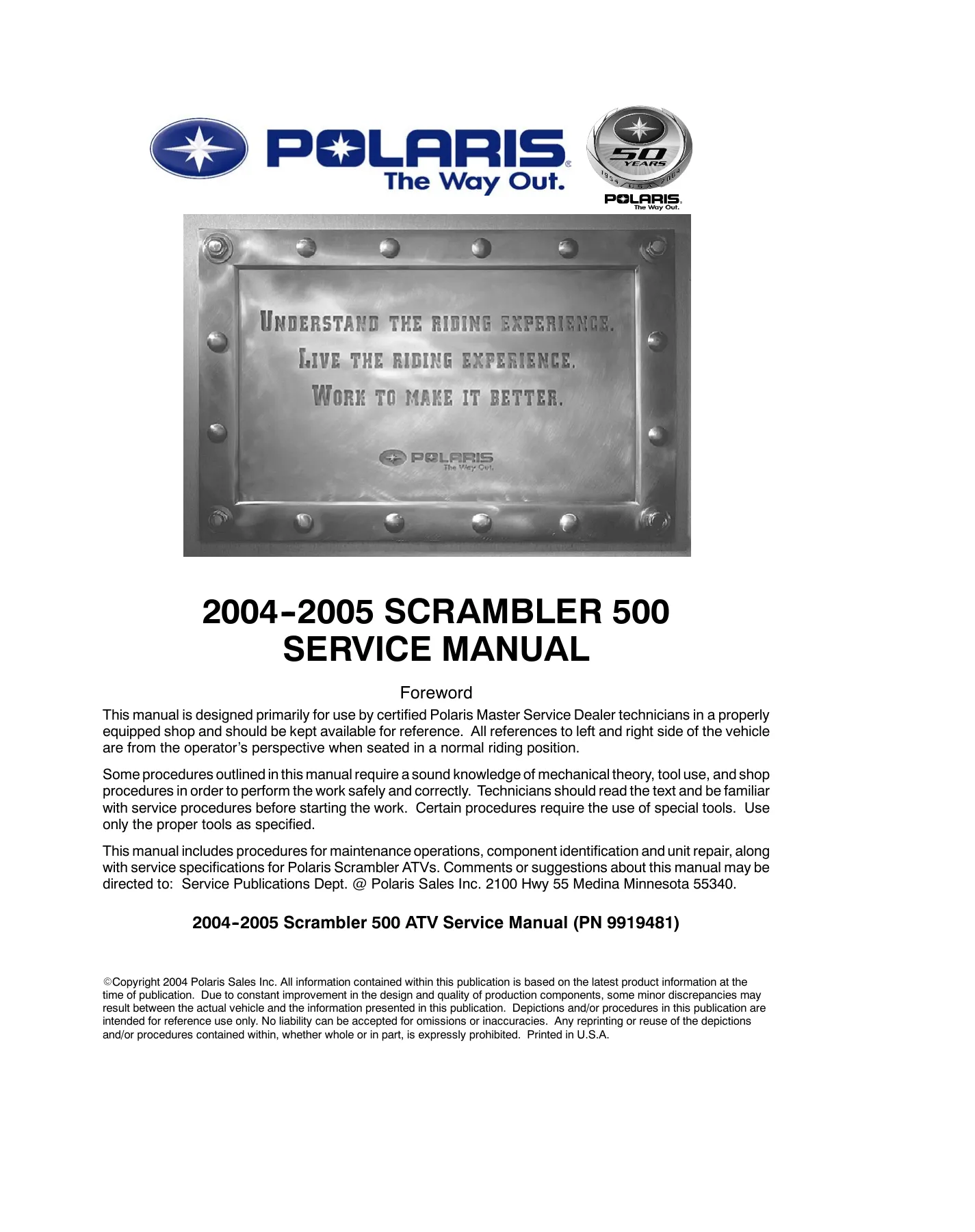

Polaris wrote this manual primarily for certified Polaris Master Service Dealer technicians working in a properly equipped shop; it assumes a sound knowledge of mechanical theory, tool use, and shop procedures.

Maintenance and Service Adjustments

The periodic chart defines severe use and identifies items requiring shorter service intervals. Maintenance procedures address oil/filter changes, throttle and choke setup, ETC switch checks, and H/N/Rev shift-linkage adjustment.

Compression and ignition-timing tests, valve-clearance adjustment, steering/toe alignment, and AWD hub maintenance are also covered. Drive-chain and sprocket service, suspension checks, and PVT drying address chassis upkeep and water exposure.

Internal Engine Repair and Cooling

Step-by-step procedures extend through crankcase separation, main-bearing replacement, and crankcase assembly. Cylinder honing, crankshaft and counterbalancer inspection, and crankshaft, counterbalancer, and oil-pump-shaft end-play checks establish the depth of internal repair coverage.

Oil-pump service and priming, oil-pressure testing, water-pump mechanical-seal replacement, cooling-system pressure testing, and bleeding are documented. The manual distinguishes components serviceable with the engine installed from repairs requiring engine removal; recoil disassembly and assembly are included.

Incorrect cam-to-crank timing can cause serious internal engine damage.

Carburetor and PVT Fault Isolation

Carburetion and PVT operating explanations support the inspection and troubleshooting material, helping distinguish an adjustment problem from a component failure. Jetting and clutch charts address operating conditions, while clutch inspection extends to shift weights, rollers, springs, and bushings.

Polaris specifies trained, certified MSD technicians, factory-authorized special tools, and the prescribed service procedures for PVT disassembly and repair.

Model-Year Axle and Brake Differences

The final-drive chapter separates 2004 and 2005 concentric-swingarm rear-axle removal, assembly, housing/bearing service, and exploded views. Different axle-nut and caliper-mount arrangements make model-year selection important before choosing parts or procedures.

Forcing fluid into an AWD hub under pressure can damage its seals, while operating with the Hilliard armature plate out of position can damage the roller clutch.

The brake sections document each model year's hydraulic layout and separately serviced rear-caliper circuits, along with fluid replacement, brake burnishing, disc inspection, and caliper overhaul. Handlebar master cylinders are replaced as complete units rather than rebuilt.

Chassis procedures cover A-arms, struts, ball joints, the steering post, and swingarm service.

ECM, Charging and Starter Tests

ECM and thermistor sections explain fan and hot-light operation before the related tests. Charging diagnosis adds alternator-output, key-off current-draw, and break-even tests.

Battery and lighting service, starter-circuit diagnosis, starter-motor inspection and assembly, and starter-drive service are included.

Special Tools and Technical Illustrations

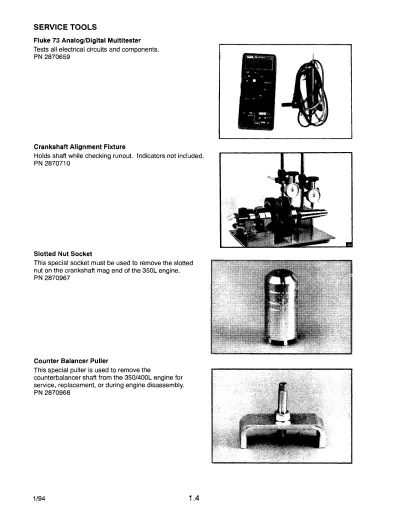

Special-tool listings pair names with Polaris part numbers, including the Water Pump Seal Puller P/N 2872105 and ATV Clutch Align Tool P/N 2870654. They also identify the Shaft Drive Transmission & Front Gearcase Tool Kit P/N 2871702 and Mity Vac P/N 2870975.

Named illustrations include the EH50PL Oil Flow Diagram, EH50PL Engine Exploded Views, and BST 40 Carburetor Exploded View. The AWD Front Hub Exploded View, 4x4 Transmission Exploded View, and separate 2004 and 2005 wiring diagrams support driveline and electrical work.

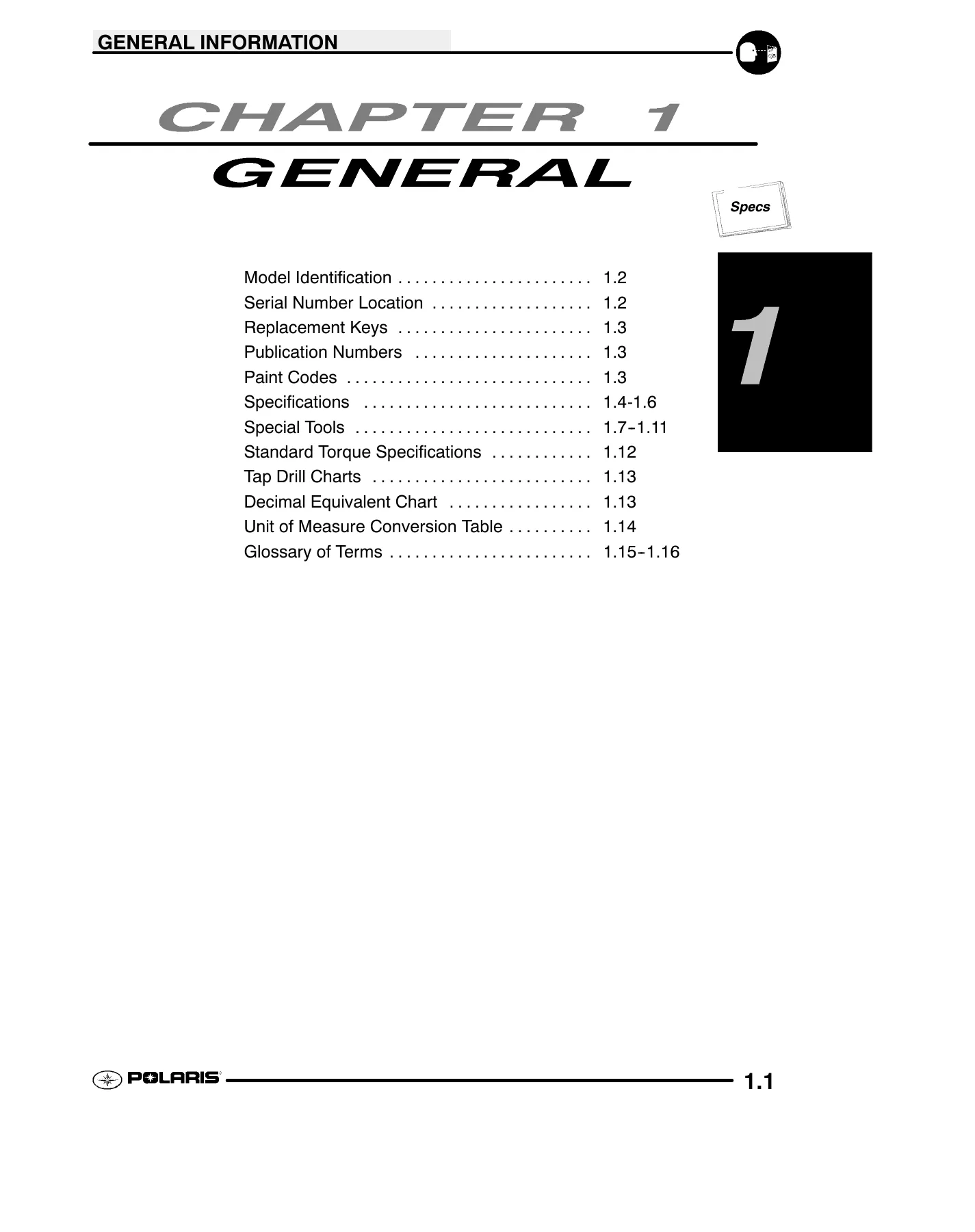

Reference material also includes metric and SAE tap-drill tables, decimal equivalents, and unit conversions. The opening chapter shows machine, engine, and transmission identification locations and lists separate owner's and parts publications for model-specific reference and parts ordering.

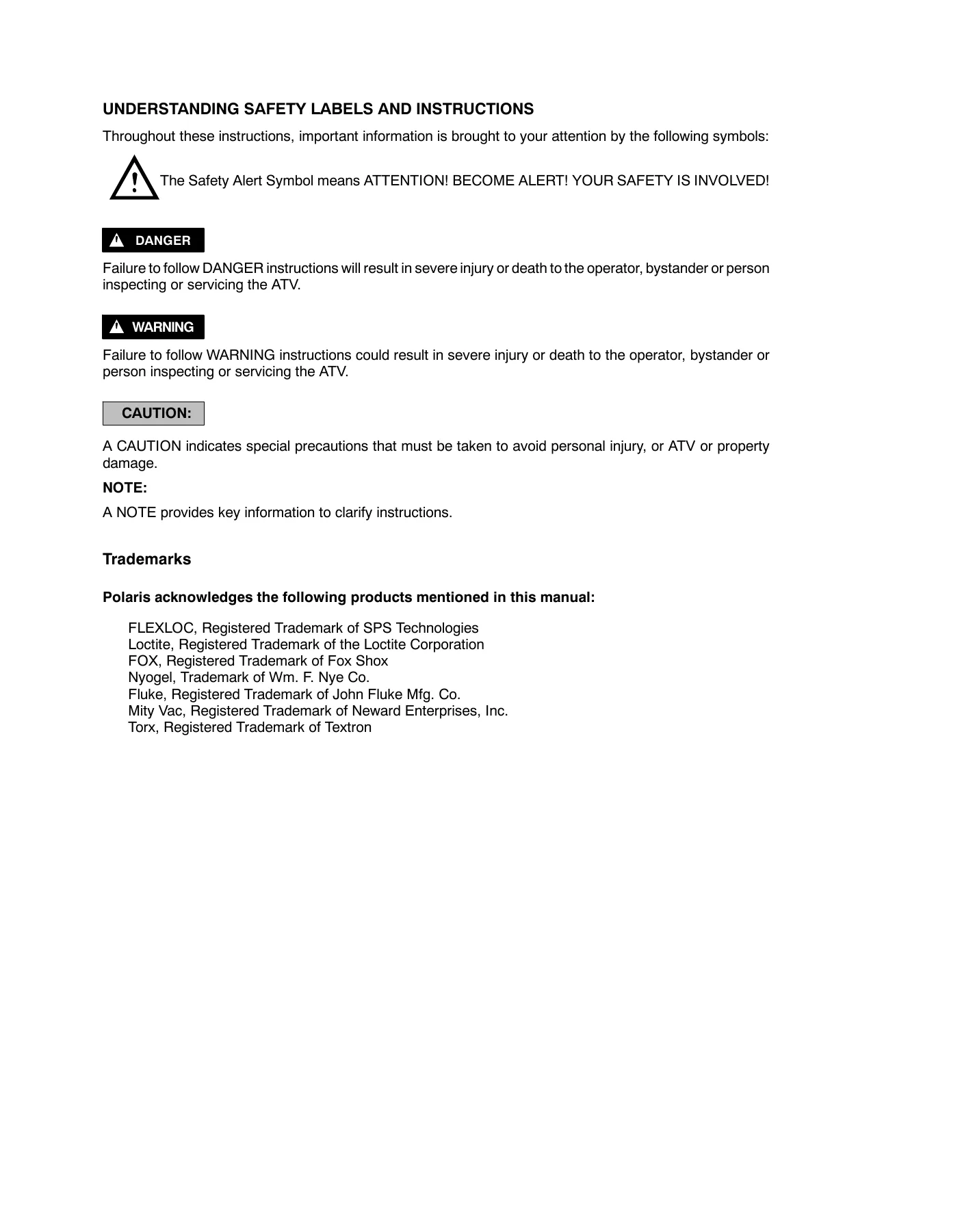

Follow the factory safety warnings and specified tool requirements for pressurized cooling-system work, hydraulic brake service, and spring-loaded PVT clutch repair.

Examples of Valve-Clearance and Oil-Pressure Data

For the covered EH500PLE engine, intake and exhaust valve clearance is 0.006 in. (0.15 mm), with the engine cold and the piston at TDC on the compression stroke.

The oil-pressure test specifies 20 psi standard and 12 psi minimum at 5,500 rpm, with the engine hot and Polaris 0W–40 synthetic oil.
