2005 Polaris Phoenix 200 ATV Owner's Manual (P/N 9919964)
111 Pages • Printable PDF • 6.61 MB • Download
Polaris Models Covered & Key Technical Specifications
Model: Phoenix 200
Model Year: 2005
-
Engine displacement: 196 cc
-
Engine type: 4-cycle, single-cylinder
-
Cooling system: Air cooled
-
Transmission type: Constant Variable Transmission (CVT)
-
Fuel capacity: 2.5 gal. (9.5 L)
-
Front tire pressure: 4 psi
-
Rear tire pressure: 4 psi
-
Gross vehicle weight: 720 lbs. (326 kg)
Polaris Manual Features & Selected Content Preview
This Polaris owner's manual covers operation, safety, and routine maintenance for the 2005 Phoenix 200 ATV. Publication P/N 9919964, Rev 01 (copyright 2004 Polaris Sales Inc.) includes minor maintenance instructions. The separate Polaris Service Manual for major repairs is not included.
-
Controls and pre-ride checks: Safety decal locations, inspection checklist, starting and shifting instructions, brake controls, and reverse override switch operation.
-
Engine and lubrication: Oil and filter changes, transmission and rear gearcase oil service, spark plug inspection and replacement, and spark arrestor cleaning.
-
CVT and water exposure: CVT drying procedures, belt slippage checks, and conditional vehicle-immersion recovery instructions with dealer follow-up.
-
Brakes and chassis: Hydraulic front disc brake checks, mechanical rear drum brake adjustment, toe-alignment inspection, wheel service, and rear spring adjustment.
-
Fuel and throttle: Carburetor idle adjustment, throttle cable freeplay adjustment, Electronic Throttle Control (ETC) operation, and air filter service.
-
Electrical maintenance: Battery removal, installation, and charging guidance, plus headlight and taillight/brakelight bulb replacement.
-
Troubleshooting: Symptom-based charts for starting problems, backfiring, stalling, misfiring, and loss of power, with checks and dealer-service referrals.
This manual is for Phoenix owners and operators, with maintenance guidance suited to readers familiar with safe service and adjustment practices.
Operation and Maintenance
The operating sections explain protective gear, hill riding, slippery terrain, cargo handling, and towing. The Pre-Ride Checklist links checks to the relevant sections, while the Periodic Maintenance Chart distinguishes normal and severe use and identifies work reserved for the dealer.
The Gearcase Specification Chart separates transmission lubricant from rear gearcase fluid and gives each assembly's capacity and plug torques. That distinction helps owners select the correct fluid before starting an oil change.
Oil-change guidance also warns that leaving the engine drained for an extended period can cause the oil pump to lose prime and lead to engine damage.
Brakes, Steering, and CVT Service Limits
Brake coverage includes master cylinder fluid checks, front pad wear inspection, and rear brake lever travel adjustment. Toe alignment can be checked using the illustrated method; tie-rod adjustment and front wheel hub service are assigned to a Polaris dealer.
The suspension specifications distinguish the front A-arm arrangement from the rear mono-shock swing arm. The maintenance section explains rear spring tension adjustment and notes that camber and caster are not adjustable.
The immersion section calls for dealer inspection before restarting a submerged vehicle. Its recovery procedure applies when reaching a dealer first is impossible, and the CVT drying section includes a subsequent belt slippage check.
Follow the manual's precautions for brake work, hot exhaust components, and the rotating CVT assembly.
Carburetor and Engine Troubleshooting
Carburetor coverage explains how temperature and altitude affect jetting, alongside the idle adjustment procedure. The Jetting Chart and Clutching Chart contain entries marked TBD, so they do not provide a complete setup matrix for every listed condition.
The Engine Runs Irregularly, Stalls or Misfires chart separates weak-spark, lean-mixture, and rich-mixture causes. ETC malfunctions are among the problems referred to a dealer; the controls section explains the system's engine-shutdown function.
Battery guidance includes voltage-based charging checks and storage care. The storage section also covers fuel stabilization, engine fogging, and preparation of the air filter and airbox.
Oil Drain Plug and Wheel Nut Torque Examples
Within the oil and filter change procedure, the engine oil drain plug is specified at 11 ft. lbs. (15 Nm).
The wheel installation section gives 27 ft. lbs. (37 Nm) for both front and rear wheel nuts. These are wheel nut specifications; axle nuts secured with cotter pins are referred to the dealer.
Searchable Text and PDF Contents

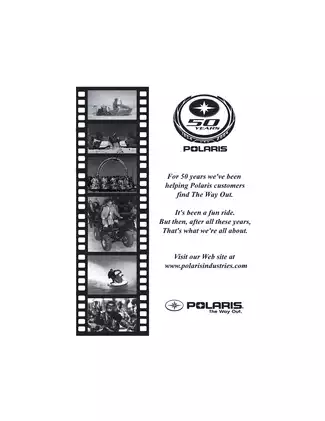

Text search and navigation: The main text supports PDF searching, and the contents page and index provide page references. There are no embedded PDF bookmarks. Text on the front cover, additional introductory page, and back cover is not searchable.
One printable English-language PDF contains 111 pages, including the front and back covers, one additional introductory page, and one blank page.
