Polaris Models Covered & Key Technical Specifications

Model: Sportsman 500 EFI

Sub-models / Variants: Standard and ADC (Active Descent Control) models; separate clutching specifications for EBS and Standard models

Model Year: 2007


  • Engine: 4-cycle electronic fuel injection (EFI), EH50PLE

  • Transmission: Automatic PVT (Polaris Variable Transmission), H/L/N/R/P

  • Fuel requirements: 87 octane (R+M/2) minimum, leaded or unleaded, no E-85

  • Maximum weight capacity: 1200 lbs (545 kg) (machine, driver, cargo)

  • Rack capacity: Front 90 lbs (41 kg), Rear 180 lbs (82 kg)

  • Hitch vertical capacity: 120 lbs (55 kg)

  • Transmission oil capacity: 32 oz (948 ml)

  • Demand Drive (front gearcase) fluid capacity: 9 oz (265 ml) standard, 9.3 oz (275 ml) with ADC

  • Tire pressure: 5 PSI (34.5 kPa) front and rear

  • Brake fluid: DOT 4

Polaris Manual Features & Selected Content Preview

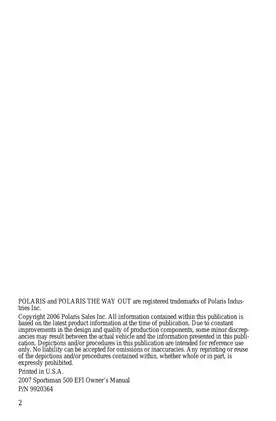

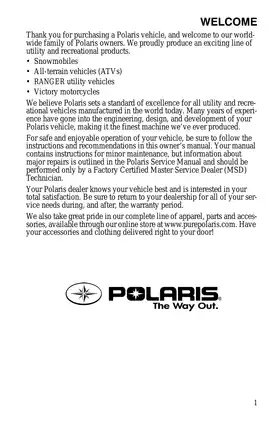

Polaris Owner’s Manual P/N 9920364, Rev 02 (copyright 2006) covers operation and minor maintenance for the 2007 Sportsman 500 EFI, including models equipped with Active Descent Control. Major repair procedures belong to the separate Polaris Service Manual and are reserved for Factory Certified Master Service Dealer technicians.

Searchable Text and PDF Contents

Search and navigation: The main manual text is searchable; the two cover pages do not support text search. There are no embedded PDF bookmarks. A table of contents and alphabetical index provide page references.

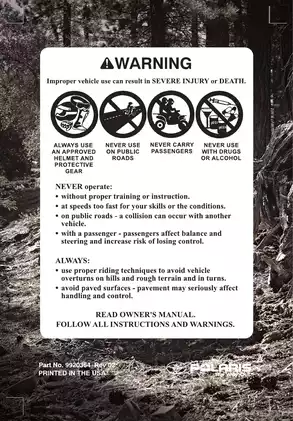

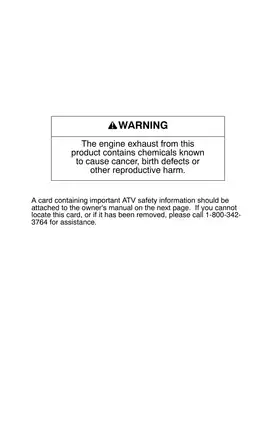

Supplied as one printable 143-page PDF, including two cover pages and an unnumbered warning page, followed by printed pages 1–140. The numbered section includes a blank page, warranty information, a maintenance log, and the index.


Operation, Owner Maintenance and Fault Checks

The following selected topics show the manual’s scope rather than reproduce its full contents. Other subjects include vehicle transport and chrome-wheel care.

  • Operation and controls: Break-in guidance, pre-ride checks, cargo handling, towing, recoil starting, and AWD and ADC engagement conditions.

  • Lubrication and cooling: Step-by-step oil and filter changes, oil-pump priming, transmission and demand-drive fluid service, and coolant-level checks.

  • ADC maintenance: Reservoir checks, fluid replacement, and hydraulic bleeding instructions for vehicles equipped with Active Descent Control.

  • Brakes and chassis: Brake inspections, string-method toe-alignment checks, wheel removal and installation, rear spring adjustment, and throttle cable freeplay adjustment.

  • Electrical and EFI checks: Instrument-cluster diagnostic screens, EFI blink-code descriptions, conventional and sealed battery charging, and lamp replacement.

  • PVT and engine troubleshooting: Belt wear and burning charts, PVT drying instructions, spark plug inspection, spark arrestor cleaning, and starting or running fault checks.

Written for owners and operators, this manual supports minor maintenance by readers familiar with safe service practices; its maintenance chart identifies work assigned to an authorized Polaris dealer.

Controls and Diagnostic Information

The controls section explains the Mode/Reverse Override switch, Electronic Throttle Control (ETC), auxiliary foot brake, and Rider Information Center. Cargo guidance relates load distribution to rack and hitch limits, while the driving sections address hills, reverse operation, obstacles, and water crossings.

Diagnostic scope: Battery-voltage, AWD-coil, and gear-circuit screens sit alongside EFI blink-code retrieval and failure descriptions. These references help owners interpret displayed warnings and describe symptoms when arranging service; they do not provide component-level EFI repair procedures.

Maintenance Procedures and Dealer Boundaries

The Periodic Maintenance Chart distinguishes routine tasks, severe-use requirements, emissions-related items, and dealer work. Together with the lubrication guide and maintenance log, it supports planning and recording scheduled care.

Oil and intake service: The oil-change instructions cover the tank screen fitting, crankcase drain, filter, and oil-pump priming after the tank-to-pump hose connection has been disconnected. Separate procedures address the air filter, pre-filter, breather filter and hose, and recoil-housing drainage.

ADC fluid: ADC-equipped vehicles have separate demand-drive and ADC fluid requirements. The manual warns that brake fluid damages rubber components in the ADC hydraulic system.

Chassis limits: The string method checks toe alignment; tie rod adjustment is assigned to an authorized dealer. MacPherson strut front-suspension specifications are included, alongside rear spring and handlebar adjustments. Engine idle adjustment is also referred to the dealer.

Follow the manual’s precautions for hot oil, pressurized coolant, battery gases, and rotating PVT components before attempting maintenance.

Belt Problems, Battery Care and Reference Charts

The PVT explanation connects low-speed operation in high range with insufficient belt grip and heat that can damage the belt, clutch components, and cover. Its low/high-range selection table and Drive Belt Wear/Burn chart help distinguish operating conditions from faults requiring dealer attention.

Battery instructions distinguish conventional batteries from sealed types, with separate charging guidance and a sealed-battery state-of-charge table. Storage coverage includes fuel stabilization, engine fogging, fluid checks, and battery care.

Reference material includes the Wheel Nut Torque Specifications chart, Demand Drive Capacities table, and separate Clutching (EBS Models) and Clutching (Standard Models) tables. The clutching tables identify altitude-dependent weights, springs, and helix arrangements; they are specifications rather than clutch-overhaul instructions.

Selected Oil-Service and Throttle Specifications

Engine oil: The oil-and-filter change procedure specifies 2 quarts (1.9 liters) when the crankcase sump is also drained. If the sump is not drained, the initial fill is about 1¾ quarts (1.6 liters), followed by the specified level check.

Transmission plugs: Both the transmission fill plug and drain plug have a tightening specification of 22 ft-lbs (30 Nm).

Throttle cable: The adjustment section specifies 1/16–1/8 inch (1.5–3 mm) of freeplay at the thumb lever, distinct from the dealer-set engine idle speed.
