2008 Polaris Phoenix 200 & Quadricycle ATV Factory Service Manual (P/N 9921499)

This 2008 Polaris Phoenix 200 factory service manual, P/N 9921499, covers the standard ATV (A08PB20AB, A08PB20AD) and Phoenix 200 Quadricycle (A08PB20EB). The publication carries a 2007 copyright.

• Engine repair: Engine removal, cylinder-head and crankcase disassembly, valve seat reconditioning, piston inspection, camshaft timing, and reassembly.

• Fuel system: Carburetor cleaning, float-height adjustment, needle-and-seat leak testing, fuel-level checks, and jetting references.

• CVT and transmission: Drive and driven clutch service, belt inspection, output-shaft shimming, and shift-detent inspection and synchronization.

• Chassis and final drive: Steering, ball-joint and A-arm service, hub bearings, swing arm removal, and rear-gearcase overhaul.

• Brakes and Quadricycle equipment: Hydraulic bleeding, front-caliper repair, rear-drum service, and Quadricycle-specific rear disc-brake and speedometer coverage.

• Electrical diagnosis: Ignition, charging, and starter troubleshooting, Electronic Throttle Control testing, wiring diagrams, and electrical test specifications.

Written primarily for certified Polaris Master Service Dealer technicians in a properly equipped shop, this manual assumes mechanical knowledge and familiarity with service tools.

Maintenance and Internal Engine Repair

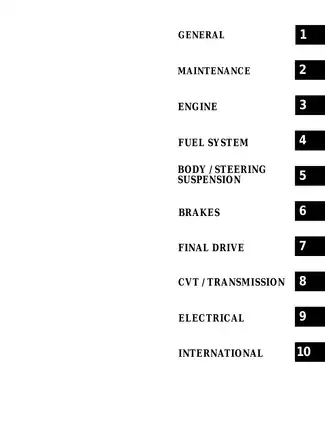

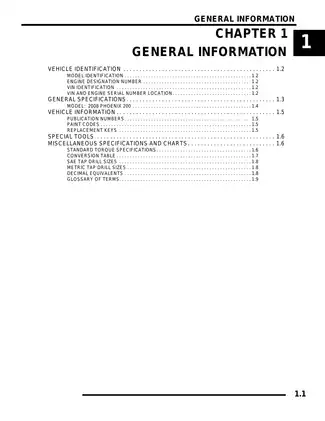

The ten chapters begin with vehicle identification, general specifications, and conversion tables. Periodic maintenance charts organize service by hours, mileage, and calendar time, with separate guidance for severe use. Routine coverage includes carburetor draining, spark plug inspection, lubricant capacities, and throttle-cable adjustment.

Engine service data includes bore/stroke specifications, cylinder wear limits, valve-guide measurements, and piston identification. The Oil Flow Diagram and valve-train exploded views support lubrication-system and component identification.

Camshaft timing methods cover the stator housing installed or removed. The crankshaft's individual components are not serviceable; it is replaced as an assembly. The manual warns that damage to the crankshaft-end oil-passage plunge joint during flywheel removal can interrupt lubrication and cause severe engine damage.

Carburetor Testing and Mixture Control

Needle-jet and jet-needle explanations connect mixture changes to throttle opening. The altitude/temperature jetting chart provides calibration references, while Carburetor, Air Cleaner, and Fuel Tank exploded views identify the related assemblies.

The fuel-level test applies where the drain fitting is accessible. Named equipment includes the D-shaped carburetor adjustment screwdriver PA-47361 and Mity-Vac pressure tester 2870975.

Clutch Service and Separate Shimming Procedures

CVT drying and overheating diagnosis address water entry, restricted ducting, and belt slip. An altitude-based clutch-weight chart complements roller, friction-shoe, spring, and bearing inspection data.

Transmission output-shaft shimming establishes pinion depth only; it does not provide backlash adjustment. Rear-gearcase service has its own bevel-gear backlash and shimming procedure. The transmission shaft collar tool PA-47309 is identified separately from the gearcase input shaft collar tool PA-47360.

Brake Variants, Steering, and Suspension

The standard ATV uses a mechanical rear drum brake. The Quadricycle has foot-operated all-wheel hydraulic disc braking and a mechanical parking brake; its dedicated chapter covers rear-caliper removal, disc inspection, axle caliper-mount service, and the mechanically driven speedometer.

Steering sections explain toe alignment and component replacement. Incorrectly positioned tie rod ends can lose their ability to pivot and break. Follow the manual's safety precautions and use the specified protective gear for brake and spring-loaded clutch work.

Ignition, Charging, and Starter Fault Tracing

The Ignition System Testing and Charging System Testing flowcharts accompany pulse-coil checks, starter voltage-drop tests, and a wire-termination table.

The ETC section explains how lost throttle-cable tension can stop ignition spark. The no-spark flowchart helps distinguish ETC or transmission-switch faults from CDI faults before module replacement. Starter diagnosis is covered, but the motor itself is treated as a complete replacement part.

A Sample of Valve-Clearance and Fastener Data

These are a few of the manual's adjustment and torque specifications. Intake and exhaust valve-clearance checks specify 0.003 in. (0.07 mm), with the cam lobes pointing down.

The maintenance section lists 14 ft-lb (19 Nm) for the crankcase drain plug and 80 ft-lb (108 Nm) for the rear hub retaining nut.

Text Search, Bookmarks, and Wiring-Sheet Detail

Search and diagram detail: Main text is searchable, with embedded chapter and subsection bookmarks. Labels within the full-page wiring diagram are not searchable; its small wire codes require zooming and page rotation. Some lines in the separate RPM-limiter schematic are faint.

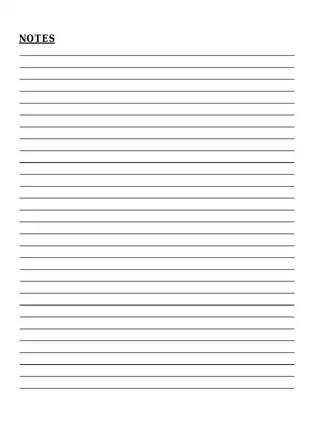

One printable English PDF totals 214 pages: four front-matter pages, 204 chapter pages, four index pages, one wiring-diagram page, and one intentional blank page. Nine notes pages are already included in the front-matter and chapter counts.
