Polaris Outlaw 500 ATV Service Manual – 2007 (P/N 9920786)
196 Pages • 1 Printable PDF (English) • Download

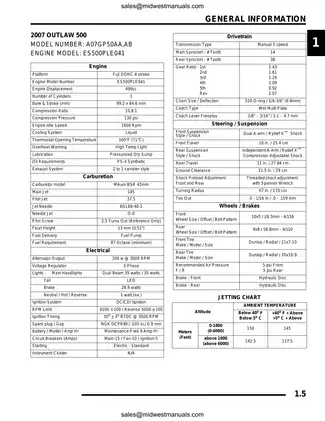

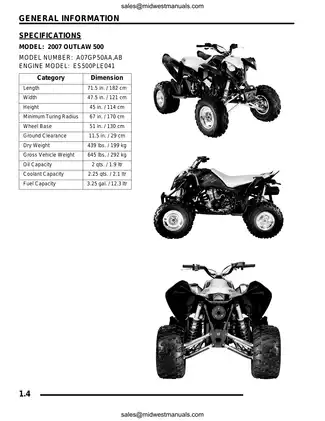

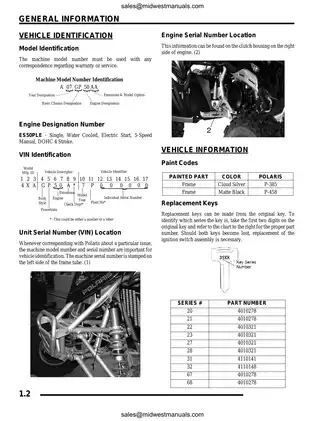

Polaris Models Covered & Key Technical Specifications
Model: Outlaw 500
Sub-models / Variants: Black (A07GP50AB), White (A07GP50AA)
Model Year: 2007
-
Engine: Fuji DOHC 4 stroke (ES500PLE041)
-
Displacement: 499cc
-
Idle Speed: 1600 Rpm
-
Transmission: 5-speed manual
-
Dry Weight: 439 lbs. (199 kg)
-
Fuel Capacity: 3.25 gal. (12.3 ltr)
-
Front Travel: 10 in. (25.4 cm)
-
Rear Travel: 11 in. (27.94 cm)
Polaris Manual Features & Selected Content Preview
Polaris service manual for the 2007 Outlaw 500 in White (A07GP50AA) and Black (A07GP50AB), using the carbureted Fuji DOHC four-stroke ES500PLE041 powertrain. P/N 9920786.
PDF Search, Bookmarks, and Wiring Detail
Text search and diagram detail: The main service text is searchable, with embedded bookmarks for the service chapters and wiring section. Labels within the wiring sheets are not searchable. Small wiring labels require magnification; the sheets use light, fine lines.
One printable English PDF with 196 pages, including three notes pages and one blank wiring-section page.
Engine Rebuilds, Chassis Service, and Electrical Diagnosis
The selected coverage below highlights major workshop procedures. Other included topics range from body-panel removal to headlight aiming.
-
Engine and transmission: Step-by-step engine removal and installation, upper- and lower-engine disassembly, crankcase separation, wet-clutch inspection, manual-transmission service, and reassembly with camshaft timing.
-
Cylinder head and cylinder: Camshaft and automatic-decompression inspection, valve-guide and valve-seat service, adjusting-pad selection, cylinder inspection and honing, and water-pump mechanical-seal replacement.
-
Mikuni BSR 42 CV carburetor: Disassembly, cleaning, inspection, assembly, float adjustment, fuel-level testing, and needle-and-seat leak testing.
-
Steering and rear drive: Steering knuckles, ball joints, front hubs, A-arms, rear pivot housing and bearing carrier, rear CV joints, and boot replacement.
-
RydeFX shocks: Front and compression-adjustable rear shock inspection and rebuild procedures, with exploded views, piston orientation, and shock specifications.
-
Hydraulic brakes: Front and rear bleeding procedures, master-cylinder replacement, caliper disassembly and reassembly, pad replacement, disc inspection, and brake troubleshooting.
-
Electrical troubleshooting: DC/CDI ignition, charging, fan, and starter tests; diagnostic flowcharts; wiring diagrams; connector tables; harness-splice locations; and ignition/charging breakouts.
The repair procedures are suited to experienced mechanics and properly equipped shops, with precision measuring tools, press equipment, electrical test instruments, and nitrogen shock-service equipment. Polaris specifically recommends an authorized MSD-certified technician for critical steering-component repair and adjustment.
Maintenance, Cooling, and Drive Adjustments
The maintenance section combines pre-ride checks with hour-based service schedules and severe-use guidance. It covers oil and filter service, dry-sump oil-pump priming, compression testing, cooling-system pressure testing, and cooling-system bleeding after repairs.
Clutch and reverse lockout adjustments, chain inspection and tensioning, CV-boot pressure equalization, toe alignment, spring preload, rear-shock compression adjustment, brake inspection, and wheel service are also covered.
Internal Engine Repair and Timing
Rebuild detail: Internal procedures include starter-drive and one-way-clutch inspection, oil-pump clearance checks, crankcase-bearing replacement, transmission shaft disassembly and reassembly, crankshaft inspection and installation, and piston and ring fitting.
Cylinder-head service extends to valve-guide replacement and reaming, valve-seat reconditioning, and head assembly. The ES50PL adjusting-pad selection matrix supports valve-clearance adjustment.
Repair planning: The in-frame service chart distinguishes accessible repairs from work requiring engine removal. Water-pump mechanical-seal replacement is covered with the engine installed using puller 2872105.
The manual warns that incorrect cam-chain indexing can cause valve-to-piston interference and serious engine damage. Its transmission reassembly notes also explain how displaced components can prevent correct crankcase-half mating and leave the transmission binding.
Engine troubleshooting addresses starting, low power, overheating, backfiring, oil consumption, and water-pump leakage. Visual references include the ES50PL oil-flow chart, engine exploded views, and the Outlaw cam-timing exploded view.
Fuel Delivery and Carburetor Diagnosis
Carburetor system theory explains the vacuum slide, pilot, starter, float, and main circuits alongside the BSR 42 exploded view. Jetting guidance relates calibration to altitude and temperature, with Mikuni jet part-number tables.
Fuel-pump coverage includes testing, disassembly, diaphragm and check-valve inspection, and assembly. Symptom-based troubleshooting separates fuel starvation and lean-mixture complaints from rich running and idle problems.
Chassis, Brake, and Electrical References
Steering, suspension, and front/rear brake-system exploded views accompany the component procedures. Brake inspection data covers pad and disc wear, disc runout, and thickness variation.
Electrical diagnosis includes starter-circuit voltage-drop testing, starter-motor brush and armature inspection, and reassembly. Ignition, charging, and starter flowcharts work with the connector cavity tables and approximate harness-splice locations to support circuit tracing and component fault isolation.

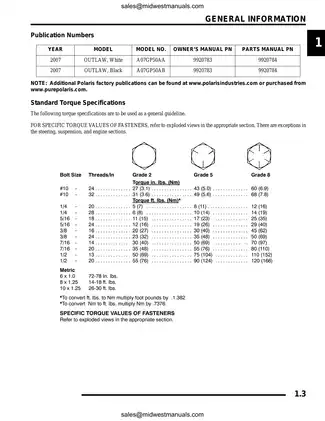

Factory references include standard and component-specific torque specifications, engine service limits and clearances, fluid and lubricant requirements, carburetor calibration data, shock specifications, and electrical resistance, voltage, amperage, and output tests.
Workshop Tools and Safety
The special-tool listings identify tools by part number and application. Engine examples include the PA-46075 flywheel puller, PA-46087 crankcase separator, and PA-45958 cam-chain-tensioner tool.
Shock work references the PS-45259 gas-fill tool and PS-45261 IFP positioning/extraction tool. Electrical testing references the PV-43568 Fluke 77 multimeter; carburetor and brake testing uses the 2870975 Mity Vac.
Fuel, hot-coolant, battery, hydraulic-brake, lifting, and pressurized-nitrogen shock work carry real hazards. Follow the manual's component-specific warnings, use the specified service equipment, and turn safety-critical repair work over to a qualified technician when the required training or tools are not available.
Oil-Pressure and Carburetor Leak-Test Examples
For the ES50PL engine, the oil-pressure test specifies a standard of 20 psi and a minimum of 12 psi at 5,500 rpm with the engine hot and Polaris PS-4 Synthetic oil.
For the BSR 42 carburetor, the needle-and-seat leak test specifies 5 psi at the fuel inlet, which the assembled needle and seat must hold indefinitely.
