2004 Polaris RANGER Factory Service Manual (P/N 9918796)

• Exact coverage: A 424-page PDF of Polaris Service Manual P/N 9918796 covering 2004 Ranger TM, 2x4, 4x4, and 6x6 configurations.
• Engine repair: Separate procedures for the TM's air-cooled EH63 and the liquid-cooled EH42/EH50 engines cover removal, cylinder-head and crankcase work, valve-seat service, crankshaft inspection, cam timing, water-pump service, and reassembly.
• PVT and transmission work: Model-specific drive and driven clutch teardown, belt inspection, offset/alignment, bushing service, transmission removal, internal disassembly, assembly, shift-linkage adjustment, and troubleshooting are provided.
• Axles and final drive: Front hub and CV service, 4x4/6x6 front gearcase diagnosis and overhaul, and dedicated 6x6 mid-drive hub, shaft, gearcase, and rear-differential procedures are documented.
• Chassis and brakes: Body, panel, and cargo-box removal; steering and toe adjustment; A-arm, strut, ball-joint, and swingarm repair; brake bleeding; caliper rebuilding; disc inspection; and parking-brake adjustment are covered.
• Diagnostics and reference data: Nikki and Mikuni carburetor service, ECM/CDI/charging/starting-system fault isolation, component test flowcharts, special-tool part numbers, torque tables, fluid data, wear limits, clearances, and electrical test specifications are included.

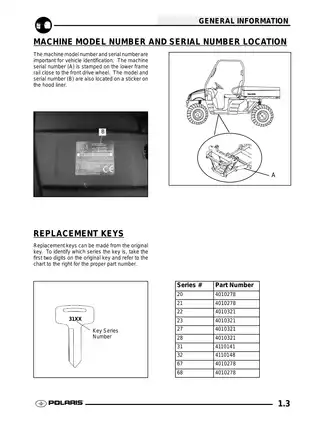

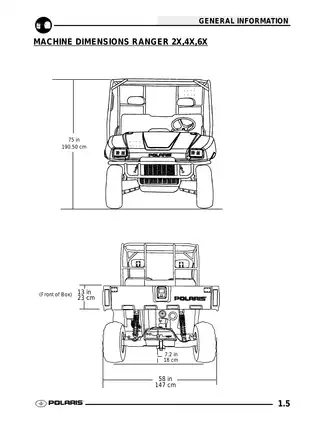

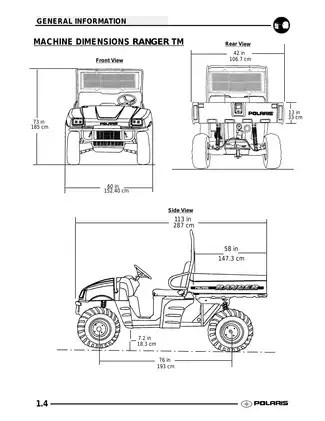

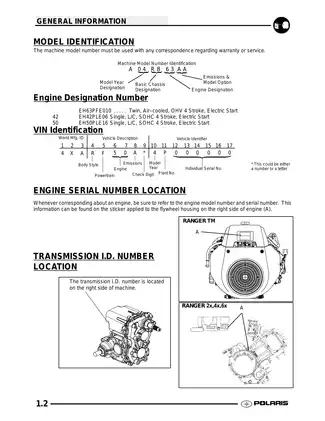

This is a factory repair reference, not an operator-only maintenance booklet. It begins with model identification, machine dimensions, maintenance intervals, lubrication charts, and routine adjustments, then moves into component teardown, measurement, diagnosis, rebuild, and installation work. The depth is suited to experienced mechanics with precision measuring equipment and the specified service tools; Polaris specifically limits PVT repair to authorized technicians with factory training and factory-approved tools.

Model-Specific Powertrain Coverage

Coverage is tied to the model codes listed in the publication table: A04RB63AA for Ranger TM, A04RB42AA for Ranger 2x4, A04RD50AA/A04RD50AB for Ranger 4x4, and A04RF50AA for Ranger 6x6. The TM uses the air-cooled EH63PFE010 engine and Nikki downdraft carburetor. The 2x4 uses the liquid-cooled EH42PLE083, while the 4x4 and 6x6 use the liquid-cooled EH50PLE164 with a Mikuni BST 34 CV carburetor.

Those differences carry through the repair chapters. TM PVT and transmission service is separated from the 2x4/4x4/6x6 hardware. Final-drive coverage also changes by platform: TM and 2x4 front hubs have their own procedures; 4x4 and 6x6 models add front axles, CV boots, prop shaft, and front gearcase diagnosis; and the 6x6 receives its own mid-drive hub, shaft, gearcase, and rear-differential sections.

Engine, Fuel, and Electrical Service Depth

The EH63 chapter provides sectional and oil-flow diagrams, engine removal, top-end disassembly, component service data, assembly, installation notes, and troubleshooting. The EH42/EH50 section goes further into cooling-system pressure testing, cylinder and valve-seat work, bottom-end disassembly, crankcase bearings, crankshaft, counterbalancer and oil-pump end-play checks, water-pump seal service, cam-chain timing, and sealed-recoil repair. Its specification tables cover valve and guide dimensions, piston/ring/cylinder clearances, camshaft and crankshaft inspection limits, connecting-rod wear, and component-specific torques.

Fuel-system chapters distinguish the Nikki carburetor from the Mikuni CV system and cover jetting selection, float and fuel-level checks, needle-and-seat leakage testing, fuel-pump service, and carburetor removal, disassembly, inspection, cleaning, and assembly. Electrical diagnosis covers the TM ECM/logic box, CDI and ignition testing, timing checks, coolant-sensor and fan circuits, alternator output, charging, voltage-drop tests, and starter-motor service. Battery, lighting, gear-indicator, and optional electric box-lift diagnosis are also included.

Factory Test Charts, Special Tools, and Wiring Scope

Named visuals include EH63 sectional and oil-flow diagrams; EH42/EH50 oil-flow and exploded engine views; Nikki and Mikuni exploded carburetor and fuel-flow diagrams; front and mid gearcase and rear-differential exploded views; model-specific transmission exploded views; and ignition, charging, and starter test flowcharts. The electrical chapter is test-oriented, but this PDF does not contain complete harness wiring diagrams, so it is not a substitute for a separate wiring-diagram publication.

The tool index identifies equipment such as the valve-seat reconditioning kit P/N 2200634, crankshaft/water-pump seal installer P/N 2871283, clutch puller P/N 2870506, roll-pin removal tool P/N 2872608, and Fluke 77 digital multimeter P/N PV-43568. The manual also flags easy ways to turn a repair into a component failure: shimming a PVT drive-clutch spring can stack the coils and break the clutch cover, while mixing used parts between balanced clutch assemblies can defeat their precision balance. Carburetor-cleaning cautions explain that caustic solvent can irreparably damage the Mikuni diaphragm, O-rings, and other rubber or plastic pieces. Vehicle-support, negative-battery-cable, fuel, brake-fluid, and loaded-spring safety notes are placed with the related procedures.
