2003 Polaris Trail Blazer 250 / 400 ATV Service Manual (P/N 9918059)

The 2003 Polaris Trail Blazer 250 / 400 Service Manual, P/N 9918059, covers maintenance and repair of the EC25PFE15 and EC38PLE09 engines and the related ATV chassis systems.

• Engine repair: Engine removal, crankcase disassembly, crankshaft end-play calculation, piston and ring inspection, cylinder honing, and reassembly for both engine families.

• Fuel and oil injection: Mikuni VM30SS/VM34SS carburetor service, needle-and-seat testing, oil-pump adjustment and bleeding, and fuel-system troubleshooting.

• PVT and transmission: Drive and driven clutch overhaul, spider removal, belt inspection, clutch alignment and offset checks, gearbox disassembly, and shifting diagnosis.

• Suspension and steering: MacPherson strut cartridge and ball-joint replacement, concentric swingarm service, toe alignment, and Fox shock rebuilding and nitrogen charging.

• Hubs and rear axle: Front wheel-bearing replacement, concentric rear-axle disassembly, and tapered roller-bearing housing service.

• Hydraulic brakes: Front and rear caliper overhaul, dual hydraulic circuit bleeding, pad and disc inspection, and master-cylinder replacement.

• Electrical diagnosis: Ignition, charging and starter tests, ETC switch checks, reverse speed-limiter diagnosis, model-specific wiring diagrams, and diagnostic flowcharts.

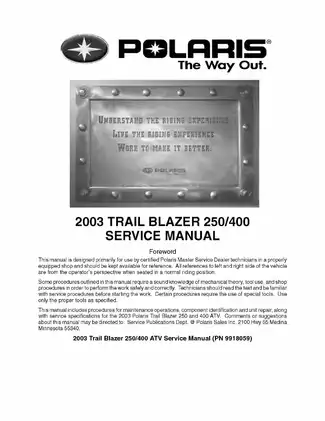

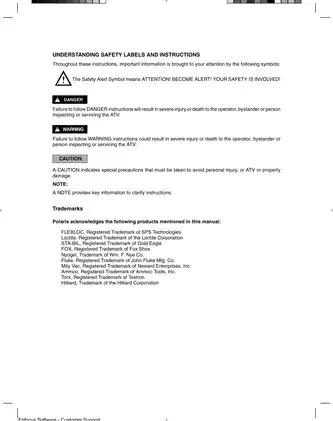

Written primarily for certified Polaris Master Service Dealer technicians in a properly equipped shop, this manual assumes knowledge of mechanical theory, tool use, and shop procedures. Polaris specifically reserves PVT maintenance and repair for appropriately trained dealer technicians.

Engine Overhaul, Carburetion and Oil Injection

Engine service planning: The engine chapters identify components accessible with the engine installed and distinguish crankshaft, main-bearing, and crankcase work requiring engine removal. EC38PL coverage also addresses the counterbalancer, reed valves, cooling-system pressure testing, water-pump impeller clearance, and crankcase seal orientation.

Fuel and lubrication: Separate Jetting Charts and Clutch Charts address temperature and elevation changes. Carburetor circuit explanations connect pilot, needle and main-jet operation to throttle position, while leak testing and troubleshooting cover fuel starvation, rich running and erratic idle.

The Oil Pump System Exploded View supports pump-drive and shim identification. The piston-damage checklist identifies trapped air in the oil pump or delivery lines as a potential cause of piston damage.

Clutch Setup and Gearbox Diagnosis

PVT bench work: The Drive/Driven Clutch Exploded View accompanies roller, button and bushing inspection, spring identification, and clutch reassembly. Tool references include the spider removal tool, P/N 2870341, and holding fixture, P/N 2871358. Spacer placement and assembly alignment are addressed because they affect clutch balance.

Shifting faults: The transmission checklist distinguishes linkage, idle-speed and belt-deflection problems from internal gear or bearing faults, helping determine whether gearbox teardown is warranted. Internal service includes shift-fork inspection, input and output shaft assemblies, and transmission-chain wear measurement.

Suspension, Axle and Brake Service

Chassis work: Swingarm pivot-bushing orientation, rear-axle lock sleeves and eccentric housing bearings receive separate treatment. The chain-adjustment section warns that over-tightening the eccentric clamp bolts can cause premature rear-axle bearing failure.

Fox shock procedures cover internal floating-piston positioning, valve-stack order, oil filling and nitrogen recharging. These shocks contain high-pressure gas; the manual includes depressurization and handling precautions for the specified charging equipment.

Brake coverage: The dual hydraulic rear caliper has separate circuits with separate bleeding requirements. Caliper piston and bore inspection, disc measurements, and brake-drag troubleshooting support repair diagnosis. The master cylinder is specified as non-rebuildable and is replaced as a complete assembly.

Ignition, Charging and Starter Fault Finding

Electrical tests: The Reverse Limit System diagram and associated flowchart accompany checks for the limiter module and gear-position switch. Ignition diagnosis covers no-spark faults and peak-voltage testing with a suitable meter adapter. Charging tests distinguish alternator output from system load, while starter diagnosis includes voltage-drop checks, brush inspection and armature testing.

Separate Trail Blazer 250 and 400 wiring diagrams show connector lettering, wire-color codes, and component resistance references. General reference tables cover fastener torques, tap-drill sizes, fluid capacities and specified lubricants.

A Preview of Engine Clearances and Fastener Data

These examples are a small selection of the engine specifications included in the manual.

The EC25PF cylinder-head bolt specification is 18–20 ft-lb (24–27 Nm), accompanied by a separate staged tightening pattern.

Piston-to-cylinder clearance is 0.0011–0.0021 in. (0.03–0.05 mm) for the EC25PF and 0.0023–0.0037 in. (0.06–0.09 mm) for the EC38PL. These are standard clearance ranges; the manual also provides service limits.

Text Search, Chapter Bookmarks and Wiring Detail

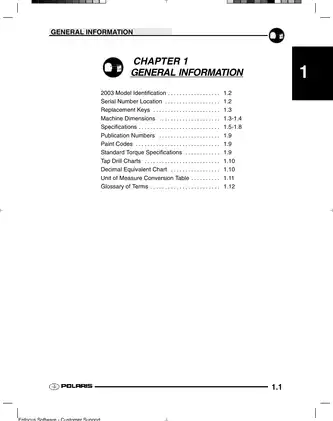

Finding procedures and reading diagrams: The main chapters have searchable text, with embedded bookmarks for all ten chapters, both full-page wiring diagrams, and the index. The foreword and labels inside the full-page wiring diagrams are not searchable. Small wiring labels and connector details require enlargement to read comfortably.

The download contains one printable English PDF with 207 pages, including the cover, foreword, safety page, chapter index, five-page alphabetical index, and one blank page. All of these pages are included in the total.
