Polaris SLH, Virage, Pro 785 – 2000 PWC Service Manual (P/N 9916289)
322 Pages • Printable PDF • 151.75 MB • Download
Polaris Models Covered & Key Technical Specifications
Models & Model Codes: SLH (W004673D), Virage (W005197D; engine W70-SCSP-03B), Pro 785 (W004978D; engine EC78ZPWE01)
Model Year: 2000
-
Engine displacement: 701 cc (SLH/Virage), 779 cc (Pro 785)
-
Horsepower: 95 HP @ 6700 RPM (SLH/Virage), 140 HP @ 7750 RPM (Pro 785)
-
Engine configuration: Polaris Marine 700 2-cylinder (SLH/Virage), Polaris/Fuji 785 3-cylinder (Pro 785)
-
Fuel system: 2 Keihin carburetors (SLH), Keihin 1-40mm (Virage), Mikuni 3-44mm (Pro 785)
-
Compression Ratio: 11.5:1 (SLH/Virage), 12.3:1 (Pro 785)
-
Fuel capacity: 12.5 gal (SLH), 17.0 gal (Virage), 9.8 gal (Pro 785)
-
Idle speed (in water): 1350 ± 100 RPM (SLH/Virage), 1350 RPM (Pro 785)
-
Spark Plug: NGK BPR8ES (SLH/Virage), NGK BR9ES (Pro 785)
Polaris Manual Features & Selected Content Preview
This Polaris service manual covers the 2000 SLH, Virage, and Pro 785 personal watercraft. P/N 9916289, Rev.01, with service information dated March 2000, contains separate procedures for the Polaris Marine 700 and Polaris/Fuji 785 engines.
PDF Search, Bookmarks, and Included Pages
Search and diagram detail: An embedded OCR layer supports body-text searches, and PDF bookmarks link to chapters, individual procedures, wiring diagrams, and the index. Small wiring labels and some cover text are not searchable. Fine connector numbers and wire codes require zooming; visible watermarks appear throughout.

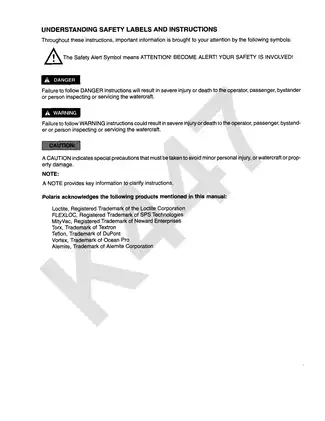

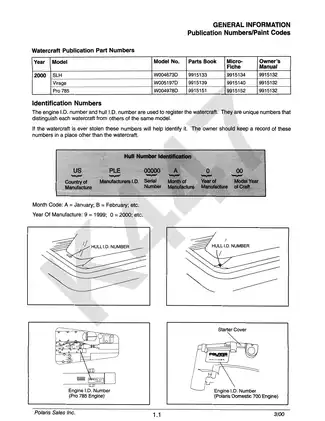

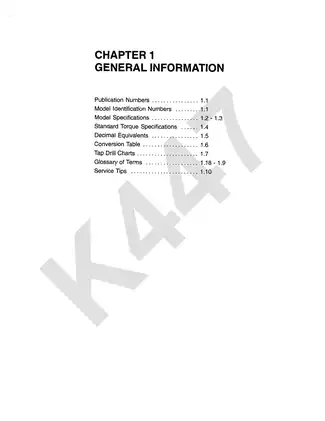

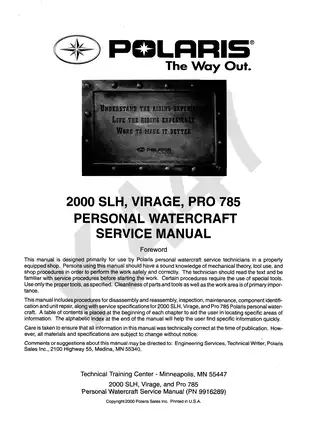

The single printable English PDF has 322 pages, including 312 chapter pages, six index pages, two cover pages, and two introductory pages containing the foreword/copyright and safety information.
Engine Overhaul, Jet Pump Service, and Electrical Diagnosis
The following is a selection of covered work, rather than a complete contents list. Other topics include battery load testing and fuel shut-off valve inspection.
-
Engine repair: Engine removal, teardown, inspection, and reassembly, including crankshaft checks, cylinder reconditioning, and Pro 785 exhaust-valve service.
-
Fuel and oil systems: Keihin CDKII and Mikuni Super BN carburetor overhaul, synchronization, needle-and-seat testing, fuel-line leak checks, and oil-injection service.
-
Cooling and maintenance: Periodic maintenance schedules, thermostat/pop-off valve service, cooling-system flushing, off-season storage, and submerged-engine procedures.
-
Jet pump and driveline: Pump removal and rebuilding, impeller inspection, engine-to-pump alignment, and ventilation/cavitation troubleshooting.
-
Electrical troubleshooting: Model-specific wiring diagrams, PVL and Fuji ignition diagnosis, starter overhaul, charging-system tests, and MFD/MFI fault finding.
-
Hull and controls: Steering cable replacement and adjustment, trim linkage adjustments, seat and hatch fitting, and SMC, RTM, and FRC repair procedures.
Written primarily for Polaris personal watercraft service technicians in a properly equipped shop, this manual assumes mechanical knowledge, tool proficiency, and familiarity with workshop procedures.
Engine Repair and Cooling
Step-by-step overhaul instructions cover piston and cylinder measurements, ring-gap checks, connecting-rod inspection, and crankshaft truing and indexing. Pro 785 procedures also address Ni-Ca-Sil cylinder honing and exhaust-valve cleaning and adjustment.
General stainless-steel fastener torque tables accompany component-specific specifications and tightening patterns, including the Pro 785's multi-stage cylinder-head sequence. Compression-test data and inspection limits support engine condition assessment.
Cooling: The Cooling System Flow Charts distinguish the Marine 700 thermostat arrangement from the Pro 785 water-distribution manifold and calibrated restrictors. The thermostat/pop-off valve section warns that incorrect reassembly can cause severe engine damage.
Carburetion and Oil Injection
Separate Keihin Carburetor Assembly Exploded Views distinguish the SLH and Virage layouts. Pro 785 coverage includes Mikuni synchronization with a manometer, alongside diaphragm inspection and mixture adjustment.
Vent/Fuel Delivery Exploded Views show model-specific routing. Oil tank and air-intake silencer assemblies are also illustrated, with fuel-pump, vent-valve, and fuel-line testing procedures.
Oil-injection coverage distinguishes the Marine 700 cable adjustment from the Pro 785's nonadjustable, fixed-length control rod. Fuji engine procedures cover pump bleeding and drive-bushing end-play inspection. The reed-valve section warns that reversing a used reed can cause it to break.
Jet Pump, Driveline, and Hull Repair
The pump alignment symptom chart links coupler-end and impeller-end spline wear to different alignment faults, helping locate the cause of recurring driveline damage. Procedures identify Pump Alignment Tool P/N 2871343 and address engine shimming and pump-to-hull alignment separately.
The Cutaway View of Pump Assembly - Sealing Points supports ventilation diagnosis around the intake scoop, ride plate, and through-hull fitting. Pump service covers bearings, seals, and shaft inspection; a worn driveshaft bearing housing requires assembly replacement.
Hull procedures include through-hull fitting bonding, gel-coat surface repair, and sponson installation. Steering service includes nozzle centering, with pressure testing for the speedometer system.
Ignition, Starting, and Instruments
PVL ignition troubleshooting for the Marine 700 engines includes Hall-effect sensor checks. The Polaris timing procedures identify Ignition Point Adjustment Unit P/N 2872290. The Pro 785 has a separate Fuji ignition diagnostic section, while model-specific tables provide spark-plug specifications and electrical test values.
A starter-system test chart addresses no-crank and slow-crank complaints. Other procedures cover Pro 785 exhaust-valve actuator testing, fuel and oil senders, overheat limiting, Quick Trim, and electric bilge-pump diagnosis.
The model-specific Wiring Diagrams include wire-color codes and connector views. Added colored annotations on the SLH and Virage diagrams reference Service Bulletin PWC-00-05 for an engine no-restart condition; the separate bulletin is not included.
MFD/MFI troubleshooting distinguishes display faults from sender, power-supply, and connection problems.
Follow the manual's precautions for fuel vapors, electrical isolation, and exposed rotating driveline components.
Sample Impeller Clearances and Oil-Pump End Play
For jet-pump inspection across the covered models, the manual lists a standard impeller clearance of .002–.008 in. (.05–.20 mm) and a .020 in. (.5 mm) service limit. These accompany the blade-clearance inspection and pump-housing assessment.
For the Pro 785 oil-injection drive, the bushing end-play specification is .012–.024 in. (.3–.6 mm), with a dedicated shim-selection procedure.
