Polaris Models Covered & Key Technical Specifications

Models & Model Codes: Genesis (B995095; engine W120-99TCSP-01A3), Genesis FICHT (B995094; engine W120-99DFI-01), X-45 (B994596; engine W120-99TCSP-01A3)

Model Year: 1999


  • Engine displacement: 1165 cc

  • Engine type: Polaris Marine 1200 (3-cylinder)

  • Compression ratio: 9.8:1 (Genesis/X-45), 12.1:1 (Genesis FICHT)

  • Horsepower: 135 HP @ 6700 RPM

  • Spark plug gap: 0.024–0.028 in (0.6–0.7 mm) for Genesis/X-45, 0.030 in (0.76 mm) for Genesis FICHT

  • Idle speed: 1350 ± 50 RPM (Genesis/X-45, in water)

  • Impeller clearance: 0.002–0.008 in (0.05–0.20 mm)

  • Fuel system: 3-40mm Bing (X-45), 3-40mm Keihin (Genesis), FICHT Fuel Injectors (Genesis FICHT)

Polaris Manual Features & Selected Content Preview

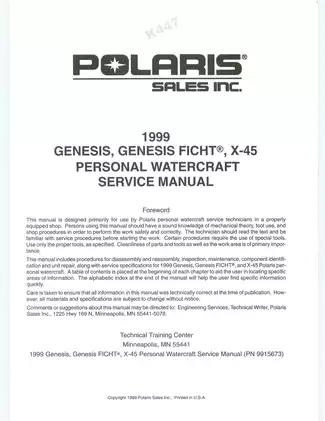

The Polaris service manual, P/N 9915673, dated May 1999, covers 1999 Genesis (B995095), Genesis FICHT® (B995094), and X-45 (B994596) personal watercraft with Polaris Marine 1200 engines.

PDF Search, Bookmarks and Diagram Detail

Finding text and reading diagrams: OCR text supports searching the main chapters, while wiring-diagram labels are only partly searchable. Embedded bookmarks provide chapter and procedure navigation. Small wiring labels require zooming.

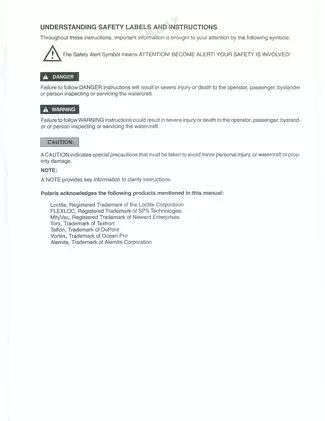

Supplied as one printable, English-language, 318-page PDF, including the front and back covers, foreword, safety instructions, and index.


Engine, Jet-Pump and FICHT Service Coverage

These are selected service topics. Other examples include seat-seal adjustment and sacrificial-anode inspection.

  • Engine repair: Step-by-step engine removal and installation, crankcase and top-end disassembly, component inspection, reassembly, cylinder honing, and port chamfering.

  • Fuel-system service: Carburetor/throttle-body removal and installation, Keihin overhaul and synchronization, fuel-pump and vent-system testing, fuel-line leak checks, water-separator service, and reed-valve inspection.

  • Jet pump and final drive: Pump removal, disassembly and assembly, impeller and housing inspection, driveshaft/coupler service, and pump-to-hull and engine-to-pump alignment.

  • Maintenance and cooling: Periodic service schedules, lubrication, battery care, cable adjustments, oil-pump adjustment and bleeding, cooling-system flushing, storage, fogging, and submerged-engine response.

  • Hull, steering and controls: Hull/deck inspections, steering-post and cable replacement, reverse adjustment, speedometer pressure testing, sponson service, and SMC, RTM surface, and FRC fiberglass repair.

  • Electrical troubleshooting: Charging, starter, PVL ignition, trigger-coil and timing tests with resistance and voltage specifications; starter-motor overhaul; Multi-Function Display/Instrument (MFD/MFI) operation and troubleshooting; and model-specific wiring diagrams.

  • FICHT diagnostics: Engine Management Module (EMM) service-code charts, preliminary system-isolation tests, symptom-based diagnostic guides, fuel/ignition action steps, and sensor/actuator test specifications.

Written primarily for Polaris PWC service technicians, this manual assumes sound mechanical knowledge, tool skills, and a properly equipped shop.

Workshop References and Internal Engine Work

System theory, specifications, exploded views, procedures, and troubleshooting are organized by chapter, keeping the related references together when planning and checking repair work.

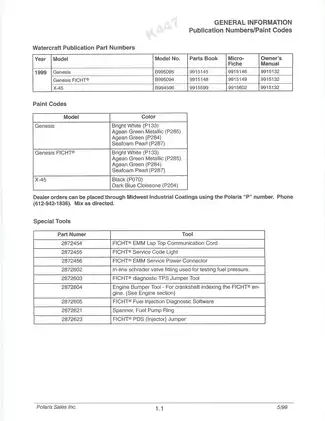

General Information supplies model identification, paint codes, service-bulletin references, special tools, standard SAE and metric stainless-steel torque tables, conversion data, and tap-drill charts. System chapters add component-specific torque charts, tightening patterns, lubricants, and sealants.

Crankshaft coverage includes indexing checks with different methods for carbureted and FICHT engines, plus crankshaft truing. The manual reserves crankshaft repair for trained Polaris service technicians with specialized equipment.

Cooling-system cautions explain how incorrect thermostat/pop-off assembly can cause rapid engine damage; oil-pump O-ring replacement and positioning are covered to prevent water from entering the flywheel area.

Carbureted and FICHT Fuel Systems

Genesis Keihin carburetors have mixture settings and a manual synchronization procedure. X-45 Bing carburetors have no high- or low-speed mixture screws: tuning is by jet selection, and the welded synchronization screws are not to be disturbed.

Genesis FICHT uses EMM-controlled sequential direct injection and an in-tank electric fuel-pump module. Idle is EMM-programmed and not mechanically adjustable; ignition timing is also EMM-controlled.

The FICHT fuel-pump module is treated as a complete replacement unit, with removal, sender, water-separating filter, and pump-test coverage.

Driveline Alignment and Loss-of-Thrust Diagnosis

Pump data and alignment criteria support inspection of worn splines, vibration, and bearing problems. Ventilation/cavitation diagnosis distinguishes air leaks around the intake tract from impeller or housing problems; bilge-siphon maintenance and electric bilge-pump tests are also covered.

Engine alignment shims must stay in their original locations, and the manual warns against using the solid-coupler removal tool on the rubber-dampened coupler because misalignment can result.

Illustrated references include the Vent/Fuel Delivery and Fuel Tank/Fuel Pickup exploded views, Cylinder and Manifold Exploded View, Cooling System Flow Charts, Pump Assembly Exploded View, and separate wiring diagrams for each model.

The X-45 and Genesis wiring pages also carry no-restart annotations referencing service bulletin PWC-00-05.

FICHT Software, Test Equipment and Connector References

The PODIAG chapter explains setup and communication for the original DOS-based Polaris Diagnostic Software, PN 2872605. It covers service-code retrieval and clearing, injector and ignition static tests, electric fuel-pump actuation, cylinder-drop testing, live sensor and voltage monitoring, engine hours, and RPM-profile data.

Cylinder-drop testing helps isolate a weak or misfiring cylinder, while the preliminary tests separate fuel, ignition, and electrical faults. The FICHT sections also address TPS calibration, S.L.O.W. warning behavior, timing-verification requirements, and 40-, 12-, and 8-pin EMM connector assignments.

Tool references identify EMM communication cord PN 2872454, service-code light PN 2872455, and service-power connector PN 2872456. Engine bumper tool PN 2872604 and fuel-pump ring spanner PN 2872621 are identified for their respective procedures. Diagnostic hardware and software are separate from the manual.

Fuel-system pressure tests, high-voltage FICHT ignition checks, battery service, and any work around the exposed driveshaft or jet pump should be performed only with the full Polaris procedure and safety instructions in hand.

A Preview of Piston and Ring Inspection Limits

For all three covered engines, the inspection data lists standard piston-to-cylinder clearance of 0.0065–0.0075 in, with a 0.011 in service limit. The piston measurement section explains the specified measuring location and clearance evaluation.

Installed piston-ring end gap is 0.012–0.020 in, with a 0.028 in service limit. These figures accompany the cylinder, piston, and ring inspection procedures.
