2009 Polaris Sportsman 500 H.O. / 500 EFI / X2 500 EFI / Touring 500 EFI ATV Service & Repair Manual (P/N 9921790)
386 Pages • Printable PDF • 15.01 MB • Download
Polaris Models Covered & Key Technical Specifications
Models: Sportsman 500 H.O., Sportsman 500 EFI, Sportsman X2 500 EFI, Sportsman Touring 500 EFI

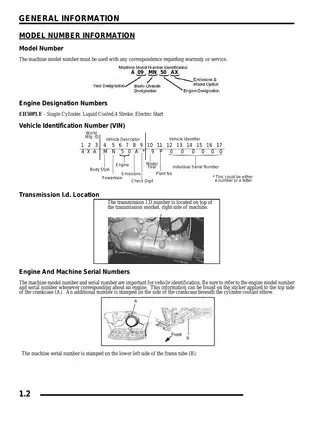

Models & Model Codes:

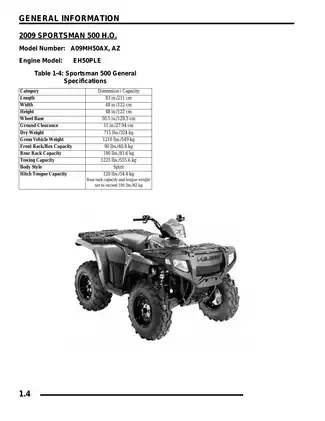

Sportsman 500 H.O. — A09MH50AX, A09MH50AZ
Sportsman 500 EFI — A09MN50AN, A09MN50AX; International: A09MN50ET
Sportsman X2 500 EFI — A09TN50AX, A09TN50AZ; International Quadricycle: A08TN50EA
Sportsman Touring 500 EFI — A09DN50AB, A09DN50AZ; International Quadricycle: A09DN50EA
Sub-models / Variants: International, Quadricycle
Model Year: 2009
-

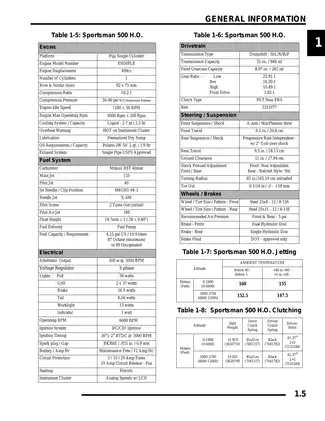

Engine: EH50PLE Fuji Single Cylinder
-
Engine Displacement: 499 cc
-
Engine Configuration: 4-Stroke, Electric Start, Liquid Cooled
-
Max Operating RPM: 6000 RPM ± 200 RPM
-
Compression Pressure: With compression release: 50–90 PSI (Sportsman 500 H.O. and Sportsman 500 EFI); 60–90 PSI (Sportsman X2 500 EFI and Sportsman Touring 500 EFI)
-
Transmission Type: Drumshift (H/L/N/R/P); PVT Non-EBS (500 H.O.), PVT (500 EFI Standard), PVT with EBS (500 EFI Deluxe, X2 and Touring)
-
Fuel System: Carbureted, Mikuni BST 40mm (500 H.O.); Electronic Fuel Injection (500 EFI, X2 and Touring)
-
Fuel Requirement: 87 Octane minimum or 89 Oxygenated
-
Cooling Capacity: 2.7 qt / 2.5 L
Polaris Manual Features & Selected Content Preview

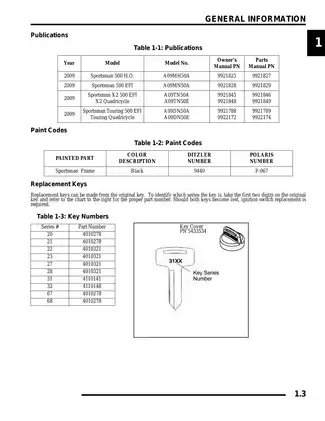

This Polaris service manual, P/N 9921790, covers the 2009 Sportsman 500 H.O., Sportsman 500 EFI, Sportsman X2 500 EFI and Sportsman Touring 500 EFI, including the international and Quadricycle configurations identified in the model specifications.

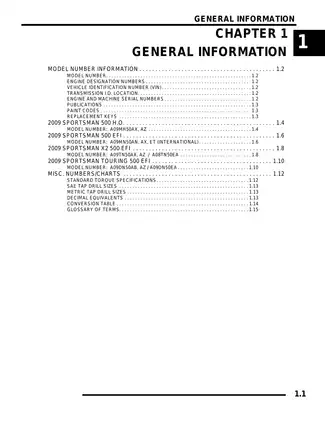

PDF Search, Navigation and Page Count
Text search and wiring detail: Main service text is searchable, but many diagram labels are outside the searchable text layer. Embedded bookmarks provide chapter and subsection navigation, with a separate entry for the wiring appendix. Small wire codes and connector numbers on the detailed wiring sheets require zooming.
One English-language, printable 386-page PDF contains 370 pages across 11 chapters and a 16-page wiring appendix. The total includes four Notes pages and one intentionally blank page.
Engine Overhaul, EFI Testing and PVT Service
The selected topics below cover major workshop tasks. The manual also documents accessory recoil-starter service and the X2 cargo-box seat conversion.
-
Engine repair: Engine removal and installation, cylinder-head service, piston and cylinder inspection, crankcase disassembly, crankshaft inspection and camshaft timing.
-
Fuel systems: EFI pressure testing, sensor checks, TPS initialization and ECU blink-code diagnosis, plus carbureted choke, pilot-screw and idle adjustments.
-
PVT clutches: Drive and driven clutch disassembly, bushing inspection and replacement, belt inspection, clutch alignment and EBS-specific service.
-
Transmission: Removal, internal disassembly and reassembly, gear-cluster inspection, snorkel-shaft service and separate output-shaft backlash procedures for standard and X2/Touring models.
-
Final drive: Centralized Hilliard and ADC front-gearcase service, ADC hydraulic bleeding, piston replacement, hub bearings and front and rear CV-shaft repair.
-
Brakes and chassis: Hydraulic bleeding, caliper and master-cylinder service, brake troubleshooting, steering-post removal, A-arm replacement and ball-joint replacement.
-
Electrical diagnosis: Ignition and charging tests, AWD and ADC coil checks, starter-motor service, troubleshooting flowcharts and model-specific wiring diagrams.
This manual is suited to technicians familiar with ATV service and electrical testing; Polaris specifies trained, certified MSD technicians for PVT maintenance and repair.
Engine Access and Maintenance Planning
The engine chapter distinguishes components serviceable in the frame from work requiring engine removal, helping establish the teardown needed for a particular repair. It documents in-frame water-pump mechanical-seal replacement with puller PN 2872105, while crankshaft and main-bearing service require engine removal.
The seal-removal section warns that side-loading the puller can bend the pump shaft; replacing that shaft requires engine removal and crankcase separation.
Periodic maintenance charts distinguish normal and severe-use service. Related procedures cover oil and filter changes, oil-pump priming, compression testing and valve adjustment. The engine section adds cylinder-head bolt tightening sequences, wear limits and the EH50PL Oil Flow Diagram.
EFI Fault Tracing and Test Requirements
The EFI service notes connect sensor checks with harness-continuity testing, helping distinguish a component fault from a wiring problem before condemning the ECU. The blink-code chart identifies affected circuits, while TPS initialization uses tester harness 2201519.
MAP-sensor testing calls for dealer-only Digital Wrench software and refers to its separate documentation. Fuel-pump coverage provides testing and pump/tank assembly replacement; it treats the internal filter and regulator as non-serviceable components.
Follow OEM specifications and workshop safety protocols, particularly when working with pressurized EFI fuel or hydraulic brakes.
Drivetrain and ADC Repair Detail
Clutch instructions distinguish standard and EBS assemblies rather than treating every PVT configuration alike. Transmission coverage provides separate standard Sportsman and X2/Touring output-shaft procedures.
The ADC Gearcase Exploded View supports internal component identification. Its bleeding section warns that an emptied reservoir can trap air and reduce ADC performance.
Quadricycle Brakes and Electrical Troubleshooting
The international chapter explains the Quadricycle’s integrated hand- and foot-brake circuits, steering lock and emissions components. Its Turn / Hazard Signal Diagram supplements the model-specific electrical information.
Electrical references include EFI Circuit – Fuel Pump, starter-lockout diagrams and the Starter System Testing Flow Chart. The starter flowchart assumes a functioning lockout system, so that prerequisite matters when selecting the appropriate diagnostic path.
A Preview of Valve, Lubrication and Brake Specifications
For the EH50PLE engine, intake and exhaust valve clearance is 0.006 in. (0.15 mm), checked cold at compression TDC. Cylinder-head inspection specifies a warpage service limit of 0.002 in. (0.05 mm).
Transmission lubrication data lists a capacity of 32 oz. (948 ml), together with the lubricant and fill-level reference.
The hydraulic auxiliary foot-brake inspection specifies pedal freeplay of 1/8–1/4 in. (3.2–6.35 mm), alongside separate effectiveness and bleeding checks.
