Polaris Ranger 700 XP/HD/Crew UTV Service Manual Set 2005–2009 (P/N 9920852)
994 Pages • ZIP Download: 3 Printable PDFs • 52.55 MB
Polaris Models Covered & Key Technical Specifications
Models: Ranger 700 EFI (XP 4x4, HD 4x4), Ranger 4x4 Crew, Ranger 6x6

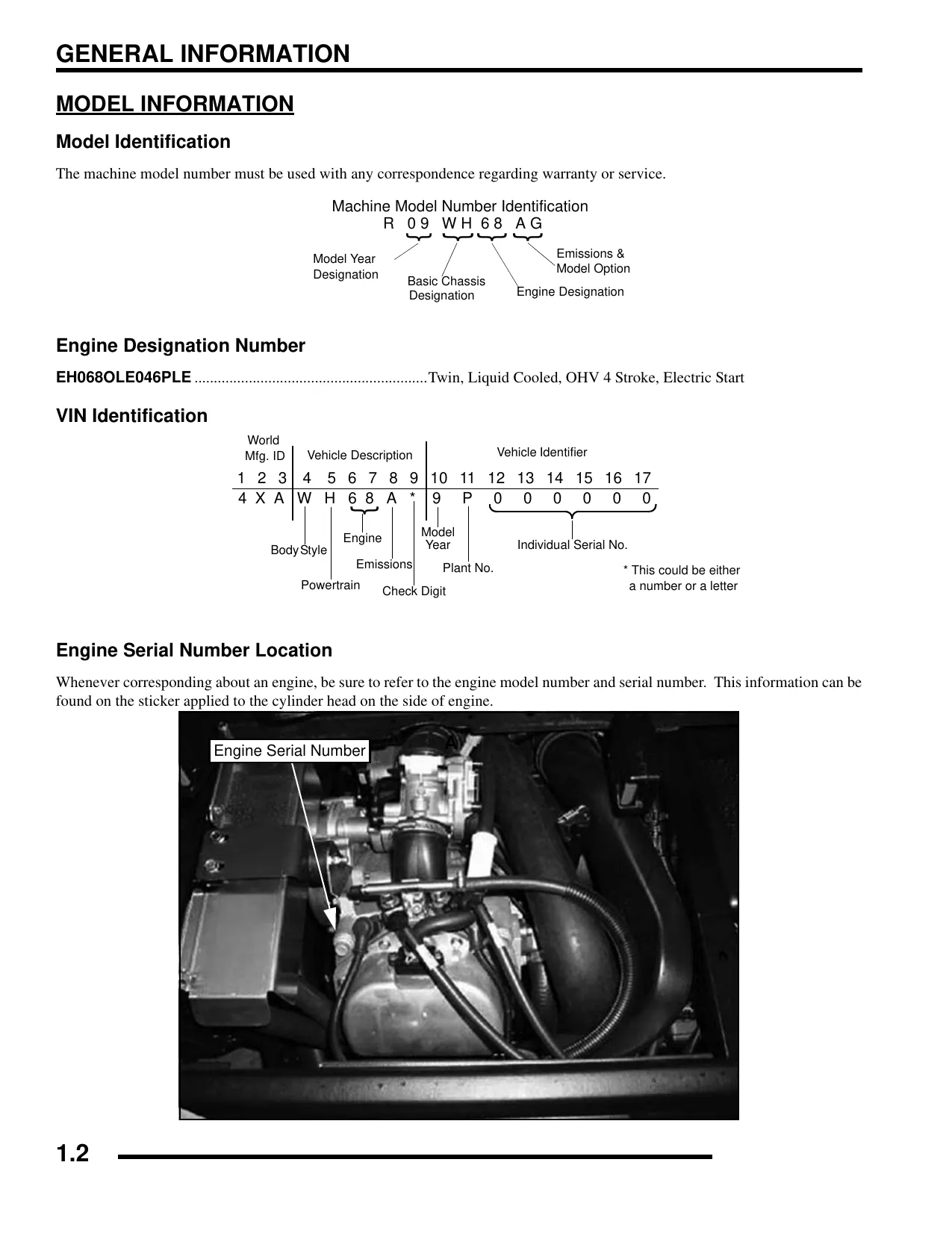

Models & Model Codes:
Ranger 700 EFI XP 4x4 — R07RH68AD, R07RH68AG, R07RH68AH, R07RH68AK, R07RH68AL, R07RH68AW (engine: EH068OLE044); R09HH68AB, R09HH68AG, R09HH68AH, R09HH68AL, R09HH68AM, R09HH68AR (engine: EH068OLE048)
Ranger 4x4 Crew — R09WH68AC, R09WH68AG, R09WH68AH, R09WH68AR (engine: EH068OLE049)
Ranger 6x6 — R07RF68AF (engine: EH068OLE044); R09RF68AF, R09RF68AR (engine: EH068OLE048)
Ranger 700 EFI HD 4x4 — R09HY68AN (engine: EH068OLE048)
Sub-models / Variants: Crew, 4x4, 6x6, HD, XP
Model Years: 2005–2009 (2005, 2006, 2007, 2008, 2009)
-
Engine displacement: 683 cc
-
Engine configuration: Liquid-cooled twin-cylinder, 4-stroke
-
Fuel system: Bosch Electronic Fuel Injection (EFI)
-
Transmission: Polaris Automatic PVT (In-line shift: H/L/N/R)
-
Fuel pressure: 39 psi
-
Engine oil capacity: 1.9 liters (2 quarts)
-
Coolant system capacity: 3.25 quarts (3.08 L) for HD and R09RF68 6x6; 3.25 quarts (3.1 L) for XP 4x4 and R07RF68 6x6
-
Tire pressure: 12 psi (front) / 16 psi (rear) for Crew, 8–12 psi for 6x6
-
Spark plug: Champion RC7YC3 (0.9 mm gap)
-
Battery: Yuasa YB30L-B (30 Amp Hr, 12V)

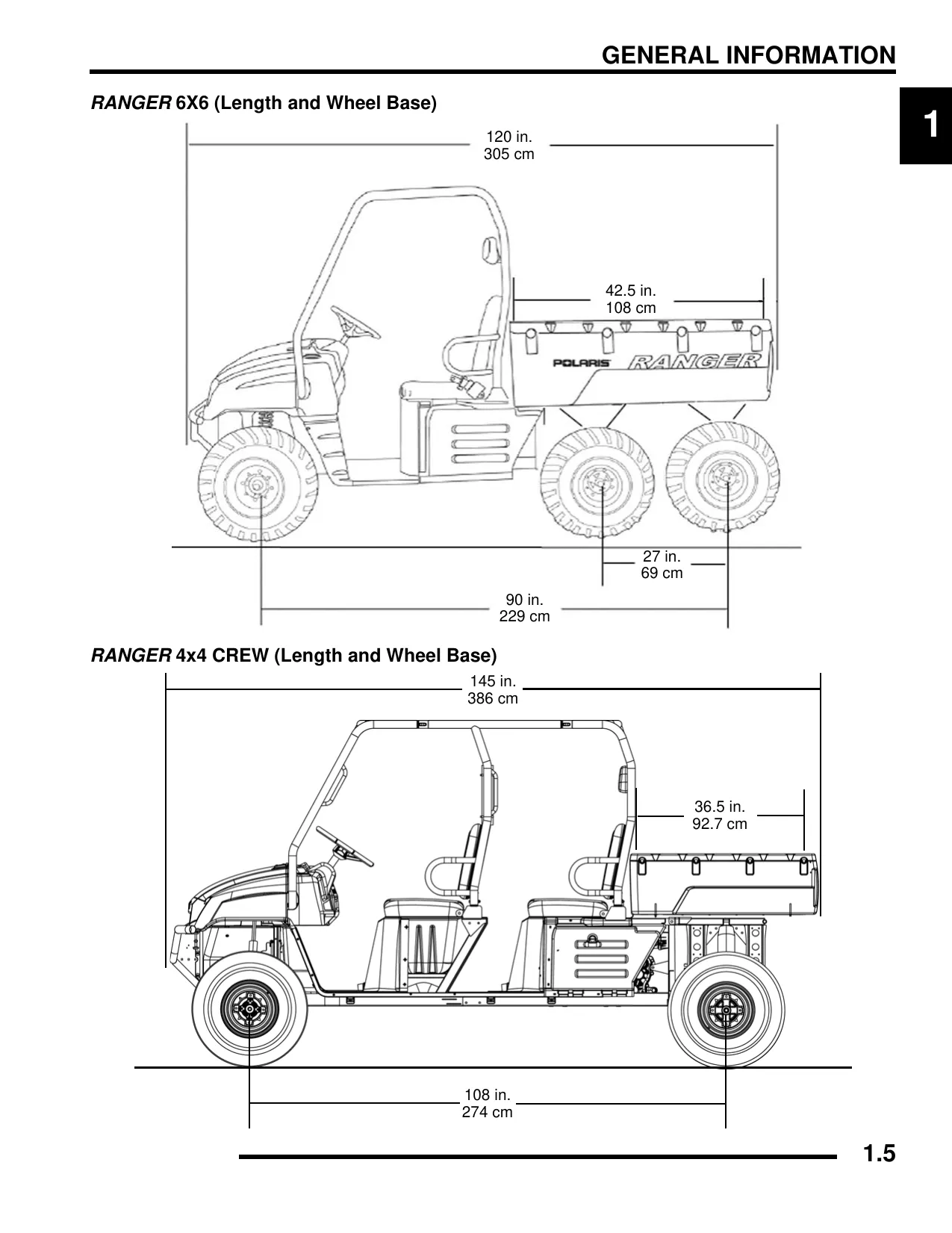

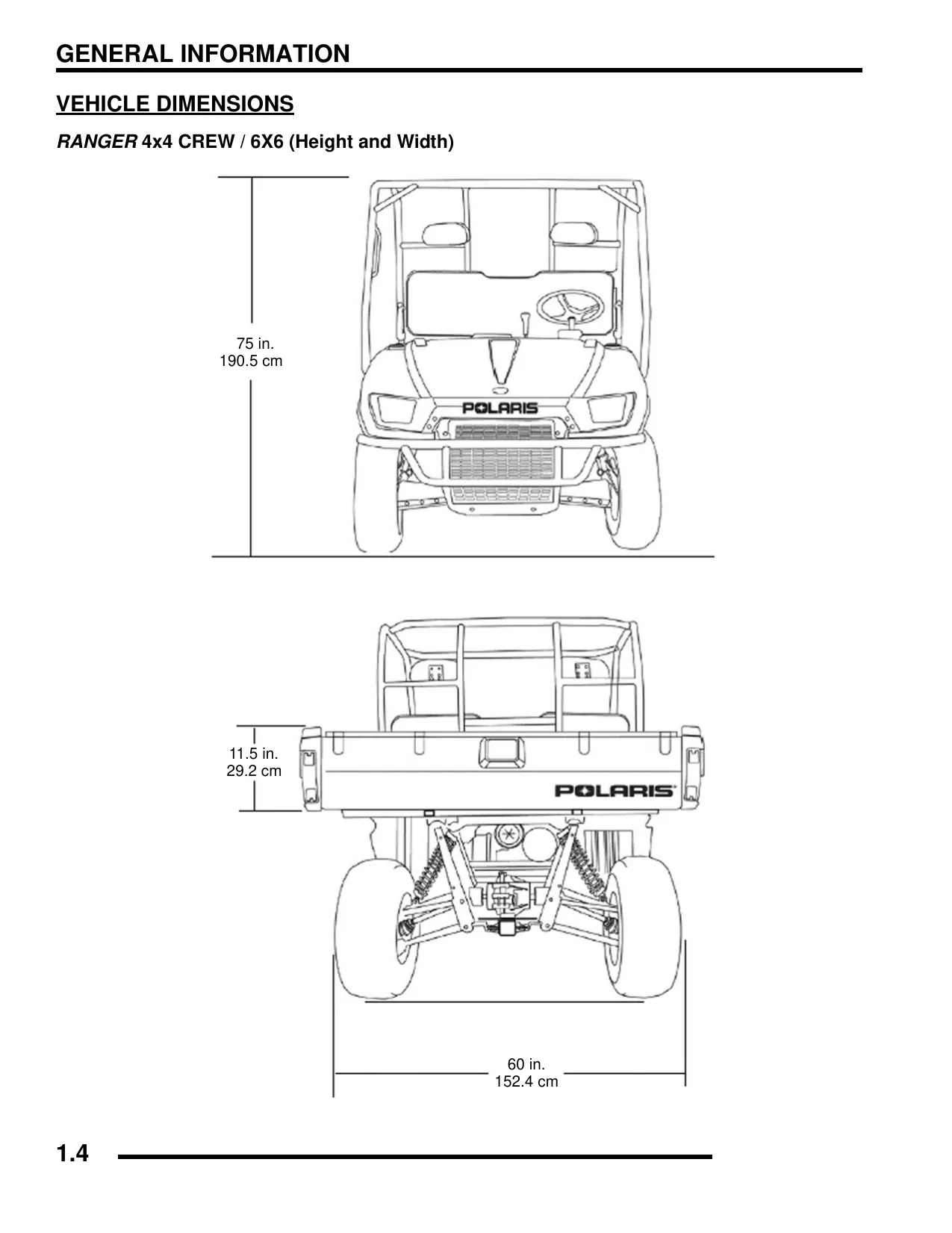

Polaris Manual Features & Selected Content Preview
| Publication | Pages |
|---|---|
| 2007 Ranger XP 700 4x4 / Ranger 6x6 Service Manual — R07RH68 / R07RF68; P/N 9920852 | 330 |
| 2009 Ranger 700 4x4 Crew / 6x6 Service Manual — R09WH68 / R09RF68; P/N 9921885 | 352 |
| 2009 Ranger XP / HD 700 4x4 Service Manual — R09HH68 / R09HY68; P/N 9922036 | 312 |
Use the volume matching the vehicle’s model code when selecting procedures: TPS setup, front suspension, and driveline details differ between editions.
The Crew volume references Owner’s Manual P/N 9921882 and Parts Manual P/N 9921884. These companion publications are not included in the set.
PDF Search, Bookmarks and Diagram Detail
Text lookup and wiring labels: All three volumes have searchable main text and embedded chapter bookmarks. Some diagnostic-chart and wiring labels are not text-searchable. Small wiring labels require zooming for comfortable reading.
ZIP download containing three printable PDFs, 994 pages total. This includes the 2007 file’s two cover pages, section guide and four-page index, plus 12 notes pages and 18 wiring-diagram pages across the set.
Engine Overhaul, Bosch EFI and Ranger Driveline Service
The selected content below outlines major repair areas rather than the full contents. Additional topics include electric box-lift actuator diagnosis where fitted.
-
Engine repair: Step-by-step cylinder-head reassembly, valve-seat reconditioning, crankshaft and counterbalance-shaft installation, cam-gear timing, and oil pump priming.
-
Bosch EFI diagnosis: Fuel-pump pressure testing, injector service, TPS setup, and diagnostic blink codes.
-
PVT and transmission: Drive and driven clutch disassembly, bushing replacement, belt diagnosis, clutch alignment, and separate internal transmission teardown and reassembly procedures.
-
Final drive: Centralized Hilliard front gearcase inspection and AWD diagnosis, rear differential repair, and 6x6 mid-drive gearcase service.
-
Steering and suspension: Front strut and A-arm replacement, steering alignment, and HD electronic power steering (EPS) unit removal and installation.
-
Brake service: Caliper overhaul, master-cylinder replacement, hydraulic bleeding, and parking brake adjustment.
This set suits technicians familiar with engine measurement and electrical diagnosis; its PVT chapters specify certified Polaris Master Service Dealer training and factory special tools for maintenance and repairs.
Engine Inspection, Maintenance and Cooling
The engine chapters separate work possible with the engine installed from crankcase, connecting-rod, crankshaft, and counterbalance work requiring removal. Piston and cylinder inspection, honing, and valve sealing tests extend the coverage beyond routine maintenance.
Cylinder honing is limited to deglazing the coated bores. The cylinder-head valve guides are not replaceable.
Maintenance coverage includes air-intake service and transmission lubrication intervals. Radiator and pressure-cap tests, coolant-flow references, and bleeding procedures support cooling-system diagnosis.
The water-pump seal section warns that attempting seal service with the gear/stator housing attached can damage the shaft.
EFI Diagnosis and Edition-Specific TPS Setup
Crankshaft-position, coolant-temperature, and T-BAP sensor coverage accompanies ECU replacement and running-fault diagnosis. Manual electrical tests are provided, while T-BAP testing specifically requires dealer-only Digital Wrench diagnostic software.
The 2007 volume includes TPS initialization. The 2009 volumes use TPS checking and adjustment procedures with a factory-set throttle-body stop screw that must remain untouched. This distinction helps prevent applying an earlier setup procedure to the later throttle body.
Fuel-pump diagnosis leads to pump/tank assembly replacement when faulty; the pump is not covered as an independently replaceable component.
Drivetrain, Suspension and HD Equipment
MacPherson-strut front suspension is distinguished from the 2009 XP/HD dual-A-arm layout. Crew rear-drive material covers its selectable differential, while 6x6 procedures address the middle gearcase, rear axle tubes, and swing-arm assembly. CV-joint and boot replacement and propshaft U-joint service are also documented.
Rear differential coverage excludes pinion-assembly disassembly and pinion/ring-gear shimming; the manual specifies assembly replacement for damage to the pinion gear, bearings, or case.
HD material covers Nivomat self-leveling rear shock operation and replacement/disposal rather than shock rebuilding. EPS fault charts distinguish steering-assist and warning-lamp conditions. Reversing the HD’s eight-way EPS connector can damage the fault-lamp driver circuit.
Wiring Diagrams, Test Charts and Shop References
The Oil Flow Chart and Centralized Hilliard Exploded View support engine and driveline work. Electrical references include the Cooling System Break-Out Diagram, Charging System Testing Flow Chart, and EPS System Breakout (HD Model), alongside model-specific chassis, dash, and circuit-breakout wiring diagrams.
Instrument-cluster tests, starter fault isolation, and fan-control checks supplement these layouts. Torque tables cover crankcase bolts, cylinder-head fasteners, and oil-filter pipe fittings; fluid capacities, wear limits, camshaft journal tolerances, clutch adjustments, and electrical test values accompany the procedures.
Special-tool references include Oil System Priming Tool PU-45778, Cam Gear Tooth Alignment Tool PU-45497-2, and TPS Test Adapter Harness PU-47082.
Working on high-pressure fuel systems and heavy machinery requires strict adherence to safety protocols; verify your workspace is secure, wear appropriate protective gear, and depressurize lines before beginning repair work.
A Preview of Piston Clearance and Crankshaft Inspection Limits
For the EH068OLE engine, the 2009 XP/HD volume lists cylinder-to-piston clearance as 0.0015 ± 0.00059 in. (0.040 ± 0.015 mm) in its cylinder/piston specification table.
The same table gives a crankshaft runout limit of 0.00236 in. (0.060 mm), alongside piston-ring, connecting-rod, and piston-pin inspection data.
