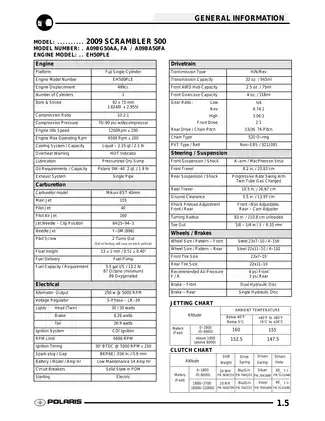

Polaris Models Covered & Key Technical Specifications

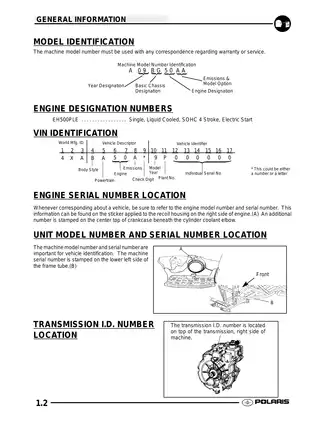

Models: Scrambler 500 4x4, Scrambler 500 2x4

Sub-models / Variants: 4x4 (A09BG50AA), 4x4 International (A09BG50FA), 2x4 International (A09BA50FA)

Model Year: 2009


  • Engine displacement: 499 cc

  • Engine type: Fuji Single Cylinder, 4-stroke, liquid-cooled, SOHC

  • Engine model: EH50PLE / EH500PLE (both drivetrains)

  • Engine idle speed: 1200 RPM ± 100 (general specifications)

  • Transmission type: H/N/Rev

  • PVT type: Non-EBS (both drivetrains)

  • Cooling system capacity: 2.1 L

  • Transmission capacity: 32 oz. (945 ml) for 4x4 models

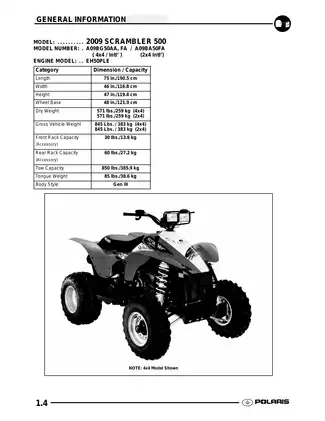

  • Dry weight: 571 lbs. (259 kg)

  • Drive system: 4x4 or 2x4 (model dependent)

  • Body style: Gen III

Polaris Manual Features & Selected Content Preview

This Polaris service manual covers the 2009 Scrambler 500 Gen III ATV in 4x4 (A09BG50AA), 4x4 International (A09BG50FA), and 2x4 International (A09BA50FA) configurations. The internal transmission overhaul procedures apply to the 4x4 models.

Search, Bookmarks, and Wiring Sheets

Finding text and wiring details: The service text is searchable, and bookmarks jump to each chapter and the wiring diagram. The diagram labels and wire termination table are outside the text search. Zoom in to read the small connector labels, pin IDs, and wire codes.

The download is one printable English PDF with 256 pages, including two wiring sheets, three chapter notes pages, and one maintenance-supplies page.


Engine Overhaul, Driveline Service, and Electrical Tests

This selection of workshop topics shows the scope of the manual. Other examples include air box sediment tube service and starter drive inspection.

  • Scheduled maintenance: Pre-ride checks, service intervals, lubrication charts, oil and filter changes, valve clearance, shift linkage, toe alignment, chain and sprocket care, and PVT drying.
  • Engine overhaul: Engine removal and installation, cylinder head and valve seat service, cylinder and piston inspection, crankcase and bearing assembly, and cam timing.
  • Carburetor and fuel system: CV operation, jetting guidance, float and fuel level checks, needle and seat leak testing, carburetor cleaning and assembly, and fuel pump service.
  • PVT clutches: Drive belt inspection, drive and driven clutch disassembly, bushing replacement, clutch alignment and offset, and troubleshooting.
  • Steering and final drive: Steering post, A-arm, ball joint, strut, rear axle, and concentric swingarm service, plus AWD hub and front axle repair for the 4x4.
  • Hydraulic brakes: Bleeding and fluid replacement, hand and auxiliary master cylinder service, front and rear caliper work, pad and disc inspection, and brake noise diagnosis.
  • Electrical diagnosis: Power distribution module (PDM), fan and HOT indicator, thermistor, electronic throttle control (ETC), DC/CDI ignition, charging, and starter system tests.

The maintenance charts and procedures suit experienced owners familiar with routine ATV service. Internal engine and steering work call for workshop skills and the specified tools. Polaris assigns PVT maintenance and repair in the clutching chapter to trained, certified Polaris Master Service Dealer technicians.

4x4 Transmission and AWD Coverage

The 4x4 procedures include transmission teardown and reassembly, front housing overhaul, CV boot replacement, and U-joint service. The Hilliard hub section covers the magnetic coil, armature plate, bearings, and seals. The 2x4 has its own front strut exploded view.

The 4x4 No AWD flowcharts help trace a failure to engage through the switch, wiring, and hub coil checks. The electrical chapter also includes reverse limiter troubleshooting. The shared wiring sheets cover 2x4, 4x4, and International configurations and include a PDM control circuit and a wire termination table for tracing connections.

Engine, Carburetor, and Workshop References

The EH50PL engine sections pair the oil flow chart with oil pressure testing and pump priming. They also cover cooling system bleeding and pressure testing, crankshaft and counterbalancer end play, and sealed recoil service. The fuel chapter includes an exploded view of the Mikuni BST 40 carburetor and jetting charts.

Workshop references include assembly torque tables and tightening patterns, fluid and lubricant data, clutch setup charts, brake wear limits, and electrical test values. Tool callouts include the PA-44689 valve/clutch adjuster, 2872105 water pump seal puller, 2200634 valve seat kit, 2870654 clutch offset tool, 2870888 Hilliard garter spring tool, and PV-43568 digital multimeter.

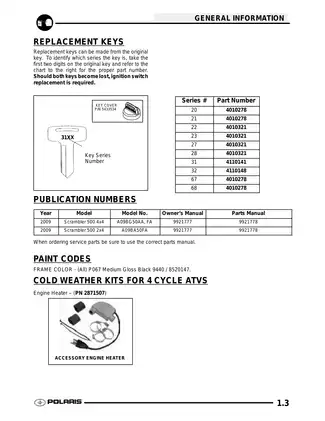

The publication table cross-references two separate Polaris publications, Owner’s Manual 9921777 and Parts Manual 9921778.

Water Pump and Hilliard Hub Cautions

The water pump seal procedure warns that side-loading the puller can bend the pump shaft. Replacing a bent shaft requires engine removal and crankcase separation. The AWD hub section warns that an incorrect or overstretched garter spring can cause unintended front-wheel engagement and that displaced armature plate tabs can damage the roller clutch.

Support the ATV securely during service. Let the cooling system cool before opening it, and use the eye and hand protection specified for the job.

Camshaft and Piston Wear Limits at a Glance

The EH50PLE10 service tables give an intake and exhaust cam lobe height limit of 1.2766 in. for camshaft inspection.

For cylinder and piston inspection, the same tables give a standard piston-to-cylinder clearance of 0.0006–0.0018 in. and a service limit of 0.0024 in.
