Polaris 2003 Classic 340/500/550/600/700 Snowmobile Service Manual (P/N 9918049)
359 Pages • 1 Printable PDF (English) • Download
Polaris Models Covered & Key Technical Specifications
340 CLASSIC, 500 CLASSIC, 550 CLASSIC, 600 CLASSIC, 700 CLASSIC
Models & Model Codes:
340 CLASSIC — Engine: EC34-2PM060
500 CLASSIC — S03ND5CS (engine S2319-5R44-PA5C)
550 CLASSIC — S03ND5BS (engines EC55PM040 and EC55PM060)
600 CLASSIC — S03ND6ES (engine S2495-6R44-PA6E)
700 CLASSIC — S03ND7CS (engine S2321-7R70-PA7C)
Sub-models / Variants: EDGE, Classic, 340 EDGE Classic
Model Year: 2003
-
Engine Types: Fan Cooled Piston Port (340), Fan Cooled Cylinder Reed Twin (550), Liquid Cooled Twin (500), Liquid Cooled Case Reed Twin/VES (600, 700)
-
Displacement: 339 cc (340), 500 cc (500), 544 cc (550), 593 cc (600), 701 cc (700)
-
Transmission Type: P-90 Drive Clutch (340), P-85 Drive Clutch (500, 550, 600, 700). P-90 Driven Clutch with 36.5° A-1 helix (340), P-85 Driven Clutch with 36° #2 helix setting (550), and Roller Reverse Driven Clutches with R-11 (600) and R-12 (500, 700) helixes
-
Drive System: 15 inch track width, HYVO chaincase
-
Cooling System: Air (340, 550), Liquid (500, 600, 700)
-
Fuel System: Mikuni VM30SS (340), VM34SS (550), TM 38 (500, 600), TM40 (700)
-
Spark Plug: NGK BR8ES (340), NGK BR9ES (550), Champion RN57YCC (500, 600, 700)
Polaris Manual Features & Selected Content Preview

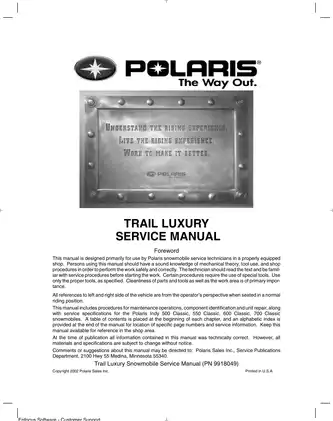

Polaris’ 2003 Trail Luxury Snowmobile Service Manual covers the 340, 500, 550, 600, and 700 Classic models. This is Polaris publication P/N 9918049, copyright 2002.
PDF Search, Bookmarks, and Wiring Detail

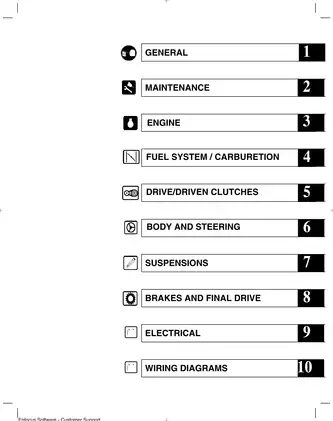

Search and navigation: The main text is searchable, and embedded bookmarks open the contents, all ten chapters, and the index. Text search does not reach labels inside the wiring diagrams, setup decals, or some charts. The four wiring pages cover the 340, 500, 550, and combined 600/700 layouts. Zoom in to read small wire codes and connector labels, especially on the lighter 550 diagram.
The download is one 359-page printable English PDF. The total includes the cover, three introductory pages, ten chapter-opening pages, four index pages, one notes page, and 15 blank pages.
Engine, Clutch, and Chassis Service
These are selected workshop topics from the manual, which also includes off-season storage and belt wear diagnosis.
- Engine repair: Engine removal and installation, top-end and crankcase service, crankshaft truing, V.E.S. inspection, water pump seal replacement, and recoil starter disassembly.
- Fuel system: Mikuni VM and TM carburetor inspection, synchronization, needle-and-seat leak testing, choke adjustment, and fuel pump diagnosis.
- Drive and driven clutches: P-85 and P-90 service, spider indexing, bushing replacement, belt alignment, and Polaris Electric Reverse roller clutch repair.
- Steering and suspension: EDGE steering alignment, FAST M-10 setup, Fox shock service, and Ryde FX damping adjustment and valving references.
- Brakes and final drive: Hayes master cylinder repair, caliper rebuilding, hydraulic brake bleeding, HYVO chaincase inspection, and track and jackshaft removal.
- Electrical diagnosis: Throttle Position Sensor (TPS) testing and adjustment, stator resistance checks, starting and charging system tests, and model-specific wiring diagrams.
Written primarily for Polaris snowmobile service technicians in a properly equipped shop, this manual assumes sound mechanical knowledge and familiarity with tools and shop procedures.
Engine Overhaul and 550 Classic Variants
Engine service includes cylinder honing, piston and connecting-rod inspection, crankshaft indexing, and oil pump adjustment. The manual covers fan and liquid cooling, with separate cooling-system layouts for the 500, 600, and 700 Classic. Torque sequences, wear limits, clearances, and troubleshooting tables support internal engine repair.
The 550 Classic has separate specifications for the EC55PM040 and EC55PM060. Carburetor settings and ignition components differ, and the EC55PM060 chart lists separate PTO-side and magneto-side jetting. The engine code helps you select the correct tuning chart and ignition references before diagnosing a fault.
The water pump seal procedures identify small-block mechanical seal guide 2872010 and big-block installation tool 2872389. Variable Exhaust System (V.E.S.) coverage includes valve operation, cleaning, bellows inspection, spring identification, and troubleshooting.
Carburetor Calibration and Belt Setup
Model-specific jetting and clutching charts relate setup to altitude and temperature. The Mikuni TM 38 and TM 40 exploded view identifies carburetor components, and the circuit charts show how their effects change with throttle opening. The TM service section warns that compressed air can pressurize the float chamber and damage the floats or inlet needle and seat.
Clutch procedures cover belt deflection, offset and alignment, spider button shimming, and roller inspection. The manual warns that an air impact wrench can loosen the spider and damage the crankshaft. Polaris reserves drive clutch disassembly and repair for trained, authorized dealer technicians using the specified tools and procedures.
EDGE Steering, FAST M-10, and Shock Service
The suspension chapter covers EDGE scissor-stop settings and FAST M-10 Full Range Adjustment (FRA), X-over tube length, preload, and sag. Setup decals and typical shock valving layouts provide references alongside the adjustment procedures.
Fox PS3 service covers disassembly, seal replacement, internal floating piston positioning, reassembly, and recharging. Ryde FX references include damping adjustment, valving part numbers, and special tools. Follow the manual’s safety procedures and use appropriate protective equipment when servicing pressurized shocks or spring-loaded clutches.
Brakes, Chaincase, and Mechanical Reverse
Chassis procedures include ski spindle bushing replacement, Hayes master cylinder cartridge replacement, and HYVO chaincase bearing and seal service. The final-drive chapter also covers mechanical reverse components and linkage rod end-play adjustment.
Electrical Tests and Maintenance Schedules
Starter and ignition illustrations accompany the electric-start and no-spark diagnostic flowcharts. The manual includes CDI connector references and coolant temperature sensor tests. TPS testing calls for Polaris test kit 2201519.
The 500-mile initial inspection and 1,500-mile maintenance sheets put the checks for each service interval in one place. Reference tables list fastener torques, standard values for Grade 2, 5, and 8 hardware, and model-specific fluid capacities. Engine installation also specifies the break-in premix after a rebuild.
A Sample of Piston Clearance and Rear Sag Specs
For both 550 Classic engines, the specification sheets list a piston-to-cylinder clearance of 0.0035–0.0049 in and a service limit of 0.0078 in.
For the FAST M-10 rear suspension used on the 600 and 700 Classic, the setup section specifies 4 in of sag as the target with the rider seated in riding gear.
