Polaris Scrambler 50, Scrambler 90, Predator 90, and Sportsman 90 Youth ATV 2003 Factory Service Manual (P/N 9918068)

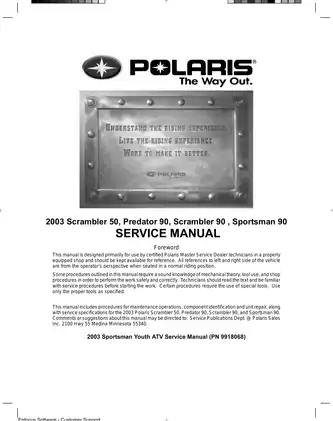

Polaris factory Service Manual P/N 9918068 is supplied as a 107-page PDF covering the 2003 youth ATV lineup. Written primarily for certified Polaris Master Service Dealer technicians working in a properly equipped shop, it assumes sound knowledge of mechanical theory, tool use, and shop procedures. Several repair operations require the specified service tools.

• Model and engine identification: Covers the Scrambler 50 (A03EA05) with the AR03-01 engine, plus the Scrambler 90 (A03EA09), Sportsman 90 (A03FA09), and Predator 90 (A03KA09) with the AR07-01 engine.
• Internal engine repair: Details engine removal, crankcase separation, cylinder and piston inspection, crankshaft runout checks, cylinder honing, reed-valve service, reassembly, and kick-start spring installation.
• Transmission and CVT service: Includes drive-axle disassembly, transmission bearing and seal work, drive and driven sheave inspection, roller and belt checks, starter one-way clutch repair, and related exploded views.
• Model-specific carburetion: Distinguishes the Scrambler 50 Sunworld H68K carburetor from the Mikuni VM16 used on the 90 cc models, with float adjustment, needle-and-seat leakage testing, jetting guidance, and lean/rich troubleshooting.
• Chassis and running gear: Covers drum brakes, rear axle and bearing carrier, drive-chain adjustment, A-arms, shocks, steering post, tie rods, toe alignment, fuel and oil tanks, and cab and handlebar installation.
• Electrical diagnosis: Provides battery and charging-system tests, key-off current-draw and break-even testing, alternator checks, starter voltage-drop diagnosis, starter motor overhaul, ignition testing, and Electronic Throttle Control fault tracing.
• Youth speed-control systems: Explains the CDI jumper, throttle-stop control, ETC fail-safe operation, and the ANSI/SVIA requirements governing adjustment of the factory speed-limiting system.

Engine and Driveline Repair Depth

The engine chapter goes well beyond routine maintenance. It covers removal from the chassis, stator and oil-pump removal, cylinder and piston service, crankcase splitting, crankshaft extraction, and final assembly. Inspection data is provided for the cylinder head, cylinder, piston, rings, piston pin, connecting rod, reed valve, and crankshaft. The honing section addresses both deglazing and oversize repair, including bore preparation and post-honing cleaning.

Transmission service requires removal of the engine, an important scope point when planning the job. The manual then identifies the primary drive, main axle, drive axle, bearings, seals, sprocket, and transmission cover assembly. CVT coverage includes the primary and secondary sheaves, cam plate, weight rollers, driven clutch cover and lining, compression spring, drive belt, and one-way starter mechanism.

Carburetion, Chassis, and Speed Controls

The carburetion chapter explains how the float, pilot, needle, slide, and main systems affect different throttle ranges. It also supplies production calibration data, optional main-jet references, cold-weather starting information, float-bowl service, vent-system checks, and symptom-based diagnosis for fuel starvation, rich running, poor idle, and erratic idle.

Chassis procedures address front and rear brake assemblies, swingarm and rear axle installation, chain tension, steering-post and tie-rod service, and two methods of checking front-wheel alignment. Separate cab and handlebar procedures are titled for the Scrambler and Sportsman layouts; the Predator 90 does not receive a separately titled cab or handlebar subsection.

Diagrams, Test Data, and Special Tools

Named visual references include the CVT System Exploded View, Drive Shaft (Transmission) Exploded View, 50 cc/90 cc Carburetor Exploded View, Rear Brake and Axle Exploded View, and the Quick Reference Wire Diagram. Full wiring schematics are supplied separately for the Scrambler 50 and for the Scrambler 90, Sportsman 90, and Predator 90.

The tool listings identify the crankshaft removal tool (0450697), crankcase separating tool (0450700), oil-pump drive gear removal tool (0450699), flywheel puller (PA-45153), Mity Vac pressure-test tool (2870975), shock spanner wrench (2870872), and shock spring compressor (2870623). Factory tables provide component-specific torque specifications, lubricant and capacity data, carburetor settings, clearances, wear limits, electrical resistance and voltage values, and battery charging information.

The manual flags several repair traps. Running the engine with the oil-pump bleed screw loose can cause lubricant loss and serious engine damage, while a mispositioned tie-rod end may be unable to pivot and can break when its jam nut is tightened. Because the procedures involve gasoline, battery electrolyte, rotating CVT parts, and running-engine electrical tests, service work should follow the manual’s ventilation, isolation, support, and protective-equipment warnings.
