Polaris ATP 330 / ATP 500 ATV Service & Repair Manual (2004–2005)

Service and repair manual for the carbureted 2004–2005 Polaris ATP 330 and ATP 500 4x4, covering scheduled maintenance, mechanical overhaul, and electrical troubleshooting.

PDF Search, Chapter Access, and Diagram Detail

Search and diagram navigation: Service text is searchable, and embedded bookmarks link to the service chapters and wiring diagrams. Small wiring labels require zooming and are not searchable. Some cooling-system illustrations have faint outlines.

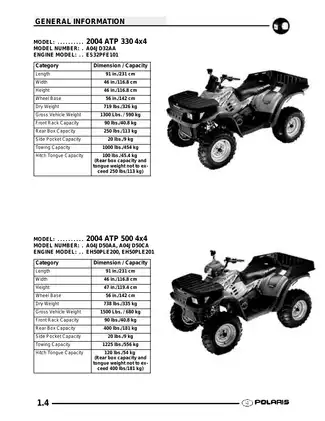

One printable, English-language 375-page PDF, including seven notes pages and ten wiring-diagram pages within that total.

Engine Overhaul, PVT Service, and ATP Electrical Diagnosis

The following selected coverage highlights outline the main workshop sections; additional topics include recoil-starter repair and storage preparation.

• Engine repair: Step-by-step procedures for engine removal, top- and bottom-end disassembly, valve-seat reconditioning, camshaft timing, internal measurement, and reassembly.

• Fuel and cooling: Mikuni BST carburetor service, float adjustment, needle-and-seat leakage testing, fuel-pump repair, cooling-system testing, and water-pump seal replacement.

• PVT clutching: Non-EBS and EBS clutch inspection, bushing replacement, belt assessment, alignment, and separate early- and late-production driven-clutch procedures.

• Final drive and transmission: Centralized Hilliard front gearcase overhaul, Versatrac rear carrier service, CV-joint work, and transmission removal, teardown, reassembly, and troubleshooting.

• Brakes and chassis: Hydraulic bleeding, master-cylinder and caliper service, pad and disc inspection, steering alignment, A-arm replacement, and strut-cartridge replacement.

• Electrical diagnosis: Instrument-cluster tests, AWD engagement checks, ignition and charging flowcharts, starter testing, battery service, and model-specific wiring diagrams.

Suited to mechanics familiar with engine measurement and electrical testing; the maintenance chart identifies operations assigned to authorized Polaris dealers.

Engine Inspection and Maintenance

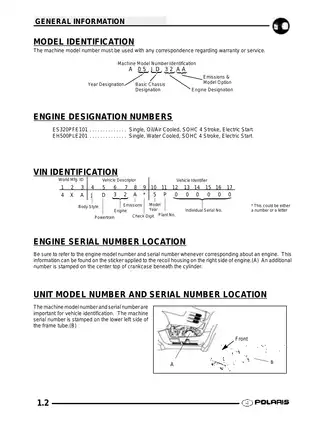

The Fuji engine sections distinguish the fan-assisted oil/air-cooled, wet-sump ES32PFE builds from the liquid-cooled, pressurized dry-sump EH50PLE builds.

Maintenance coverage includes severe-use scheduling, gearcase and transmission lubrication, throttle/ETC adjustment, compression and cylinder-leakage testing, valve adjustment, and oil-pump priming.

Internal inspection extends to cylinder taper and out-of-round, piston-ring end gap and groove clearance, valve-guide and stem clearance, camshaft journal oil clearance, connecting-rod bearing clearance, crankshaft runout, and end play. Cylinder-head installation uses model-specific staged torque-and-angle procedures.

The ES320PFE Oil Flow Diagram and EH500PLE Oil Flow Diagram trace the different lubrication arrangements. The 330 procedures also warn that excessive flywheel-puller bolt engagement can damage stator coils, while sealer on oil-pump cover mating surfaces can alter clearances and obstruct oil passages.

Carburetor and Cooling-System Work

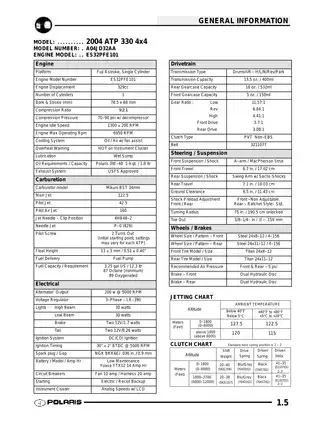

Carburetor procedures distinguish the two BST applications, with temperature/altitude jetting charts and separate PVT altitude-calibration charts. Float-height setting, needle-and-seat leakage testing, and fuel-pump diaphragm inspection provide specific checks for fuel-delivery problems.

ATP 500 cooling coverage includes pressure testing, air bleeding, thermostat checks, and mechanical-seal replacement. The seal-replacement procedure describes access with the engine installed using puller 2872105.

Coolant-capacity discrepancy: The general ATP 500 specifications list 3.2 qt (3.02 L), while the detailed cooling-system tables list 2.25 qt (2.13 L).

PVT Production Changes and Driveline Repair

The ATP 330 uses belt P/N 3211077; the ATP 500 uses belt P/N 3211069. Clutch service includes bushing assessment, belt deflection, center distance, and offset/alignment.

ATP 500 driven-clutch change: Machines built before July 14, 2003 use the early-2004 EBS driven clutch; those built on or after that date use the late-2004–2005 design. The front Centralized Hilliard gearcase also has early and late configurations around this date. These distinctions help match the illustrated parts and service procedures to the installed assemblies.

Final-drive work extends to hubs, prop shafts, U-joints, and the rear carrier’s AWD, 2x4, and Turf modes. The Late 2004–2005 ATP Front Gearcase – Centralized Hilliard Exploded View supports component identification during overhaul.

Brakes, Steering, and Body Access

The ATP Brake System Exploded View accompanies hydraulic circuit explanations and component service. Transmission coverage includes shift-linkage inspection, gear-selector removal, internal assembly views, and troubleshooting.

Body procedures cover panel access, front storage-box removal, rear dump-box removal, and tailgate disassembly. Suspension work includes swingarm and rear driveshaft removal, front strut cartridges, and ball joints.

The toe-adjustment section warns that incorrectly positioned tie-rod ends can bind, break, or wear prematurely.

Electrical Tests and Wiring Variants

Electrical coverage distinguishes gear-position switching, front-gearcase engagement limiting, rear differential-solenoid control, instrument-cluster diagnostics, and wheel-speed input. Resistor-module and ECM/Sure Power Box explanations connect sensor inputs with fan, warning-lamp, charging, and rear-carrier functions.

The Ignition System Testing flowchart and Charging System Testing Flow Chart support fault isolation. Starter coverage includes voltage-drop testing, brush inspection, armature testing, and motor disassembly.

Wiring diagrams cover both models for each model year, including a separate 2004 ATP 330 schematic for machines built after July 14, 2003.

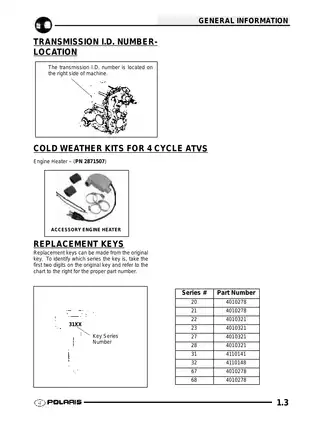

Workshop tools: References include PA-44689 Valve/Clutch Adjuster, 2870506 Drive Clutch Puller, 2872292 EBS Clutch Alignment Tool, 2872608 Roller Pin Removal Tool, and PV-43568 Fluke 77 Digital Multimeter.

Service work here includes pressurized cooling, hydraulic brakes, rotating PVT components, and electrical testing. Follow the manual’s warnings and test precautions for the specific repair.

Examples of Engine Clearances and Pressure-Test Data

Internal measurements: ATP 330 piston-to-cylinder clearance is .0015–.0032 in., with a .004 in. service limit; ATP 500 clearance is .0006–.0018 in., with a .0024 in. limit. Both engine sections give a cylinder-head warpage limit of .002 in. (.05 mm), while valve adjustment specifies .006 in. (.15 mm) with the engine cold at compression TDC.

Lubrication checks: The ES320PFE oil-pressure test specifies 71–99 psi at 3000 RPM with the engine hot, with a 20 psi minimum at idle. The EH500PLE test specifies 20 psi at 5500 RPM hot, with a 12 psi minimum at that test speed.

Cooling checks: ATP 500 system-pressure testing specifies retention of 10 psi for at least five minutes; radiator-cap relief pressure is listed separately as 13 psi.
