Polaris Models Covered & Key Technical Specifications

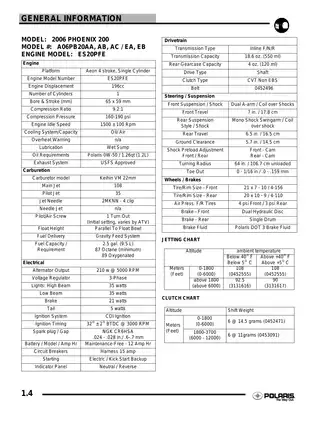

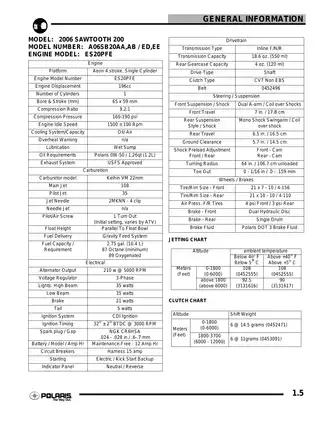

Models: Phoenix 200, Sawtooth 200

Sub-models / Variants: Phoenix 200 (A06PB20AA, A06PB20AB, A06PB20AC, A06PB20EA, A06PB20EB), Sawtooth 200 (A06SB20AA, A06SB20AB, A06SB20ED, A06SB20EE)

Trade Names: Phoenix, Sawtooth

Model Year: 2006


  • Engine platform: Aeon 4 stroke, Single Cylinder

  • Engine model: ES20PFE

  • Engine displacement: 196 cc

  • Bore and stroke: 65 x 59 mm

  • Compression ratio: 9.2:1

  • Compression pressure: 160–190 psi

  • Engine idle speed: 1500 ± 100 rpm

  • Transmission type: Inline F/N/R with shaft drive

  • Clutch type: CVT Non EBS

  • Alternator output: 210 W @ 5000 RPM

  • Fuel requirements: 87 Octane minimum, 89 Oxygenated

  • Front suspension: Dual A-arm with coil-over shocks, 7 in. travel

  • Rear suspension: Mono Shock Swingarm with coil-over shock, 6.5 in. travel

  • Brake system: Dual front hydraulic discs, single rear drum

Polaris Manual Features & Selected Content Preview

This factory service manual (P/N 9920248) covers the 2006 Polaris Phoenix 200 and Sawtooth 200 ATVs with the ES20PFE engine. The Phoenix has sport bodywork, and the Sawtooth has utility bodywork.

PDF Search, Bookmarks, and Wiring Detail

Text search and diagram detail: The service chapters have searchable text and embedded bookmarks. On the wiring pages, text search reaches the page headings. Zoom in to read the small wire labels and connector references in the schematic and termination table.

One printable English-language PDF contains 214 pages (11.34 MB), including six note pages and the two wiring reference pages.


Engine, Driveline, Brake, and Electrical Service

The selected topics below give a sense of the repair coverage. The manual also includes spark arrestor cleaning and front and rear suspension spring preload adjustment.

  • Engine repair: Engine removal, top-end and bottom-end disassembly, cylinder and crankshaft inspection, camshaft timing, and reassembly.
  • Fuel and maintenance: Keihin carburetor service, altitude jetting, valve adjustment, lubrication procedures, and scheduled inspection charts.
  • Body, steering, and suspension: Model-specific body panel removal, steering spindle service, ball joint and A-arm replacement, and rear swingarm service.
  • Brakes: Step-by-step procedures for front hydraulic brake bleeding, caliper and master cylinder service, and rear drum inspection and adjustment.
  • Driveline: Drive and driven clutch service, CVT belt inspection, F/N/R transmission disassembly, and rear gearcase removal and assembly.
  • Electrical diagnosis: CDI ignition, charging and starter tests, troubleshooting charts, a wiring schematic, and a wire termination table.

The procedures are suited to technicians and experienced ATV owners who can use the specified service tools and electrical test equipment.

Model Identification and Wiring Coverage

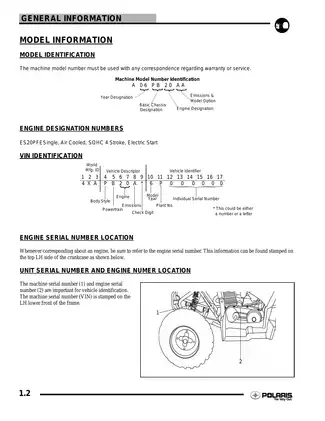

The general specifications list five Phoenix model codes and four Sawtooth model codes. The identification section explains the model-number structure and VIN layout. Separate body-panel sections help you identify the correct panels before ordering parts or starting chassis work.

Both wiring reference pages are labeled A06PB20AA and A06SB20AA. Check those model codes before applying the circuit information to another variant listed in the general specifications. The termination table pairs wire colors with their source and destination connectors, so you can follow a circuit across the schematic.

Engine Inspection, Fuel System, and Lubrication

The ES20PFE service data include piston ring end gaps, cylinder honing guidance, and torque specifications. The oil flow diagram shows how lubricant reaches the camshaft and rocker assembly. The maintenance chapter explains how the automatic decompressor affects compression readings and identifies a cylinder leakage test as the better check of engine condition.

Camshaft timing uses the crankshaft keyway or the flywheel mark as the top dead center reference, depending on whether the stator housing is installed. The manual warns that incorrect cam-to-crank timing can cause serious engine damage.

The Keihin VM 22 mm carburetor section includes an exploded view, float height adjustment, and a needle and seat leak test. The maintenance section gives separate service intervals and procedures for Polaris 0W-50 engine oil, AGL transmission lubricant, and ATV Angle Drive Fluid for the rear gearcase.

Chassis, Brakes, and Driveline

The front hub exploded view shows how the bearings and spacer fit together. The brake chapter includes front disc runout checks and rear brake shoe and drum inspection limits. Support the ATV securely for suspension work and follow the manual’s brake-fluid precautions.

The CVT section includes altitude-based clutch weight charts and a diagnostic chart for overheating. The manual cautions that the driven clutch’s torque-limiting parts can come loose during removal. The transmission section covers shaft inspection and output pinion depth, and the final drive section covers rear gearcase backlash.

Ignition, Charging, and Starter Tests

The electrical chapter includes a CDI peak-output test, stator resistance and output checks, and starter voltage-drop testing. These procedures help distinguish a weak charging component or a poor starter connection from a fault elsewhere in the circuit.

Selected Valve, Belt, and Gearcase Specifications

The ES20PFE valve adjustment procedures specify 0.003 in. (0.07 mm) clearance for both intake and exhaust valves. The CVT belt inspection specifies a belt width service limit of 0.708 in. (18 mm).

For rear gearcase assembly, the shimming procedure specifies 3 mm of total shim thickness across both sides of the bevel gear. The procedure relates the distribution of that thickness to gear backlash.
