Kawasaki Ninja ZX-6R 1998–2002 Factory Service & Repair Manual (P/N 99924-1254-01)

• Coverage: 333-page PDF total: one SuperPowerSports splash page followed by a 332-page scan of the Kawasaki Ninja ZX-6R Motorcycle Service Manual. The model-identification and general-specification pages name the ZX600-J1. No separate J2/J3 or earlier ZX600-G/H supplement is included.
• Fuel and emissions: Covers Mikuni BDSR36 carburetor removal, separation, cleaning, inspection, reassembly, service fuel-level setting, throttle synchronization, fuel-pump testing, KLEEN secondary-air and catalyst-protection systems, plus California evaporative-emission components.
• Engine and drivetrain: Details camshaft and timing-chain service, valve-clearance inspection and shim selection, cylinder-head and valve work, piston and cylinder inspection, clutch repair, engine removal and installation, crankcase splitting, connecting rods, crankshaft bearings, transmission shafts, shift drum, and shift forks.
• Cooling, lubrication, and final drive: Includes coolant draining and filling, pressure testing, radiator and thermostat diagnosis, water-pump service, oil-pressure checks, oil-pump and cooler work, drive-chain inspection and adjustment, sprockets, wheel bearings, tire service, and wheel-balancing procedures.
• Chassis repair: Provides front-fork oil and seal service, fork and rear-shock adjustment, swingarm and linkage inspection, steering-head bearing service, brake-caliper and master-cylinder repair, pad and disc inspection, fluid replacement, bleeding, wheel removal, and frame and fairing work.
• Electrical diagnosis and reference data: Supplies region-specific wiring diagrams, charging and ignition tests, stick-coil peak-voltage checks, starter and fuel-pump circuits, fan and meter diagnosis, junction-box testing, cable/wire/hose routing, torque tables, wear limits, capacities, and electrical test specifications.

What the Manual Actually Covers

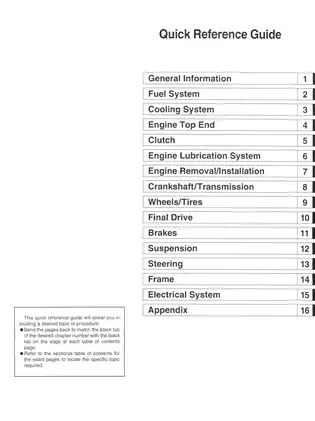

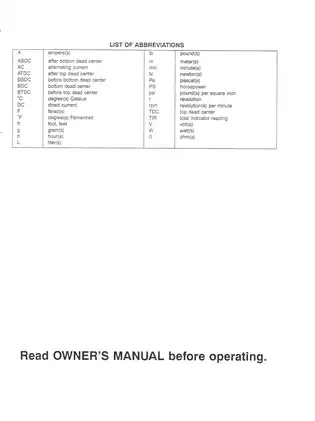

Organized into 16 numbered sections, this manual goes well beyond routine maintenance. It follows Kawasaki workshop sequence from model identification, periodic maintenance, torque and locking-agent data, special tools, and routing layouts through component removal, disassembly, inspection, reassembly, adjustment, and operational checks. The depth suits independent repair shops, professional technicians, and experienced owners who need model-specific repair information rather than a generic service guide.

Fuel-system coverage includes the Mikuni BDSR36 carburetor bank, service fuel-level setting, synchronization, throttle and choke controls, fuel-pump and relay testing, and California evaporative equipment. The emissions material explains the KLEEN secondary-air system, precatalytic and main-catalyst arrangement, vacuum-switch operation, and igniter-controlled fuel-cut valves. Market distinctions carry into the electrical section, with separate wiring diagrams for U.S./Canada, Australia, Malaysia, and other markets.

Repair and Diagnostic Depth

The engine chapters reach into cam timing, chain-tensioner service, valve-shim selection, cylinder-head and valve-seat work, piston and ring inspection, clutch repair, engine removal, crankcase separation, bearing-insert selection, connecting-rod checks, transmission shafts, and the external shift mechanism. Chassis coverage is similarly workshop-oriented, including fork disassembly and oil-level setting, rear-suspension and linkage inspection, steering-stem bearings, caliper and master-cylinder repair, hydraulic bleeding, wheel bearings, tire service, and drive-chain alignment.

The manual uses diagrams where they matter: the KLEEN Exhaust Purification System schematic, Catalyst Protection System and fuel-cut performance chart, Coolant Flow Chart, Engine Oil Flow Chart, Cable/Wire/Hose Routing layouts, and regional wiring diagrams. Those electrical drawings extend into the charging, ignition, starter, radiator-fan, meter, and junction-box circuits. Exploded views support carburetor, engine, brake, suspension, and transmission repair. Reference data includes component-specific torque tables, fluid capacities, wear limits, clearances, and electrical test values.

Special Tools, Repair Traps, and File Scope

Named Kawasaki tools include the Fuel Level Gauge 57001-1017, Clutch Holder 57001-1243, Fork Oil Level Gauge 57001-1290, Hand Tester 57001-1394, Lead Wire Peak Voltage Adapter 57001-1449, and Engine Mount Nut Wrench 57001-1450. The manual specifically warns that partially loosening and retightening the automatic cam-chain tensioner can upset its non-return mechanism. It also treats the crankcase halves as a matched machined set and cautions against blocking oil passages with sealant.

Fuel handling, ignition peak-voltage testing, brake bleeding, and supported engine removal require proper equipment and workshop competence. This PDF is an image-based scan. Cooling System page 3-7—PDF page 80—is truncated after the opening coolant-draining lines; the surrounding cooling-system pages are present.
