1990 Yamaha FZR400A / FZR400SAC Factory Service Manual Set (P/N LIT-11616-07-23)

This Yamaha factory service manual set combines the FZR400U/FZR400SUC base manual with the FZR400A/FZR400SAC supplement for the listed 1988–1990 models. Standard U.S. and California configurations are distinguished, with California-only EXUP procedures identified separately.

• Engine repair: Engine removal, internal disassembly, cylinder-head and crankshaft inspection, valve-pad selection, camshaft timing, clutch repair, and transmission assembly.

• Fuel-system service: Mikuni BDS32 carburetor disassembly, inspection, fuel-level adjustment, synchronization, and fuel-pump operation and troubleshooting.

• Cooling system: Radiator removal, cap-pressure testing, leak checks, water-pump inspection, thermostatic-valve testing, and coolant replacement.

• Brakes and chassis: Caliper and master-cylinder repair, hydraulic bleeding, wheel-bearing replacement, front-fork rebuilding, steering-head service, and swingarm inspection.

• Electrical diagnosis: Digital ignition, starting interlocks, charging, lighting, signals, cooling-fan and EXUP fault tracing, supported by circuit diagrams and test charts.

• Supplement coverage: FZR400A/FZR400SAC identification and revised specifications, drive-chain adjustment, rear-wheel service, and front- and rear-brake procedures.

The internal-engine measurements and required special tools make this set suited to mechanics already experienced in engine and chassis repair.

Engine Overhaul and Valve-Train Service

The base manual covers nine chapters, including inspection and repair of the cylinder head, valves, camshafts, pistons, crankshaft, oil pump, starter clutch, A.C. magneto, and transmission. Bearing-selection information connects crankcase and crankshaft markings with color-coded replacement bearings.

The engine-overhaul chapter identifies assemblies that can be serviced with the engine still installed, helping you judge the required teardown before starting work. Valve-clearance procedures include adjusting-pad selection charts and camshaft installation checks.

The manual warns that rotating a camshaft independently during installation can damage the pistons and valves. Clutch work includes inspection criteria and identifies Universal Clutch Holder YM-91042.

Carburetors, Lubrication, and Cooling

Carburetor service goes beyond synchronization to float-chamber components, diaphragms, jets, needle valves, and fuel-level inspection. Synchronization calls for correctly set valve clearances and identifies Vacuum Gauge YU-08030; the pilot-screw cautions distinguish factory settings from routine adjustment.

The Carburetor Section View identifies internal passages and metering components. Lubrication and Coolant Diagrams trace the corresponding systems, while Cable Routing views show hose, cable, and harness placement, including California equipment.

Cooling-system procedures cover radiator-cap testing, system leak checks, impeller inspection, and thermostatic-valve testing. The thermostatic valve is treated as a sealed component for replacement if faulty.

Brakes, Suspension, and Steering

Exploded views support wheel, brake-caliper, master-cylinder, steering-head, and swingarm work. The supplement provides the FZR400A/FZR400SAC brake details alongside the base manual’s chassis procedures.

Front-fork service includes damper-rod removal, bushing and seal replacement, oil-level specifications, and reassembly. Bottoming the inner tube during disassembly can damage the oil-lock piece.

Rear-shock coverage includes removal, inspection, and spring-preload adjustment; the manual prohibits opening the nitrogen-charged cylinder assembly. Drive-chain inspection and sprocket replacement procedures are also included.

Improper hydraulic system bleeding or ignoring factory torque sequences can lead to component failure. Follow the complete factory instructions when servicing brakes and other critical assemblies.

Electrical Fault Isolation and California EXUP

The electrical section explains digital ignition operation and provides separate ignition-advance curves for the standard and California configurations. Ignition timing is checked rather than adjusted.

Ignition System and Yamaha Exhaust Variable Valve System circuit diagrams accompany component tests and fault-isolation charts. Starting-system checks distinguish starter-motor faults from clutch, neutral, and sidestand interlock problems; charging tests cover the stator and rectifier/regulator.

EXUP coverage includes cable alignment, valve inspection, servomotor checks, and control-unit diagnosis. The troubleshooting chapter also addresses hard starting, poor idle, shifting faults, clutch slipping or dragging, overheating, braking faults, and unstable handling.

A Preview of Valve-Clearance and Axle Specifications

These values are a small selection of the manual’s adjustment and fastening data. Cold valve clearances are listed as 0.11–0.20 mm for intake valves and 0.21–0.30 mm for exhaust valves, alongside the adjusting-pad selection charts.

The chassis torque tables specify 58 Nm for the front axle and 107 Nm for the rear axle nut. Component procedures provide the associated installation and securing details.

PDF Search, Navigation, and Page Condition

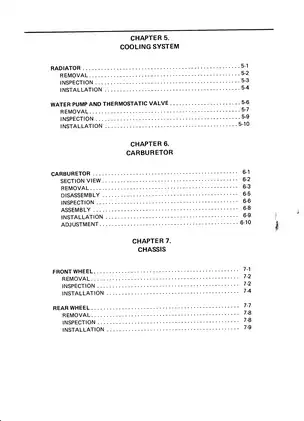

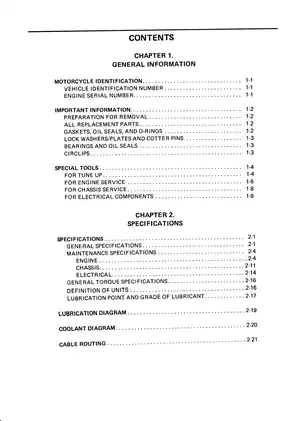

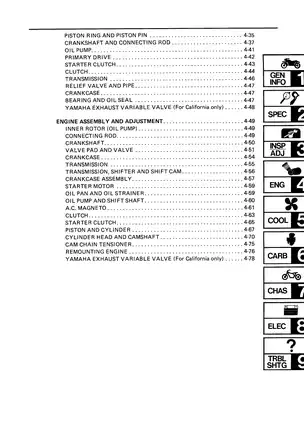

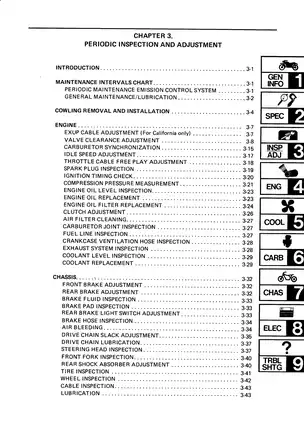

Search and page readability: PDF text search is unavailable. Embedded bookmarks are only partly usable, with inactive entries and some inaccurate destinations. Small labels in the overall wiring diagram require zooming. Ten pages contain damaged image data and are partly or largely unreadable, affecting coolant maintenance and portions of engine overhaul.

One printable PDF contains 393 pages total, including the publications below and eight repeated contents pages.

The eight repeated contents pages are already included in the 393-page total.
