Suzuki DR500S 1981–1982 Factory Service Manual

205 Pages • Printable PDF • 13.48 MB • Download

5.0starstarstarstarstar(1)
$17.55 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Suzuki Models Covered & Key Technical Specifications

Model: DR500S

Model Years: 1981–1982

---Models: DR500S

Sub-models / Variants: General (E-01), England (E-02), France (E-04), South Africa (E-06), Finland (E-15), Norway (E-16), Sweden (E-17), Belgium (E-21), West Germany (E-22), Australia (E-24), Netherlands (E-25), Denmark (E-26), Italy (E-34), Austria (E-39); additional wiring-diagram variant (E-18)

Model Years: 1981–1982


  • Engine displacement: 498 cm³

  • Engine type: Four-stroke, air-cooled, OHC

  • Number of cylinders: 1

  • Compression ratio: 8.5:1

  • Transmission type: 5-speed constant mesh

  • Clutch type: Wet multi-plate

  • Final drive: Chain (106 links)

  • Fuel system: MIKUNI BS40SS carburetor

  • Ignition type: Suzuki PEI (Capacitor Discharged Ignition)

  • Engine oil capacity: 1.6 L (service), 2.1 L (overhaul)

  • Fuel tank capacity: 9.0 L (including reserve)

  • Cylinder head nut torque: 23–27 N·m (8 mm diameter nuts)

  • Cylinder head cover bolt torque: 9–10 N·m

  • Engine displacement: 498 cm³

  • Engine type: Four-stroke, air-cooled, OHC

  • Number of cylinders: 1

  • Compression ratio: 8.5:1

  • Transmission type: 5-speed constant mesh

  • Clutch type: Wet multi-plate

  • Final drive: Chain (106 links)

  • Fuel system: MIKUNI BS40SS carburetor

  • Ignition type: Suzuki PEI (Capacitor Discharged Ignition)

  • Engine oil capacity: 1.6 L (service), 2.1 L (overhaul)

  • Fuel tank capacity: 9.0 L (including reserve)

  • Cylinder head bolt torque: 23–27 N·m (8 mm diameter bolts)

  • Cylinder head cover bolt torque: 9–10 N·m

Suzuki Manual Features & Selected Content Preview

Suzuki’s factory service manual covers the 1981–1982 DR500S, including its TSCC single-cylinder four-stroke engine and primary kick-start system. Standard-specification machines are the main subject, with market-specific electrical diagrams and service-data differences identified where applicable.

PDF Text Search and Diagram Detail

Navigation and small print: PDF text search and embedded bookmarks are not available. Small wiring labels require zooming; some fine wire codes and small carburetor-table text remain faint or blurred when enlarged.

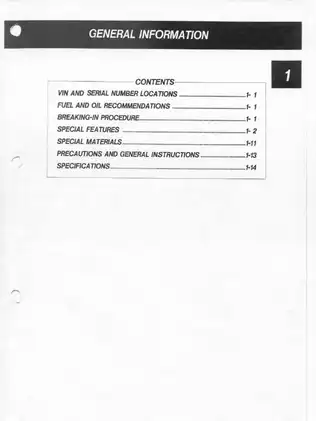

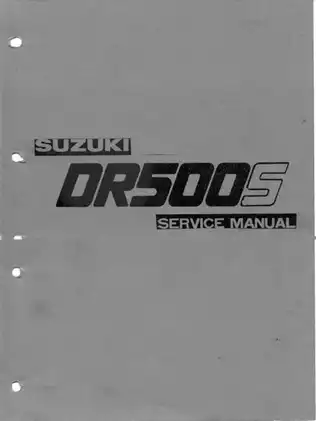

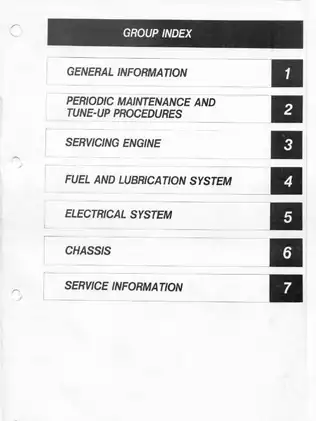

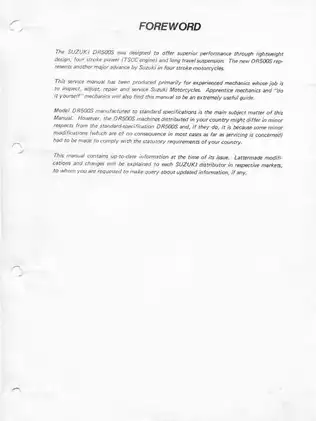

One printable English PDF contains 205 pages, including four opening pages—cover, foreword, model views and group index—and one blank page.


TSCC Engine Overhaul, Balancer Timing and Electrical Testing

The following selected coverage highlights outline the main workshop sections rather than reproduce the full contents. Further topics include fuel-cock servicing and combination-meter bulb replacement.

  • Engine overhaul: Step-by-step instructions for engine removal and remounting, upper-end disassembly, crankcase separation, internal inspection and reassembly.

  • Valve train and balancers: Valve-guide replacement, valve-seat servicing, camshaft installation, counterbalancer timing and cam-chain and balancer-chain tensioner adjustment.

  • Carburetor and lubrication: Carburetor disassembly, needle-valve inspection, float-height adjustment, oil-pressure testing and oil-pump clearance checks.

  • Ignition and charging: CDI-unit testing, magneto and ignition-coil checks, rectifier inspection, charging and lighting tests, and market-specific wiring diagrams.

  • Brakes and chassis: Drum-brake inspection, wheel-bearing replacement, front-fork overhaul, steering-stem adjustment and swing-arm bearing service.

  • Workshop references: Periodic maintenance and lubrication charts, troubleshooting tables, component torque specifications, wear limits and illustrated special-tool references.

Written primarily for experienced mechanics, the manual also identifies apprentice and DIY mechanics as readers who can use it as a service guide.

Engine Inspection and Reassembly

The upper-end section goes beyond routine adjustment, covering camshaft journal clearance, rocker-arm wear, cylinder-head distortion and piston-to-cylinder measurements. Valve-seat cutting and valve-guide installation are described alongside the relevant inspection criteria.

Lower-end coverage includes connecting-rod checks, crankshaft runout, clutch-plate inspection and shift-fork clearances. Transmission cross-sectional views show the positions of gears, washers and circlips, while the balancer assembly instructions explain sprocket and chain-mark alignment.

Camshaft installation notes address the cam-sprocket locating pin, which can fall into the crankcase. A separate assembly warning explains that tightening the cylinder-head cover with the tachometer driven gear fitted can break the cover.

Carburetor Adjustment and Oil-System Diagnosis

The Mikuni BS40SS section explains diaphragm and piston operation, the slow and main circuits, and the starter and float systems. Section views connect these operating descriptions with the components handled during repair.

Fuel-level inspection and post-installation adjustment requirements accompany the overhaul material. The lubrication-system flow diagram traces oil delivery through the engine; pressure-test information and pump inspection limits support investigation of lubrication faults.

The oil-filter section warns that incorrect filter orientation can cause serious engine damage.

PEI Ignition and Market-Specific Wiring

The electrical section provides test connections and specifications for the Suzuki PEI capacitor-discharge ignition and the charging and lighting circuits of the 6V flywheel-magneto system. Its CDI inspection chart uses tester-response patterns rather than a single resistance specification.

Ignition advance characteristics, the charging and lighting circuit diagram, and switch-continuity charts supplement the vehicle wiring diagrams. Wire-routing and cable-routing drawings provide installation references.

Troubleshooting tables link starting difficulty, poor running, clutch and shifting complaints, charging faults and chassis symptoms with possible causes and remedies. These references help organize fault checks before selecting the relevant inspection or repair section.

Forks, Steering and Drum Brakes

Chassis procedures cover fork seals and damper components, steering-stem bearings and races, and rear-suspension removal and installation. Rear-shock coverage centers on removal, mounting and suspension checks.

Wheel and brake sections provide axle and rim inspection criteria, brake-drum and lining wear limits, and sprocket-carrier bearing service. Safety is critical when servicing brakes and suspension: verify component condition and use calibrated torque wrenches during reassembly before riding.

Examples of Valve, Compression and Ignition Test Data

For cold intake and exhaust valve-clearance checks, the specified range is 0.08–0.13 mm. The compression-test section gives a standard reading of 9–14 kg/cm² with the engine warmed up and throttle fully open, and a service limit of 7 kg/cm².

The magneto inspection table lists pickup-coil resistance of approximately 160–240 Ω between the orange and green leads. This resistance check is separate from the CDI unit’s tester-response chart.
