1978 Suzuki GS750E/GS750ES Service & Repair Manual (P/N 99500-37020-03E)

This Suzuki factory service manual (P/N 99500-37020-03E) covers the 1978 Suzuki GS750E and GS750ES, including the TSCC (Twin Swirl Combustion Chamber) engine and Full-Floating rear suspension.

One English-language PDF, 279 pages total. Printed pages 1-9 through 1-12 from the general anti-dive fork explanation are missing.

• Engine repair: Engine removal, teardown and reassembly, cylinder-head servicing, camshaft timing, crankshaft bearing selection, and compression testing.
• Transmission and clutch: Wet multi-plate clutch inspection, starter-clutch service, five-speed constant-mesh transmission assembly, and shift-fork wear checks.
• Fuel and lubrication: Mikuni BS32SS carburetor disassembly, synchronization and fuel-level inspection, plus oil-pressure testing and oil-cooler circuit coverage.
• Chassis repair: Anti-dive front-fork service, Full-Floating suspension removal and adjustment, steering bearings, wheel service, and front and rear brake overhaul.
• Electrical diagnosis: Charging, ignition and starter tests, meter and switch checks, a main wiring diagram, and harness routing drawings.
• Maintenance and service data: Periodic maintenance charts, valve-clearance adjustment, component torque tables, fluid capacities, wear limits, and electrical test specifications.

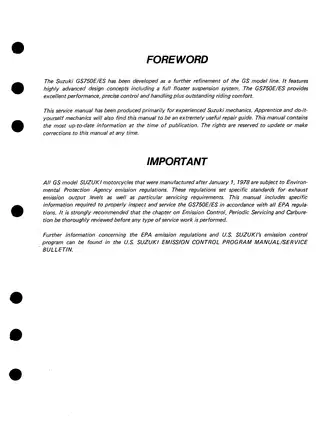

Written primarily for experienced Suzuki mechanics, this manual also serves apprentice and do-it-yourself mechanics, as described in Suzuki's foreword.

Engine Repair and Maintenance

Inspection data covers cylinder-head distortion, valve-face wear and camshaft-journal clearances, along with piston-to-cylinder clearance and ring-end gaps. TSCC section views and valve-seat profile drawings accompany the cylinder-head material.

Valve service covers direct-acting rocker arms, adjustment with tappet adjust driver 09917-14910, and valve-seat reconditioning. Camshaft installation notes explain how uneven bearing-holder tightening can damage the cylinder head or holder thrust surfaces. The automatic cam-chain tensioner has inspection and reassembly procedures.

Bottom-end repair: Plastigauge checks and bearing-selection tables link crankshaft and connecting-rod codes to bearing grades. These charts help identify the correct bearing set before a rebuild. Clutch plate inspections and shift fork-groove clearance tables support drivetrain diagnosis.

Routine maintenance covers battery care, the polyurethane foam air cleaner, clutch-cable play, throttle adjustment and drive-chain service. Spark-plug selection identifies NGK D8EA and Nippon Denso X24ES-U as standard plugs, with hotter and colder alternatives.

Mikuni Carburetors and Engine Lubrication

Carburetor ID 31300 is documented with diaphragm operation, slow and main circuits, starting enrichment, and float-height adjustment. Synchronization procedures identify carburetor balancer 09913-13121.

EPA emission-control material distinguishes close-tolerance main, needle and pilot jets and the factory-preset pilot screw. Lubrication diagrams trace piston-cooling oil jets, the pressure regulator and oil-cooler bypass. The oil pump is treated as a replacement assembly.

Anti-Dive Forks, Full-Floating Suspension and Brakes

Fork repair covers seals, bushings, modulator inspections, oil specifications and air-pressure settings. Brake procedures address twin front discs, the rear disc, calipers, master cylinders and bleeding, including trapped air in the anti-dive modulator.

Rear suspension procedures cover the cushion linkage, hydraulic spring-preload adjuster and cable-operated damping adjustment. The manual warns that incorrect seating of the damping-adjuster gear can crack it.

Tapered steering bearings, swingarm bearings and GS750ES fairing removal have dedicated service coverage. Reference tables give steering-stem, swingarm-pivot and brake-hardware torque values.

Follow the manual's safety precautions for brake hydraulics and electrical service.

Ignition, Charging and Wiring Diagnosis

Transistorized ignition documentation includes a system block diagram and electronic advance waveforms. Component tests cover the three-phase AC generator, regulator/rectifier, signal generator, igniter unit, ignition coils and starter relay.

The combination-meter inspection diagram provides connector positions and wire-color codes. Symptom-based troubleshooting charts cover engine, carburetor, electrical, battery and chassis complaints. Wire, cable, hose and pipe routing drawings support reassembly.

File Format and Readability

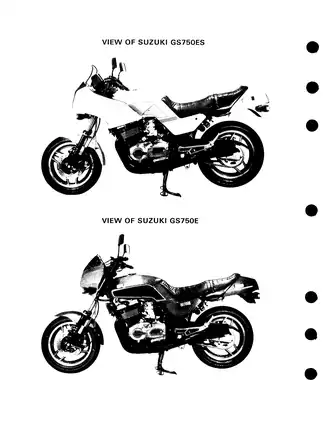

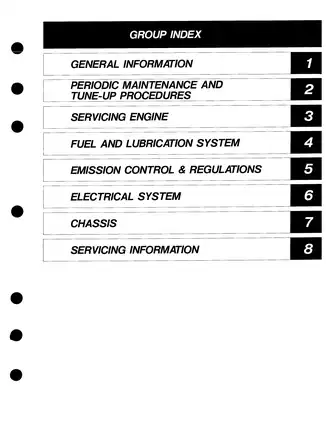

The total includes four opening pages (cover, foreword, model views and group index), eight section dividers, three blank pages and one publication page, alongside 263 numbered technical pages. No separate supplements are included.

PDF text search is not available, and there are no embedded PDF bookmarks. Small labels in the main wiring and instrument diagrams are readable when enlarged; the main wiring diagram is sideways. Horizontal image banding affects the cover.
