Suzuki GSX750F Katana 1989–1997 Service Manual (P/N 99500-37068-01E)
347 Pages • 1 Printable PDF (English) • Download
Suzuki Models Covered & Key Technical Specifications
Model & Model Code: GSX750F (GSX750FK)
Sub-models / Variants: GSX750FL, GSX750FM, GSX750FN, GSX750FP, GSX750FR, GSX750FS, GSX750FT, GSX750FV
Trade Names: Katana 750
Model Years: 1989–1997 (1989, 1990, 1991 1992, 1993, 1994, 1995, 1996, 1997)
-
Engine displacement: 748 cm³ (45.6 cu. in)
-
Engine type: Four-stroke, air-cooled with SACS, DOHC, TSCC
-
Compression ratio: 10.7:1 (GSX750FK–GSX750FT); GSX750FV: 10.3:1 (E-04, E-22, E-25, E-34, E-37), 10.7:1 (E-18, E-24), 10.9:1 (E-03, E-33)
-
Transmission: 6-speed constant mesh
-
Intake valve clearance (cold): 0.10–0.15 mm (0.004–0.006 in)
-
Exhaust valve clearance (cold): 0.18–0.23 mm (0.007–0.009 in)
-
Spark plug: NGK JR9C
-
Spark plug gap: 0.6–0.7 mm (0.024–0.028 in)
-
Fuel tank capacity: 20.0 L (5.3 US gal) for general and other markets; 18.0 L (4.8 US gal) for E-33 (California), including reserve
-
Battery: 12V 14Ah (50.4 kC)/10HR
Suzuki Manual Features & Selected Content Preview

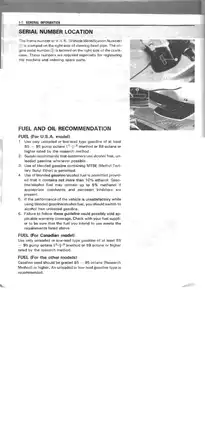

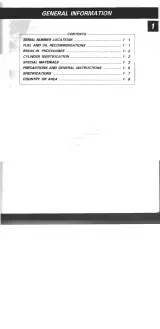

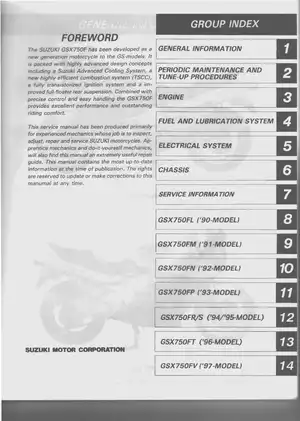

Suzuki’s factory service manual for the GSX750F Katana covers the GSX750FK (1989), with integrated update chapters for GSX750FL (1990), FM (1991), FN (1992), FP (1993), FR/S (1994–1995), FT (1996), and FV (1997). This is the English-language 8th edition, P/N 99500-37068-01E.
PDF Search, Chapter Access, and Wiring Detail

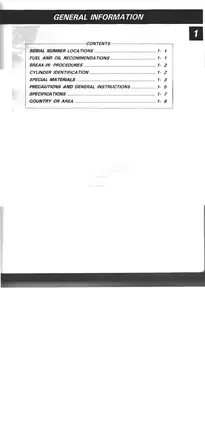

Bookmarks and small labels: PDF text search is unavailable. Embedded bookmarks open the main chapters and model updates, although “Index” returns to the cover. Dense wiring diagrams require zooming to read small component labels and wire-color codes.
One printable English PDF contains 347 pages, including two covers, three pages of introductory/publication material, and two blank pages. The model updates are included in this total.
Engine Overhaul, SACS Service, and Electrical Diagnosis
The following selected contents outline the repair coverage. Further topics include cylinder identification and lubrication-point drawings.
-

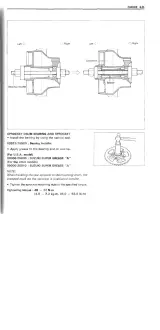

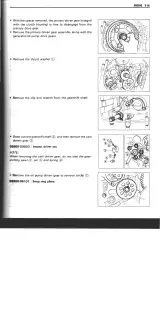

Engine repair: Step-by-step engine removal, disassembly, inspection, and reassembly, including the cylinder head, valves, camshafts, cam chain, pistons, connecting rods, and crankshaft.
-
Transmission and clutch: Internal gearbox service, shift-mechanism inspection, clutch disassembly, plate and spring checks, and reassembly procedures.
-

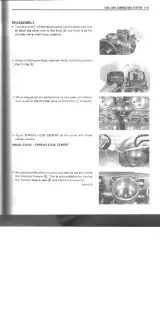

Fuel system: Mikuni BST36SS carburetor teardown, float adjustment, and synchronization, plus fuel-tank, fuel-cock, and fuel-level-sender service.
-
Lubrication and SACS: Oil-pressure testing, oil-pump inspection, filtration and relief-valve service, oil-cooler service, and cylinder-head cooling documentation.
-
Chassis overhaul: Fairing removal, wheel and tire service, brake-caliper and master-cylinder overhaul, bleeding, fork rebuilding, steering-head service, swingarm and linkage work, and rear-shock inspection.
-
Electrical diagnosis: Charging, digital-ignition, starter, side-stand interlock, meter, lighting, switch, relay, and battery tests, with troubleshooting charts and regional wiring diagrams.
-
Maintenance and reference data: Valve-clearance adjustment, drive-chain care, steering and suspension checks, component torque tables, clearances, wear limits, capacities, and electrical test specifications.
Suzuki produced this manual primarily for experienced mechanics and also identifies apprentice and do-it-yourself mechanics as users; deeper overhaul work assumes suitable measuring equipment, specialty tools, and workshop experience.
Engine Inspection and Reassembly
The in-frame service table helps plan which work on the four-cylinder DOHC/TSCC engine requires removal. Compression-testing guidance connects readings with possible cylinder, piston-ring, valve-seating, and head-gasket faults when assessing overhaul needs.
Cylinder-head work extends to valve-guide replacement and valve-seat cutting. Camshaft-journal clearance checks and piston/cylinder inspection accompany color-coded connecting-rod and crankshaft bearing selection, including thrust-clearance adjustment.
Transmission-shaft disassembly and gearshift-fork/groove inspection provide the internal checks behind the gearbox procedures. Clutch inspection distinguishes plate wear and distortion from spring or release-bearing faults.
The manual warns that unevenly drawing down the camshaft journal holders can damage the cylinder-head and holder thrust surfaces.
Carburetor Circuits and Oil Flow
The diaphragm-and-piston, slow, main, starter, and float-system explanations put carburetor faults in context. Workshop coverage includes needle-valve inspection, float setting, reassembly, balancer-gauge calibration, and four-carb synchronization.
Oil-pressure troubleshooting separates possible filter, seal, pump, oil-passage, and oil-grade problems. The engine lubrication system chart and cylinder-head cooling system chart trace the circuits; related material covers the oil sump filter, relief valve, and oil cooler.
Suspension, Brakes, and Market Updates
Specifications distinguish the FK/FL full-floating rear suspension, FM–FP New-Link arrangement, and FR–FV link-type system. Regional carburetor and chassis data remain separated by Suzuki market code, helping match specifications and procedures to the applicable configuration.
The FT chapter documents the lighter signal-generator rotor, revised ignitor-checker leads, and throttle-position-sensor inspection for models other than U.S., Canadian, and Australian versions. It includes three market-specific wiring diagrams and fuel-system hose routing.
FV material adds market-specific four-way front-fork rebound-damping settings and air-cleaner water-drain-hose routing. Its compression-ratio specifications also differ by market.
Rear-shock coverage concerns inspection and replacement of defective units; swingarm and linkage procedures include bearing service and final suspension adjustment. The brake-fluid warning explains that silicone- or petroleum-based fluids can damage the brake system designed for glycol-based fluid.
Circuit References and Workshop Tools
The digital-ignitor block diagram, starter-system diagram, and side-stand/ignition interlock circuit supplement the regional wiring diagrams. Routing drawings locate the main harness, ignition leads, control cables, brake hoses, battery breather, fuel and vacuum hoses, oil-cooler hoses, and drain lines.
Suzuki tool references include carburetor balancer 09913-13121, compression gauge 09915-64510, and oil-pressure gauge 09915-74510 with attachment 09915-74540. The listings also identify digital ignitor checker 09931-64410 and fork-oil-level gauge 09943-74111.
Engine removal, fuel work, brake service, and tire procedures require secure support, ventilation, and the safety practices stated in the manual.
Oil-Pressure and Carburetor Specification Preview
For the base GSX750FK, the oil-pressure specification is above 300 kPa and below 600 kPa at 3,000 rpm with oil at 60°C (140°F).
Its Mikuni BST36SS float-height specification is 14.6 ± 1.0 mm at initial needle contact, without compressing the needle-valve spring. The carburetor section explains the associated inspection and adjustment.
