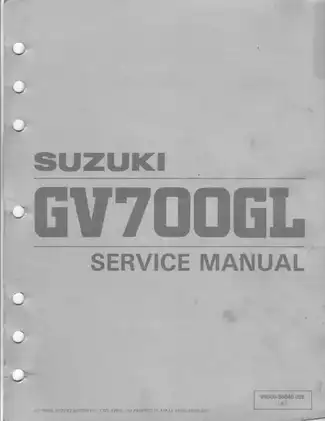

Suzuki GV700GL Madura 1984 Factory Service Manual (P/N 99500-36040-03E)

303 Pages • Printable PDF • 124.43 MB • Download

4.7starstarstarstarstar_half(3)
$17.49 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Suzuki Models Covered & Key Technical Specifications

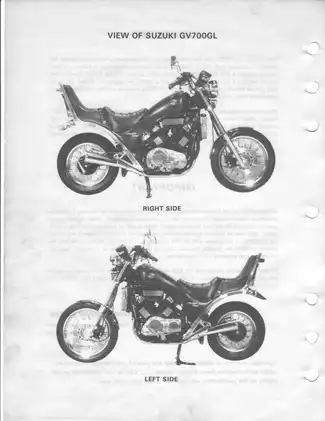

Model: GV700GL Madura

Model Year: 1984


  • Engine: Four-stroke, water-cooled, DOHC, TSCC, 82-degree V-four

  • Engine displacement: 698 cm³ (42.6 cu in)

  • Bore: 69.0 mm (2.717 in)

  • Stroke: 46.7 mm (1.839 in)

  • Transmission: 6-speed constant mesh, shaft drive

  • Clutch: Wet multi-plate, hydraulically operated

  • Carburetor: MIKUNI BDS33

  • Wheelbase: 1,575 mm (62.0 in)

  • Dry mass: 228 kg (503 lbs)

  • Fuel capacity: 13.0 L (3.4 US gal)

Suzuki Manual Features & Selected Content Preview

Suzuki's factory service manual for the GV700GL Madura, P/N 99500-36040-03E, was prepared by Suzuki Motor Co., Ltd.'s Service Publications Department and issued in April 1984.

PDF Search, Diagram Detail, and Page Count

Search and wiring detail: PDF text search and embedded bookmarks are not available. Small wire-color labels in the revised wiring diagram require zooming.

One printable PDF contains 303 pages, including four preliminary pages (cover, foreword, vehicle views, and group index) and the closing publication page.


Engine Overhaul, Shaft Drive, and System Diagnosis

The following selected coverage highlights outline the main repair areas rather than reproduce the complete contents. Further topics include spark-plug selection and air-cleaner servicing.

  • Engine overhaul: Compression testing and step-by-step engine removal, disassembly, inspection, and reassembly, with cylinder-head repair, hydraulic lash adjusters, camshaft timing, pistons and rings, bearings, clutch service, and transmission-shaft repair.

  • Shaft-drive setup: Secondary bevel gears, propeller shaft, and final gear case removal and reassembly, including bearing preload, shim selection, backlash measurement, and tooth-contact correction.

  • Fuel and emissions: Fuel-pump and relay tests, Mikuni BDS33SS carburetor teardown, float and fuel-level adjustment, synchronization, and emission-control servicing requirements.

  • Cooling and lubrication: Cooling-system leak and pressure checks, radiator-cap and thermostat testing, water-pump repair, fan-circuit diagnosis, oil-pressure checks, and sump-filter service.

  • Electrical diagnosis: AC generator, regulator/rectifier, transistorized ignition, signal generator, ignitor, starter motor and relay, instruments, switches, battery, and the revised full-system wiring diagram.

  • Chassis and scheduled service: Factory maintenance schedule, wheel and brake repair, brake and clutch master-cylinder rebuilding and bleeding, front-fork overhaul, steering-stem bearings, rear suspension, and swingarm service.

Suzuki wrote this manual primarily for experienced mechanics; apprentices and do-it-yourself mechanics can also use it as a repair guide, with the specified tools and precision measuring equipment.

Cylinder Heads, Bearings, and Transmission

The engine material distinguishes the front and rear cylinder banks and identifies the four camshafts by their E, F, G, and H markings. Cylinder and piston inspection, valve-seat cutting, valve-guide replacement, and connecting-rod and crankshaft-journal bearing selection have their own procedures.

Internal setup: Plastigage checks and code-based bearing selection are supplemented by a separate thrust-bearing selection process. Transmission coverage extends to shaft disassembly, gear installation, and shifting-fork inspection; engine reassembly addresses timing chains, oil jets, seals, retainers, and specified locking compounds.

The hydraulic lash-adjuster section warns that an incorrect bleeding fluid can cause engine damage and specifies kerosene. Valve-guide installation cautions identify the risk of damaging the guide or cylinder head when the guide bore is dry.

Oil-pump replacement: Suzuki warns that dismantling the thread-locked pump assembly may damage its screws; only the complete pump unit is supplied for replacement.

Bevel-Gear Adjustment and Drive Layouts

Secondary and final drive/driven bevel gears are treated as matched pairs. The adjustment sections explain the relationship between bearing preload, shim thickness, backlash, and tooth contact, including the need to recheck backlash after correcting the contact pattern.

The Secondary Bevel Gears Construction, Propeller Shaft Construction, and Final Gear Case Breather Circuit illustrations show the assemblies and the final case's separate air and oil passages.

Carburetors, Cooling, and Electrical Fault Finding

Carburetor setup: The Carburetor Construction drawings and circuit explanations cover variable-venturi operation and the slow, main, starter, and float systems. Synchronization includes balancer calibration. The emissions section distinguishes close-tolerance jets from standard replacements and identifies the sealed, factory-preset pilot-screw setting.

Cooling and lubrication diagnosis: Separate checks address the fan thermo-switch, fan relay, temperature sensor, and gauge. The Lubrication System Chart traces oil routing, while the oil-pressure section links abnormal readings to possible filter, passage, seal, or pump faults.

Electrical testing: Generator output and stator checks accompany regulator/rectifier resistance tables. Ignition diagnosis includes pocket-tester and dedicated ignitor-checker methods. Starter inspection covers brushes, commutator, armature, seals, and relay, alongside indicator-circuit and switch-continuity tests.

Chassis Procedures and Workshop References

Front-brake coverage includes caliper and master-cylinder rebuilding; the rear-brake procedures address shoes, cam, and drum inspection. Full-Floater rear-suspension material covers the cushion lever and rod, bearings, and swingarm. Separate cable, main-harness, brake-hose, clutch-hose, water-hose, and secondary-gearcase breather routing plates support correct reinstallation.

Tools: The 82-item special-tool catalog supplies factory part numbers and flags tools unavailable in the USA at publication. Examples include lash-adjuster air-bleeding tool 09913-10710, carburetor balancer 09913-13121 with adapter 09915-94511, backlash measuring tool 09924-34510, and fork-oil-seal installer 09940-50112. The ignition chapter separately specifies ignitor checker 09930-70710.

Troubleshooting and service data: Symptom/cause/remedy charts cover the engine, shaft drive, carburetors, radiator, charging and starting systems, battery, chassis, and brakes. For a hard-start complaint, they distinguish compression, ignition, and fuel-supply causes so the next diagnostic check can be selected before teardown.

The closing reference section consolidates component-specific torque tables, approved fluids and capacities, wear limits, clearances, bearing and shim data, carburetor settings, and electrical test specifications.

Engine removal, wheel and suspension repair, hot cooling-system service, gasoline handling, and hydraulic brake or clutch work require stable support, proper shop equipment, and close adherence to the factory warnings.

A Preview of Thermostat Test Specifications

For thermostat bench testing, the manual specifies a start-to-open temperature of 75.0 ± 1.5°C. Its separate valve-lift specification is over 8.0 mm at a water temperature of 90°C, distinguishing the opening-temperature check from the lift measurement.
