1998-2002 Yamaha YZF-R1 Service Manual (932 P.)
Complete factory maintenance guide covering engine, carburetor, cooling, chassis, electrical systems and comprehensive repair procedures with specifications, torque values, and detailed diagrams.
Manual Preview

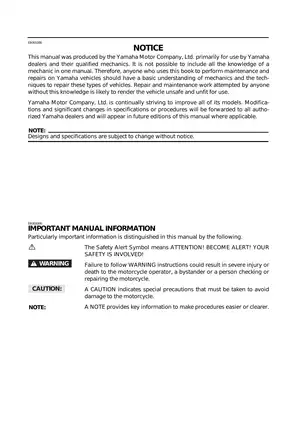

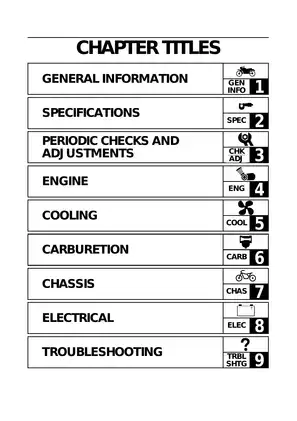

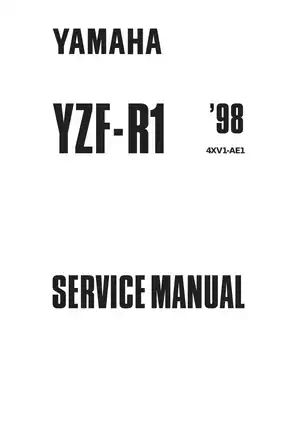

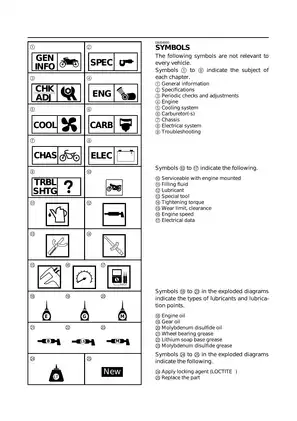

Sample pages from the 1998-2002 Yamaha YZF-R1 Service Manual (932 P.) manual
Purchase & Download
Models Covered & Key Technical Specifications
Yamaha YZF-R1 (1998–2002) — 1998–2002 Systematic Sourcebook | YZF-R1 Series Packet.
- Engineered Thermal Rating: 1,050 ~ 1,150 r/min is calibrated to the engine idling speed Architecture.
- Factory Feed Speed: For optimal carburetor performance, the fuel tank capacity reaches 18 L (including reserve at 5.5 L) Configuration.
- Verified Footprint Data: Displacement specifications measure 998 cm³ as the liquid-cooled DOHC engine volume Benchmarks.
- Certified Securement Values: The compression ratio supports 11.8:1 for standard combustion chamber pressure Range.
- Designated Clearance Data: Intake valve gap is specified as 0.11 ~ 0.20 mm for cold engine valve clearance Sequences.
- Integral Climate Parameters: Oil pressure is rated at 45 kPa at 1,100 r/min (0.45 kgf/cm²) for engine lubrication Baseline.
Professional Workshop Service Manual & Technical Specifications
Standard Field Manual: Motorcycle Factory-Grade Maintenance: Yamaha YZF-R1 (1998-2002) Standards-Vault
Documentation-Type: Yamaha YZF-R1 1998-2002 // Machine-Range: Motorcycle Factory-Grade Maintenance / Four-Cylinder Systems Logic // Application-Range: 950-page technical documentation with wiring diagrams and component specifications.
| Document Coverage | Chapter Focus | Documentation Provided |
|---|---|---|
| Engine Systems | Camshafts, cylinder head, valves, crankshaft, transmission | Complete specifications and reference data |
| Chassis Assembly | Wheels, brakes, suspension, steering head, swingarm | Wear limits and adjustment reference data |
| Electrical Circuits | Ignition, charging, starting, lighting, fuel pump systems | Wiring diagrams and circuit operation data |
Technical units are distributed across engine overhaul procedures, cooling system architecture, carburetor assembly sequences, and chassis component removal protocols. The document incorporates timing chain tensioner operation, oil flow diagrams, transmission gear specifications, and brake system hydraulic data. Fuel system procedures are documented for float chamber measurement, fuel level adjustment parameters, and pump circuit operation. Adjustment procedures are detailed for valve clearance, throttle cable tension, spark plug gap, and front fork preload. Timing procedures are documented for ignition system verification, crankshaft positioning at TDC, and camshaft alignment marks. Technical notes are provided for piston ring installation, bearing clearance verification, and clutch plate measurements throughout the transmission section.
The manual provides wiring diagrams for ignition, electrical starting, charging systems, lighting circuits, signaling relay operation, cooling fan control, and fuel pump activation logic. Electrical troubleshooting sequences include switch continuity checks, ignitor unit verification, alternator output confirmation, and fuse continuity testing across all vehicle circuits. Component specifications reference transmission gear ratios, compression pressure limits, oil delivery passages, bearing color codes, and connector terminal identification. Lubrication points and lubricant types are catalogued for engine components, chassis mechanisms, and suspension assemblies throughout the service schedule documentation.
The documentation is partitioned into general information, specification tables, periodic maintenance intervals, engine disassembly and reassembly procedures, cooling system architecture, carburetor tuning parameters, chassis structural and mechanical systems, and comprehensive electrical circuit operation. Safety instructions and caution statements accompany all procedures requiring special tools or high-temperature component handling. The manual documents torque specifications for the fastener assemblies to ensure proper assembly stress control. Exploded diagrams accompany component removal sequences, enabling identification of mated parts that require replacement as assemblies rather than individually.
