Polaris 2005 XC SP 500/600/700/800 & 900 Fusion Snowmobile Performance Service Manual (P/N 9919303)

320 Pages • 1 Printable PDF (English) • Download

4.3starstarstarstarstar_border(3)
$17.97 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Polaris Models Covered & Key Technical Specifications

500 XC SP, 600 XC SP, 700 XC SP, 800 XC SP, 900 Fusion


Models & Model Codes:

500 XC SP — S05NE(P)5CS(A,B) (engine S2715-5044-PI5C)

600 XC SP — S05N(A,E,P)6E(E,S)(A,B) (engine S2761-6044-PI6E)

700 XC SP — S05N(E,P)7CS(A,B) (engine S2469-7070-PR7C)

800 XC SP — S05N(E,P)8CS(A,B) (engine S2774-8070-PI8C)

900 Fusion — S05MP8D(E,S)(A,B,C) (engine S2883-8686-PI8D)

Sub-models / Variants: Edge, M-10, IQ; 600 XC SP 50th Anniversary

Trade Names: Liberty

Model Year: 2005


  • Engine displacement: 500 cc, 599 cc, 701 cc, 794 cc, 866 cc

  • Engine type: 2-cylinder, 2-stroke Liberty

  • Fuel system: Mikuni TM38 carburetor (500/600 XC SP), Mikuni TM40 carburetor (700/800 XC SP), or Clean Fire Injection (900 Fusion)

  • Drive system: P-85 drive clutch on all models. Team Roller Reverse driven clutch on 500/600/700/800 XC SP and TEAM driven clutch on 900 Fusion. Electronic reverse on all models.

  • Track dimensions: 15 in width by 121 in length

  • Fuel capacity: 500 XC SP: 11.8 gal (44.7 l); 600/700/800 XC SP: 11.8 gal (45 l); 900 Fusion: 10.8 gal (40.9 l)

  • Coolant capacity: 5.2–6.7 qts (4.9–6.3 l)

Polaris Manual Features & Selected Content Preview

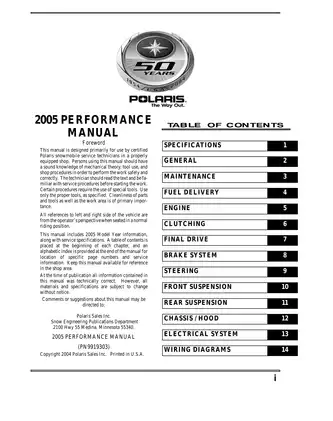

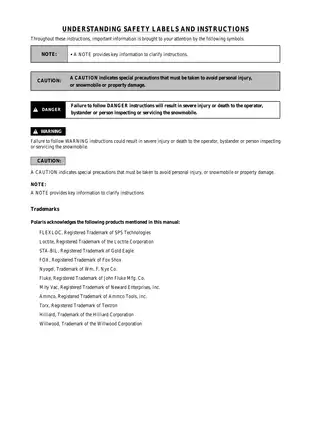

The 2005 Polaris Performance Service Manual (P/N 9919303), copyright 2004, covers the 500 XC SP, 600 XC SP, 700 XC SP, 800 XC SP, and 900 Fusion. It includes service procedures for the EDGE-chassis XC SP models with carbureted Liberty engines and the IQ-chassis Fusion with Clean Fire Injection.

PDF Bookmarks, Search, and Wiring Diagrams

Finding service information: The service text is searchable, and embedded bookmarks open chapters and individual topics. Wiring labels are image-based and require zooming. The earlier PRO-X/PRO-X2 diagram on the Chapter 14 opener remains faint even when enlarged.

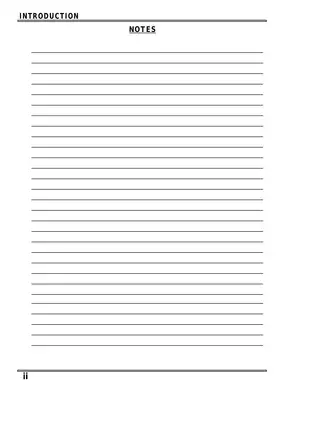

The download is one printable, English-language PDF with 320 pages, including the front and back covers, 11 notes pages, and the five-page index.


Liberty Engine, Drivetrain, and Chassis Service

The topics below are a selection from the manual. The chassis chapter also covers EDGE and Fusion hood removal and installation, plus decal removal and application.

  • Engine repair: Engine removal, crankcase disassembly and assembly, piston and cylinder inspection, crankshaft indexing and truing, and oil- and water-pump service.

  • Fuel delivery: Mikuni TM carburetor rebuilding, throttle synchronization, jetting charts, and fuel-system troubleshooting, plus Fusion fuel-rail, injector, and throttle position sensor (TPS) procedures.

  • Clutching and final drive: P-85 inspection and spider indexing, TEAM driven-clutch service, belt diagnosis, clutch alignment, chaincase bearing work, and jackshaft and drive shaft removal.

  • Brakes and steering: Hydraulic brake bleeding, Hayes master-cylinder cartridge replacement, brake-pad service, spindle bushing replacement, camber adjustment, and ski alignment.

  • Suspension: EDGE and M-10 setup, rear suspension removal, Hi-Fax replacement, shock-valving charts, and rebuilding procedures for FOX, Ryde FX, and Walker Evans shocks.

  • Electrical diagnosis: Ignition and starting-system tests, Fusion sensor specifications, ECU connector tables, Digital Wrench connections, and wiring diagrams for the XC SP and Fusion.

Polaris wrote this manual primarily for certified snowmobile service technicians. The procedures assume mechanical knowledge, experience with service tools, and a properly equipped shop.

Liberty Engine Inspection and Repair

Separate sections for the small-block, large-block, and Fusion engines cover stator and recoil starter removal, crankcase separation, piston installation, and pump components. The general cylinder inspection chapter distinguishes light deglazing of Nikasil cylinders from oversize honing for 340 and 500 Fuji engines.

Crankshaft indexing, bearing inspection, and truing help diagnose vibration and recurring problems in the same cylinder. The engine chapter includes illustrated torque patterns.

Cooling and lubrication topics include thermostat replacement, cooling-system bleeding, oil-pump adjustment, and Fusion oil-line bleeding. The maintenance chapter also covers recoil starter service and separate EDGE and IQ exhaust-valve procedures.

Carburetor Jetting and Fusion Fuel Injection

The Mikuni TM38/40 exploded view identifies the carburetor components, and the jetting charts account for temperature and altitude. Troubleshooting by symptom and throttle opening helps narrow a fault to the pilot circuit, main jet, or fuel supply.

Fusion procedures cover rail pressure testing and depressurization with gauge PV-43506-A, matching color-coded injectors to the ECU, and TPS testing with kit 2201519. A failed in-tank fuel pump calls for replacement of the complete tank assembly.

Clutch Calibration and Chaincase Service

Spring and shift-weight tables, helix data, and torque-stop adjustment cover clutch calibration. The P-85 exploded view and chaincase assembly drawing identify the components involved in clutch and final-drive service.

Polaris specifies trained, authorized service personnel and the designated tools for clutch repairs. The drive-clutch removal section warns that impact-wrench use can damage the clutch or crankshaft.

Brake, Steering, and Suspension Work

The Hayes master-cylinder section identifies cartridge, lever, and parking-brake components. The brake chapter specifies DOT 4 fluid for the Fusion.

Steering procedures cover spindle centering, rod-end engagement, camber, toe, and IQ control-arm replacement. EDGE and M-10 suspension troubleshooting addresses bottoming, harsh ride, darting, and steering behavior.

Shock coverage includes production valving, internal floating piston settings, inspection criteria, and rebuild procedures for FOX monotube and remote-reservoir shocks, Ryde FX shocks, and Walker Evans shocks. The FOX remote-reservoir section warns that excessive locknut torque can damage the piston valves. The manual includes safety precautions for fuel, brake, and nitrogen-charged shock service.

Electrical Tests and Wiring References

No-spark and incorrect-timing charts accompany starter, charging, switch, and TPS tests. Fusion coverage adds detonation control, crank-position sensing, exhaust-valve solenoid operation, and ECU pin assignments.

The electrical chapter identifies ECU Plug #2 and the Digital Wrench connections for diagnostics, ECU power, lighting tests, and fuel-pump priming. Separate Fusion wiring sheets cover the hood and chassis. Engine illustrations include an oil- and water-pump cross section.

Sample Water-Pump Belt and Fuel-Pressure Specs

For the 700 and 800 Liberty water-pump belt, nominal new width is 0.345 in (8.75 mm). The replacement limit is a width below 0.250 in (6.35 mm) at any point on the belt. The same section covers belt condition and deflection testing.

For the 900 Fusion, the fuel-pump diagnostic section gives 4 bar (58 psi) as the expected fuel-rail pressure with the pump running.
