Nissan Models Covered & Key Technical Specifications

Models: Patrol, Ford Maverick

Sub-models / Variants: GQ, Wagon, Hardtop, Utility, Cab-chassis, 4WD

Engine / Transmission Variants: 3.0-liter carbureted gasoline (RB30S, FS5R30A 5-speed manual), 4.2-liter carbureted gasoline (TB42S), 4.2-liter fuel-injected gasoline (TB42E), 4.2-liter diesel. The 4.2-liter manual transmission variants are FN4R50A (4-speed) and FS5R50A (5-speed). Automatic-equipped models use the RE4R03A 4-speed automatic. Transfer case: TX12A.

Model Years: 1987–1997 (1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997)


  • Engine Displacement: 2962 cc (3.0-liter gasoline), 4169 cc (4.2-liter gasoline and diesel)

  • Alternator Output: 50 A maximum (Type 1), 60 A maximum (Type 2)

  • Piston Skirt-to-Cylinder Wall Clearance: 0.015–0.035 mm (3.0- and 4.2-liter gasoline), 0.05–0.07 mm (4.2-liter diesel)

Nissan Manual Features & Selected Content Preview

This Haynes repair manual (P/N 72760) covers the Australian Nissan Patrol GQ Y60 and Ford Maverick 4WD. It includes two-door hardtops, four-door wagons, utilities, and cab-chassis models with the 3.0-liter carbureted gasoline, 4.2-liter carbureted or fuel-injected gasoline, or 4.2-liter diesel inline-six.

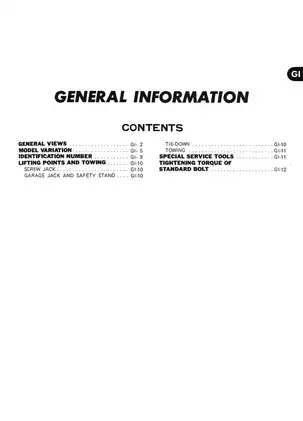

Printable Scans and Chapter Index

Text search and navigation: The scans have no searchable text or PDF bookmarks. Use the printed table of contents and the separate index to locate procedures. Zoom in to read small wire-color codes and component labels on the wiring diagrams.

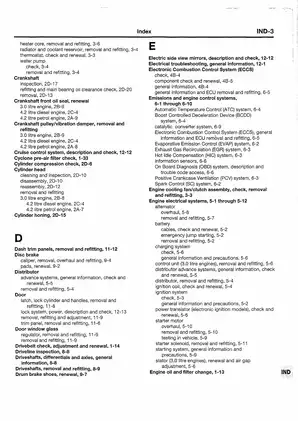

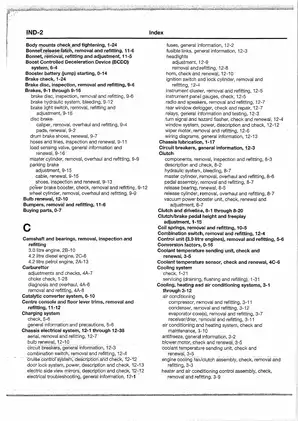

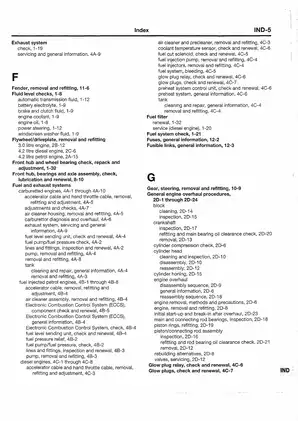

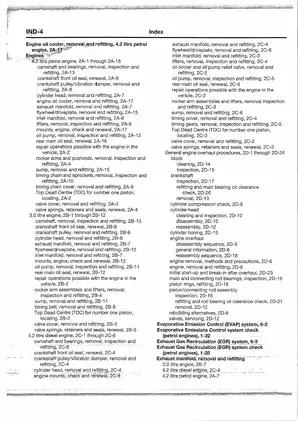

The ZIP contains 302 pages across 14 printable PDFs. It includes a 24-page introductory section, 270 pages across 12 chapter files, and an 8-page index. The total includes the table of contents and eight notes pages.


Maintenance, Diagnostics, and Repair Coverage

This selected overview highlights the main workshop jobs. The manual also covers cooling, air conditioning, and removable body components.

  • Routine maintenance: Follow scheduled fluid and filter service, valve and ignition adjustments, front hub bearing service, and timing belt replacement for the applicable engine.

  • Engine repair: Find in-vehicle procedures and overhaul instructions for cylinder heads, valves, pistons, bearings, oil pumps, and belt-, chain-, or gear-driven timing systems.

  • Fuel and emissions: Diagnose Nikki carburetor faults, test ECCS fuel injection, retrieve ECU trouble codes, and check diesel fuel delivery and glow plug operation.

  • Transmission and driveline: Remove and refit transmissions, overhaul the FS5R30A and FS5R50A manuals, and service clutch hydraulics, driveshafts, locking hubs, and axles.

  • Brakes, steering, and suspension: Overhaul calipers and wheel cylinders, bleed brake hydraulics, service the load-sensing valve, and work on coil- or leaf-spring suspension.

  • Electrical troubleshooting: Trace starting, charging, ignition, and engine-control circuits alongside diagrams for lighting, climate control, power windows, locks, and wipers.

The manual suits DIY owners handling routine maintenance and experienced mechanics tackling engine or drivetrain work with suitable lifting and measuring equipment. It identifies jobs that require specialist tools or a properly equipped shop.

Engine Diagnosis and Overhaul

Compression testing and gasoline-engine vacuum checks help narrow down the source of poor running before teardown. The overhaul chapter then covers crankshaft and bearing inspection, cylinder honing, piston-ring fitting, and initial startup and break-in. It explains how insufficient ring end gap can damage the engine when the rings expand.

Carburetion, ECCS, and Diesel Injection

The Nikki carburetor procedures cover diagnosis, adjustment, and overhaul. The fuel-injected 4.2-liter section covers fuel-pressure checks, sensors, and injectors, while the emissions chapter adds vacuum-hose routing, ECU trouble-code charts, and checks for EVAP, EGR, PCV, spark control, and related systems.

Diesel procedures cover injection pump removal, refitting and timing, fuel-system bleeding, and checks of the fuel-cut solenoid and glow plug controls. Internal injection pump repairs are referred to a diesel specialist.

Transmission, Transfer Case, and Axles

The five-speed manual transmission procedures include exploded views, disassembly, gear end-play and synchronizer checks, and reassembly. The manual identifies tools J-26349-3 and J-34328 for transmission assembly and separate tools for semi-floating and full-floating rear axle work.

RE4R03A automatic coverage is limited to diagnosis, linkage and inhibitor-switch adjustment, seals, mounts, and removal and refitting. TX12A coverage includes external service and removal and refitting, with internal overhaul referred to a suitably equipped shop.

The manual separates transfer-case lubricant requirements at the October 1991 production change and clutch housing fasteners for the 3.0-liter manual transmission at the October 1994 change. In the differential pinion-seal procedure, it explains why excess bearing preload can require a replacement spacer.

Brakes, Steering, Climate Control, and Body

Brake procedures cover front discs, rear discs or drums, hydraulic components, the vacuum booster, and the transfer-case-mounted parking brake. The specifications distinguish brake booster configurations at the August 1995 production change. Steering coverage includes steering gear removal and power steering bleeding, and the suspension chapter covers rear stabilizer release adjustment where fitted.

The climate-control chapter distinguishes R-12 and R-134a systems and covers rear air conditioning where fitted. Body work covers minor damage and removable parts such as doors, fenders, tailgates, glass, trim, seats, and the instrument panel. Major structural repairs are referred to a body shop.

Selected Compression Specifications

The overhaul chapter lists standard cylinder compression of 1,177 kPa for the 4.2-liter gasoline engine and 2,942 kPa for the 4.2-liter diesel. The separate references help you interpret gauge readings against the correct engine specification during a compression check.
